Fiamma Carry-Bike UL

Fiamma Carry-Bike UL

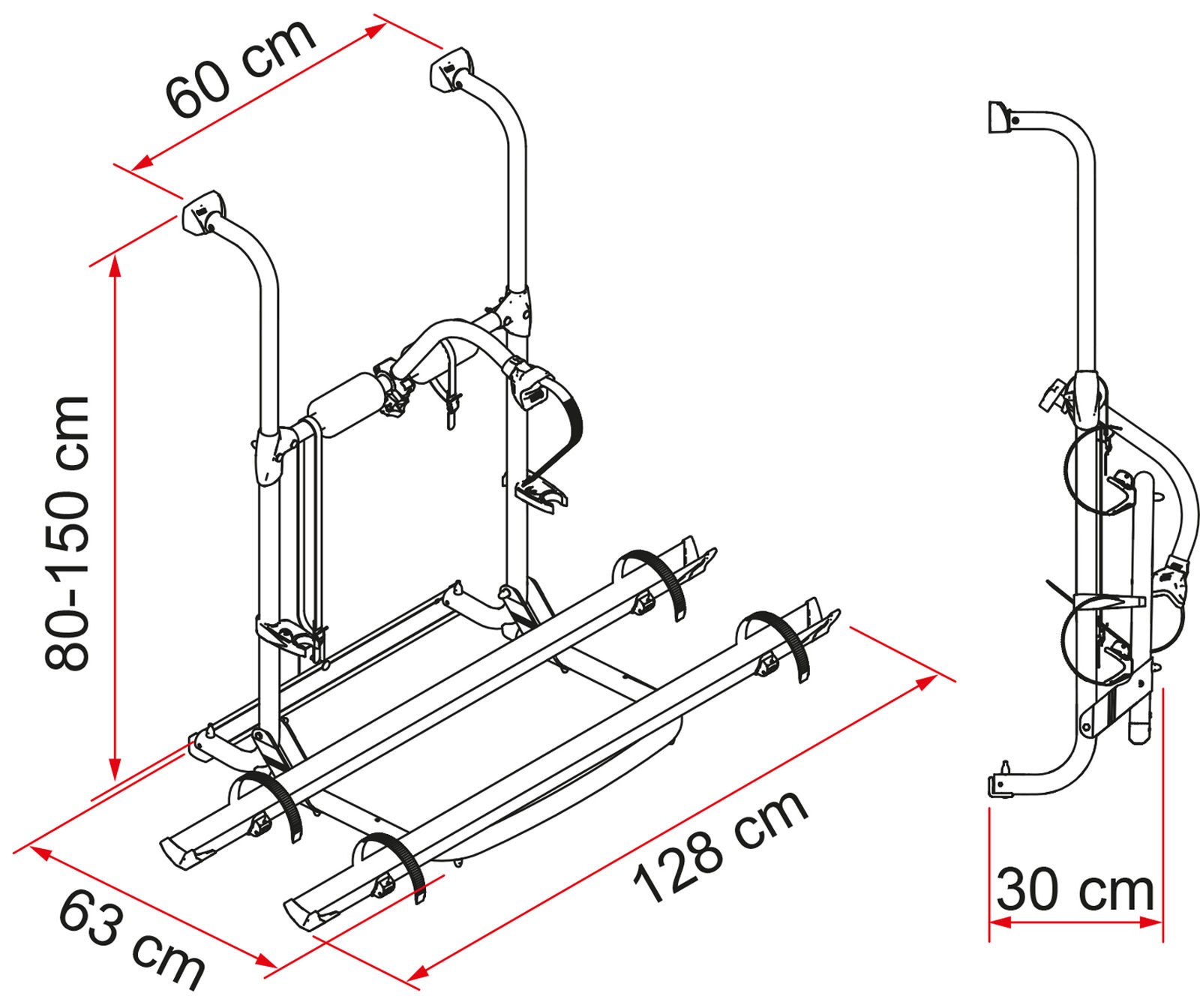

Carry Bike UL 2 bike carrier for motorhomes Carry Bike UL Dimensions Fiamma Carry-Bike UL dimensions Upgrade kit includes bike rail and blocker clamp
SKU: 02093B86A
R.R.P.: £225.61
save 27%
£163.96 Inc. VAT

£0.00£0.00
    Cancel OK

    3rd Bike Upgrade?

    Select ALL items to add 3rd bike
    Quantity
    Usually Dispatched in1 working day

    Strong, Inexpensive and Compact line of Fiamma Carry-Bike

    Strong, affordable bike rack to fit to the rear of coach-built motorhomes, the light anodized aluminium structure is telescopic and adjustable from 80 to 150 cm. The Fiamma Carry Bike UL carries 2 bikes as standard with the option to upgrade to 3 bikes with additional purchase.

    The Carry-Bike L series are 'bolt-through-wall' installation bikes racks. The tall and highly adjustable frame size of the Carry Bike UL mean it is very stable and can be adjusted so installation brackets can be worked around almost any obstruction in the motorhome wall.


    Features

    Fiamma Carry-Bikes use the highest quality anodized aluminium rounded tubes and are manufactured using only long-life stainless steel screws.

    Rack Holder secures the bike carrying tray in the upright position when you are not carrying bikes.

    Quick Lock is delivered as standard with Quick Safe straps to quickly and safely lock the wheels of the bike on the carrier rail. The Quick Lock strap is easy to release and doesn't involve fiddly straps of ties.

    Easy Position system allows you to off-set the bike rails on the Carry Bike to make it easier to fit the bikes on the carrier without pedals and handle bars clashing.

    Bike Block Pro arms grip the bike frame securely. They are easy to fit, anti-scratch and secure.


    Compatibility

    The Carry Bike UL is for motorhomes without pre-existing mounting brackets and is supplied with all required mountings and fixings.

    Carry Bike UL has upper fixing brackets which are 60cm apart and a lower fixing rail. It is suitable for installation on motorhome with vertical distance between upper and lower mountings between 80 and 150cm apart.

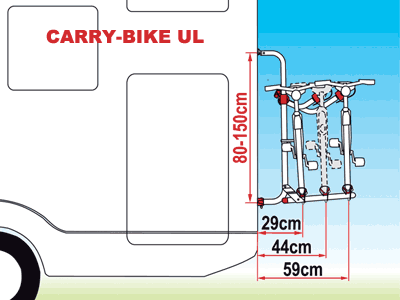

    Fiamma Carry Bike UL installation space

    Specification

    Model Max Load Bikes Standard Max. Bikes Carry-Bike
    Weight
    Carry Bike UL 55 kg 2 bikes 3 bikes 5.6 kg

    Equipment & Options

    Standard Equipment

    • 2 x Rail Quick 128 bike supports
    • 1 x Strip Red bike frame holder
    • 1 x Bike Block Pro 3 bike frame holder
    • 2 x Rack Holders
    • 1 x Security Strip
    • Installation kit

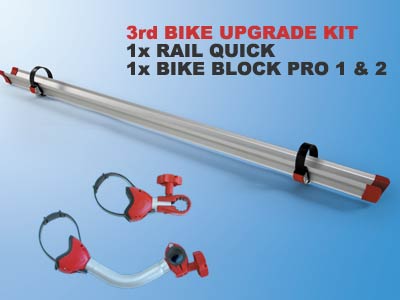

    Optional 3rd Bike Upgrade Kit

    • 1 x Rail Quick 128 bike support
    • 1 x Bike Block Pro 1 bike frame holder
    • 1 x Bike Block pro 2 bike frame holder

    Downloads

    Click to download Fiamma Carry Bike UL Fitting Instructions
    For Vehicle Type Motorhome
    Fitting Position Rear Wall Fitting
    Bikes Standard 2
    Bikes Max 3
    E-Bike Compatible Option
    Fitting Notes Bolt through wall installation. Check access inside wall for fittings.
    Min. Vertical Fitting Distance (cm) 80
    Max. Vertical Fitting Distance (cm) 150
    Bike Rack Fits Within...(cm) 80
    Bike Rack Fits Over ...(cm) 150
    Weight Capacity (kg) 55
    Weight 5.60 kgs
    Manufacturers Part Number 02093B86A
