Fiamma Carry-Bike UL 48

Fiamma Carry-Bike UL 48

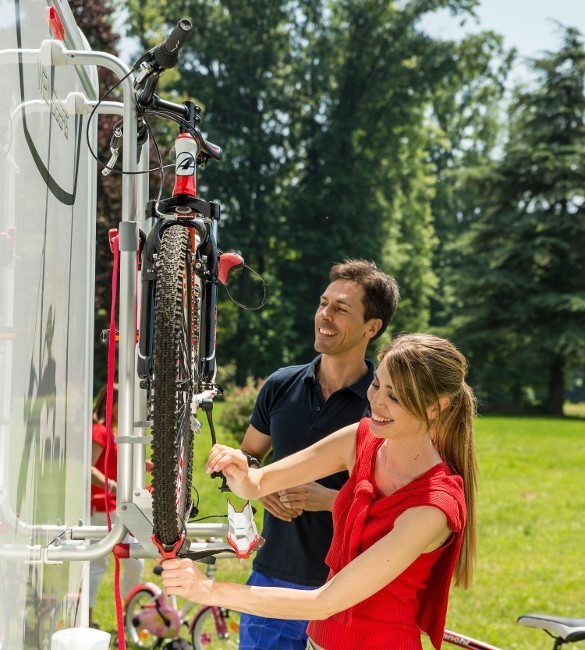

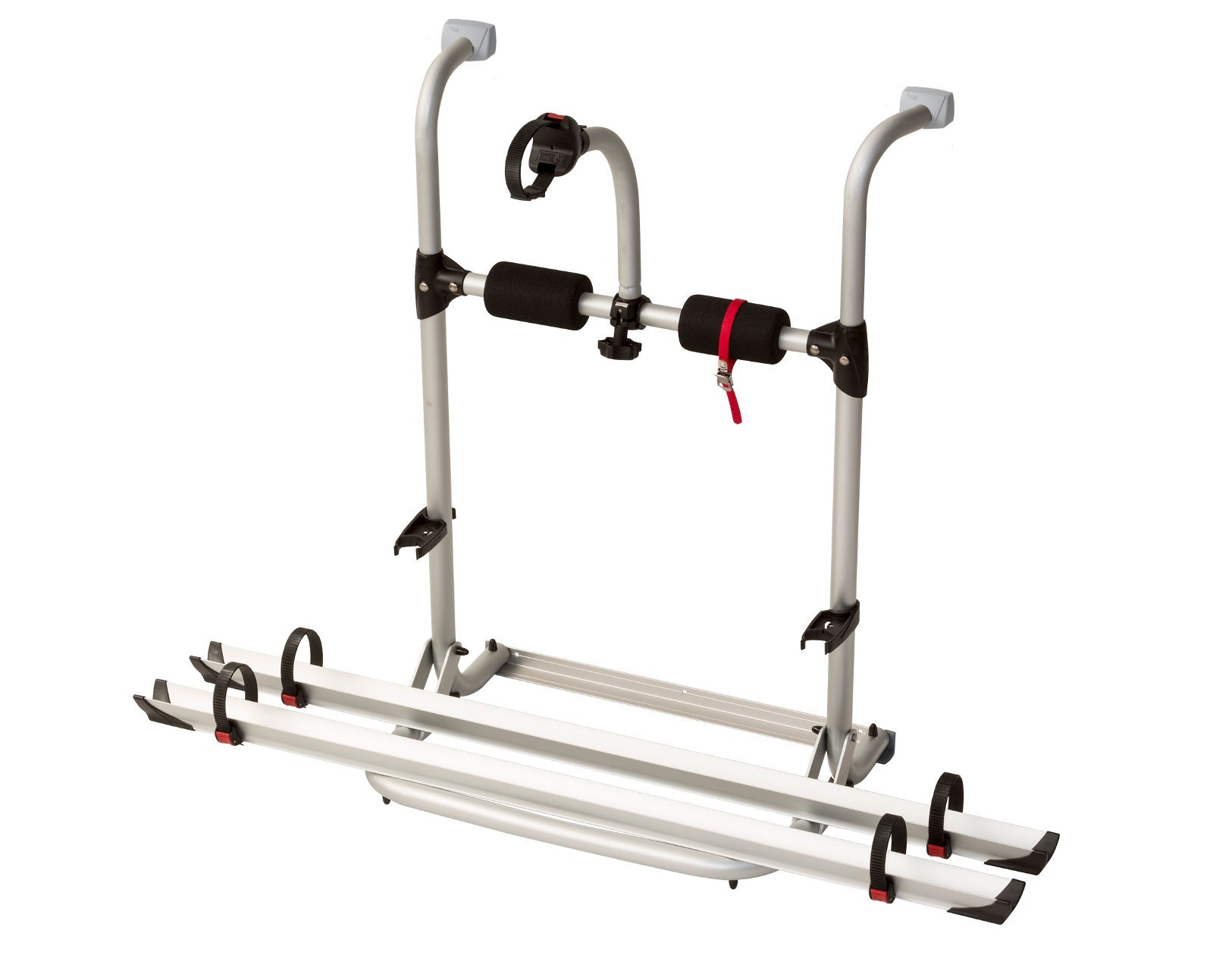

Short projection Carry Bike UL 48 for 2 bikes Fiamma Carry Bike UL 48 Bike Rack Fiamma Carry Bike UL 48 Dimensions
SKU: 02094A04A
£240.00 Inc. VAT
Quantity
Usually Dispatched in1 working day

Strong, Inexpensive and Compact line of Fiamma Carry-Bike

Strong, affordable bike rack to fit to the rear of coach-built motorhomes, the light anodized aluminium structure is telescopic and adjustable from 80 to 150 cm. This is an alternative version of the Carry Bike UL. The UL 48 is a 2 bike carrier with reduced projection from the vehicle of just 48cm.

The Carry-Bike L series are 'bolt-through-wall' installation bikes racks. The tall and highly adjustable frame size of the Carry Bike UL mean it is very stable and can be adjusted so installation brackets can be worked around almost any obstruction in the motorhome wall.


Features

Fiamma Carry-Bikes use the highest quality anodized aluminium rounded tubes and are manufactured using only long-life stainless steel screws.

Rack Holder secures the bike carrying tray in the upright position when you are not carrying bikes.

Quick Lock is delivered as standard with Quick Safe straps to quickly and safely lock the wheels of the bike on the carrier rail. The Quick Lock strap is easy to release and doesn't involve fiddly straps of ties.

Easy Position system allows you to off-set the bike rails on the Carry Bike to make it easier to fit the bikes on the carrier without pedals and handle bars clashing.

Bike Block Pro arm grips the bike frame securely. They are easy to fit, anti-scratch and secure.


Compatibility

The Carry Bike UL 48 is for motorhomes without pre-existing mounting brackets and is supplied with all required mountings and fixings.

Carry Bike UL 48 has upper fixing brackets which are 60cm apart and a lower fixing rail. It is suitable for installation on motorhome with vertical distance between upper and lower mountings between 80 and 150cm apart.

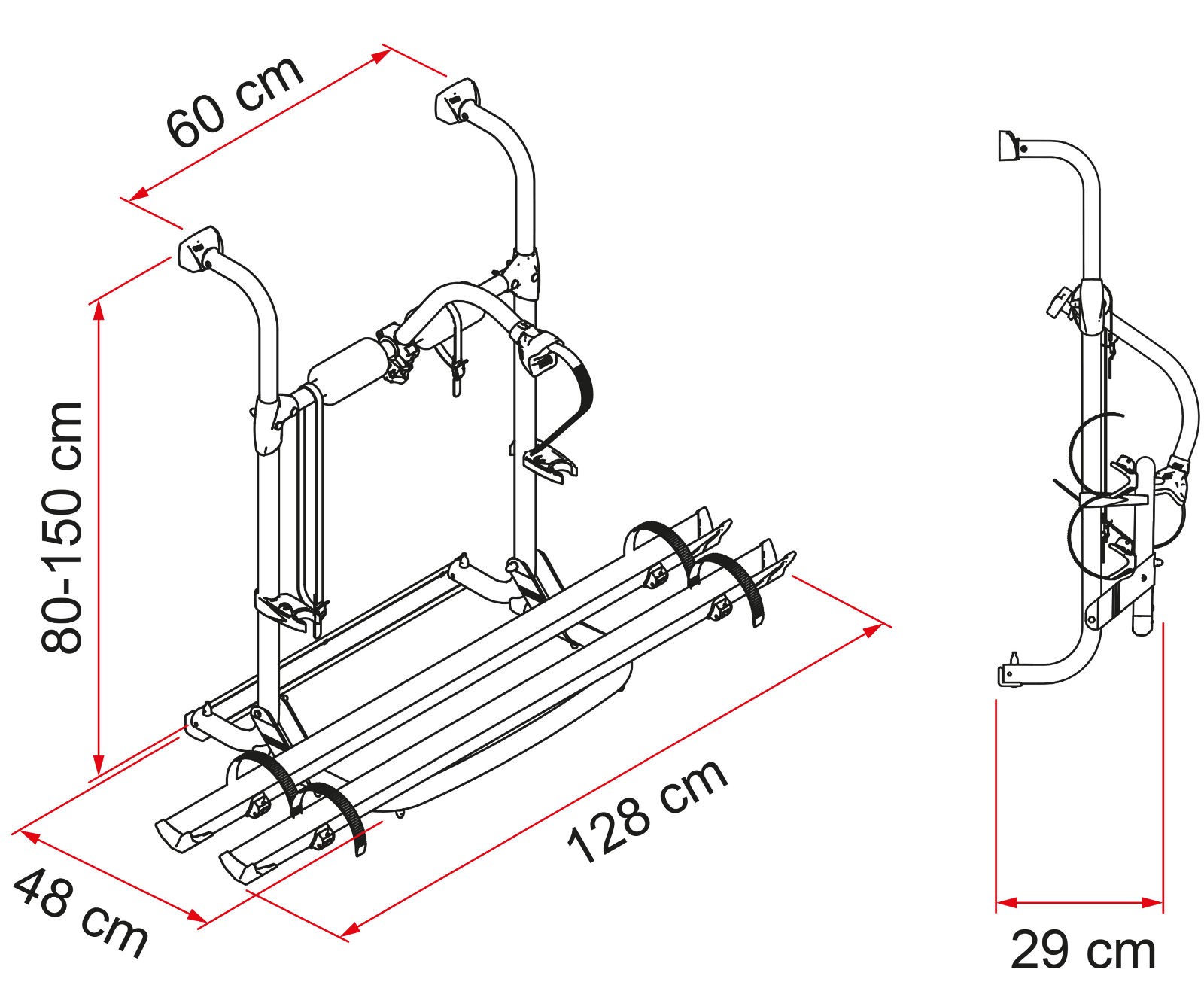

Fiamma Carry Bike UL installation space

Specification

Model Max Load Bikes Standard Max. Bikes Carry-Bike
Weight
Carry Bike UL 48 35 kg 2 bikes 2 bikes 5.4 kg

Equipment & Options

Standard Equipment

  • 2 x Rail Quick 128 bike supports
  • 1 x Strip Red bike frame holder
  • 1 x Bike Block Pro 3 bike frame holder
  • 2 x Rack Holders
  • 1 x Security Strip
  • Installation kit
For Vehicle Type Motorhome
Fitting Position Rear Wall Fitting
Bikes Standard 2
Bikes Max 2
E-Bike Compatible No
Fitting Notes Bolt through wall installation. Check access inside wall for fittings.
Min. Vertical Fitting Distance (cm) 80
Max. Vertical Fitting Distance (cm) 150
Bike Rack Fits Within...(cm) 80
Bike Rack Fits Over ...(cm) 150
Weight Capacity (kg) 35
Weight 5.40 kgs
Global Trade Item Number 8004815335304
Manufacturers Part Number 02094A04A
