Fiamma Carry-Bike CL

Fiamma Carry-Bike CL

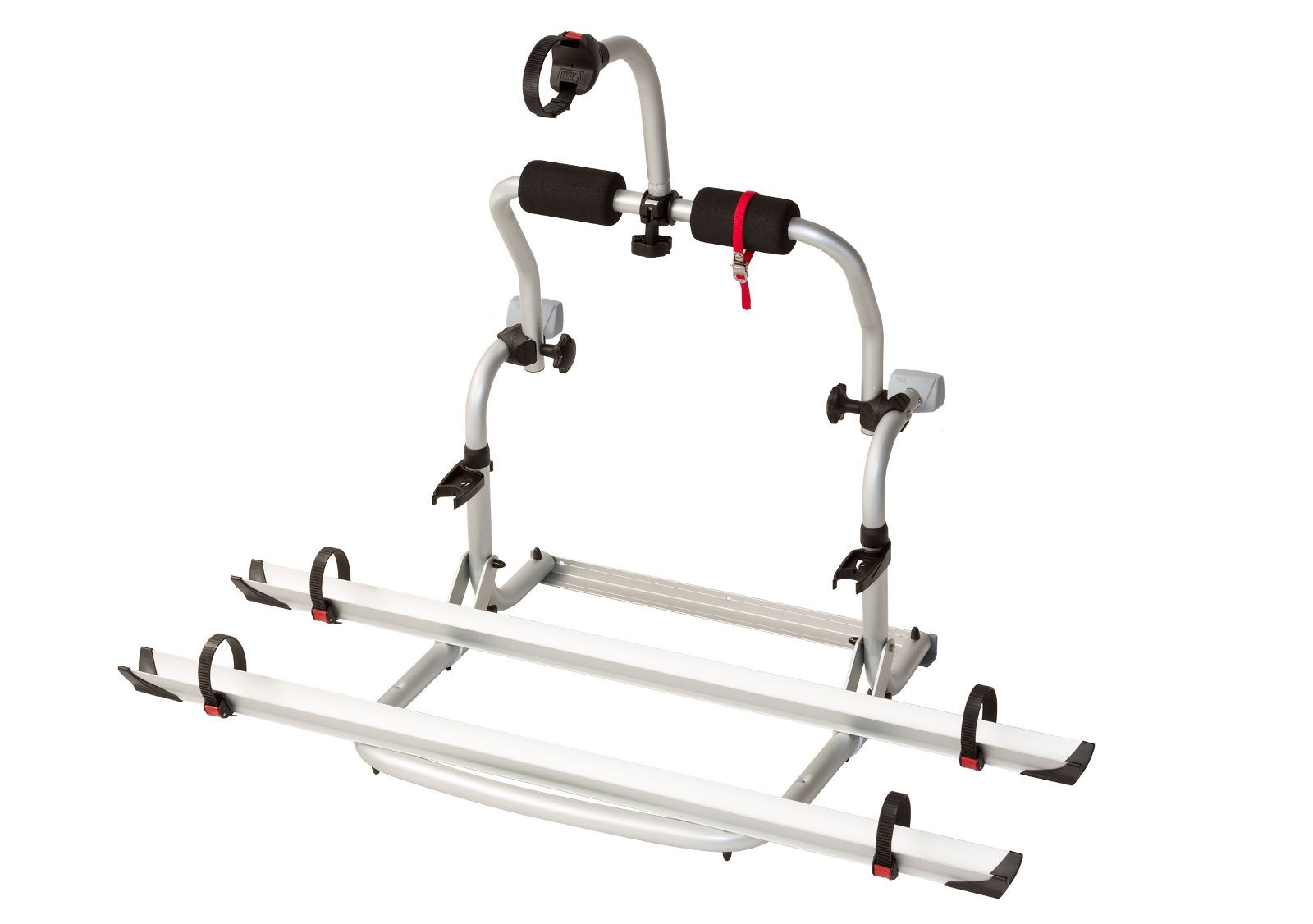

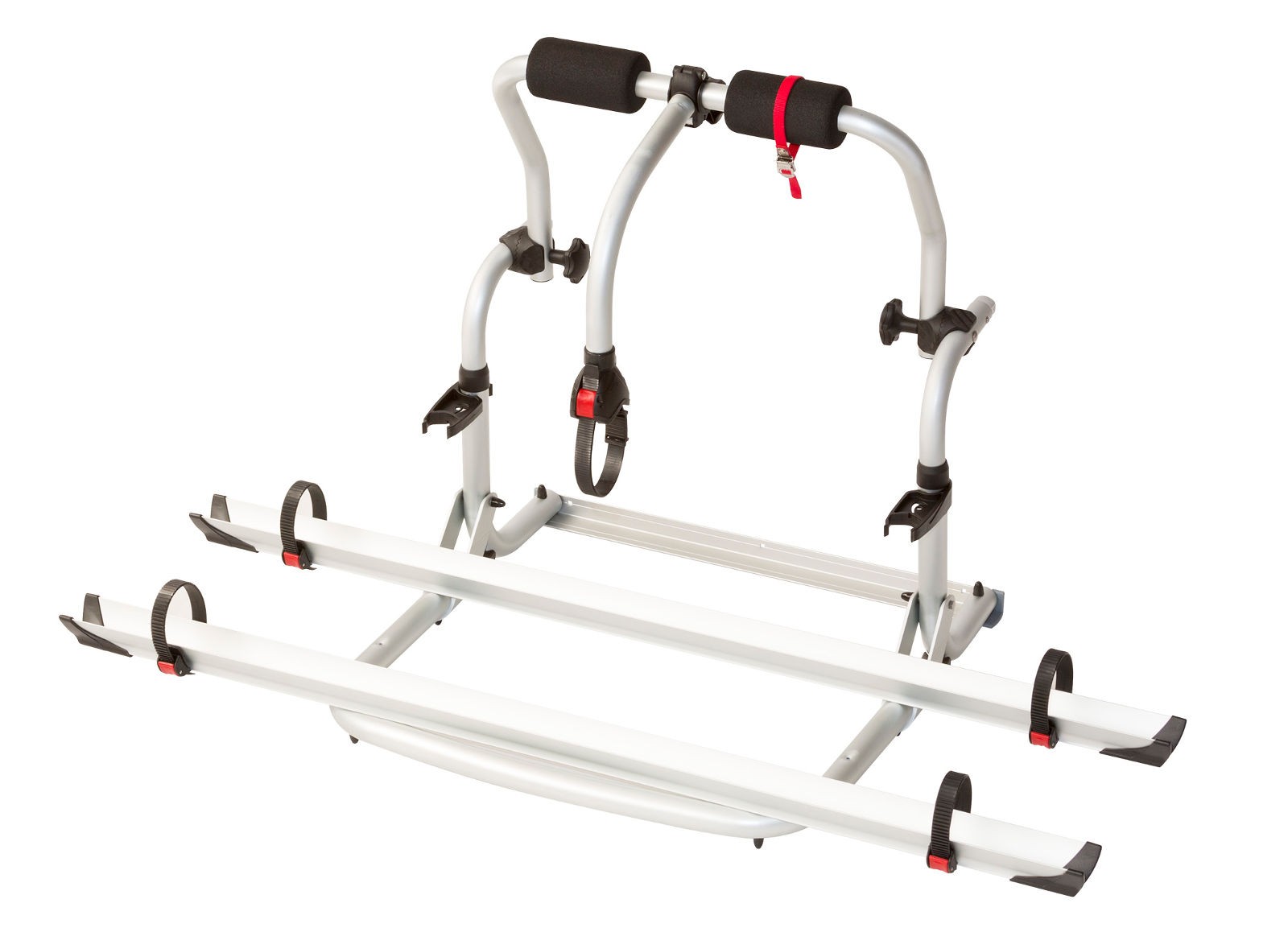

Fiamma Carry Bike CL carries 2 bikes as standard Requires 60cm horinzontal and 40cm to 50cm vertical installation space Affordable bike rack for coachbuilt motorhomes
SKU: 02093B87A
R.R.P.: £221.40
save 7%
£205.99 Inc. VAT
Select Colour

    Cancel OK

    3rd Bike Upgrade?

    Select ALL items to add 3rd bike
    Item currently out of stock
    Click here to subscribe for 'Back-in-stock' notifications
    Usually Dispatched in1 working day

    Strong, Inexpensive and Compact line of Fiamma Carry-Bike

    Strong, affordable bike rack to fit to the rear of coach-built motorhomes with limited installation space. The Fiamma Carry Bike CL carries 2 bikes as standard with the option to upgrade to 3 bikes with additional purchase.

    The Carry-Bike L series are 'bolt-through-wall' installation bikes racks so the compact dimensions of the CL model allow it to be fitted underneath the motorhome rear window, or installed at a height so that the internal brackets are hidden in the garage compartment or low cupboard.


    Fiamma Carry-Bikes use the highest quality anodized aluminium rounded tubes and are manufactured using only long-life stainless steel screws.

    Rack Holder secures the bike carrying tray in the upright position when you are not carrying bikes.

    Quick Lock is delivered as standard with Quick Safe straps to quickly and safely lock the wheels of the bike on the carrier rail. The Quick Lock strap is easy to release and doesn't involve fiddly straps of ties.

    Easy Position system allows you to off-set the bike rails on the Carry Bike to make it easier to fit the bikes on the carrier without pedals and handle bars clashing.

    Bike Block Pro arms grip the bike frame securely. They are easy to fit, anti-scratch and secure.


    The Carry Bike CL is for motorhomes without pre-existing mounting brackets and is supplied with all required mountings and fixings.

    Carry Bike Cl has upper fixing brackets which are 60cm apart and a lower fixing rail. It is suitable for installation on motorhome with vertical distance between upper and lower mountings between 40 and 50cm apart.

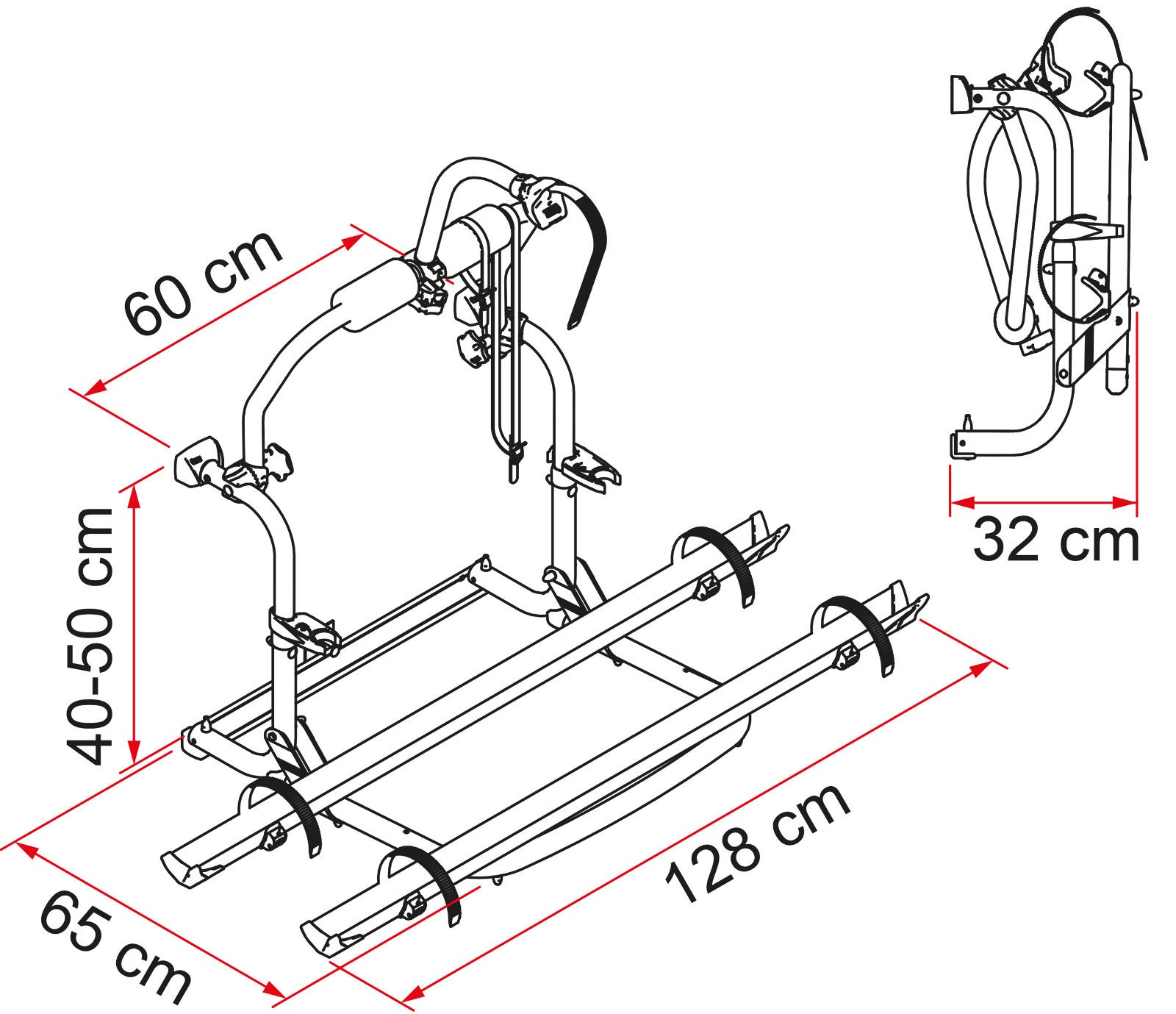

    Fiamma Carry Bike CL installation space


    Model Max Load Bikes Standard Max. Bikes Carry-Bike
    Carry Bike CL 55 kg 2 bikes 3 bikes 5.6 kg

    Equipment & Options

    Standard Equipment

    • 2 x Rail Quick 128 bike supports
    • 1 x Strip Red bike frame holder
    • 1 x Bike Block Pro 3 bike frame holder
    • 2 x Rack Holders
    • 1 x Security Strip
    • Installation kit

    Optional 3rd Bike Upgrade Kit

    • 1 x Rail Quick 128 bike support
    • 1 x Bike Block Pro 1 bike frame holder
    • 1 x Bike Block pro 2 bike frame holder


    Click to download Fiamma Carry Bike CL Fitting Instructions
    For Vehicle Type Motorhome
    Fitting Position Rear Wall Fitting
    Bikes Standard 2
    Bikes Max 3
    E-Bike Compatible Option
    Fitting Notes Bolt through wall installation. Check access inside wall for fittings.
    Min. Vertical Fitting Distance (cm) 40
    Max. Vertical Fitting Distance (cm) 50
    Bike Rack Fits Within...(cm) 40
    Bike Rack Fits Over ...(cm) 50
    Weight Capacity (kg) 55
    Weight 5.60 kgs
    Global Trade Item Number 8004815367497
    Manufacturers Part Number 02093B87A
