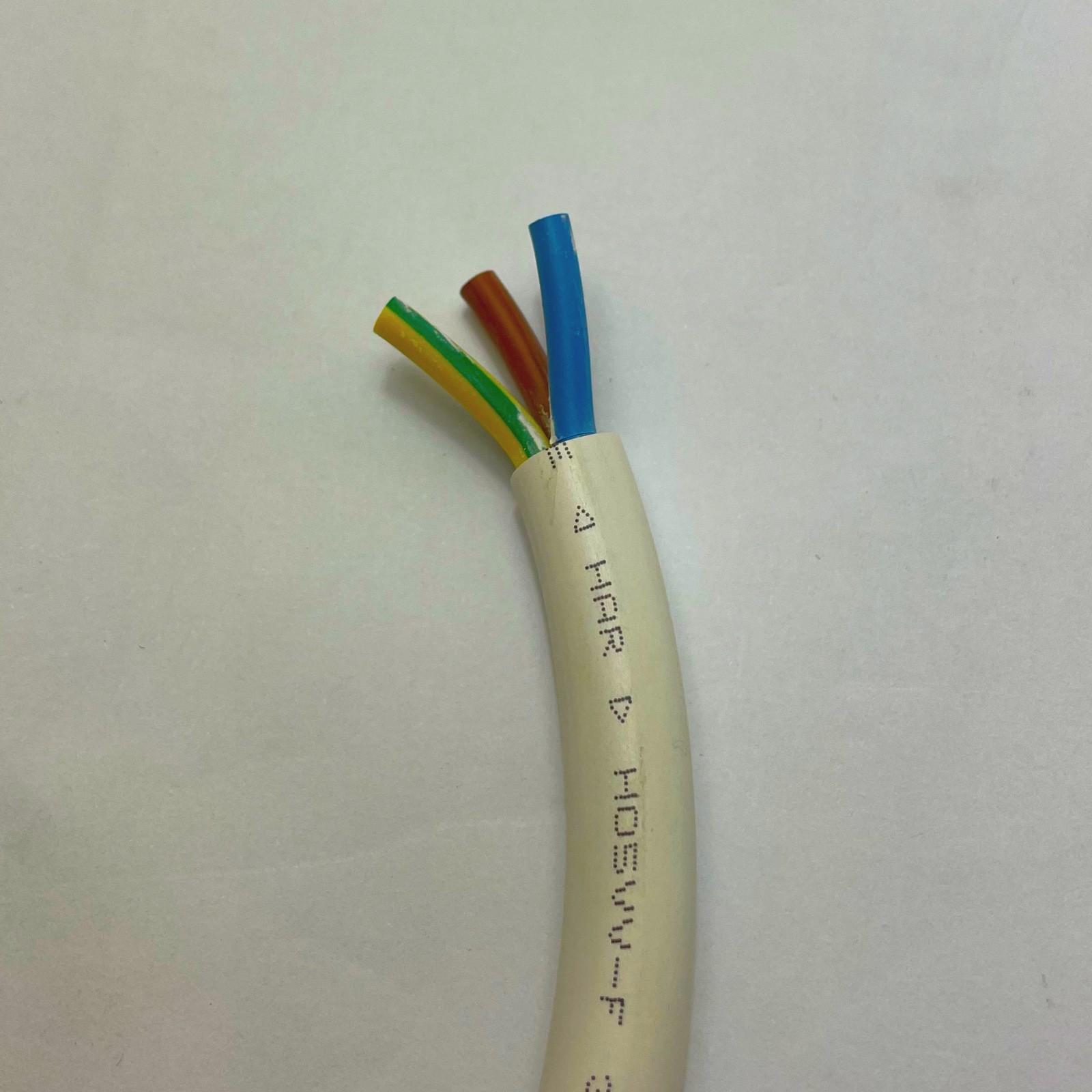

3 Core round flex mains cable with White sheath and 3183Y core colours and 2.5mm2 stranded conductor.
As standard, the cores are connected as shown below:
Cable Colour | Use |
---|---|
Blue | Neutral |
Brown | Live |
Yellow/Green | Earth |
This type of cable is most commonly used to make a campsite mains lead for caravan or motorhome, or to connect mains inlet to consumer unit.
Please note; the amount of current the cable can handle will vary depending on the placement of the cable within your vehicle, see our specification table for more information.
Sold per half metre up to 6 metres, then per metre up to 10 metres. Please select required length using the dropdown menu above.
Cable ratings are based on a single cable and 30°C ambient temperature. If cables are grouped together or ambient temperature is higher, current capacity of the cable will be reduced.
For more information, please click here for our full Circuit Protection & Cable Selection guide
No of Cores | 3 Core | |
Conductor Area | 2.5mm | |
Sheathed? | Yes | |
Sheath Colour | White | |
Conductor Colours |
Brown Blue Yellow / Green |
|
Current capacity (A) - Fixing Method A Cables in conduit in a thermally insulated wall | 17.5 | |
Current capacity (A) - Fixing Method B Cables in conduit mounted on a wooden or masonry wall | 20 | |
Current capacity (A) - Fixing Method C Cable on a wooden or masonry wall | 24 | |
Voltage Drop (mV/A/m) | 15 | |
Weight | 0.20 kgs | |
Manufacturers Part Number | 000000734349 |
