Caravan Mains Consumer Unit - Deluxe

Caravan Mains Consumer Unit - Deluxe
PO104 Deluxe Consumer Mains Unit
SKU: 5060070210988
£56.99 Inc. VAT
Usually Dispatched in1 working day

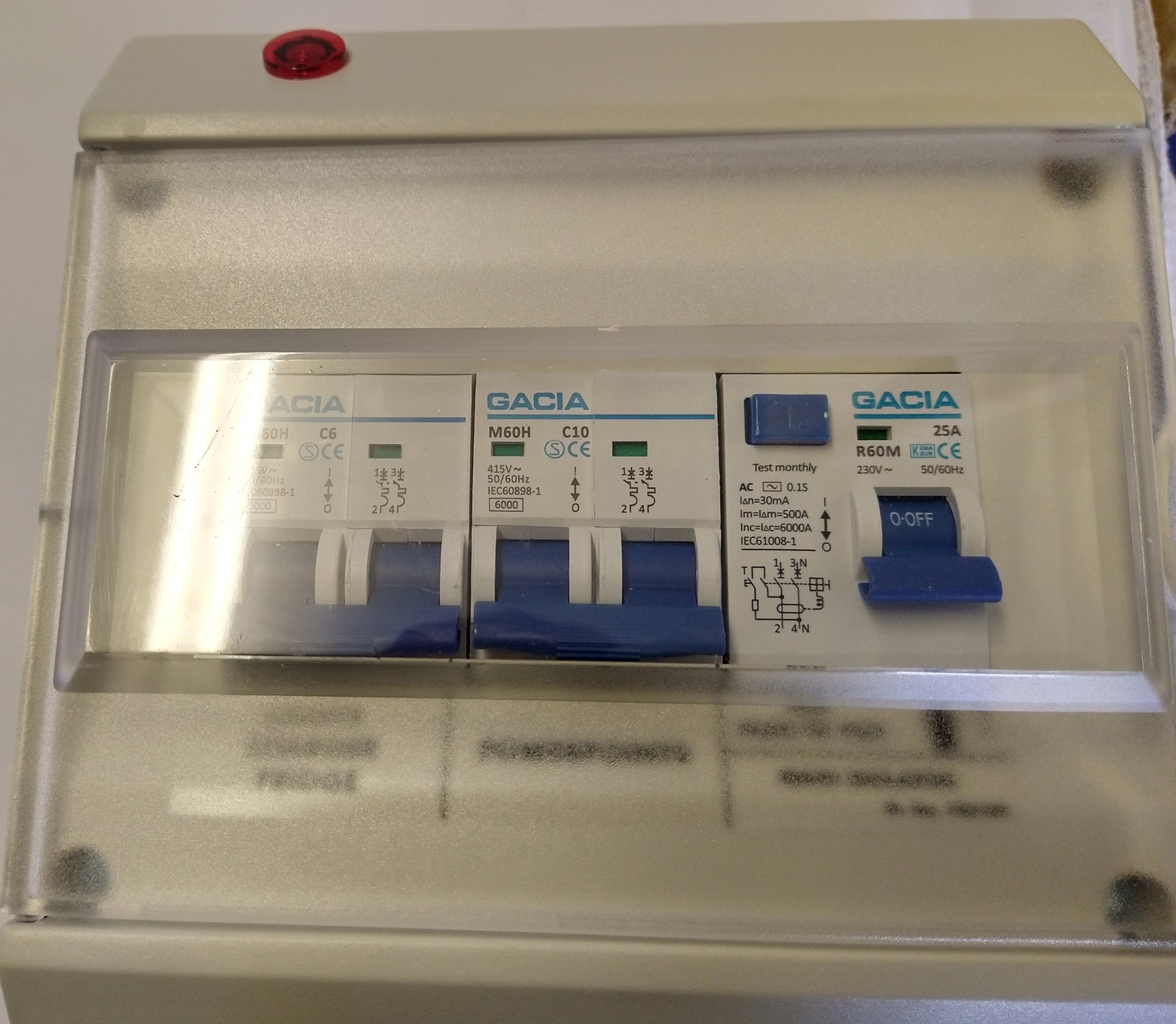

Powerpart Mains Consumer Unit with 1 x 25 Amp double pole Residual Current Device and 1 x 10 Amp & 1 x 6 Amp double pole Miniature Circuit Breakers.

This model is a common fit for in UK built caravans. Provides trip protection for over-current and current leakage for two mains circuits. Each circuit can have multiple mains sockets or appliances and transformer connection but toal load on each circuit must not exceed its MCB rating.

Use for wiring 240V into a campervan, caravan, boat or motorhome.

Ideal Mains Consumer Unit for larger caravans and motorhomes, or more involved van conversions (campervans) with a 2 mains circuits.

PO104 Consumer Unit Features

  • 1 x 25A Double Pole RCD
  • 1 x 10A Double Pole MCB
  • 1 x 6A Double Pole MCB
  • Wall mounted unit
  • Suitable for 2 x mains circuit with total load up to 16 Amps
  • Trip protection
  • Polarity check light

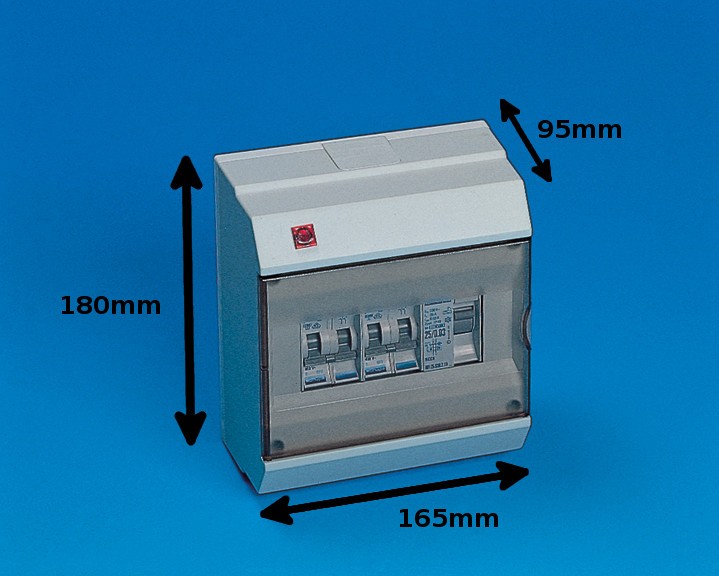

  • Dimensions: (W)165 x (H)180 x (D)95mm
