Fiamma Privacy Room F45 260 VWT5 Van

Fiamma Privacy Room F45 260 VWT5 Van

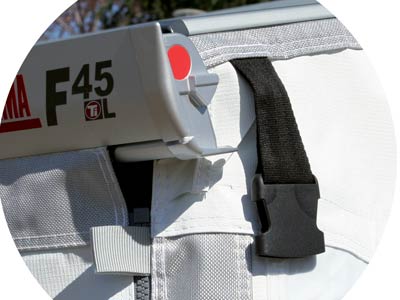

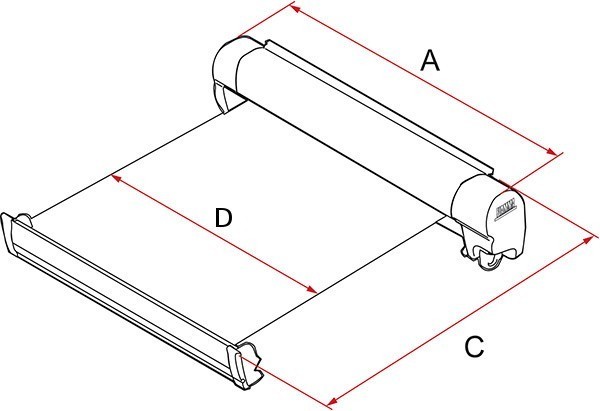

New style Privacy Room for F45 S 260 awning on campervans Both side panels and front panel have mosquito mesh, waterproof window and internal Privacy curtains Roll up front door with mosquito screen Easily slide front panel in to F45 lead bar Slide the side panel on to the Clip System provided with the Privacy Room Large YKK Zip to connect front and side panels Privacy 260 Van only fits awnings with extension C 2.00m Measure awning height to select correct size Roll up clear vinyl windows reveal mosquito netting Now with New Improved Fast Clip System New and Improved Fiamma Fast Clip System Buckle straps for use with Tie Down Kit S fitted to side walls
SKU: 08366-01-
£979.99 Inc. VAT

£0.00£0.00
    Cancel OK

    Add panel to fit F45 300

    Quantity
    Usually Dispatched in1 working day

    Description:

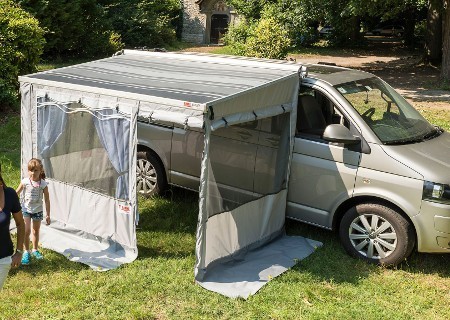

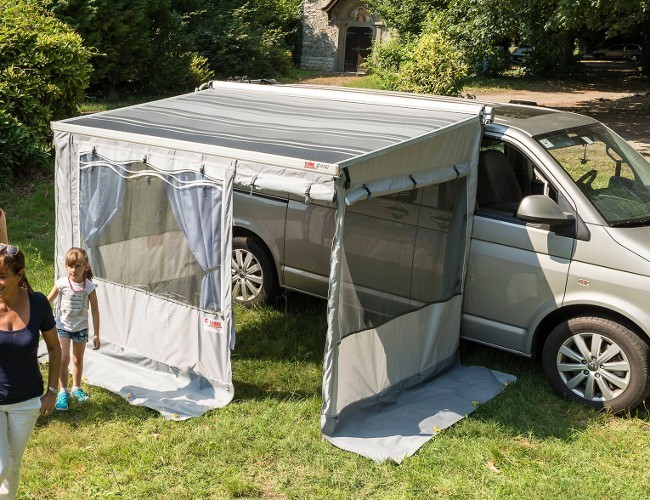

    Special version of Fiamma Privacy Room enclosure for campervans fitted with F45 260 or F45 300 T5 awnings at heights between 180cm and 220cm.

    The Fiamma Privacy Room is compatible with all previous versions of F45 with a 260 cm length and 200 cm projection. Fiamma Privacy Room 260 VWT5 consists of two side panels and a front panel with separate door panel. To meet the specification of the new F45 S 300 cm VWT5 awning a separate 40 cm long panel is available, which extends the Privacy Room to the required length.

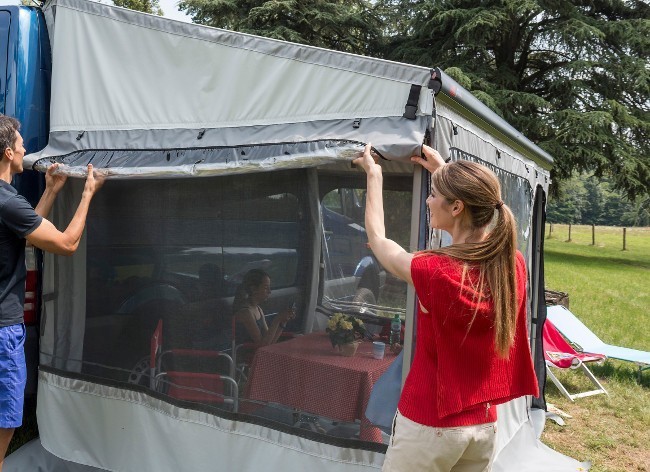

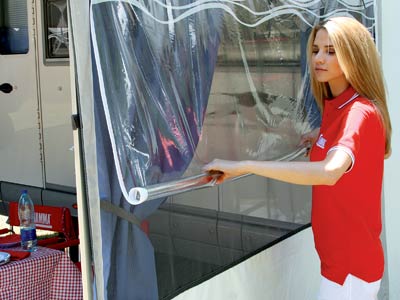

    The Privacy Room is extremely robust and incorporate plenty of pegging points, which we would advise you use at all times. Privacy Room features all round breathable mosquito mesh panes and clear vinyl window panels. Windows incorporate an attractive pattern and are quickly rolled-up to reveal the mosquito panels for warmer days. The walls of the Privacy Room are modular and can be used independently or inclusively, providing limited or total protection as prevailing weather dictates. The front door can be placed to the left or right of the main front panel and rolls up to allow access into the enclosure.

    Fast Clip System

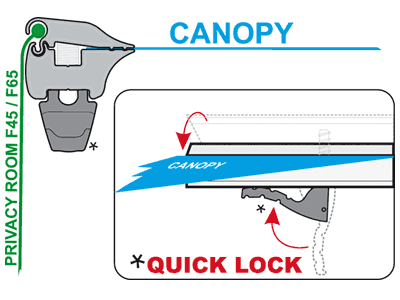

    With the new Fast Clip, lighter and simplified, the side panels of the Privacy Room are quickly and easily joined with the fabric of the awning. The Fast Clip works with the principle of the two profiles hinged with the spring-system Quick Lock and fastened in the Sandwich way. Made of anodized aluminium.

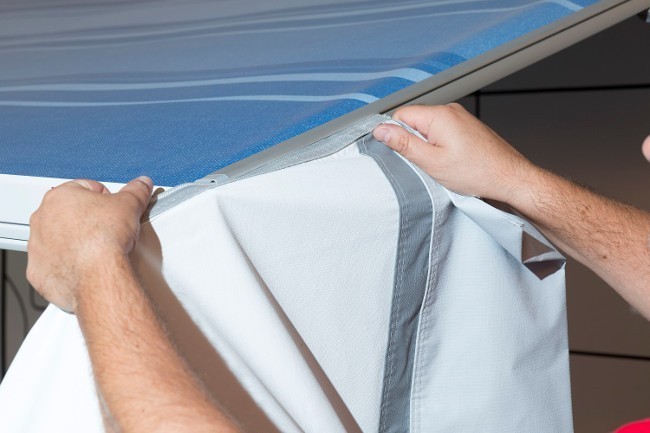

    The Fiamma Fast Clip fits between the awning box and the leg support at the front of the awning. Then the upper section of the Fast Clip System is fastened together with the lower section. In order to guarantee a perfect seal the fabric of the awning is locked between the hinged lower rail and the upper rail by internal easy clamps. Insert the side panels into the rail of the Fast Clip.

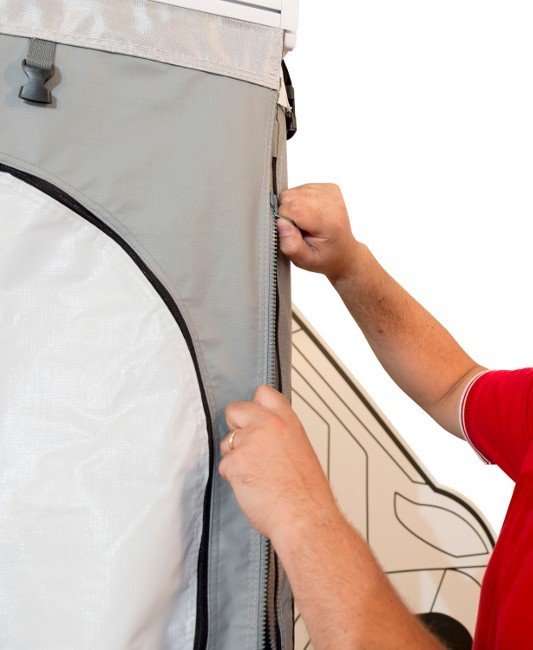

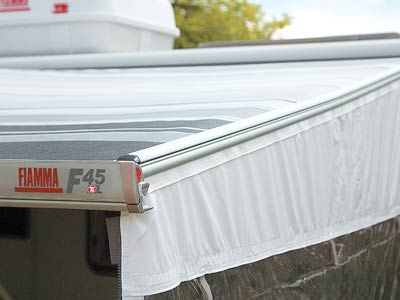

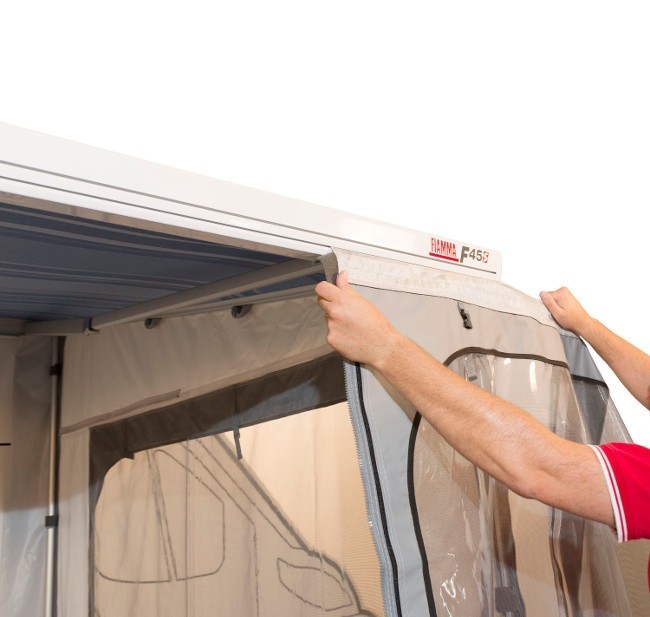

    The front panel of the Privacy Room is inserted into the guide of the front bar of the awning and with the zip it is joined with the side panels of the Privacy enclosure. The Fiamma Fast Clip is delivered with two vertical poles, which provide vertical support to the Fast Clip System and an anchor for the buffer pads to attach to.


    Video

    Video shows full first installation of Fiamma Privacy Room. Some stages will not be required after first installation.


    Compatibility

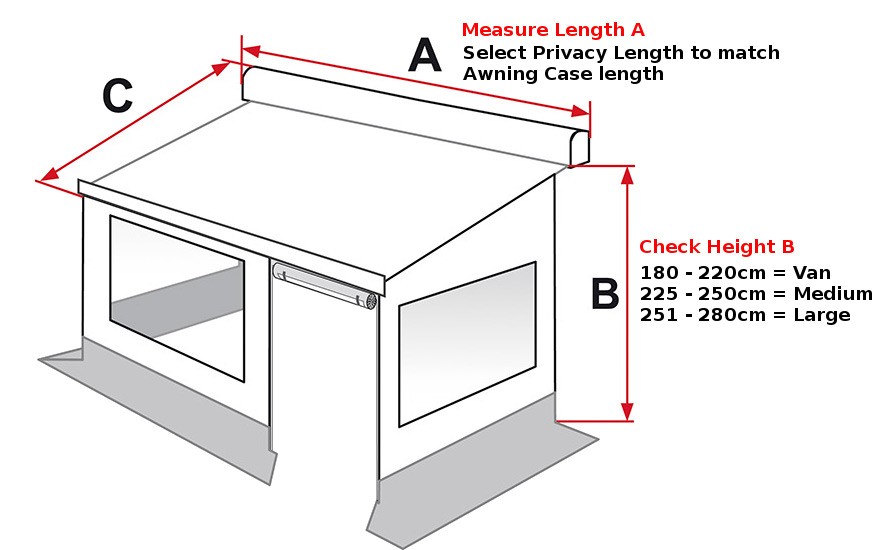

    This version Fiamma Privacy Room fits F45 awnings with length of 260 and fitted height between 180cm and 220 from the ground to the bottom of the case.

    To fit to F45 300 VW T5 you will need to purchase Fiamma Privacy Front Panel Van 40cm.


    Alternative Versions

    N.B. - Privacy Room 260 Van only fits to F45 awnings with 2.00m extension from van and fitted at heights between 180cm and 220cm.

    If you have an F45 300 which extends 2.5m from vehicle and fitted above 225cm you will need standard Fiamma Privacy Room F45 Enclosure


    Downloads

    Click to download Fiamma Privacy Room Van Fitting Instructions

    Specification:

    What's Included?

    • Suitable for VW T5 260 cm awning.
    • 40 cm front panel available for awning VW T5 300 cm.
    • 1 front panel with door and window with moskito net.
    • 2 side panels with windows with moskito net.
    • Clip System S 200cm
    • Storage bag Mega Bag.
    • Pegs and rubbers kit.
    Panel Style Awning Enclosure
    Side Panel Attachment Clamp Attachment
    Fits Awning Length 260
    Front Panel Length (cm) 247
    Fits Awning Depth (cm) 200
    Side Panel Depth (cm) 190
    Fitting Height (cm) 180 to 220
    With Window(s)? Yes
    With Curtain(s)? Yes
    Fabric Vinyl
    Weight 23.70 kgs
    Global Trade Item Number 8004815413880
    Manufacturers Part Number 08366-01-
