Fiamma Privacy Room Light Enclosure for F45 Awnings

Fiamma Privacy Room Light Enclosure for F45 Awnings

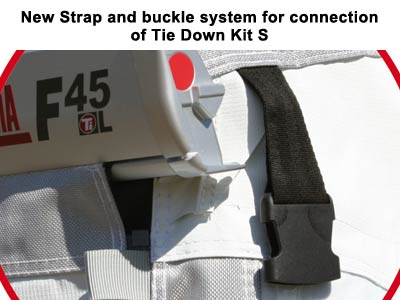

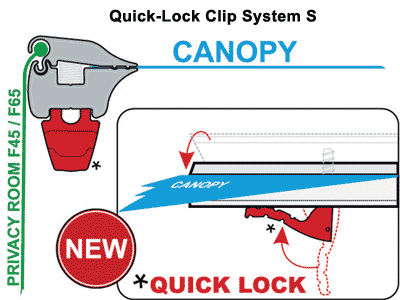

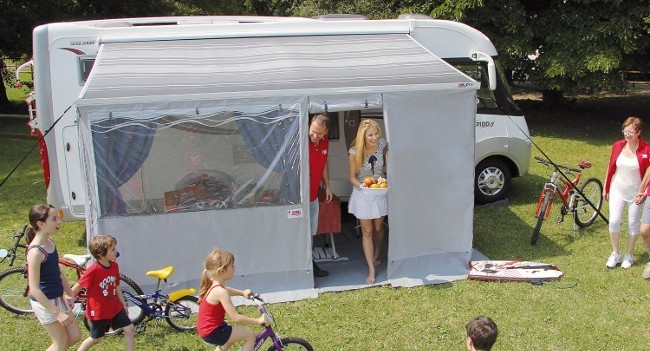

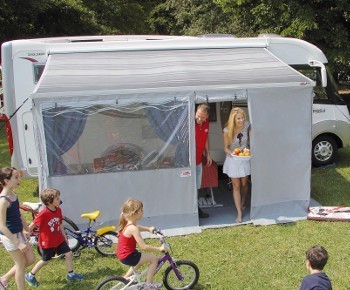

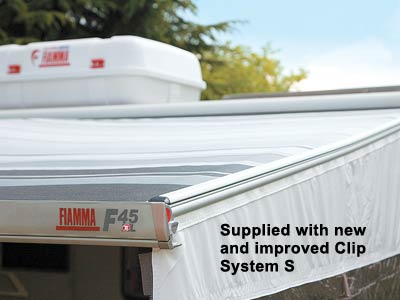

Fiamma Privacy Room Light for F45 Motorhome installation Front panel with large window Front panel with mosquito screen Special version Privacy Room Light for 260 van on VW Transporter Light and compact awning room for Fiamma F45 canopies Privacy Clip System is now lighter and simpler Clip System S with Quick Lock clamps Buckle straps for use with Tie Down Kit S fitted to side walls Front panel and door slide into lead bar channel Mosquito screens for ventilation and covers for privacy Mesure your awning to ensure you order the correct Privacy Room
SKU: 06097*0*-
£0.00

£0.00£0.00
    Cancel OK

    Additional Panels

    Select extra panels to make up Privacy Room length
    Quantity
    Usually Dispatched in1 working day

    Description:

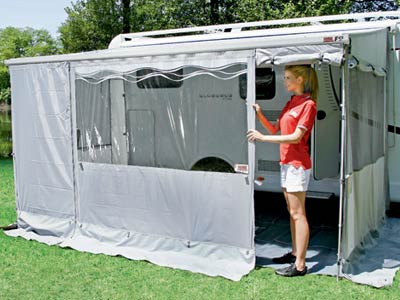

    A complete set of side and front panels, with framework, to make a complete enclosure for Fiamma F45 awning canopies. The Privacy Room Light is made from lighter weight material than the standard Fiamma Privacy Room and the rear vertical rafters are not included to reduce weight.

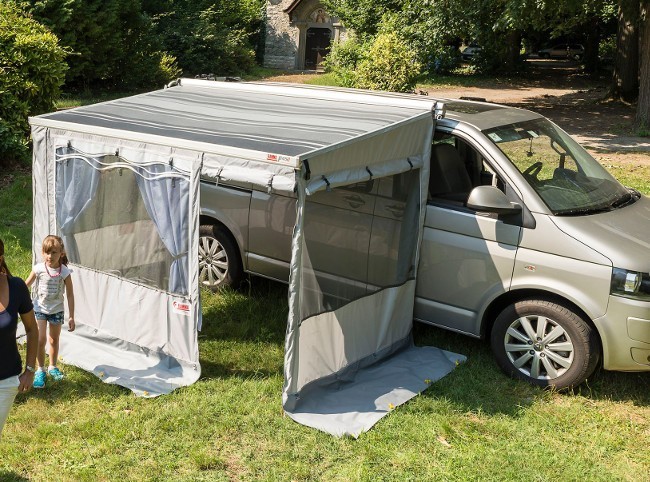

    Fiamma Privacy Room Light is an enclosure for Fiamma F45 awnings with a range of sizes with a special version for F45 260 fitted to vans at heights between 180cm to 220cm and a range to suit awning lengths from 300 to 400 fitted at heights from 225cm to 280cm.

    Because it is not supplied with rear vertical rafter, the side panels of the Privacy Room Light are fitted with elastic ropes and quick hooks so it often provides a better seal for F45 fitted to vans with curved walls. Optional Fiamma Kit Poles Light can be purchased to better seal panels against flat walls of a motorhome if required.

    It is suitable for most generations of Fiamma F45 including F45 i, F45 Ti and F45 S models, and comes with adapter kit so it can perfectly fit to Omnistor* and Tristor* awnings.

    *Adapter kit allows installation on Omnistor 4900, 5002 and 5003 models and Tristor 2 awnings.


    Video

    Video shows full first installation of Fiamma Privacy Room. Some stages will not be required after first installation.


    Features

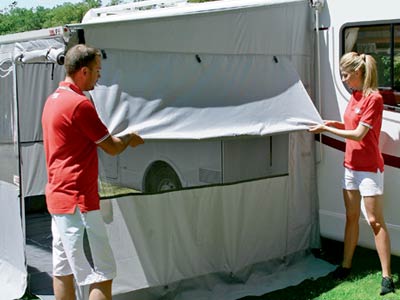

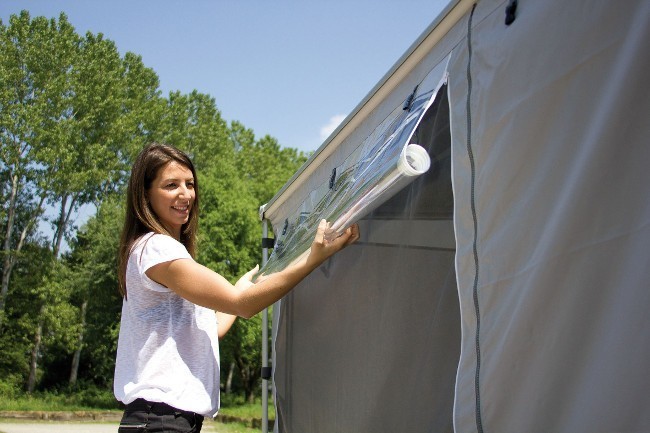

    Privacy Room Light side panels are equipped with large mosquito screens with roller blinds for goods ventilation. They attach to the awning canopy via the Fast Clip Light which is quickly and easily installed on the awning. They seal against the van using

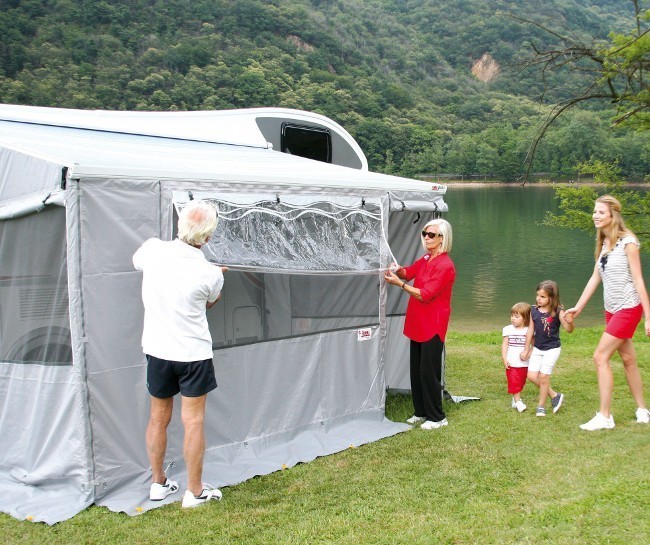

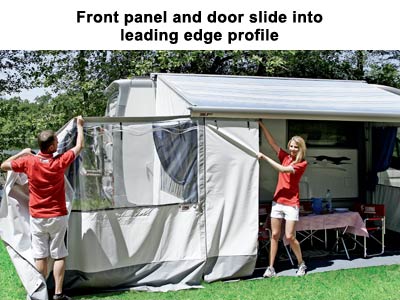

    The front panel fits by sliding in to the channel on the awning lead bar and the component panels are interchangeable so you can have the door and windows on either side. The front panel has a large, openable crystal window with mosquito net and 2 x curtains are supplied for privacy.

    All panels are made from lightweight, durable grey polyester and the front and side panels zip to each other to give a complete seal on all sides.


    Versions and Compatibility

    Fiamma Privacy Room Light is supplied with everything required to fit to Fiamma F45 i, F45 Ti and F45 S awnings as well as Omnistor 4900, 5002, 5003 and Tristor 2 models. It will not fit to F45 Plus or older versions.

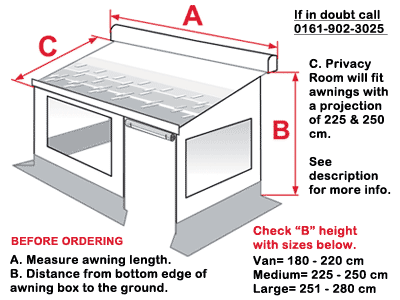

    To select the correct version Privacy Room Light for your awning canopy, you need to measure your awning installation.

    Measuring Length A

    Measurement A is the length of the awning case attached to the side of your vehicle. Measure the awning box and NOT the canopy fabric. Choose the Privacy Room length which is the closest match to your awning case measurement.

    e.g. - Fiamma F45 S with awning case measurement 308cm should choose Privacy Room Light 300
    e.g. - Fiamma F45 S with awning case length 398cm should choose Privacy Room Light 400

    Measuring Height B

    Measurement B is the height from the ground to the BOTTOM of the awning case. Measure both ends of the awning case as one end may be higher than the other. Also, consider whether you will raise your vehicle on ramps when on site as this may effect the size you should choose.

    • For measurement B 180cm to 220cm choose Privacy Room Van*
    • For measurement B 225cm to 250cm choose Privacy Room Medium
    • For measurement B 251cm to 280cm choose Privacy Room Large

    *Van height only available for 260 length awning.

    Select the appropriate height and length from the lists above. The price will change as you make your selection.


    Specification:

    P/Room Version Length A Height B Extension C Weight
    P/Room Light 260 Van 260 cm 180-220 cm 200 cm 12 kg
    P/Room Light 300 Medium 300 cm 225-250 cm 250 cm 14.4 kg
    P/Room Light 300 Large 300 cm 251-280 cm 250 cm 14.7 kg
    P/Room Light 350 Medium 350 cm 225-250 cm 250 cm 14.9 kg
    P/Room Light 350 Large 350 cm 251-280 cm 250 cm 15.2 kg
    P/Room Light 400 Medium 400 cm 225-250 cm 250 cm 15.4 kg
    P/Room Light 400 Large 400 cm 251-280 cm 250 cm 15.7 kg

    Equipment:

    • Colour: Platinum Grey.
    • 1 x front panel with door and window.
    • 2 x side panels with windows with moskito net.
    • Fast Clip Light System
    • Installation kit for F45 versions & Omnistor 5002 / 5003.
    • 2 x Curtains for the front window.
    • Storage bag Mega Bag Light.
    • Pegs and rubbers kit.

    Downloads

    Click to download Fiamma Privacy Room Fitting Instructions
