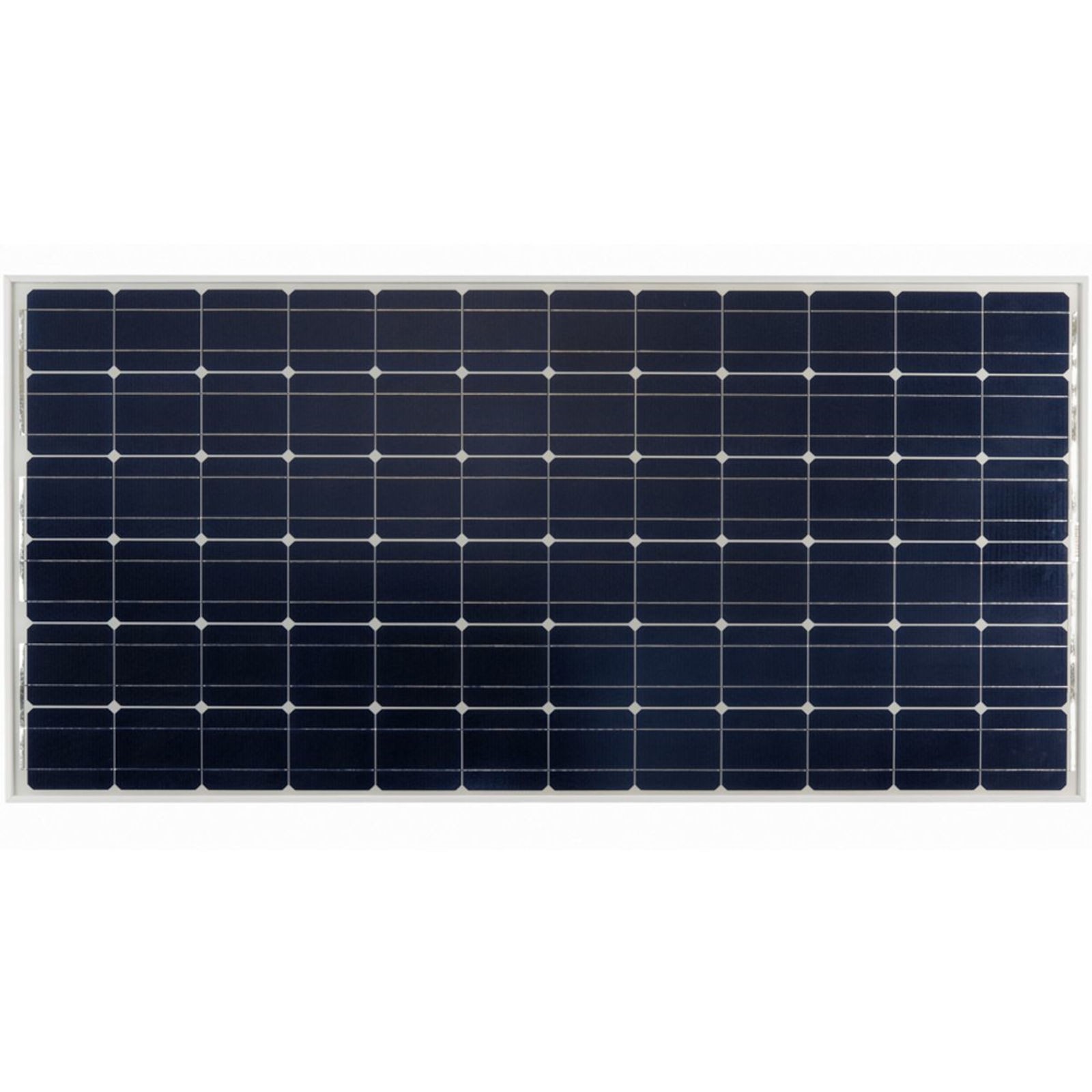

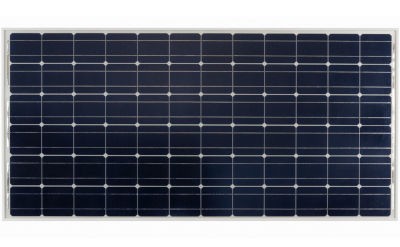

175W monocrystalline solar panel for installation on your motorhome roof.

This solar panel made up of anodized sturdy aluminium features a special bypass diode this means in the event of partial shading your panel will continue to work.

Its high transmission tempered glass provides enhanced stiffness making the panel impact resistant.

Features

• Advanced EVA (Ethylene Vinyl Acetate) system with triple layer back sheet for high voltage operation
• Complete with pre-wired quick connect system with MC4 connectors
• Sealed, waterproof multi-functional junction box which provides high level of safety

Specifications

• Voltage: 12V DC
• Wattage: 175W
• Amps: 9.03A
• Weight: 11kg
• Dimensions: (W) 1485mm, (D) 30mm, (L) 668mm

Downloads

Click To Download Data Sheet
