12V Victron Monocrystalline 30W Solar Panel

12V Victron Monocrystalline 30W Solar Panel
Monocrystalline 30W Solar Panel
SKU: SPM040301200
£38.30 Inc. VAT

£0.00£0.00
    Cancel OK

    Add charge controller?

    Please select if charge controller is required

    Add mounting bracket?

    Please select if mounting bracket is required
    Quantity
    Add to comparison list
    Usually Dispatched in1 working day

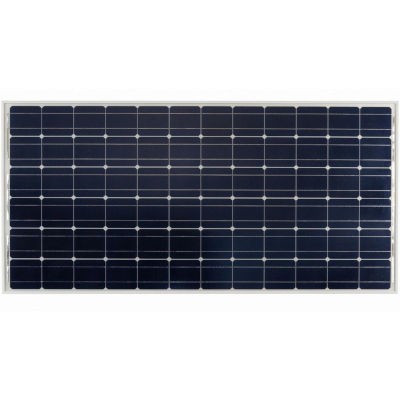

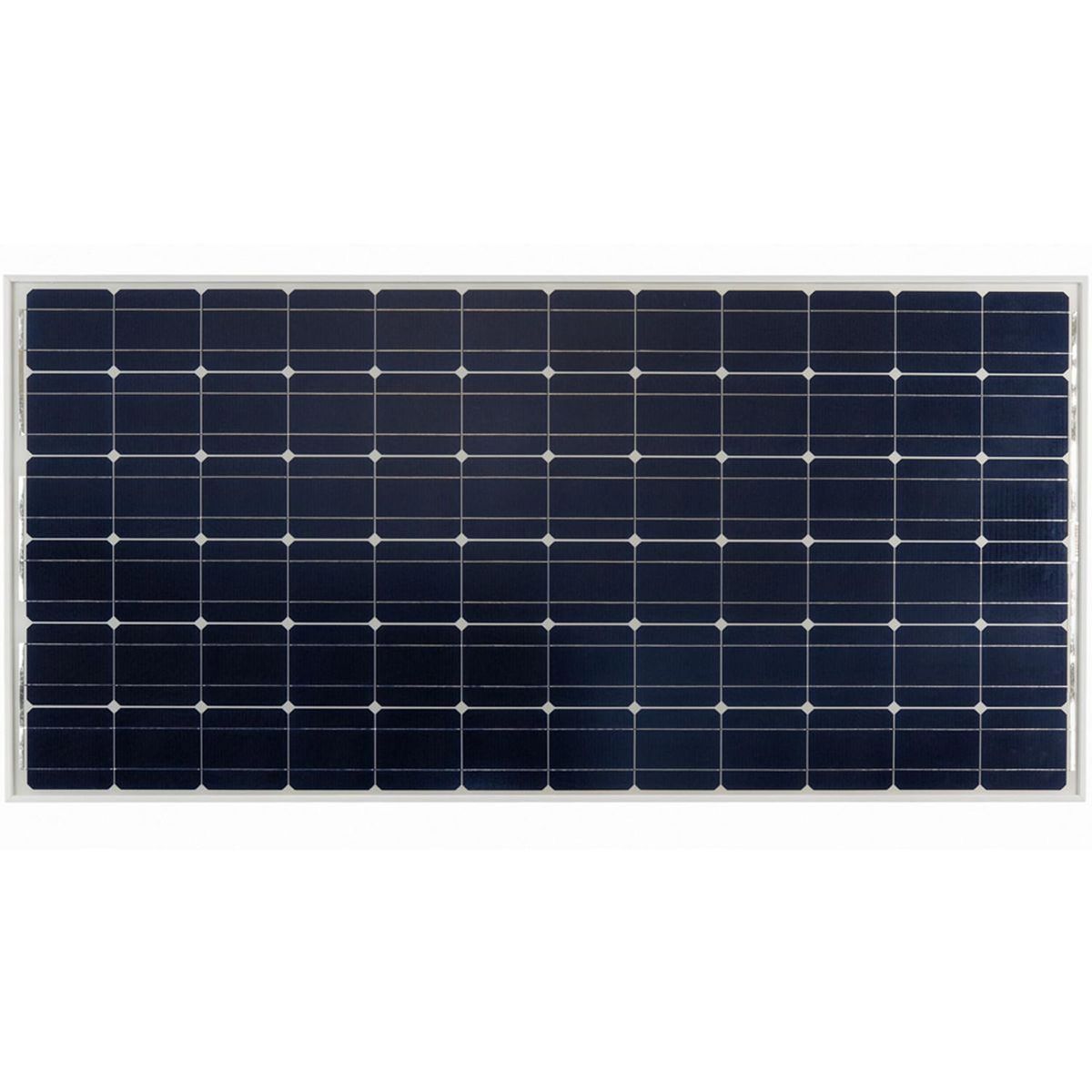

    30W monocrystalline solar panel for installation on your motorhome roof.

    This solar panel made up of anodized sturdy aluminium features a special bypass diode this means in the event of partial shading your panel will continue to work.

    Its high transmission tempered glass provides enhanced stiffness making the panel impact resistant.

    Features

    • Advanced EVA (Ethylene Vinyl Acetate) system with triple layer back sheet for high voltage operation
    • Complete with pre-wired quick connect system with MC4 connectors
    • Sealed, waterproof multi-functional junction box which provides high level of safety

    Specifications

    • Voltage: 12 Volt DC
    • Wattage: 30W
    • Amps: 1.61A
    • Weight: 2.2kg
    • Dimensions: (W) 560mm, (D) 25mm, (L) 350mm

    Downloads

    Click To Download Data Sheet

    Voltage 12 V
    Max Power Voltage 18.7 V
    Short Circuit Current 1.76 A
    Max Power Current 1.61 A
    Wattage 30 W
    Weight 2.20 kgs
