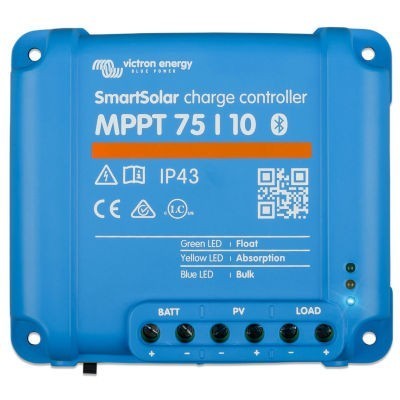

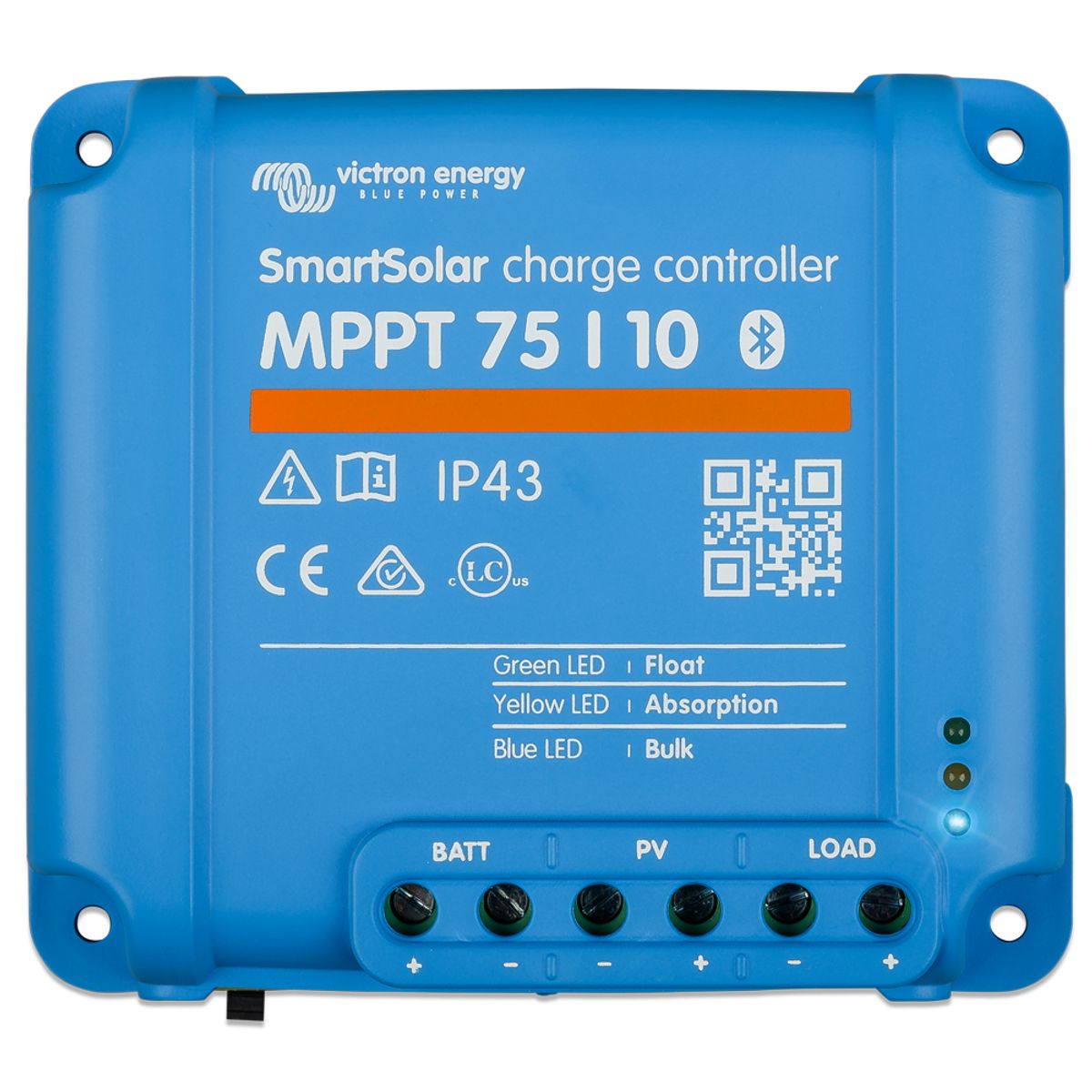

Victron 75/10 Smart Solar MPPT Charge Controller 10A

Victron 10A solar charger used to collect energy from your solar panel and stores it in your batteries. The technology ensures that every drop of power available is used out of your panels and harvested for storage.

It features fast technology to maximise the energy-harvest to achieve full charge in the shortest time possible. The charge controller will handle a maximum of 75V and 10A of solar panel output.

Specifications

• Nominal PV Power: 145W at 12V, 290W at 24V
• Voltage: Max PV input 75V DC, 12/24V self sensing output
• Efficiency: 98%
• Weight: 0.5kg
• Dimensions: (H) 100mm, (W)113mm, (D)40mm
• Operating temperature: -30°C to +60°C

---

Downloads

Click To Download product instructions
