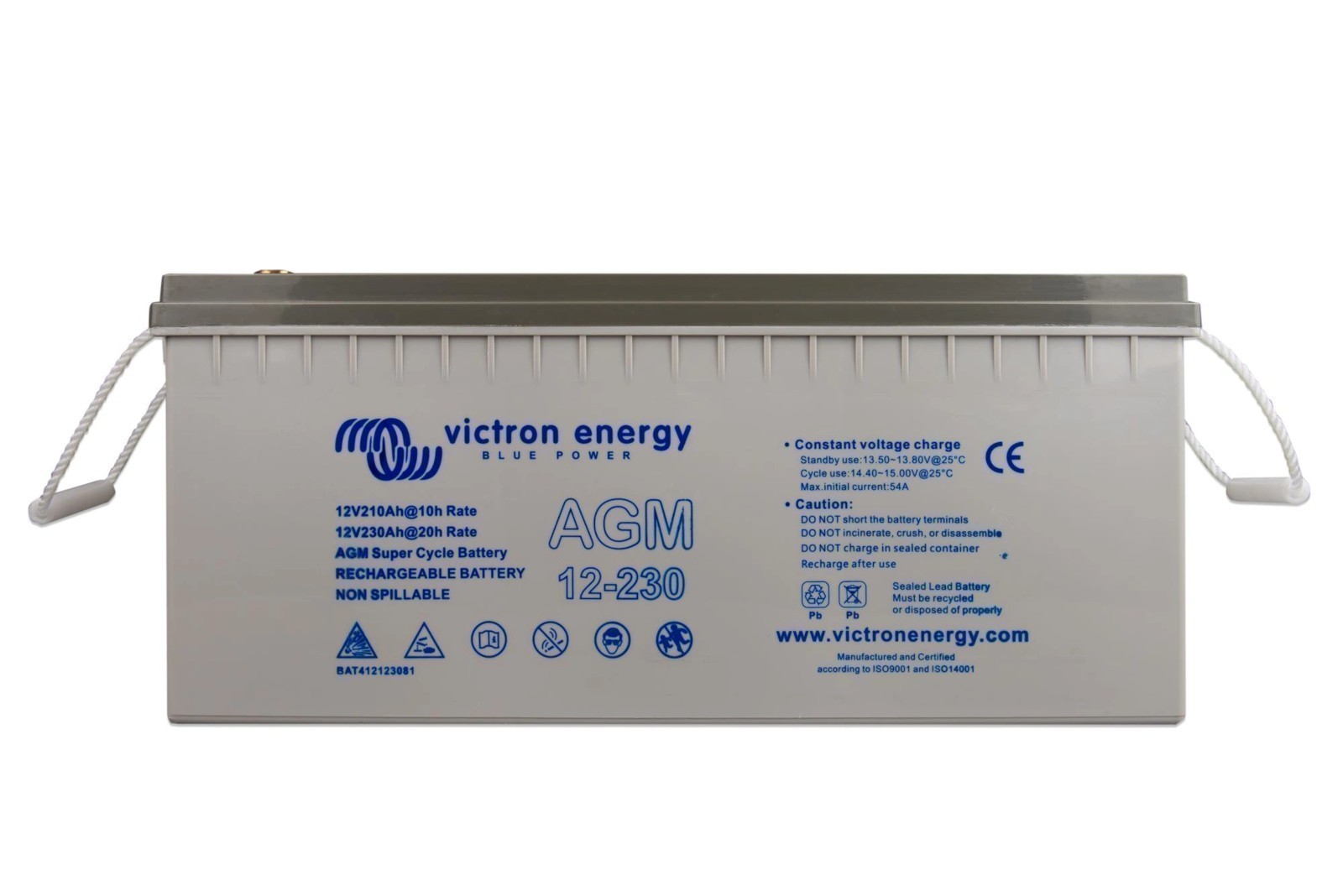

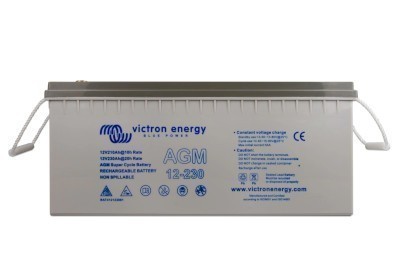

Victron Energy 230Ah Super Cycle AGM Leisure Battery

Victron Energy 230Ah Super Cycle AGM Leisure Battery
SKU: BAT412123081
£561.60 Inc. VAT
Usually Dispatched in1 working day

Victron Energy's AGM range of leisure batteries are a great choice for all your leisure needs, with a long service life, high cycling capabilities and low internal resistance, making them efficient and reliable, even in high current discharge applications such as inverters, thruster and winches.

VRLA AGM: design life 7-10 years


A truly innovative battery

The AGM Super Cycle batteries are the result of recent battery electrochemistry developments.

The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.

Exceptional 100% depth of discharge (DoD) performance

Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles.

The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20.

The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.

The Super Cycle battery range is recommended for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected.

Smaller and lighter

An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.

Nominal Voltage (V) 12
Rated Capacity (Amp Hour) 230
Length (mm) 532
Width (mm) 207
Height (mm) 226
NCC Classification N/A
Weight (kg) 57
Charge Cycles 300
CCA 700
Terminal Type M8 Insert
Terminal Layout Side
Weight 57.00 kgs
Manufacturers Part Number BAT412123081
