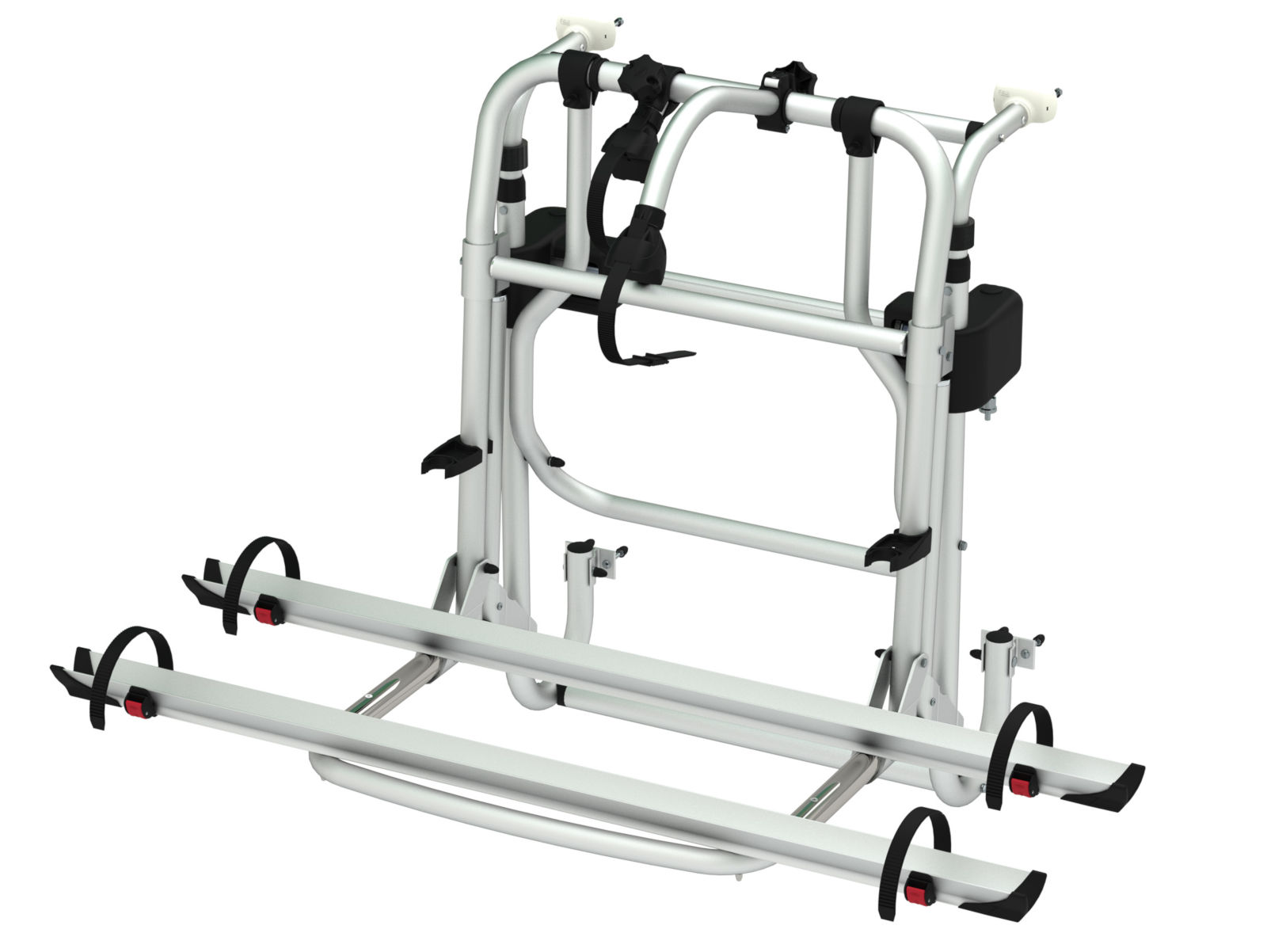

Fiamma Carry-Bike Lift 77 - Black Trim

Description:

Adjustable bike carrier for motorhome which can be lowered by up to 77cm to make it easier to load and unload bikes. Lift 77 is capable of carrying 2 bikes as standard with the option to purchase upgrade kits for 3rd or 4th bikes.

Choose Fiamma Carry-Bike Lift 77 for Hard to Reach Installations.

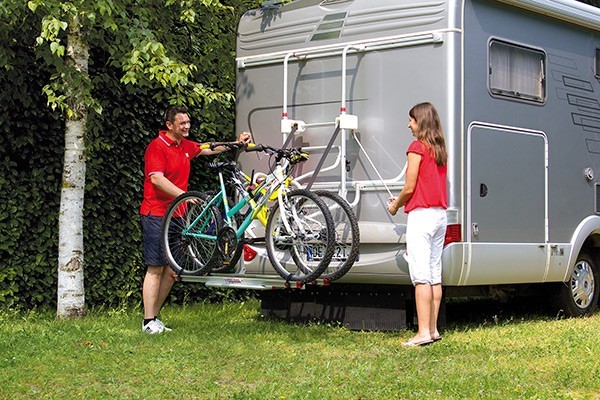

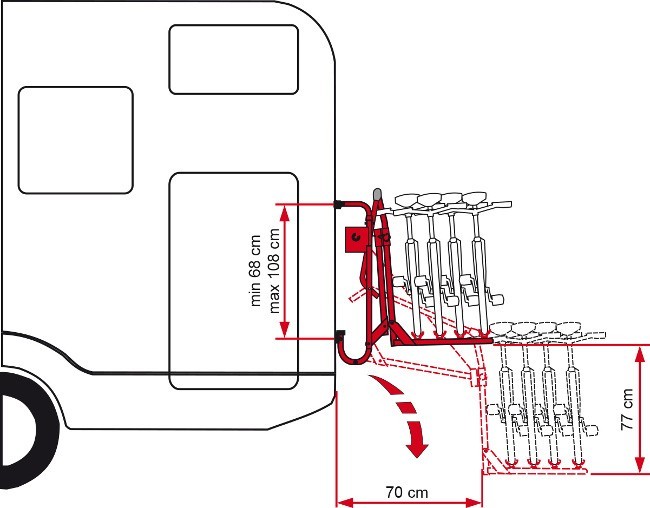

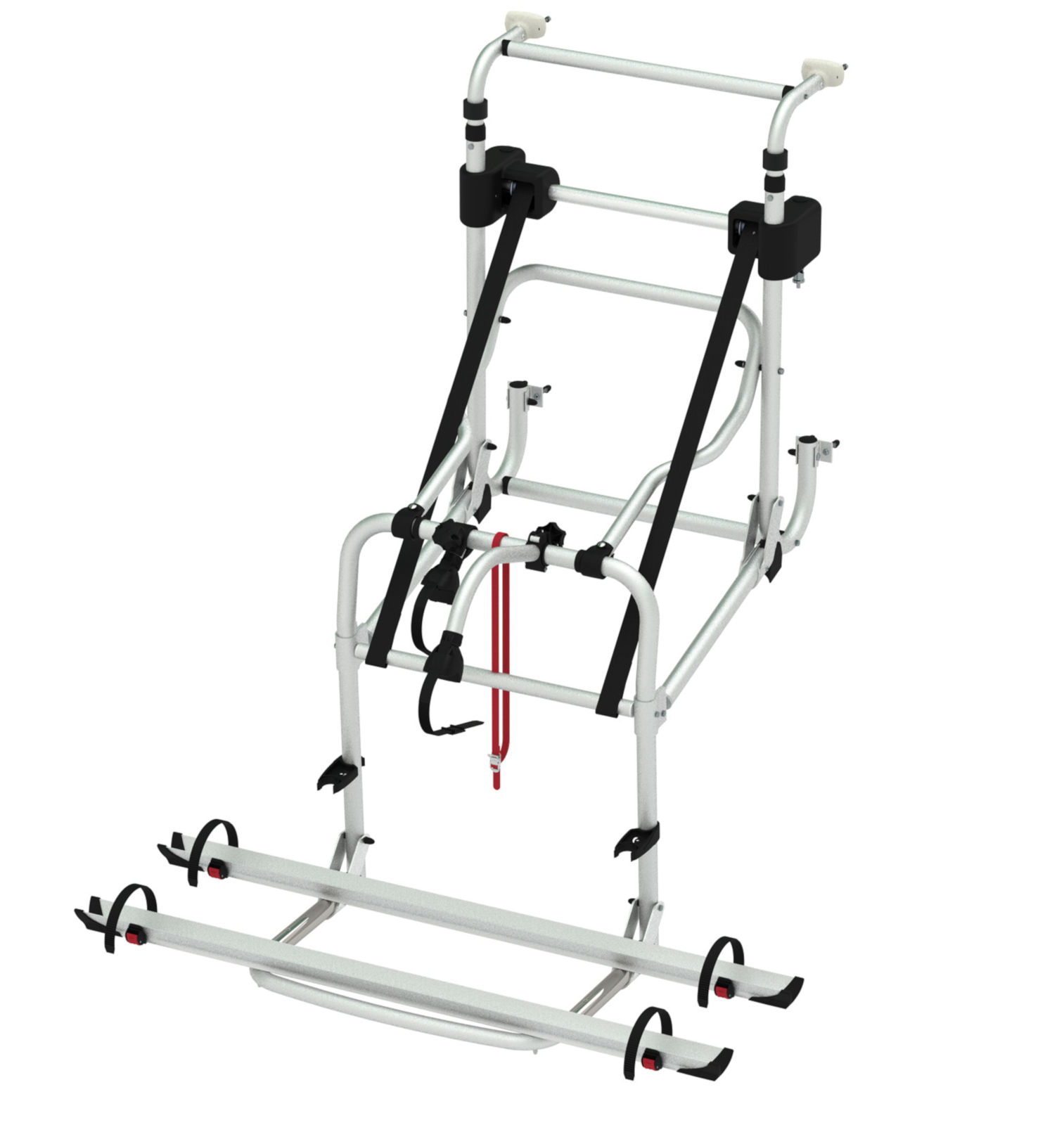

The Fiamma Carry-Bike Lift 77 is a unique bike carrier and the only one on the market that is fitted with a winch that enables the bikes to be lowered by as much as 77cm.

The Fiamma Carry-Bike Lift 77 is of particular interest to owners of larger motorhomes or vehicles where it is necessary to install the Carry-Bike beyond convenient reach for loading and off-loading. The winch allows the bikes to be dropped to an easily accessible position for safe and easy use.

Features

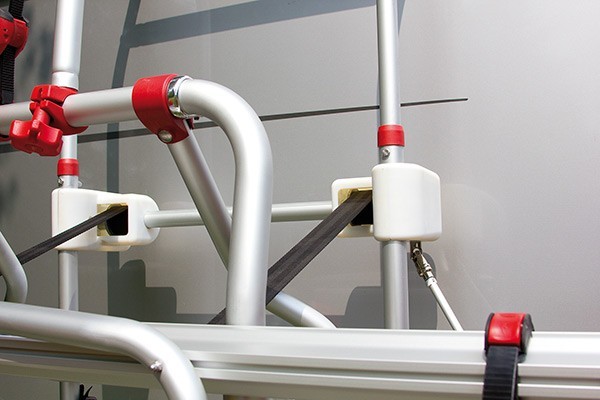

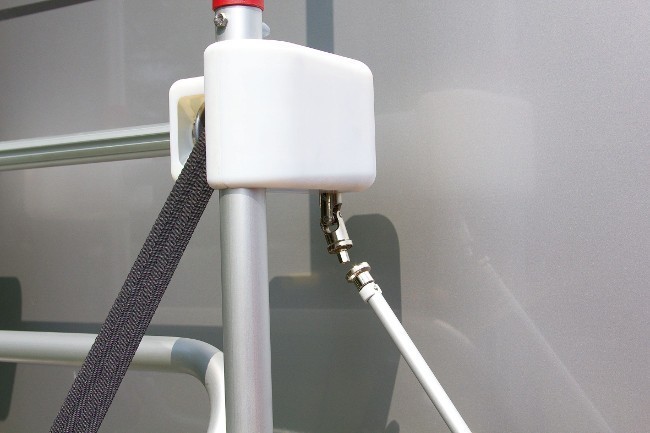

No accidental unhooking thanks to the Extra-Large safety straps which carry up to 60 Kg. Thanks to its easy-to-operate winch mechanism and crank handle, it lifts and lowers the bicycles conveniently and without effort. It is made of sturdy galvanized aluminium tubes of 35mm diameter with stainless steel screws.

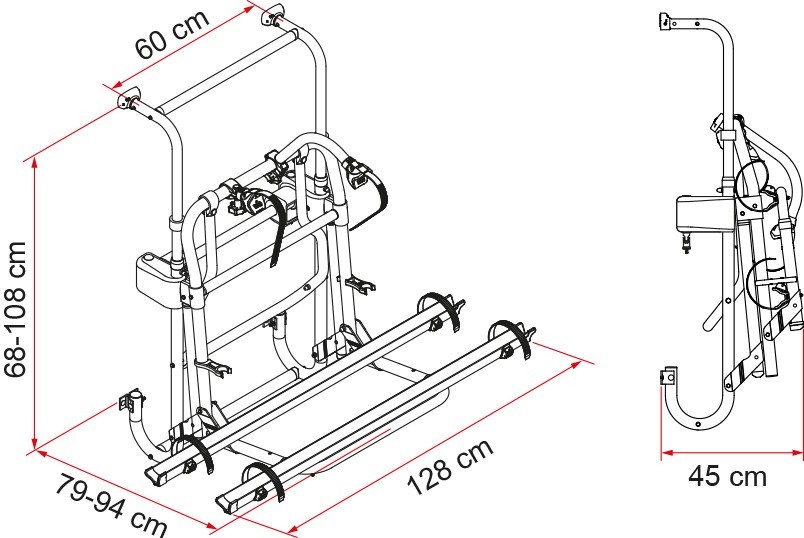

Wall fixing points with vertical wheelbase from 68 to 108cm makes it ideal for installation to many different motorhome models. Standard delivered to carry two bikes but can be adapted to carry up to 4-bikes.

Fiamma Bull Shock Absorber system is fitted as standard to Carry Bike Pro for the best and most reliable shock and vibration absorption during travel. It prevents the vibration of the bike carrying tray passing to the vehicle and reduces stress on the motorhome back wall.

Rack Holder secures the bike carrying tray in the upright position when you are not carrying bikes.

Quick Lock is delivered as standard with Quick Safe straps to quickly and safely lock the wheels of the bike on the carrier rail. The Quick Lock strap is easy to release and doesn't involve fiddly straps of ties.

Easy Position system allows you to off-set the bike rails on the Carry Bike to make it easier to fit the bikes on the carrier without pedals and handle bars clashing.

ZOOM 4 bikes means it easy to upgrade you bike rack to carry 3 or 4 bikes by purchasing additional upgrade kit either when purchasing your bike rack, or at a later date.

Bike Block Pro arms grip the bike frame securely. They are easy to fit, anti-scratch and secure.

Specification

Equipment & Options

Standard Equipment

• 2 x Rail Quick 128 bike supports
• 1 x Bike Block Pro 1 Bike frame holder
• 1 x Bike Block Pro 3 Bike frame holder
• 1 x Security Strip
• Installation kit

Optional Equipment

If you purchase the Carry Bike Lift 77 for 3 or 4 bikes you will also be supplied with the following additional equipment.

3^rd Bike Upgrade kit - 1 x Rail Quick 128 and 1 x Bike Block Pro 2

4^th Bike Upgrade kit - As above plus 1 x Rail Quick 128 and Bike Block Pro 4
