Fiamma Carry-Bike Garage Plus

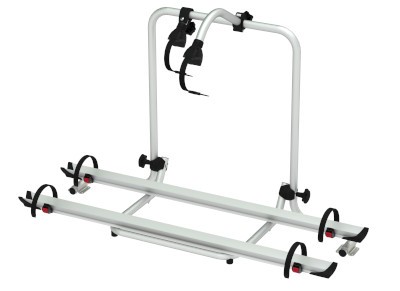

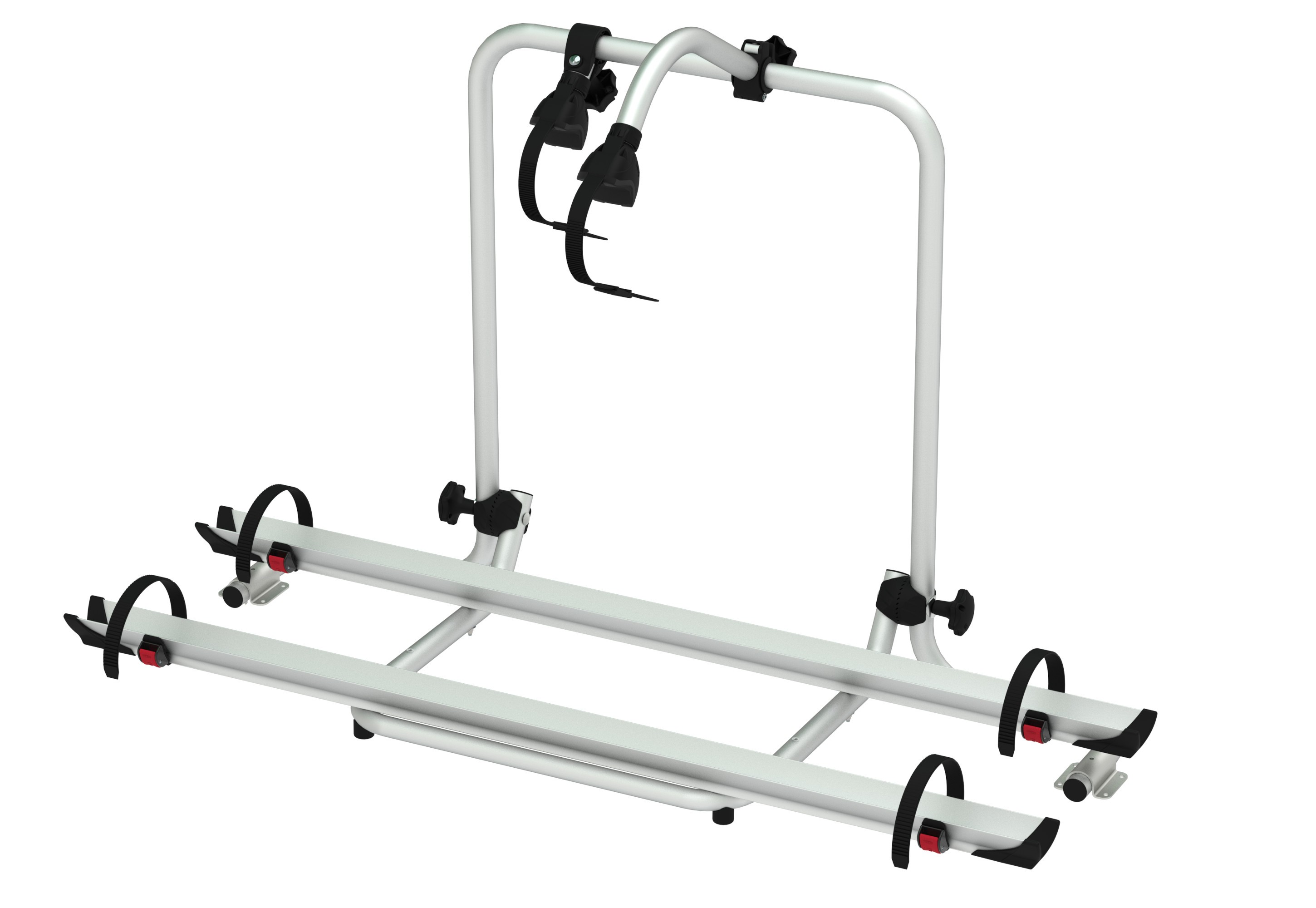

Fiamma Carry-Bike Garage Plus
Fiamma Carry-Bike garage plus folded for storage
SKU: 02093A78A
£174.95 Inc. VAT
Usually Dispatched in1 working day

Carry-Bike Garage plus for all motorhomes with garage storage facility. Supplied complete with lower brackets to fasten to the motorhome garage floor. The lower section can be folded up when not in use, providing more space should it be required.

Supplied as standard to carry 2-bikes, with the option of increasing to 4. To upgrade to a 3 or 4 bike carrier you will need to add either the "3rd Bike Upgrade Kit" or 4th Bike Upgrade Kit" to your basket.

3rd Bike Upgrade Kit includes:

  1. Quick Rail 128 Red
  2. Bike Block Pro 2

4th Bike Upgrade Kit includes:

  1. 2x Quick Rail 128 Red
  2. Bike Block Pro 2
  3. Bike Block Pro 4

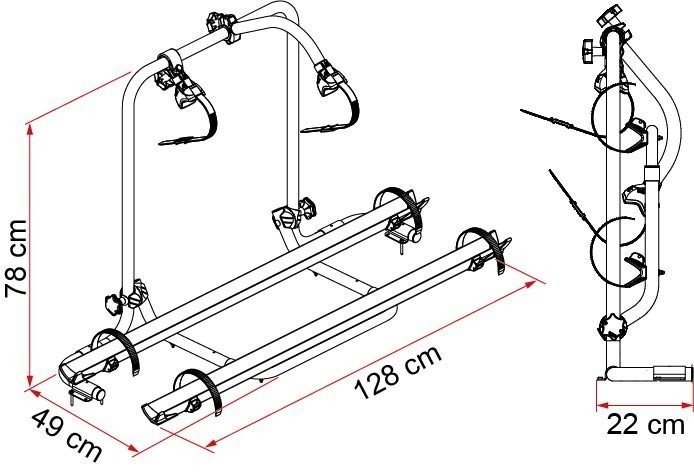

  • Dimensions: See image.
  • Material: Non rusting anodised aluminium frame.
  • Weight: 5.6kg.
  • Installation: Floor using kit supplied.
  • Capacity: 2 - 4 bikes.
For Vehicle Type Motorhome
Fitting Position Garage Fitting
Bikes Standard 2
Bikes Max 4
E-Bike Compatible Option
Fitting Notes
Min. Vertical Fitting Distance (cm)
Max. Vertical Fitting Distance (cm)
Bike Rack Fits Within...(cm)
Bike Rack Fits Over ...(cm)
Weight Capacity (kg)
Weight 5.60 kgs
Manufacturers Part Number 02093A78A
