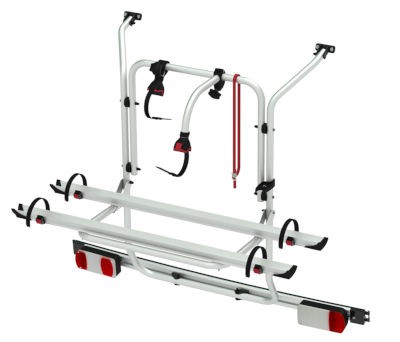

Fiamma Carry-Bike Mercedes Viano

Fiamma Carry-Bike Mercedes Viano
SKU: 02093B75A
R.R.P.: £555.12
save 17%
£459.46 Inc. VAT

    Cancel OK

    3rd Bike Upgrade?

    Select BOTH items to add 3rd bike
    Usually Dispatched in1 working day


    Carry-Bike for Mercedes Viano and Mercedes Vito after 2004 and upto 2014.

    Fiamma Carry-Bike for Mercedes Viano and Mercedes Vito (version from 2004) motorhomes and minivans. Easily fitted with no drilling required and door remains operational even with bikes fitted, although support must be provided to the door when opened.

    Fits Mercedes Vito, V-Class and Viano versions from 2004 to 2014 (W639).

    Carry-Bike Mercedes Viano / Vito Standard Kit and Upgrades

    Supplied as standard with: 2x Rail Quick Black (bike support), Bike-Block Pro Black 1 and 3 (Carry-Bike frame to bike holder), 1x Rack Holder (secures the bike support when folded away), 1x Security Strip (buckled strap) and Lighting Board wired to 13 pin plug. Supplied as standard to carry 2-bikes but can also be purchased with an additional Rail Quick support and Bike Block to carry 3-bikes (see images above).

    • 3rd bike upgrade kit: 1x Rail Quick Black and 1x Bike Block Pro Black 2.

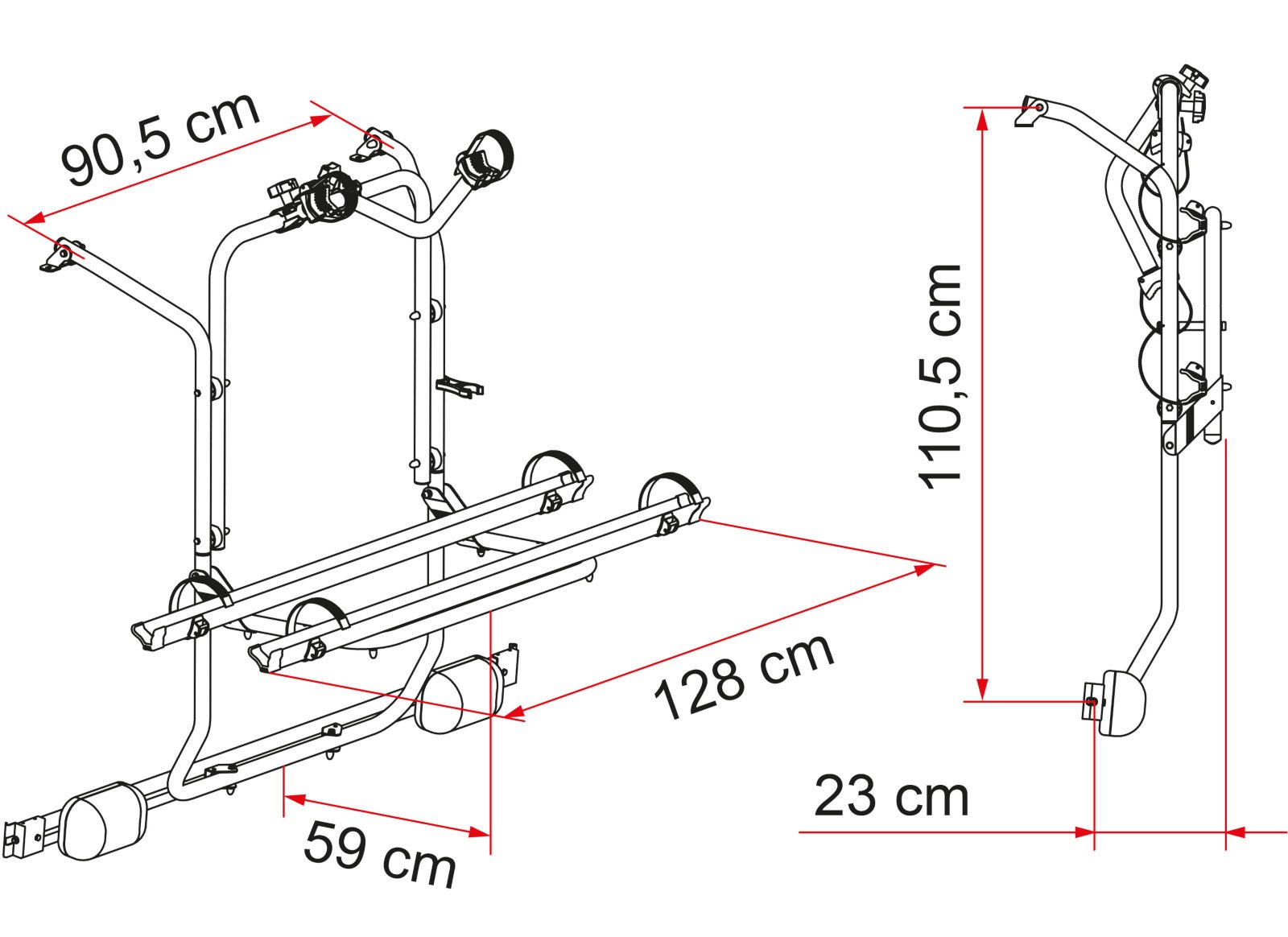

    • Dimension: see images.
    • Max. Load: 50 Kg.
    • Weight: 10 Kg.
    • TUV Approved.
    • Carries as standard: 2-bikes.
    • Carries max.: 3-bikes
    • Euro 13-pin wired light board.
    • Frame construction: Anodised aluminium.


    Click to download Fiamma Carry Bike CL Fitting Instructions
    For Vehicle Type Van / Conversion
    Fitting Position Rear Door Fitting
    Bikes Standard 2
    Bikes Max 3
    E-Bike Compatible Option
    Fitting Notes
    Min. Vertical Fitting Distance (cm)
    Max. Vertical Fitting Distance (cm)
    Bike Rack Fits Within...(cm)
    Bike Rack Fits Over ...(cm)
    Weight Capacity (kg)
    Weight 10.00 kgs
    Global Trade Item Number 8004815378714
    Manufacturers Part Number 02093B75A
