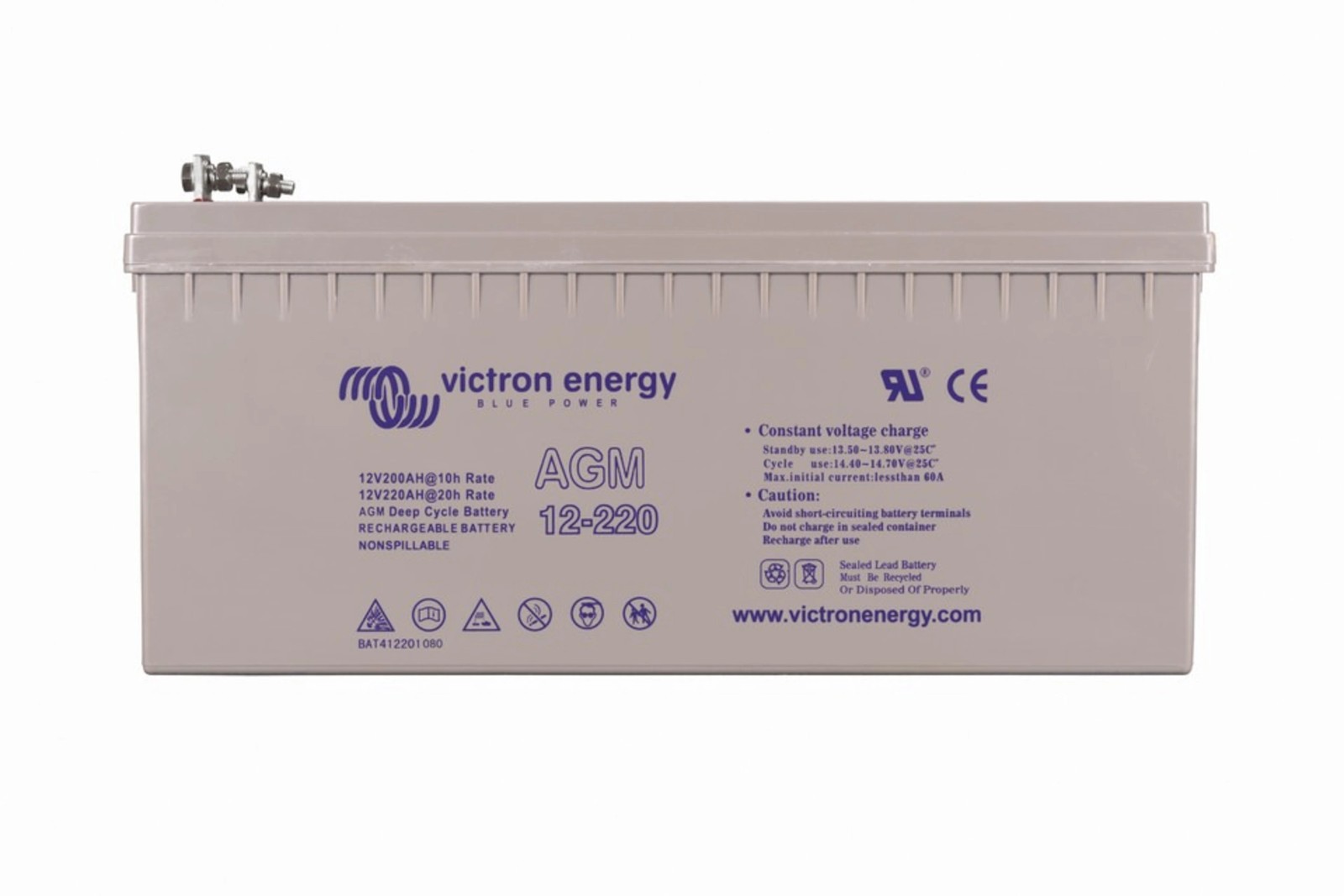

Victron Energy 220Ah AGM Dual Purpose Leisure Battery

Victron Energy 220Ah AGM Dual Purpose Leisure Battery
SKU: BAT412201085
£497.22 Inc. VAT
Usually Dispatched in1 working day

Victron Energy's AGM range of leisure batteries are a great choice for all your leisure needs, with a long service life, high cycling capabilities and low internal resistance, making them efficient and reliable, even in high current discharge applications such as inverters, thruster and winches.

VRLA AGM: design life 7-10 years


VRLA technology

VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure.

VRLA batteries are maintenance free for life.

Sealed (VRLA) AGM Batteries

AGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.

Low Self-Discharge

Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every 10°C increase in temperature.

Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.

Exceptional Deep Discharge Recovery

Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.

Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.

Battery Discharging Characteristics

The rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current. Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.

Nominal Voltage (V) 12
Rated Capacity (Amp Hour) 220
Length (mm) 522
Width (mm) 238
Height (mm) 240
NCC Classification N/A
Weight (kg) 65
Charge Cycles 400
CCA 650
Terminal Type M8
Terminal Layout Side
Weight 65.00 kgs
Manufacturers Part Number BAT412201085
