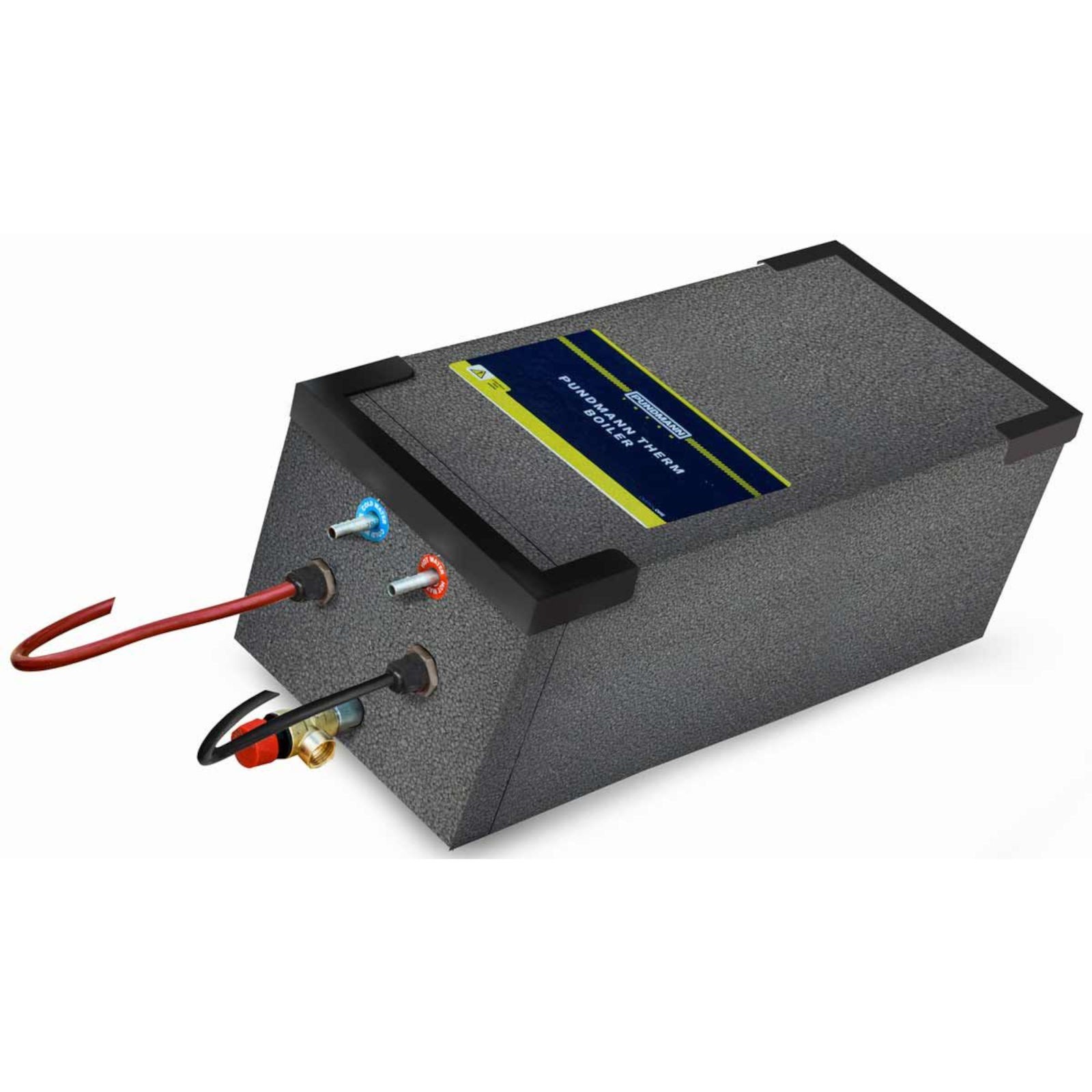

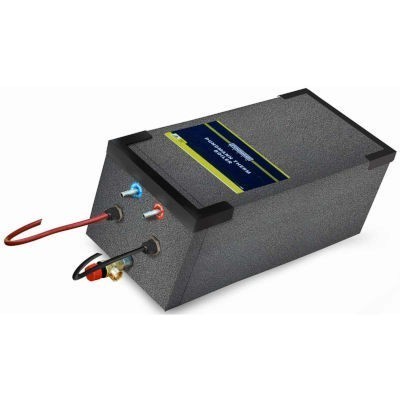

Pundmann Water Heater 10L Twin Rod 230V 500W and 12V 200W

The Pundmann Water Heater 10 Litre Twin Rod is intended to bring creature comfort to camper van adventures. The twin rod allows you to run the water heater / boiler off mains electricity, your 12 Volt leisure battery or both. Made from food grade stainless steel this 10 litre water boiler is compact and supplies enough hot water for a shower. When the boiler is run using both heater rods your water will heat to 60°C in as little as 50 minutes.

Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! This boiler is supplied with an insulated jacket to keep your water warmer for longer and has a built in 3.0 bar pressure release valve.

It is compact and easy to install for efficient use of small spaces as well as being safe and stable. We would advise using a pump with maximum 2.0 bar/30psi and 10 litres per minute with this heater / boiler.

Water inlet and outlet spigots are designed for use with both barbed 10mm internal diameter hose and hose-clips (these may need re-tightening once the system is under pressure), or 10mm push-fit connectors.

Every unit is built to last and individually bench tested to ensure long term performance and safety.

We recommend installing a thermostatic blending valve to control the maximum temperature of water to the tap.

Features

• Twin immersion heater rods, 12V 200W and 230V 500W fitted with 5A 3-pin plug
• Insulated 304 stainless steel welded tank with high quality stainless heating rods
• Designed for safe use up to 2.3bar
• Supplied & fitted with a 3 bar hot water safety pressure release valve
• 3 Year return to base Warranty

Specifications

• Length: 360mm + 85mm for connections
• Height: 200mm
• Width: 228mm
• Hot & Cold brass hose tails: 10mm
• Pressure release valve: 3bar
• Heating time to 65° celsius: ~50-60 minutes
• Empty Weight: 8.4kg

Click to download Frequently Asked Questions about the Pundmann Heaters.
