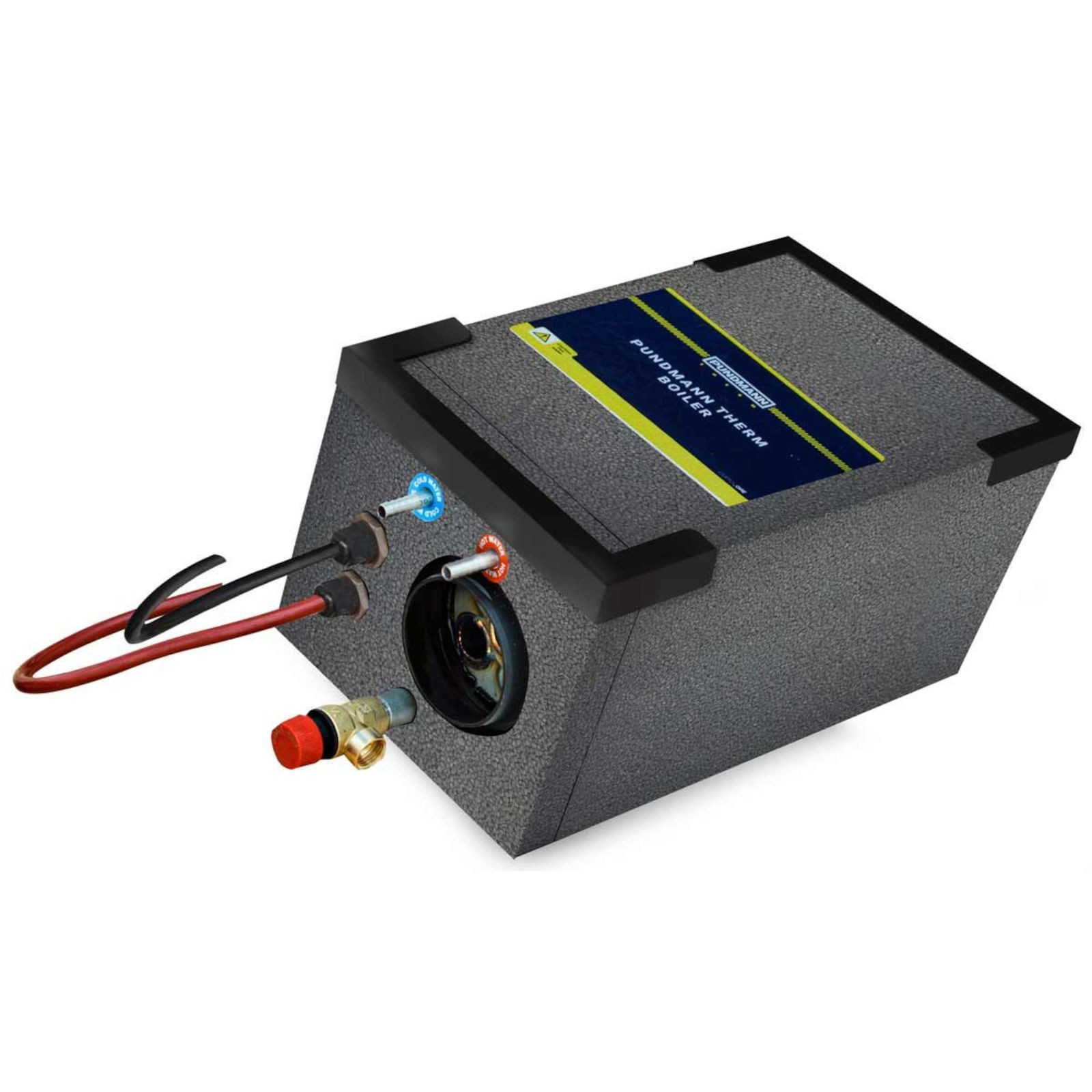

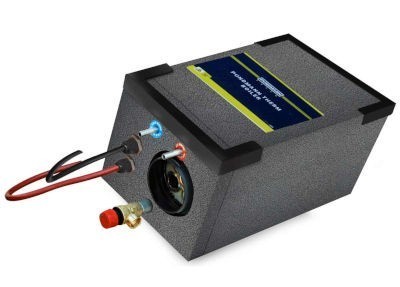

Pundmann Water Heater 10L Air Combi 230V 500W and 12V 200W

The Pundmann Water Heater 10 Litre Air Combi is intended to bring creature comfort to camper van adventures. The Air Combi allows you to run the water heater / boiler off mains electricity, your 12 Volt leisure battery, the air heat exchanger (if you have a diesel or gas space heater installed) or any combination of these options. Made from food grade stainless steel this 10 litre water boiler is compact and supplies enough hot water for a shower. When the boiler is run using both heater rods your water will heat to 60°C in as little as 50 minutes.

Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! This boiler is supplied with an insulated jacket to keep your water warmer for longer and has a built in 3.0 bar pressure release valve.

It is compact and easy to install for efficient use of small spaces as well as being safe and stable. We would advise using a pump with maximum 2.0 bar/30psi and 10 litres per minute with this heater / boiler.

Water inlet and outlet spigots are designed for use with both barbed 10mm internal diameter hose and hose-clips (these may need re-tightening once the system is under pressure), or 10mm push-fit connectors.

Every unit is built to last and individually bench tested to ensure long term performance and safety.

We recommend installing a thermostatic blending valve to control the maximum temperature of water to the tap.

Features

• Combi tank with air heater exchanger
• Twin immersion heater rods, 12V 200W and 230V 500W fitted with 5A 3 pin plug
• Compatible with diesel or gas heaters and works efficiently with 2kw or 4kw heaters. Perfect for campervans boats, off grid locations service vehicles
• Insulated 304 stainless steel welded tank with high quality stainless heating pads
• Designed for safe use up to 2.3bar
• Supplied and fitted with a 3 bar hot water safety pressure release valve
• Engineered to provide excellent service and has a 3 year return to base warranty.

Specifications

• Voltage description: 12V DC and 230V AC
• Height description: 200mm, Width: 228mm
• Length: Heater 520mm, connections 85mm
• Wattage: 200W at 12V, 500W at 230V
• Operating pressure: 2.3 bar maximum
• Hose tail size: 10mm-3/8"
• Capacity: 10L
