Powerpart Mains Consumer Unit - Standard

Powerpart Mains Consumer Unit - Standard
Powerpart Mains Consumer Unit PO103 Powerpart Consumer Mains Unit Dimensions
SKU: 5060070210971
£40.99 Inc. VAT
Quantity
Usually Dispatched in1 working day

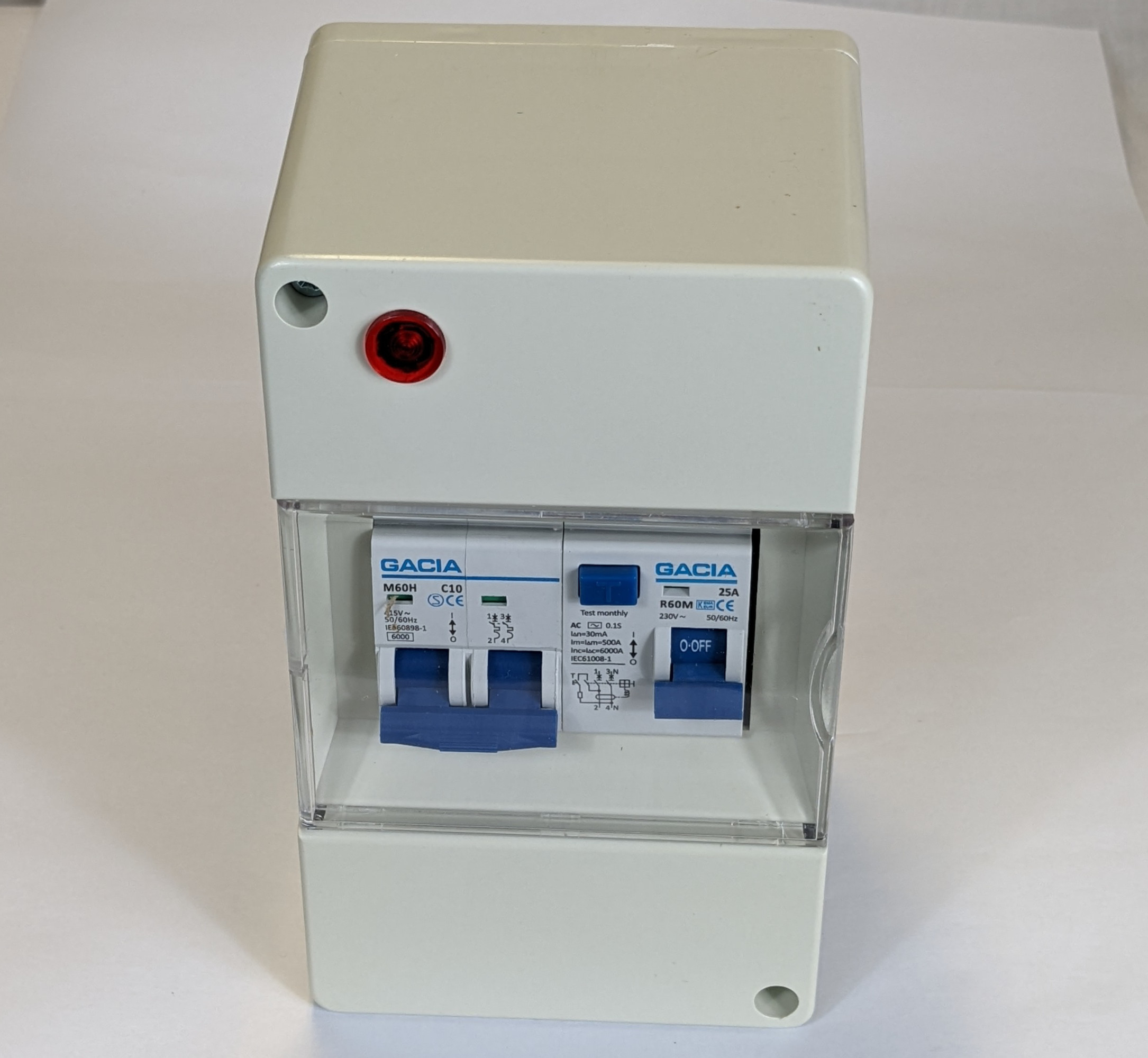

Mains Consumer Unit with 1 x 25 Amp double pole Residual Current Device and 1 x 10 Amp double pole Miniature Circuit Breaker.

This model is a common fit for in UK built caravans. Provides trip protection for over-current and current leakage for a single mains circuit which can have multiple mains sockets and transformer connection up to a total draw of 10 Amps.

Ideal Mains Consumer Unit for smaller caravans and motorhomes, or simple van conversions with a single mains circuit.


PO103 Consumer Unit Features

  • 25A Double Pole RCD
  • 10A Double Pole MCB
  • Wall mounted unit
  • Suitable for 1 x mains circuit with total load up to 10 Amps
  • Trip protection
  • Polarity check light

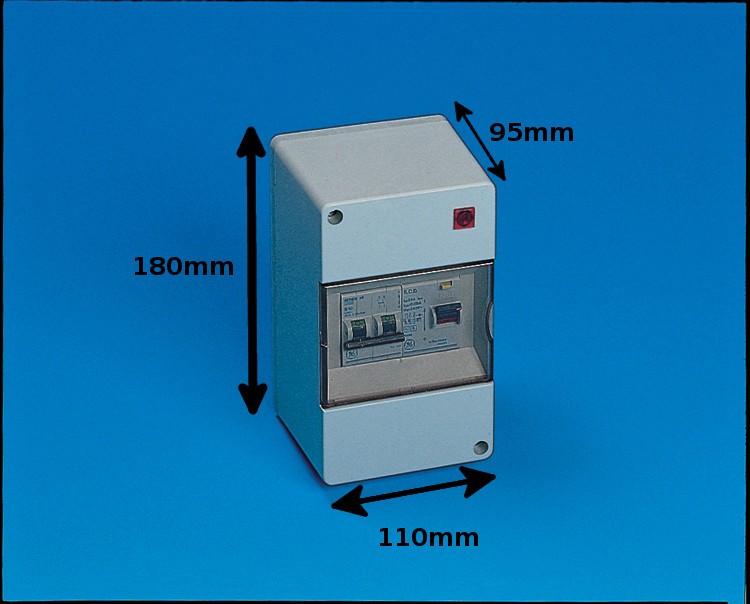

  • Dimensions: (W)110 x (H)180 x (D)95mm
