Powerpart PDU & Converters Wiring Harness Kit

Powerpart PDU & Converters Wiring Harness Kit
SKU: 5060070214887
£340.00 Inc. VAT

    Cancel OK

    Add Mains Inlet?

    Usually Dispatched in1 working day

    Power management and distribution kit with prewired harness system for simple set up of mains (230V) and 12 Volt electrical system in a campervan or horsebox conversion or caravan rewire. Since all control panel, harnesses and power distribution are included and prefitted with simply push fit connector it vastly simplifies the process of installing the electrical system on your project.

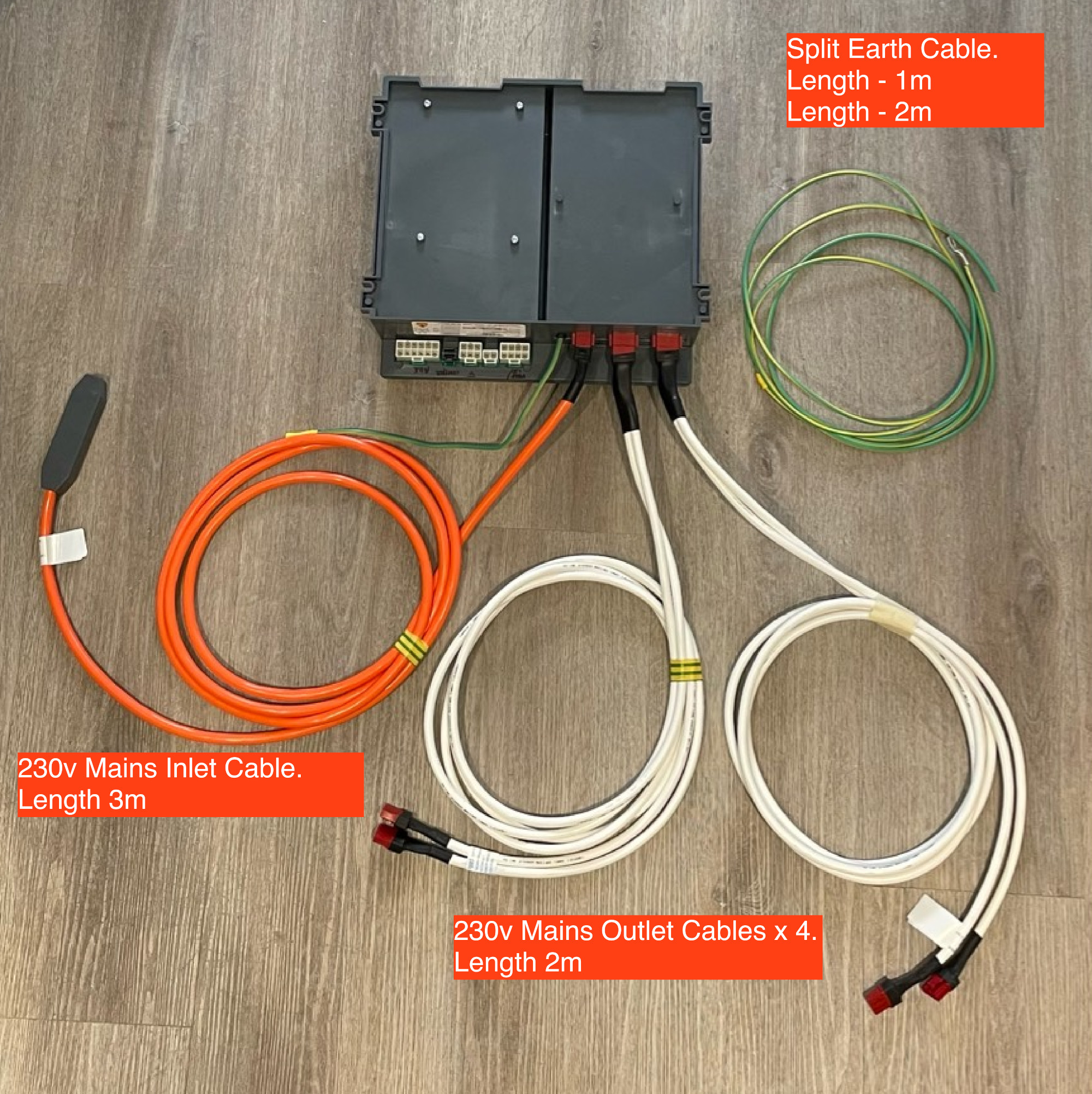

    Mains (230V) System - The PDU unit includes the consumer unit providing mains circuit protection via a double pole RCD and 16Amp MCB providing power for up to 4 x 13 Amp sockets. It also includes the transformer to provide power to the 12 volt system and charge the batteries when you're plugged in to mains electrics.

    12 Volt System - The PDU unit also has built in the 12 volt fuse bank and relay system to provide power to 12V appliances, intelligently select the power source from either battery power or mains depending on availability, and recharge the leisure and vehicle batteries.

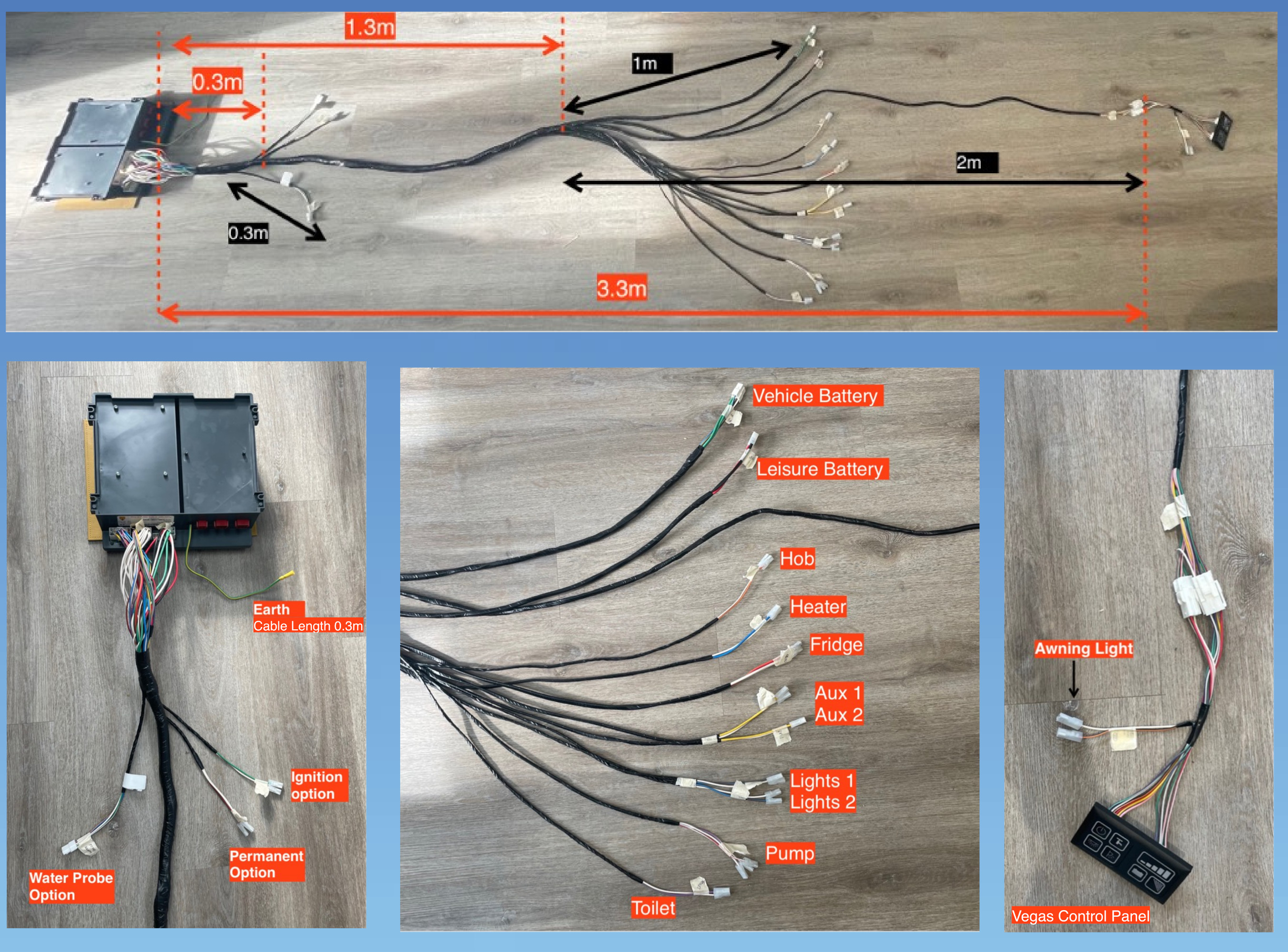

    Prewired Harnesses - The prewired mains harnesses including plug in to the PDU using the push fit connectors and fit to upto 4 x BCA Prewired Sockets BC17015 so no manual wiring is required. The prewired 12 volt system harness provides premade leads with connections to the PDU and control panel and branches for each 12 Volt accessory fitted with 6.3mm spade terminals for fast connection to the accessory or extension lead if needed.

    Also included is the connection cable to the mains inlet for use with BCA Prewired Flush Inlet - BC17018 and BCA prewired Surface Inlet - BC18033 as well as the bonding strap for connection to the gas pipe and vehicle chassis.

    Vegas Control Panel - The control panel also has quick connector to fit to the harness and features a master button, pump isolation button to prevent the water pump running when not needed, interior and awning light buttons and leisure battery voltage indicator.


    • Mains consumer unit with
      • 1 x 30mA RCD
      • 1 x 16 Amp MCB to supply up to 4 sockets
      • 1 x 6 Amp MCB for internal supply of the transformer 12 volt system and battery charger
    • Transformer providing 150W power supply to
      • Leisure battery connection - 25A fused
      • Vehicle battery connection - 25A fused
      • Control Panel - 5A fused
      • Fridge permanent supply - 10A fused
      • Spare permanent supply - 10A fused
      • Fridge ignition controlled supply - 20A fused
      • Heater (FAN ONLY) supply - 10A fused
      • Hob ignition supply - 5A fused
      • 2 x Auxiliary / 12V Socket supply - 15A combined
      • 2 x Interior light supply - 10A combined
      • Toilet pump supply - 10a fused
      • Water pump supply - 10a fused
    • Relay module for automatic switching of power supply (Mains, leisure battery or vehicle battery)
    • Battery charge level indicator for leisure battery
    • Water pump isolation switch to prevent pump running when not needed

    Standard Equipment

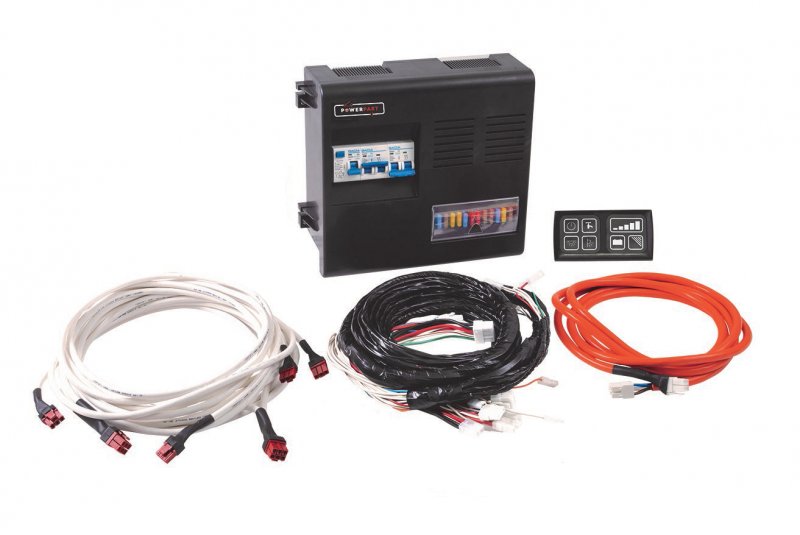

    • 1 x PDU inc consumer unit, 12V power supply and battery charger
    • 1 x Vegas control panel with 2 Way C-line surround
    • 1 x Mains inlet co0nnection cable
    • 1 x equipotential bonding strap
    • 4 x 13 Amp socket 2m cables
    • 1 x 12Volt accessory harness

    Optional Equipment

    Purchase Prewired Mains Flush Inlet - BC17018 or Prewired Surface Mount Mains Inlet - BC18033 for quick connect mains inlet

    Purchase prewired extension cables to extend 13A socket connection cables

    • BCA Prewired Extension Cable 1m - BC17020
    • BCA Prewired Extension Cable 2m - BC17019
    • BCA Prewired Extension Cable 3m - BC17013

    Purchase BCA Prewired C-Line 13A Mains Socket - BC17015 to connect mains appliances.

    Download Installation Instructions
