The Fiamma Roof Rail luggage carrier system comprises of two bars that install to the outer edges of the motorhome or caravan roof. Elegant and modern design. Light grey solid terminals are built in aluminium pressure die-casting. The aluminium anodised tubes are suitable for a quick hook up of the optional Fiamma Fixing Bar Rail. Tubes are 300 cm long and can easily be cut to the required length. Complete with 4 aluminium support brackets.

The main purpose for the roof rail is for it to be used as mounting points so you can attach the Fiamma Fixing Bar Rail cross bars. These are attached at the edges of the caravan or motorhome roof because there is better structure to support the weight of equipment carried on the bars.

This system also raises the cross bars to give you enough clearance underneath the bars making it easier to attach fitting brackets or ratchet straps to the cross bars.

Specification:

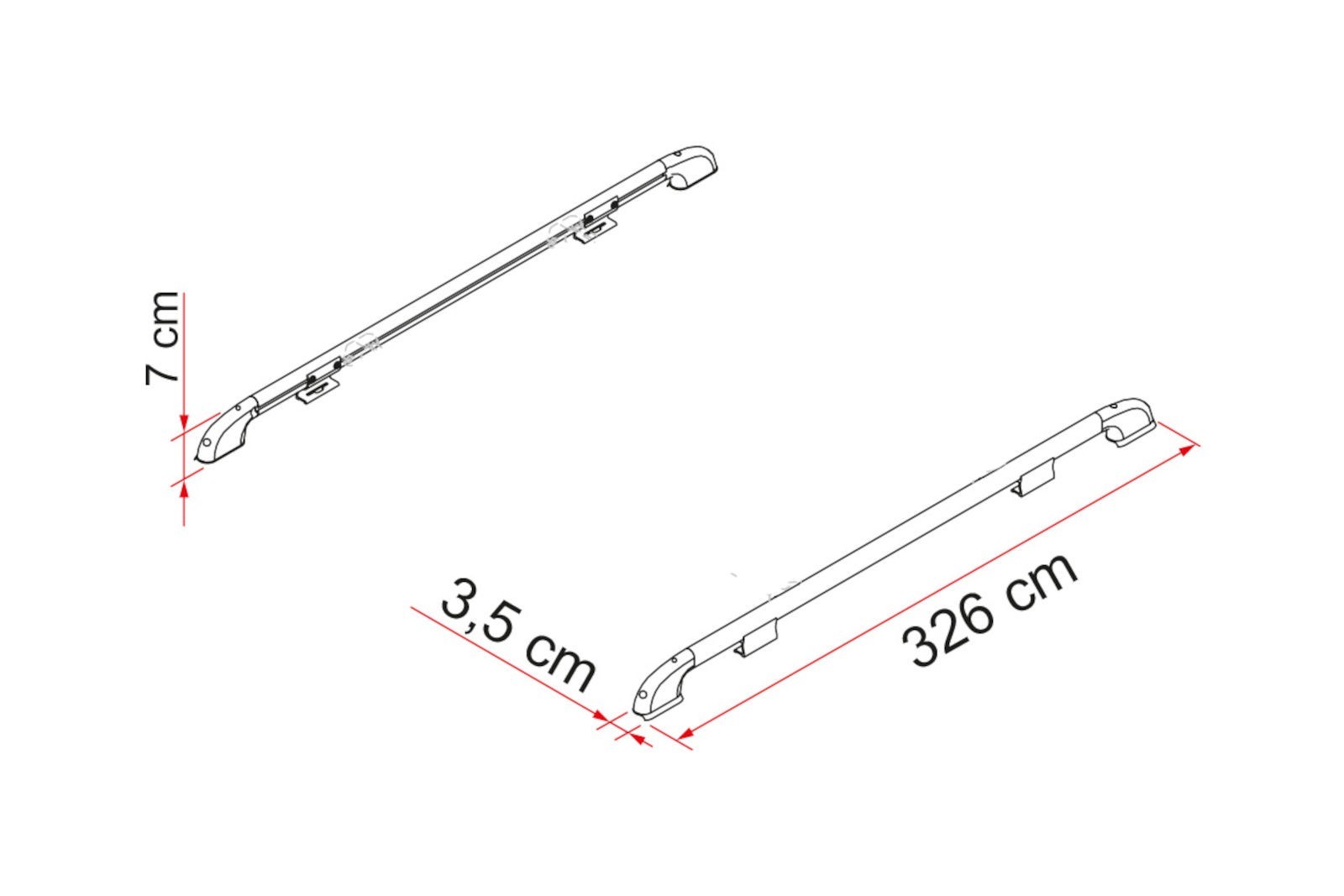

• Dimensions: bars 300cm, total length 326cm.
• Materials: Aluminium.
• Fitting: Screws not supplied as will vary according to vehicle application.
• Packed: 2 pieces
