Fiamma Roof Rail Ducato

Fiamma Roof Rail Ducato
Complete Roof Rack for Ducato, Boxer and Relay vans Can be fitted with F65 awning using standard brackets Fitting brackets included. No drilling required Dimensions for standard and Maxi version. Standard version can be cut for shorter vehicles Dimensions for H3 version on XLWB van. Can be cut down for LWB vehicles
SKU: FIA05808-01-

    Cancel OK
    Usually Dispatched in1 working day

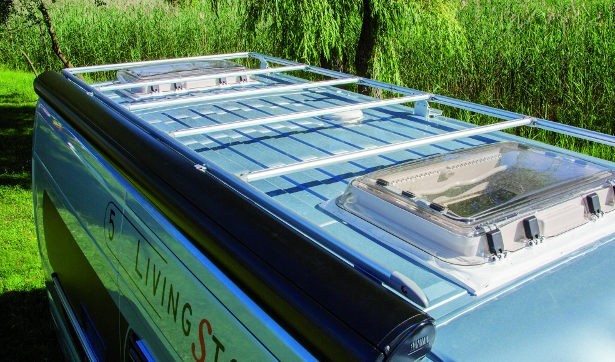

    A complete roof rack / luggage carrier system for Fiat Ducato, Peugeot Boxer and Citreon Jumper / Relay vans made from 06/2006 onwards. The Fiamma Roof Rail Ducato range provides an ideal way to carry bulky items such as luggage boxes, kayaks and boats.

    Available in 3 versions to suit Medium High (H2) roof and Extra High (H3) roof vans in all available vehicle lengths. All versions of Roof Rail Ducato are delivered with a complete set of lengthways (front to back) bars and lateral (side to side) bars to make a complete roof rack for the van roof.

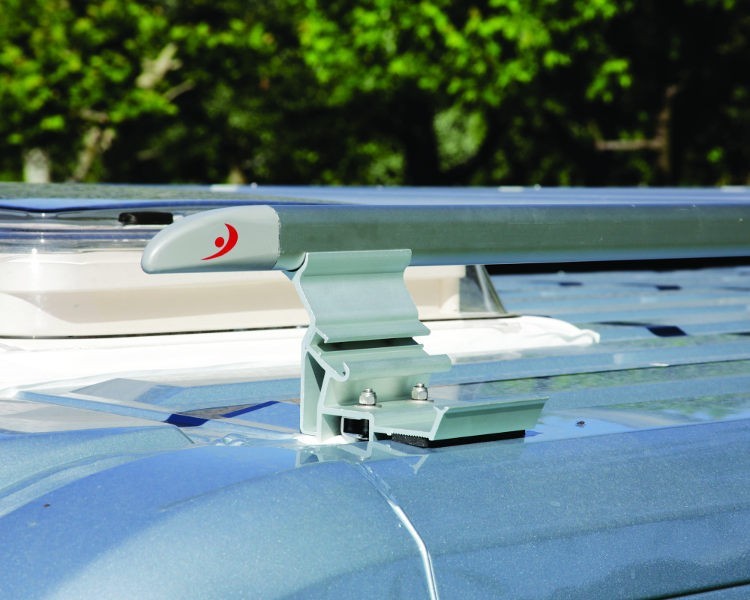

    Easy to install without drilling the vehicle, thanks to the preinstalled fixing system on the roof of Ducato.

    These roof racks have a weight capacity of 100kg (220lb) and are compatible with Fiamma Ultra-Box Top roof storages boxes so make a simple way to increase the luggage space of your motorhome.

    Ducato Roof Rail Features

    • 100 kg weight capacity
    • Aluminium construction - strong, lightweight and rust proof
    • No drilling easy installation
    • Can be fitted with a Fiamma F65 or F80 awning of appropriate length to match the vehicle
    • Adaptable bar position - Lateral bars can be moved forward or backward to work around roof vents or solar panels which are already fitted to your vehicle

    Ducato Roof Rail Versions

    There are 3 versions of Roof Rail Ducato available to suit the different roof heights and vehicle lengths of this van.

    Fiamma Roof Rail Ducato 05808-01-
    Version to fit Medium high (H2) roof vans only. Standard delivered to fit straight to LWB (L3) vehicles but can be cut down to fit MWB (L2) and SWB (L1)

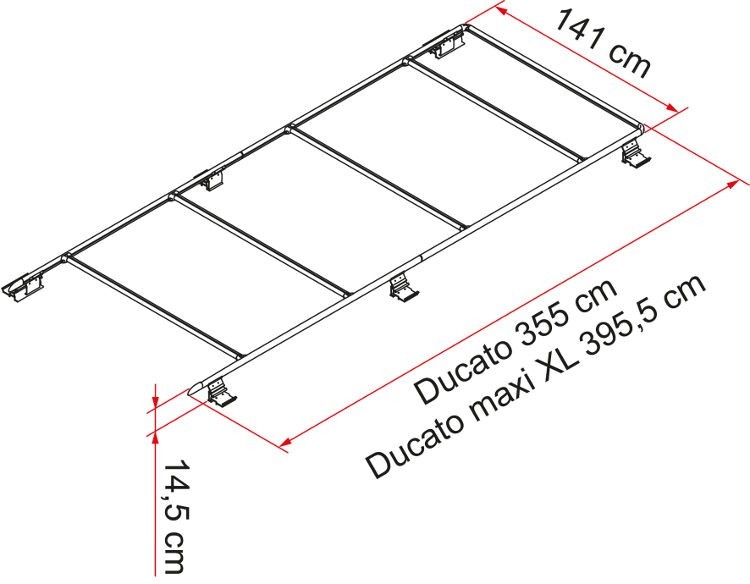

    Roof Rail Ducato Maxi 05808-02-
    Longer version Roof Rail to fit Medium high (H2) roof Ducato Maxi van with Extra Long Wheel Base (L4)

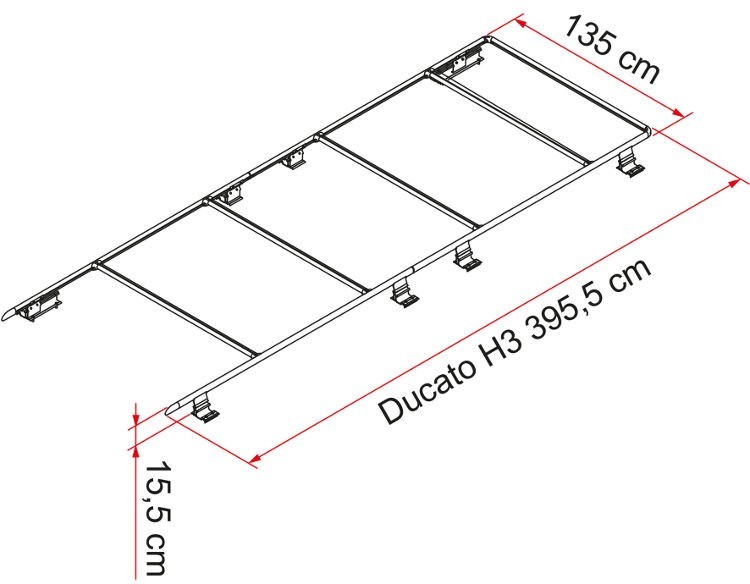

    Roof Rail Ducato H3 05808-03-
    Version to fit extra high roof (H3) vans only. Standard delivered to fit straight to XLWB (L4) vehicles but can be cut down to fit LWB (L3).

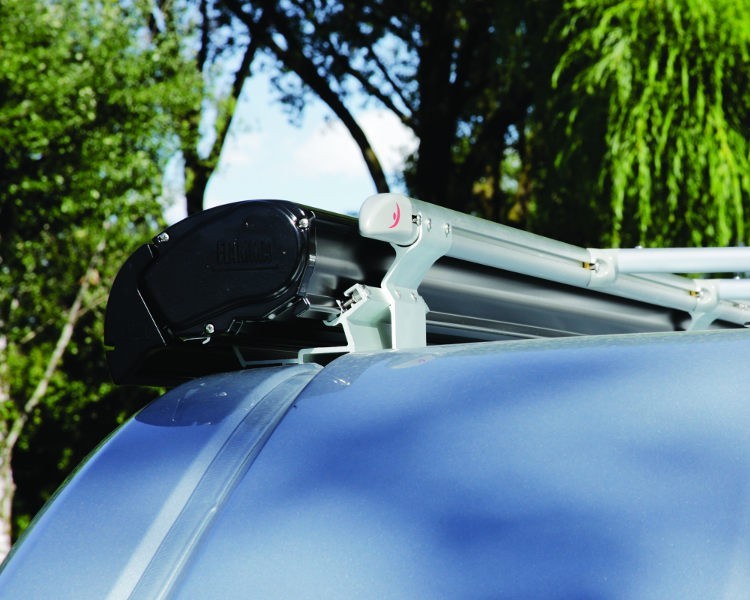

    On Medium high (H2) roof vehicles it is possible to install the Fiamma F65 S awning to either the left or right hand side using the standard brackets delivered with Roof Rail Ducato 05808-01- and Roof Rail Ducato Maxi 05808-02-.

    Ducato Roof Rail Compatibility

    Fiamma Roof Rail Ducato is suitable Ducato / Boxer based van conversion or motorhome with metal van body only. It is not suitable for coachbuilt motorhome on a Ducato Chassis. For coachbuilt motorhome use Fiamma Roof Rail with Fiamma Fixing Bar Rail

    Equipment & Options

    Supplied with 5 x adjustable Fiamma Fixing-bar Rail (lateral rails) as standard.

    Use with optional Fiamma Roller Roof Rail for easier loading of very bulky items.

    For increased storage use with Fiamma Ultra-Box Top 2 and Top 3 roof boxes


    Click to download Fiamma Roof Rail Ducato Fitting Instructions
