Fiamma Kit F45 Bailey Mk 2

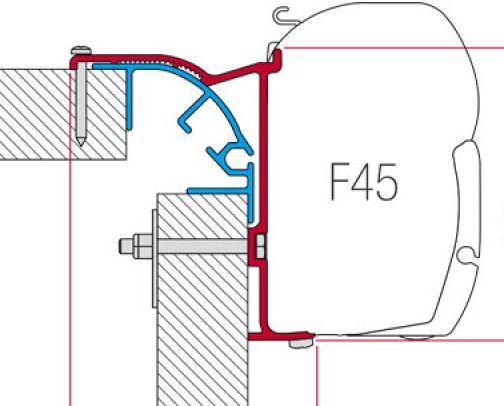

Awning installation kit to fit Fiamma F45 awning on certain models on Bailey Caravan with Alu-Tech construction from 2012.

Kit can be used to fit various length of F45 awning. Brackets should not be fitted to the bathroom area.

Fiamma advise these brackets are only to be fitted by a Bailey dealer.

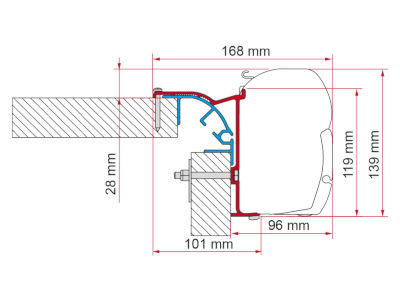

Specification

• 3 x 15cm Aluminium brackets
• Includes bolts and internal plates
• Includes fitting screws

Compatibility

Fits to the following Bailey Alu-Tech caravans in their standard form. If the caravan has been modified this may effect fitting. Please check for any obstructions such as after market awning lights or vents which may interfere with fitting.

2017
APPROACH ADVANCE – 615, 635, 640, 665
PEGASUS IV – ANCONA, BRINDISI, GENOA, MODENA, PALERMO, RIMINI, VERONA
PURSUIT II - 400/2, 430/4, 530/4, 550/4, 560/5, 570/6
UNICORN III – BARCELONA, CABRERA, CADIZ, CARTAGENA, CORDOBA, MADRID, PAMPLONA, PAMPLONA AUST, SEVILLE, VALENCIA, VIGO

2016
APPROACH ADVANCE – 615, 635, 640, 665
APPROACH AUTOGRAPH – 540, 625, 730, 740, 740 PA, 745, 745 PA, 765, 765 PA
PEGASUS IV – ANCONA, BRINDISI, GENOA, MODENA, PALERMO, RIMINI, VERONA
PURSUIT PLUS - 400/2, 430/4, 430/4 AUST, 530/4, 540/5, 550/4, 560/5
UNICORN III – BARCELONA, BARCELONA AUST, CABRERA, CADIZ, CARTAGENA, CARTAGENA AUST, CORDOBA, MADRID, PAMPLONA, PAMPLONA AUST, SEVILLE, VALENCIA, VIGO

2015
APPROACH ADVANCE – 615, 635, 640, 665
APPROACH AUTOGRAPH – 540, 625, 730, 730 PA, 740, 740 PA, 745, 745 PA, 765, 765 PA
PEGASUS GT65 – ANCONA, BOLOGNA, GENOA, RIMINI, TURIN, VERONA
PEGASUS IV – ANCONA, BRINDISI, GENOA, MODENA, PALERMO, RIMINI, VERONA
PURSUIT PLUS - 400/2, 430/4, 430/4 AUST, 530/4, 540/5, 550/4, 560/5
UNICORN III – BARCELONA, CADIZ, CARTAGENA, CARTAGENA AUST, CORDOBA, CORDOBA AUST, MADRID, PAMPLONA AUST, SEVILLE, VALENCIA, VIGO

2014
APPROACH ADVANCE – 615, 635, 640, 665
APPROACH AUTOGRAPH – 540, 625, 730, 740, 740 PA, 745, 745 PA, 750, 765, 765 PA
APPROACH COMPACT – 520, 540
PEGASUS GT65 – ANCONA, BOLOGNA, BOLOGNA AUST, GENOA, RIMINI, RIMINI AUST, TURIN, VERONA, VERONA AUST
PURSUIT PLUS - 400/2, 430/4, 430/4 AUST, 530/4, 540/5, 550/4, 560/5
UNICORN II – BARCELONA, BARCELONA AUST, CADIZ, CARTAGENA, CARTAGENA AUST, CORDOBA, MADRID, PAMPLONA AUST, SEVILLE, VALENCIA, VALENCIA AUST, VIGO
UNICORN III – BARCELONA, BARCELONA AUST, CADIZ, CARTAGENA, CARTAGENA AUST, CORDOBA, CORDOBA AUST, MADRID, PAMPLONA AUST, SEVILLE, VALENCIA, VALENCIA AUST, VIGO

2013
APPROACH AUTOGRAPH - 625, 740, 745, 745 PA, 750, 750 PA, 765, 765 PA
APPROACH COMPACT – 520, 540
PEGASUS GT65 – ANCONA, ANCONA AUST, BOLOGNA, BOLOGNA AUST, GENOA, RIMINI, RIMINI AUST, TURIN, TURIN AUST, VERONA, VERONA AUST
PURSUIT PLUS - 400/2, 430/4, 430/4 AUST, 530/4, 540/5, 550/4, 560/5
UNICORN II – BARCELONA, BARCELONA AUST, CADIZ, CARTAGENA, CARTAGENA AUST, CORDOBA, MADRID, PAMPLONA AUST, SEVILLE, VALENCIA, VALENCIA AUST, VIGO

2012
PEGASUS GT65 – ANCONA, VERONA UNICORN II – BARCELONA, BARCELONA AUST, CADIZ, CARTAGENA, CARTAGENA AUST, MADRID, SEVILLE, VALENCIA, VALENCIA AUST
