Fiamma Kit F45 Bailey Mk 1

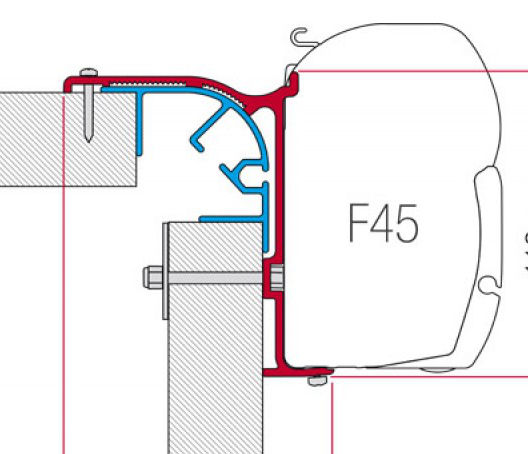

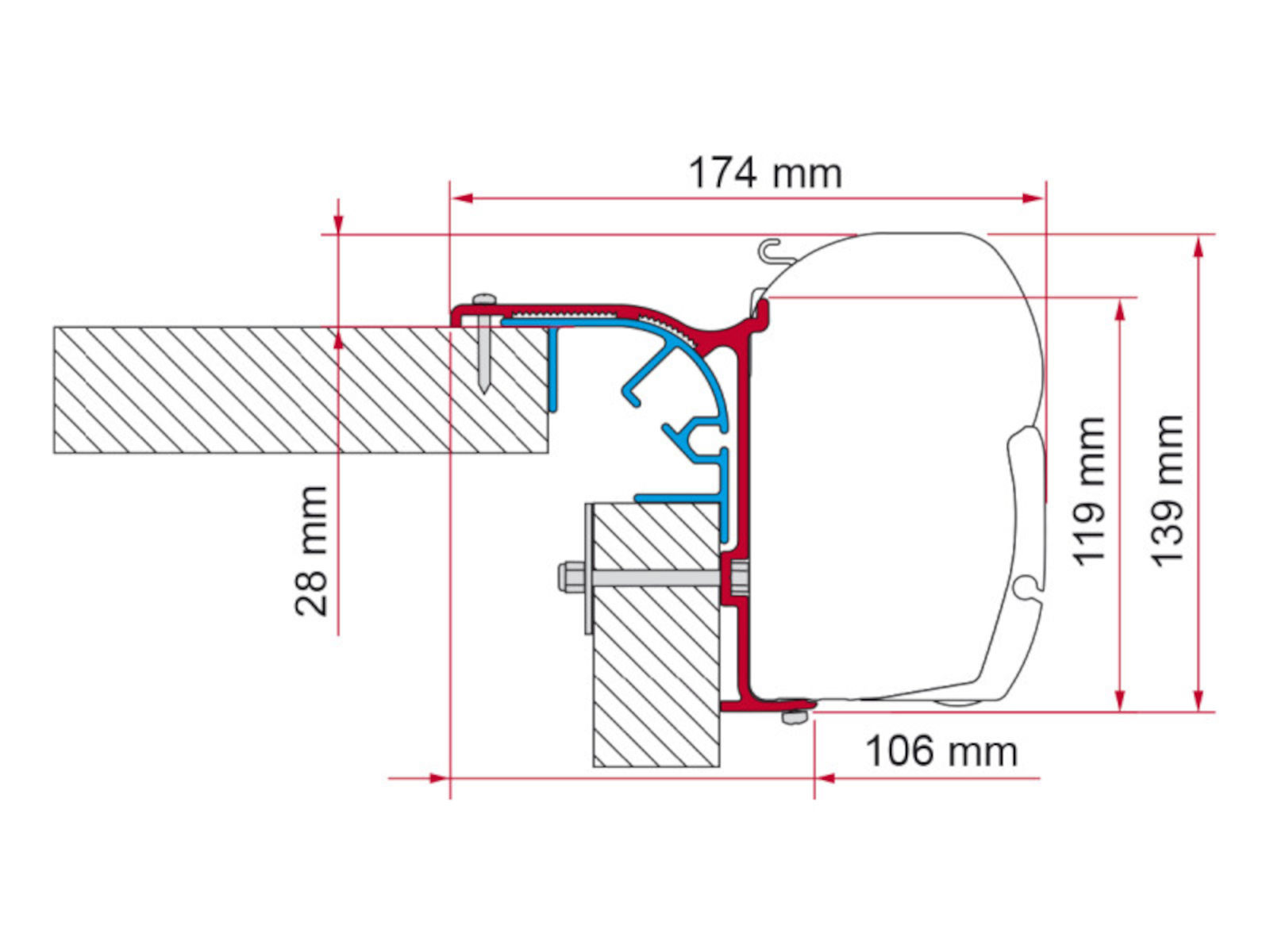

Awning installation kit to fit Fiamma F45 awning on certain models on Bailey Caravan with Alu-Tech construction from 2009 to 2014.

Kit can be used to fit various length of F45 awning. Brackets should not be fitted to the bathroom area.

Fiamma advise these brackets are only to be fitted by a Bailey dealer.

Specification

• 3 x 15cm Aluminium brackets
• Includes bolts and internal plates
• Includes fitting screws

Compatibility

Fits to the following Bailey Alu-Tech caravans in their standard form. If the caravan has been modified this may effect fitting. Please check for any obstructions such as after market awning lights or vents which may interfere with fitting.

2014
RETREAT – SYCAMORE, WILLOW

2013
APPROACH SE – 620, 625, 740, 745, 760
OLYMPUS II- 460/2, 530/4, 540/5, 620/6
ORION - 400/2, 430/4, 430/4 AUST, 440/4, 460/5, 530/6
PEGASUS II - ANCONA AUST, BOLOGNA AUST, RIMINI AUST
RETREAT – SYCAMORE, WILLOW
UNICORN - PAMPLONA AUST

2012
APPROACH SE - 620, 625, 740, 745, 760
OLYMPUS II - 460/2, 530/4, 540/5, 620/6, 620/6 AUST
ORION - 400/2, 400/2 AUST, 430/4, 430/4 AUST, 440/4, 460/5, 530/6, EVO 4
PEGASUS II – ANCONA, ANCONA AUST, BOLOGNA, BOLOGNA AUST, GENOA, MILAN, RIMINI, RIMINI AUST, VERONA, VERONA AUST
RETREAT – SYCAMORE, WILLOW
UNICORN – BARCELONA, BARCELONA AUST, CABRERA, CABRERA AUST, CADIZ, MADRID, PAMPLONA, PAMPLONA AUST, SEVILLE, VALENCIA

2011
APPROACH SE – 620, 625, 740, 745, 760
OLYMPUS II - 460/2, 530/4, 540/5, 620/6
ORION - 400/2, 400/2 AUST, 430/4, 430/4 AUST, 440/4, 450/5
PEGASUS II – ANCONA, ANCONA AUST, BOLOGNA, BOLOGNA AUST, GENOA, MILAN, RIMINI, RIMINI AUST, VERONA, VERONA AUST
UNICORN – ALMERIA, BARCELONA, BARCELONA AUST, CABRERA, CABRERA AUST, MADRID, PAMPLONA, PAMPLONA AUST, SEVILLE, VALENCIA

2010
OLYMPUS – 462, 464, 504, 525, 534, 546, 624
ORION - 400/2, 430/4, 440/4, 450/5
PEGASUS – 462, 514, 524, 534, 546, 554, 624, 646
PEGASUS II - ANCONA
UNICORN – ALMERIA, BARCELONA, MADRID, SEVILLE, VALENCIA

2009
PEGASUS – 462, 514, 524, 534, 546, 554, 624
