Fiamma F45 Privacy (Safari) Room

Fiamma F45 Privacy (Safari) Room

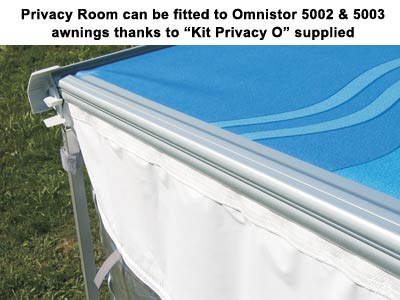

Fully enclosed awning room when used with F45 canopy Privacy Clip System is now lighter and simpler Clip System S with Quick Lock clamps Buckle straps for use with Tie Down Kit S fitted to side walls Front panel and door slide into lead bar channel Installation kits for F45 and Omnistore awnings Privacy is compatible with Omnistore 5002 & 5003 Measure your awning to ensure you order the correct Privacy Room
SKU: 05920-05-
£622.00 Inc. VAT
Select awning height
Select Privacy size
Quantity
Usually Dispatched in1 working day

Important Information

The Fiamma Privacy Room available on this page does not include an awning canopy. The Privacy Room is compatible with all previous versions of F45 with a 250cm projection including, F45 Ti, F45 Ti L and F45 S. For F45 Plus and Plus L models it is necessary to shorten the Clip System S following the instruction label and by rolling up the sponge.

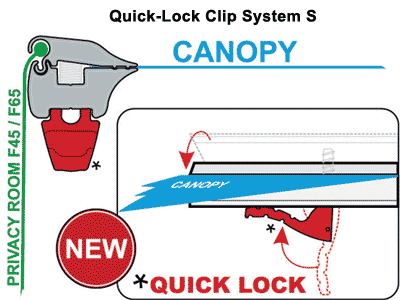

Clip System S

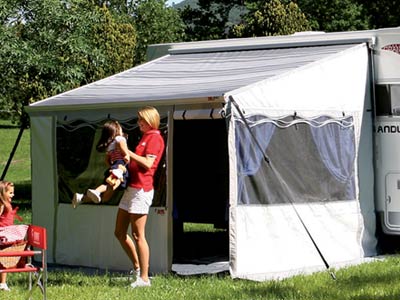

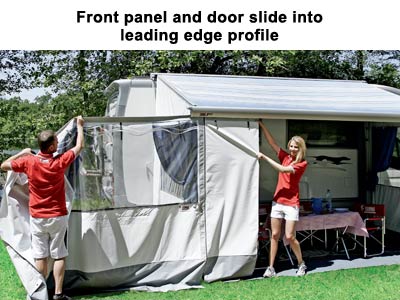

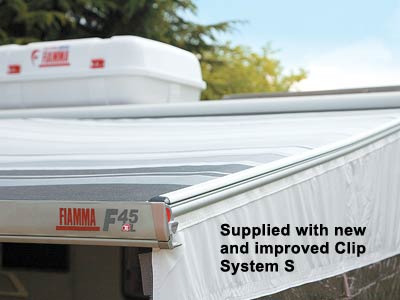

With the Fiamma Privacy Room it is possible to transform any Fiamma awning into a comfortable living area. The side panels are quickly put together with the exclusive patented Clip System S that combines the awning fabric with the sides. No other fixing system is as stable as the Clip System S. The new Clip System S has been simplified and is now lighter than ever before. The two anodised aluminium profiles of the Clip System S are hinged with the spring system Quick Lock and fasten around the canopy in a sandwich way. The Clip System S incoporates a recess designed to allow the Privacy Room side panels to slide into position. The front panel and door slide into the leading edge of the awning and connect to the side panels using quality YKK zips. A protective sponge is fitted, vertically on the back part of the side panels along the support poles to gurantee you a close fit.

The Privacy Room is extremely robust and incorporate plenty of pegging points, which we would advise you use at all times. Privacy Room features all round breathable mosquito mesh panes and clear vinyl window panels. Windows incorporate an attractive pattern and are quickly rolled-up to reveal the mosquito panels for warmer days. Curtains are supplied for all windows and provide greater privacy when needed. The walls of the Privacy Room are modular and can be used independently or inclusively, providing limited or total protection as prevailing weather dictates. The front door can be placed to the left or right of the main front panel and rolls up to allow access into the enclosure.

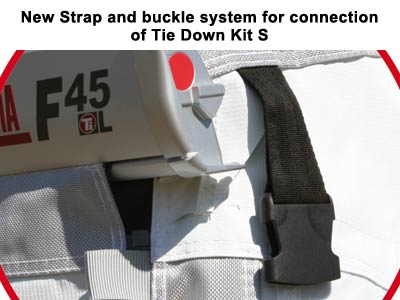

Privacy Room side panels now feature the new 'S' strap and Buckle system that allows you to quickly fit the new,optional, Tie Down Kit S.

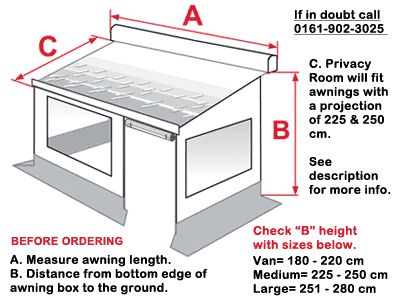

How to Measure (refer to final image above)

  1. Measure the length of your awning (A).
  2. Measure the distance from the ground to the bottom edge of the awning case (B).
  3. Measurement C should be approx. 250cm.

There are 6 awning lengths available; 300, 350, 400, 450, 500 and 550 cm. Compare your 'A' measurement, it should be very close to one of these lengths? Next, check your measurement 'B' against the sizes below. Does it fall into size Van, Medium or Large? Neither, then call 0161-902-3025. If it is Van please look at the F45 Privacy Room Van.

  • Van: 180 - 220 cm.
  • Medium: 225 - 250 cm.
  • Large: 251 - 280 cm.

Select the appropriate length and height requirement from the drop-down list above, prices are included.

Specification:

What's Included?

  • 1 front panel with door and window with moskito net.
  • 2 side panels with windows with moskito net.
  • Clip System S.

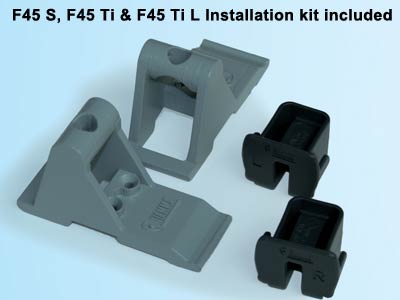

  • Installation kit for F45 & Omnistor.
  • 1 Door Pole sizes 450 - 550 cm.
  • Curtains for all three windows.
  • Storage bag Mega Bag.
  • Pegs and rubbers kit.
  • Colour: White panels with dark grey or black base.
