Prewired Mains Flush Inlet - BC17018

Prewired Mains Flush Inlet - BC17018
SKU: 5060070215976
£17.99 Inc. VAT
Quantity
Usually Dispatched in1 working day

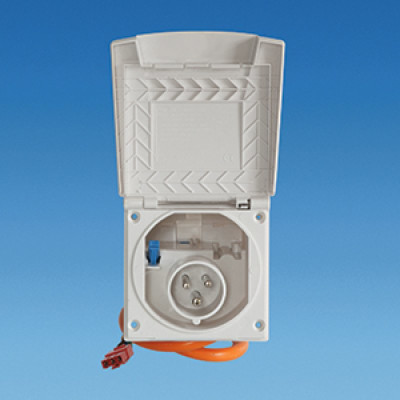

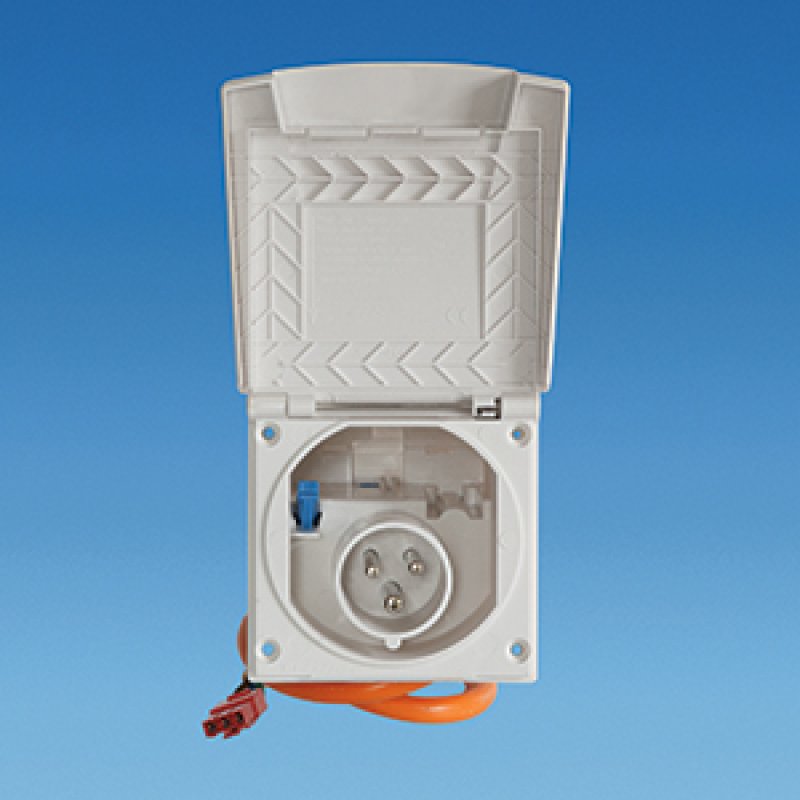

Square, prewired, recess mounting mains electric inlet box with external flap for caravan and campervan. Prewired with quick connector for fitting to BCA Converter's Wiring System and BCA PDU Converter's Harness Kit.

Provides an inlet connection point for caravan mains leads with round, blue 3 pin plug and socket connections to supply your caravan or campervan with mains (230V) power from a campsite.

Prewired version comes fitted with 0.5m of 3 core, 2.5mm2 orange flex and push fit connector specifically for easy fitting to BCA Prewired Consumer Unit - BC17009 from BCA Converter's Wiring System or connection to BCA PDU Converter's Harness kit.

For installation on a flat external wall of the vehicle and supply with a foam gasket to seal to the vehicle. Fitting screws not included.

Dimensions

Housing Dimensions: (H)108mm x (W)106mm
Lid Dimensions: (H)129mm x (W)119mm
Cut-out Dimensions: (H)90mm x (W)79mm
Depth in vehicle: 85mm
Screw Centres: (H)80mm x (W)92mm
