Large Rectangular 3 Position Rocker Switch - Grey

Large Rectangular 3 Position Rocker Switch - Grey
SKU: 5060070218762
£3.49 Inc. VAT
Quantity
Usually Dispatched in1 working day

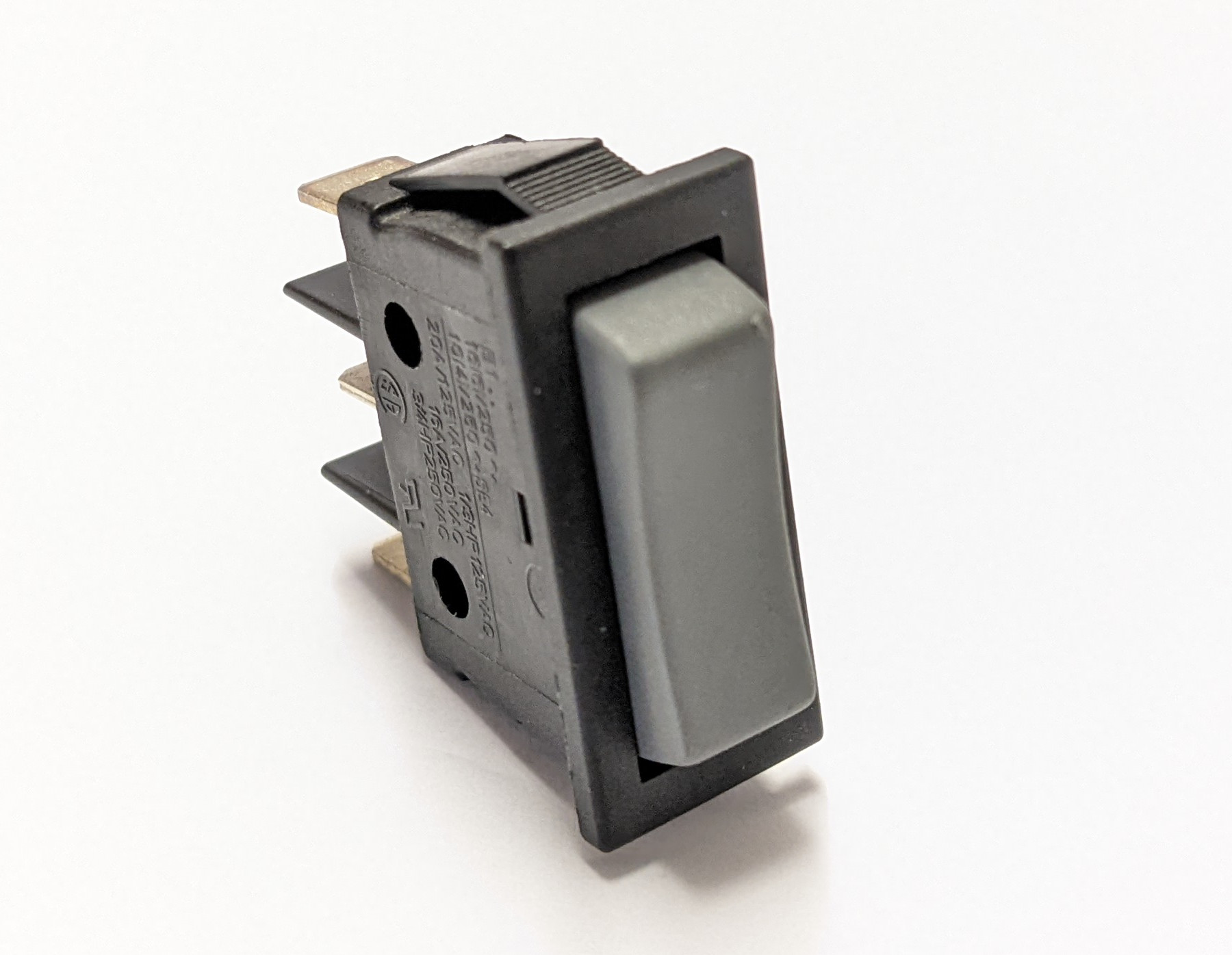

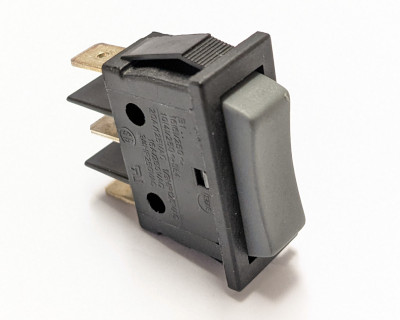

Large rectangular recess fitting 3 position rocker switch with centre position off. Suitable for mains 230V and 12V systems in caravans and motorhomes.

Switch centre position is off. Position 1 or 2 switch power to different output terminals so it can be used to switch power to different appliances or wired via a relay to give low and high power to one appliance.

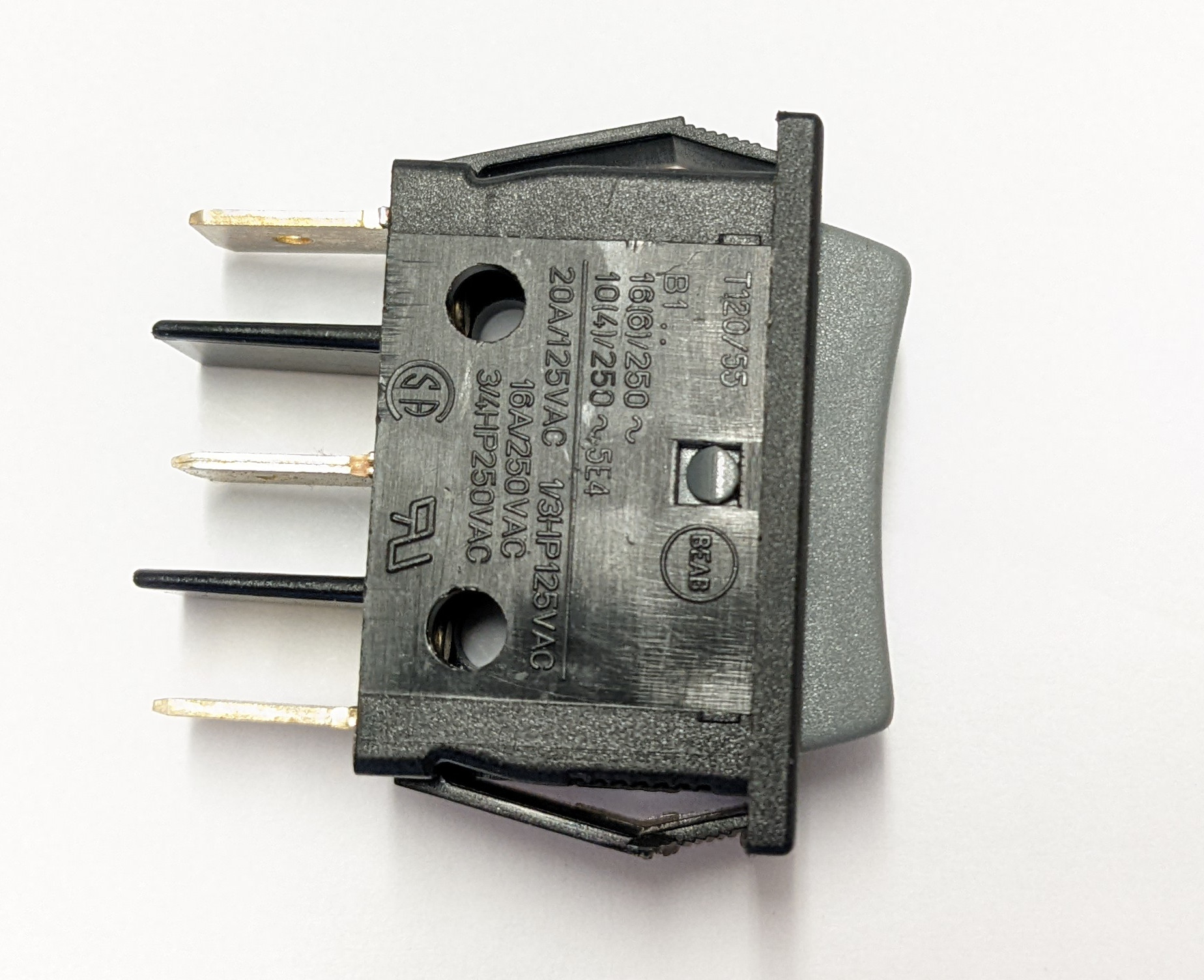

Rectangular switch measures 32 x 14mm fits to 30mm x 11mm cut out hole and snap fits to materials upto 3mm thick.

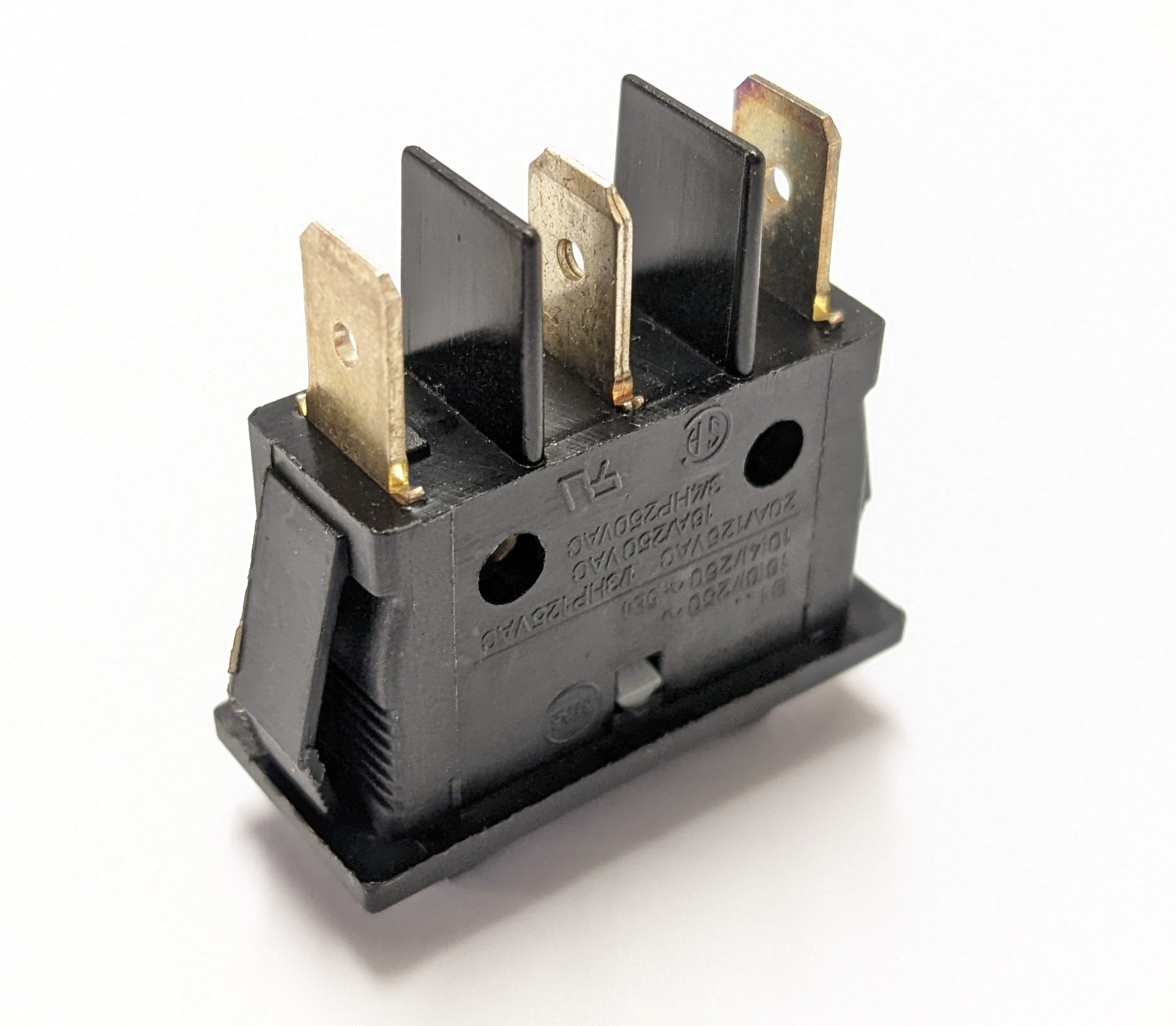

3 x 6.3mm male spade terminals on the back of switch to connect to power source and load(s).
