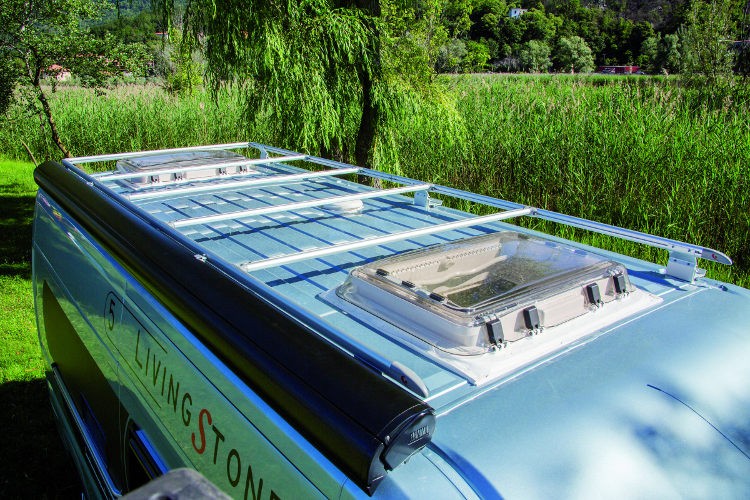

Fiamma Roof Rail Ducato - H3

A complete roof rack / luggage carrier system for Fiat Ducato, Peugeot Boxer and Citreon Jumper / Relay vans made from 06/2006 onwards. The Fiamma Roof Rail Ducato range provides an ideal way to carry bulky items such as luggage boxes, kayaks and boats.

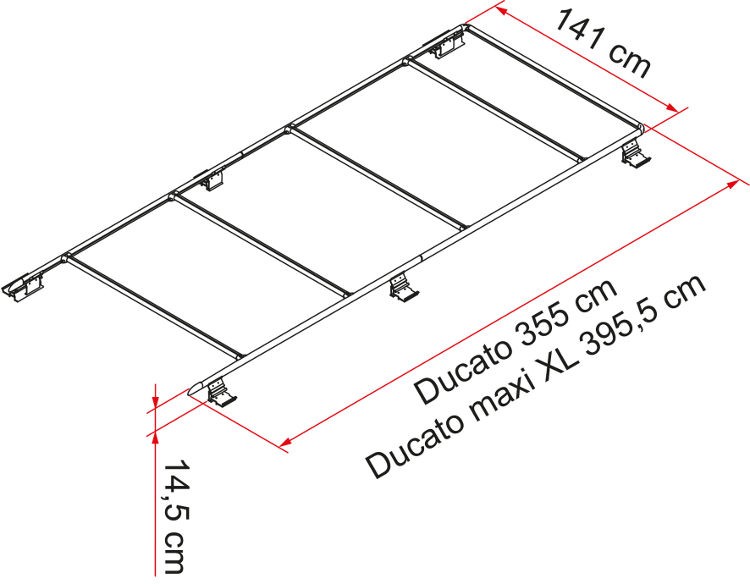

This version Roof Rail Ducato is for Extra High (H3) vans and fits to LWB (L3) and XLWB (L4) models.

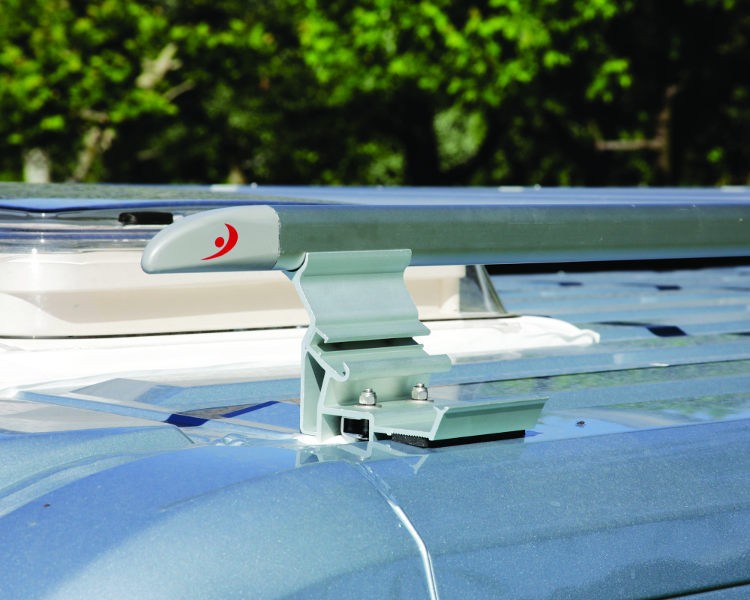

Easy to install without drilling the vehicle, thanks to the preinstalled fixing system on the roof of Ducato.

These roof racks have a weight capacity of 100kg (220lb) and are compatible with Fiamma Ultra-Box Top roof storages boxes so make a simple way to increase the luggage space of your motorhome.

Features

• 100 kg weight capacity
• Aluminium construction - strong, lightweight and rust proof
• No drilling easy installation

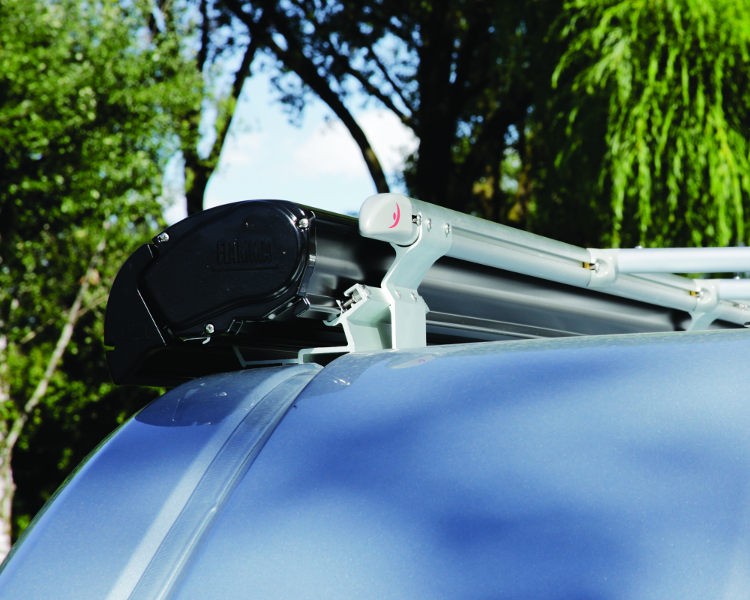

• Can be fitted with F65 awning
• Adaptable bar position - Lateral bars can be moved forward or backward to work around roof vents or solar panels which are already fitted to your vehicle

Compatibility

Fiamma Roof Rail Ducato is suitable Ducato / Boxer based van conversion or motorhome with metal van body only. It is not suitable for coachbuilt motorhome on a Ducato Chassis. For coachbuilt motorhome use Fiamma Roof Rail with Fiamma Fixing Bar Rail

Equipment & Options

Supplied with 5 x adjustable Fiamma Fixing-bar Rail (lateral rails) as standard.

Use with optional Fiamma Roller Roof Rail for easier loading of very bulky items.

For increased storage use with Fiamma Ultra-Box Top 2 and Top 3 roof boxes
