Fiamma Privacy Room F80 300

Fiamma Privacy Room F80 300
SKU: 080**-01-
£0.00

£0.00£0.00
    Cancel OK
    Quantity
    Usually Dispatched in1 working day

    Description

    Privacy Room enclosure for Fiamma F80 and F65 roof mounted wind-out awnings. Privacy Room includes front panel with door and both side panels as well as Clip System attachment to connect the side panels to your canopy.

    Supplied as a 300 length Privacy Room you will need to purchase the appropriate additional extensions panel to make up the Privacy Room to match the length of your canopy.

    Versions

    Three versions of Privacy Room F80 are available to suit awning mounted at different heights on different vehicles. Select the correct option to match your vehicle and fitting height.

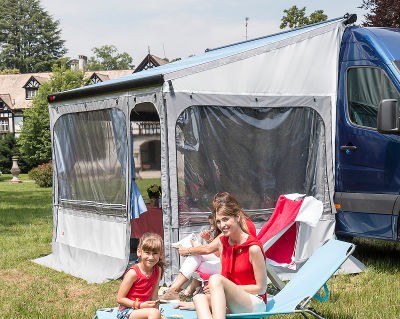

    • Privacy Room F80 Ducato - This version is sized to suit Medium High (H2) Peugeot Boxer / Fiat Ducato and other similar height vans with F65 or F80 awnings fitted.
    • Privacy Room F80 H3 - This version is sized to suit High Roof (H3) Peugeot Boxer / Fiat Ducato and Medium High (H2) VW Crafter / Mercedes Sprinter vans with F65 or F80 awnings fitted.
    • Privacy Room F80 245 to 280 - This version is sized to suit flat sided coach-built Motorhome and Caravan with F65 or F80 awnings fitted at heights between 245 and 280cm from the ground.

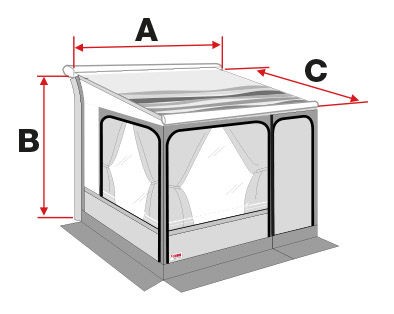

    DescriptionPrivacy LengthHeight from Ground
    B
    Canopy Extension
    C
    Weight
    Privacy Room F80 300 Ducato300245 cm250 cm23.2 kg
    Privacy Room F80 300 H3 & Sprinter300280 cm250 cm24.0 kg
    Privacy Room F80 245 - 280300245 - 280 cm250 cm23.2 kg

    Compatibility

    All versions are supplied as 300 length. You will need to purchase additional panels to make up the Privacy Room length to match the length of your F65 or F80 awning canopy.

    To fit awning LengthF65 / F80
    320
    F65 / F80
    340
    F65 / F80
    370
    F65 / F80
    400
    F65 / F80
    425
    F65 / F80
    450

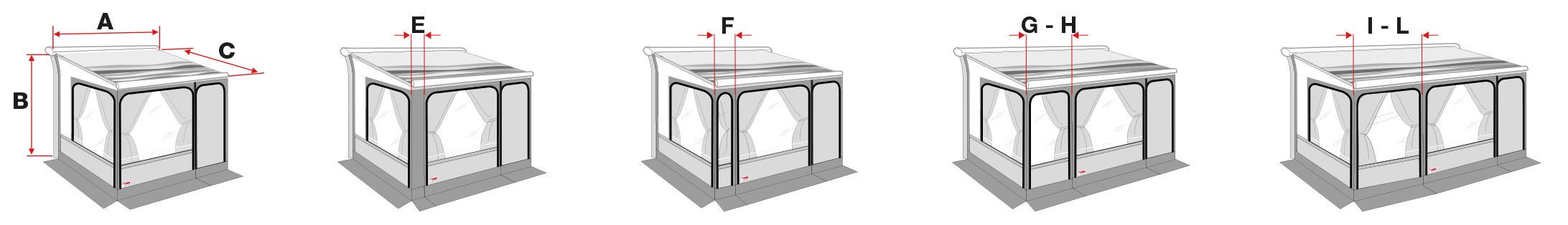

    Additional Panel RequiredFront Panel 20 [E]
    07363B01-
    Front Panel 40 [F]
    07363Q01-
    Front Panel 70 [G]
    07363F01-
    Front Panel 100 [H]
    07363H01-
    Front Panel 125 [I]
    07363P01-
    Front Panel 150 [L]
    07363M01-

    Standard Equipment

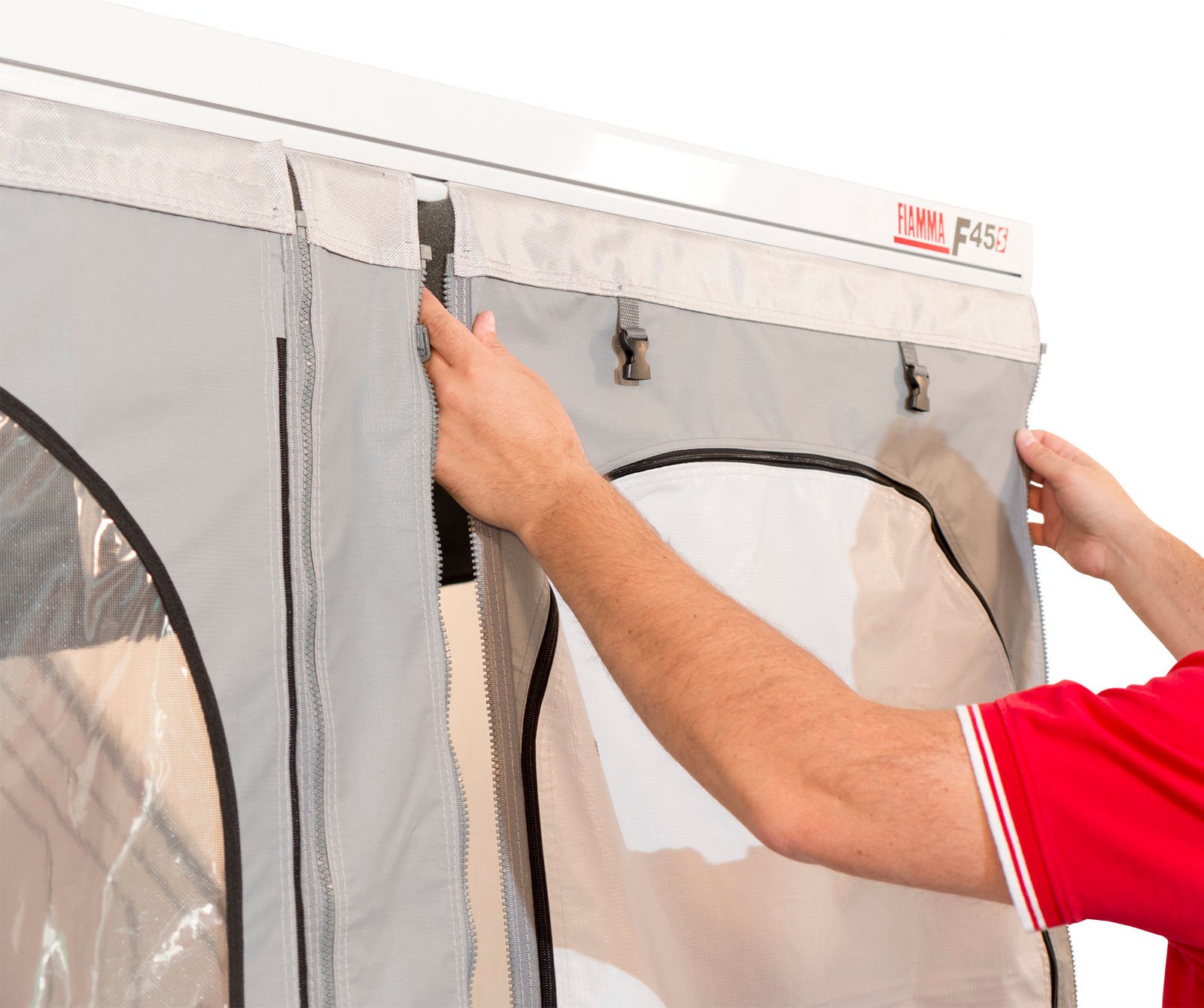

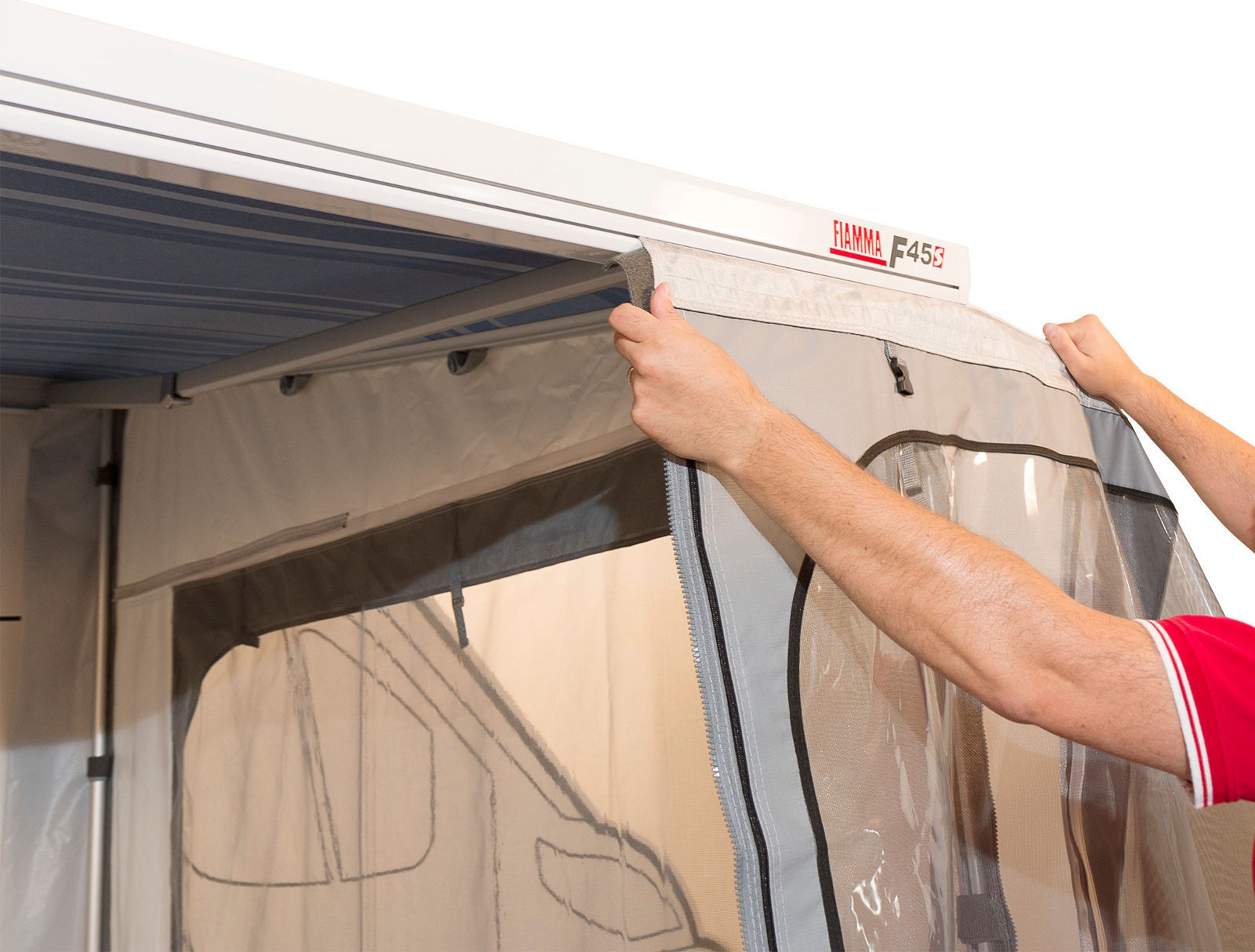

    • 1x front panel with door and window with mosquito net

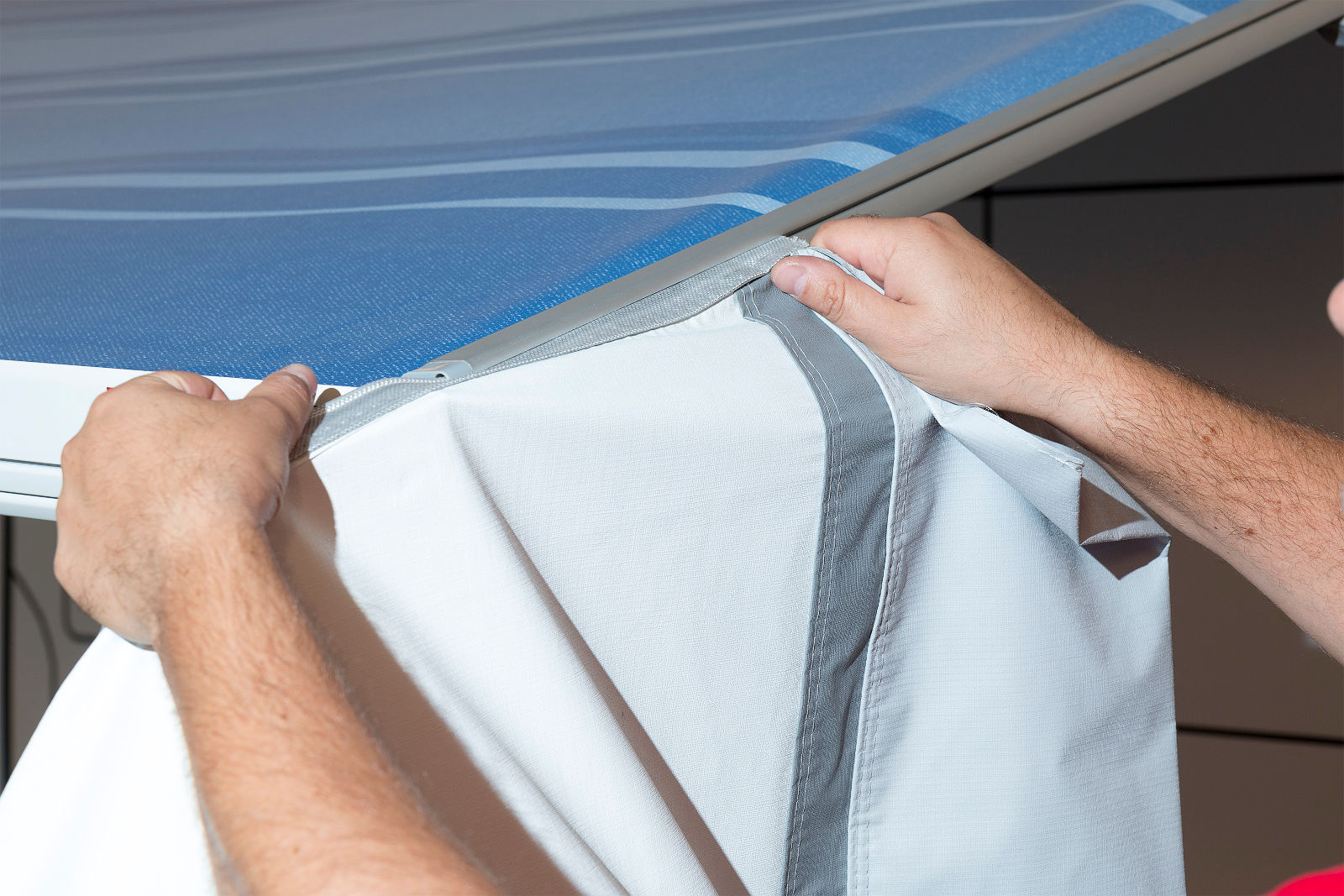

    • 2x side panels with windows with mosquito net
    • 1x curtain kit for all the windows of the enclosure

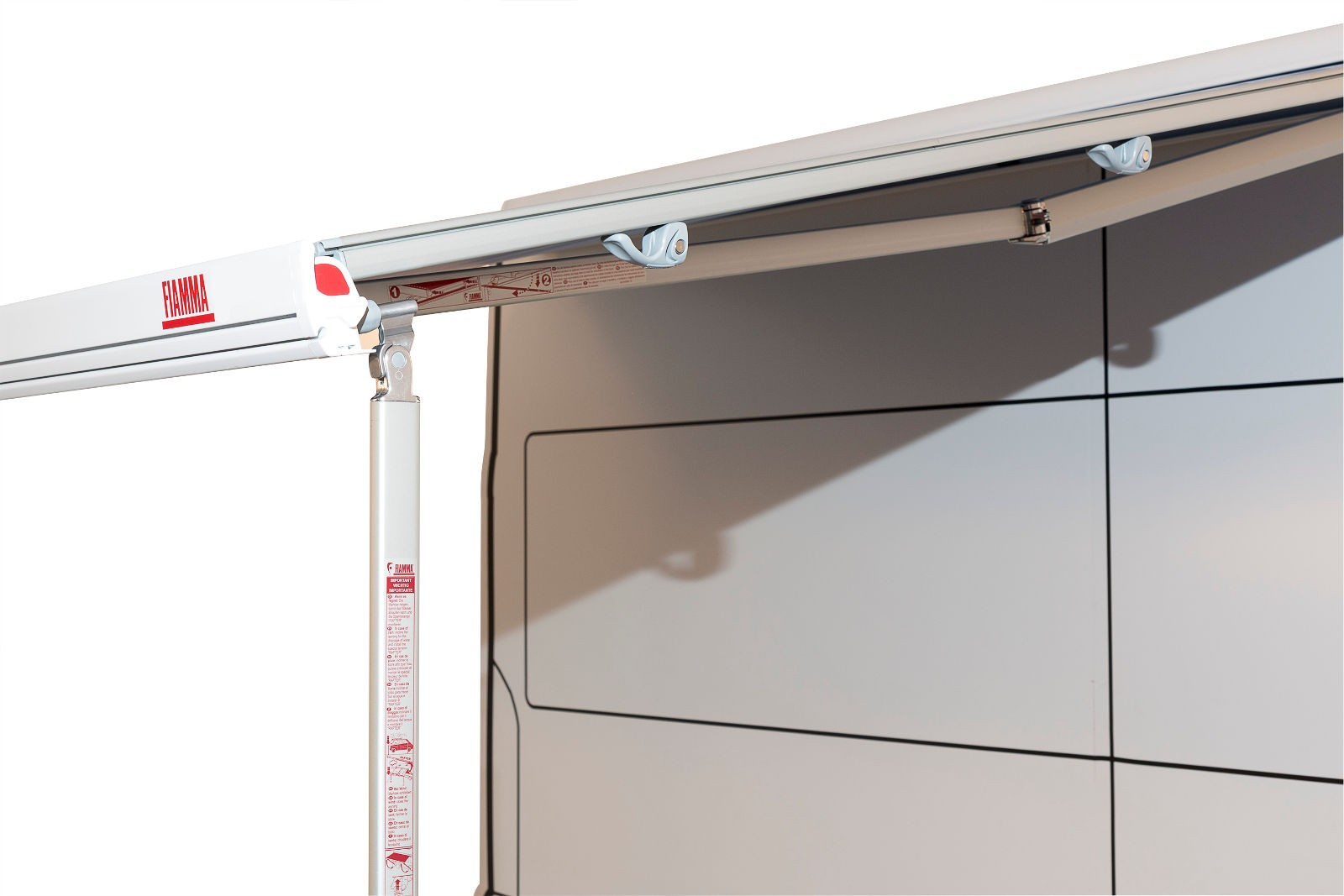

    • 1x Fast Clip installation kit (2+2 aluminium tension poles)
    • 1x Kit elastic ropes with quick hooks
    • 1x Mega Bag, dim. 140x27x40cm.

    Optional Equipment

    A range of optional items are available to equip and customies your Privacy Room. Choose from the following items

    • Fiamma Patio Mat - Cushioned, breathable floor covering
    • Fiamma Skirting - To cover the gap at the base of your campervan or motorhome
    • Door Pole F65 - Secure the edge of the front panel when door is open
    • Kit Magic Privacy Front - Adds extra support to front panel
    • Pack Organiser Privacy

    Downloads:

    Click to download Fiamma Privacy Room F80 Fitting Instructions
