Home > Caravan & Motorhome > Awnings > Walls, Rooms & Inners > Fiamma Privacy Rooms > Privacy Room CS Light for Caravanstore & F35

Privacy Room CS Light for Caravanstore & F35

Privacy Room CS Light for Caravanstore & F35

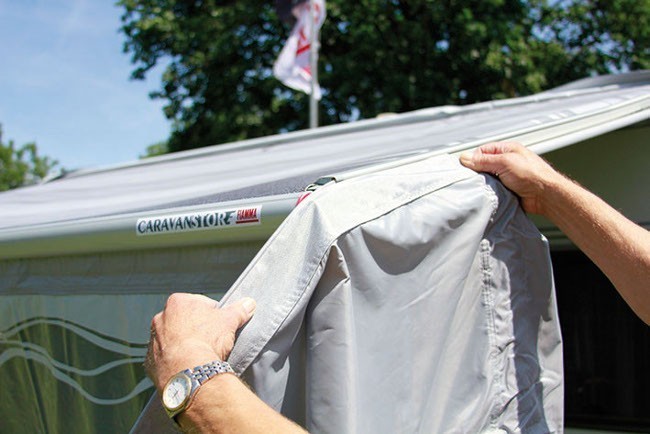

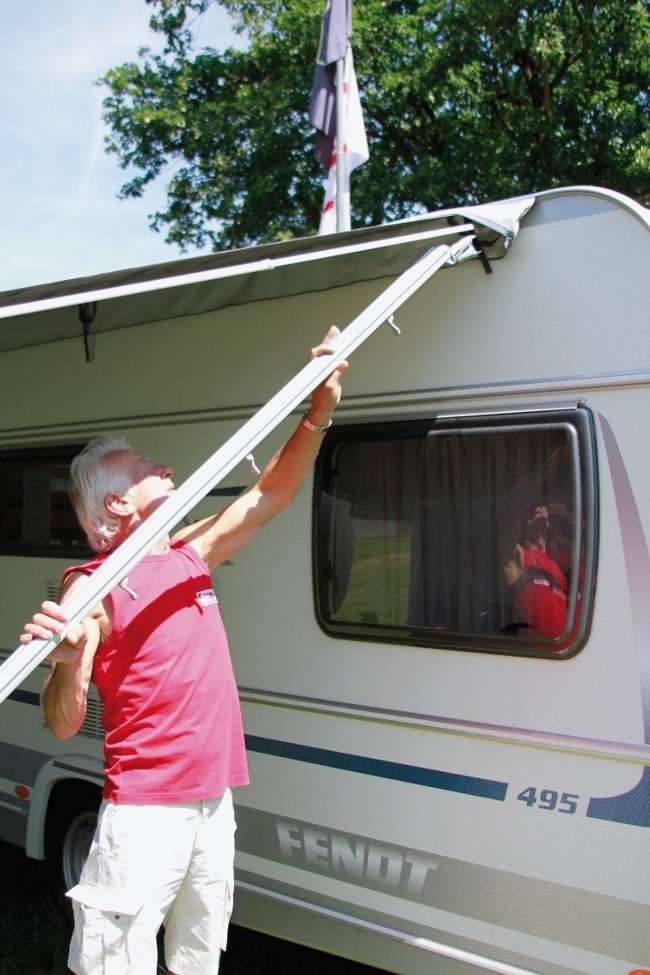

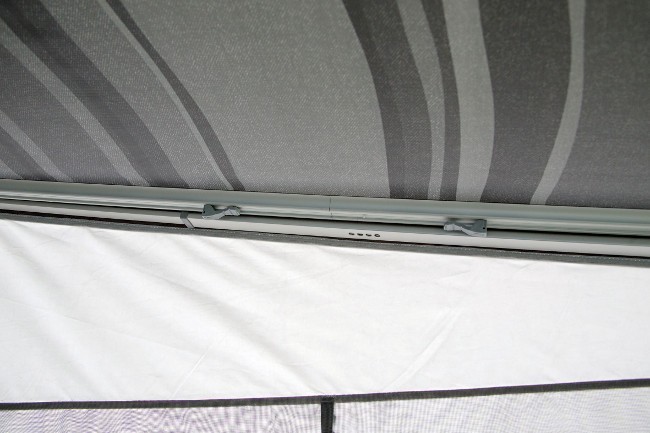

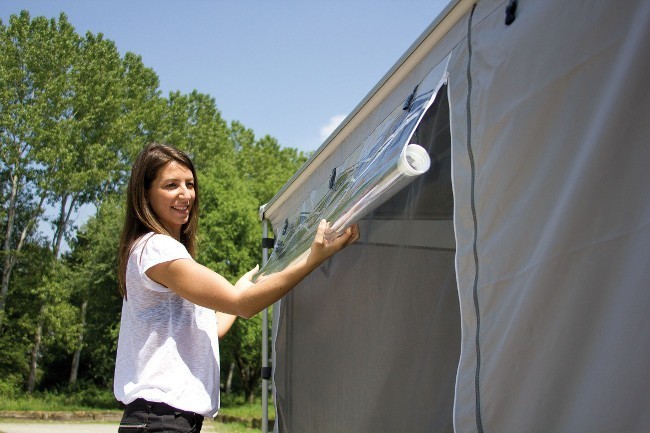

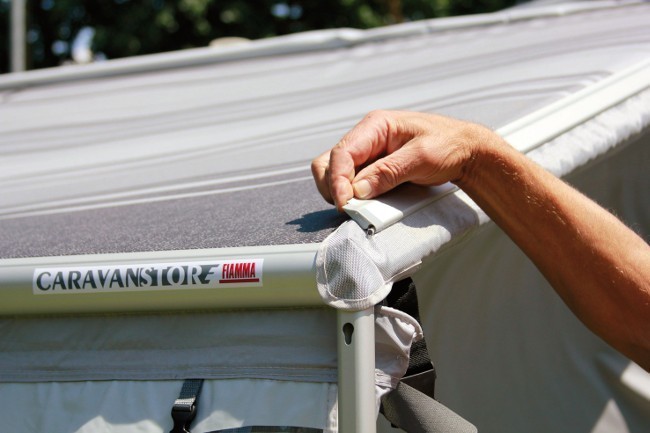

Privacy Room CS Light enclosure for Caravanstore awnings Privacy Room CS Light enclosure for Fiamma F35 awnings Measure your awning to select correct Privacy Room Front wall with window and mosquito mesh Easily fit Clip System CS Slide side panels into Clips System channel Clamp Clip System to canopy to create a seal Side panel secured to awning roof
SKU: 08764
£0.00

£0.00£0.00
    Cancel OK

    Additional Panels

    Select extra panels to make up Privacy Room length
    Quantity
    Usually Dispatched in1 working day

    A complete set of 2 x side panels and front panel to fit to Fiamma F35 and Caravanstore awnings which turn the awning canopy in to an enclosed living space. Fiamma Privacy Room CS Light is available in versions to fit Caravanstore awnings from 255 to 440 length and F35 from 250 to 300 length dependent on fitting height.

    Made from lightweight, durable grey polyester and supplied with Fast Clip CS attachment system to make fitting the side panels to the canopy quick and easy.

    Suitable for Caravanstore* awnings from 2005 onwards and F35 Pro** awnings from 2005 onwards fitted to Caravans and Campervans.

    * Does not fit Caravanstore ZIP awnings
    ** CS Light 280 and CS Light 310 require adapter kit when fitting to F35 awning

    General Features

    The Fiamma Privacy Room CS Light is made of durable weather resistant grey polyester that once folded up, takes up little space inside the caravan. The two side panels are provided with roller blind and mosquito screens for good ventilation. The front panel and door slide into the tube at the front of the awning and then connects to the side panels via auto lubricating zippers. The front door can be placed to the left or right of the main front panel and rolls up to allow access into the enclosure. The walls of the Privacy Room CS Light are modular and can be used independently or inclusively, providing limited or total protection as prevailing weather dictates. The side panels secure against the caravan side with the standard delivered elastic ropes, provided with quick hooks.

    Easy Clip CS Light

    With the Fiamma Easy Clip CS Light the side panels of the Privacy Room are quickly and easily joined together with the fabric of the awning canopy. Sturdy but lightweight it allows for easy mounting of your awning. The patented system uses sandwich technology and is made of anodised aluminium. When closed the set of aluminium poles is only 120cm long.

    Video

    Fiamma Privacy Room CS Light on Caravanstore


    Fiamma Privacy Room CS Light on F35 Pro


    Compatibility & Versions

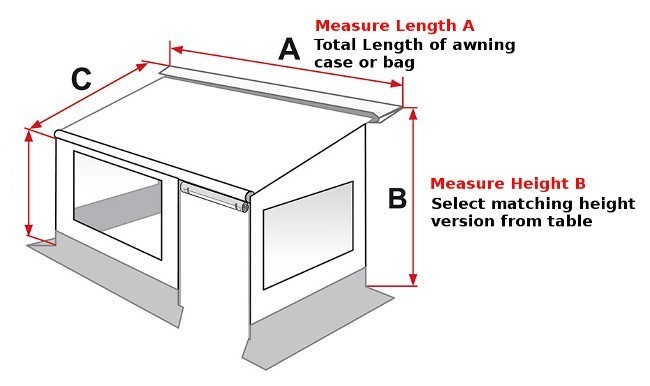

    How to Measure

    To determine the correct version Privacy Room CS Light for your awning measure the length, height and extension of your canopy and choose the version to match your awning model and installation according to the tables below.

    Privacy Room CS Light for F35 Pro Awning

    Privacy CS Light Suits Awning Height B Extension C Weight
    PR CS Light 250 Van F35 Pro 250 180 - 220cm 225 cm 8.7 kg
    PR CS Light 270 Van F35 Pro 270 180 - 220cm 225 cm 9.1 kg
    PR CS Light 280* F35 Pro 270 230 - 260cm 225 cm 11.6 kg
    PR CS Light 310* F35 Pro 300 230 - 260cm 225 cm 11.8 kg

    *To install Privacy CS Light 280 and CS Light 310 to F35 awning you will need to purchase Fiamma Kit Privacy CS Light F35



    Privacy Room CS Light for Caravanstore Awning

    Privacy CS Light Suits Awning Height B Extension C Weight
    PR CS Light 250 Van Caravanstore 255 180 - 220cm 225 cm 8.7 kg
    PR CS Light 280 Caravanstore 280 230 - 260cm 225 cm 11.6 kg
    PR CS Light 310 Caravanstore 310 230 - 260cm 225 cm 11.8 kg
    PR CS Light 310
    Plus 1 x 50cm panel    		 Caravanstore 360 230 - 260cm 225 cm 12.3 kg
    PR CS Light 310
    Plus 1 x 100cm panel    		 Caravanstore 410 230 - 260cm 225 cm 12.8 kg
    PR CS Light 310
    Plus 1 x 130cm panel    		 Caravanstore 440 230 - 260cm 225 cm 13.3 kg
    PR CS Light XL 280 Caravanstore XL 280 230 - 260cm 250 cm 12.1 kg
    PR CS Light XL 310 Caravanstore XL 310 230 - 260cm 250 cm 12.3 kg
    PR CS Light XL 310
    Plus 1 x 50cm panel    		 Caravanstore XL 360 230 - 260cm 250 cm 12.8 kg
    PR CS Light XL 310
    Plus 1 x 100cm panel    		 Caravanstore XL 410 230 - 260cm 250 cm 13.3 kg
    PR CS Light XL 310
    Plus 1 x 130cm panel    		 Caravanstore XL 440 230 - 260cm 250 cm 13.8 kg
    PR CS Light XL 310
    Plus 1 x 190cm panel    		 Caravanstore XL 500 230 - 260cm 250 cm 14.3 kg
    PR CS Light XL 310
    Plus 1 x 190cm panel & 2 x 20cm panels    		 Caravanstore XL 550 230 - 260cm 250 cm 14.8 kg

    *To install Privacy CS Light 250 Van to Caravanstore 255 awning you will need to purchase 2 x Fiamma Kit Terminal Fast Clip CS

    Downloads:

    Click to download Fiamma Privacy Room Fitting Instructions

    Equipment:

    What's Included?

    • 1 front panel with door and window.
    • 2 side panels with windows with moskito net.
    • Easy Clip CS Light.
    • Storage bag Mega Bag Light.
    • Pegs and rubbers kit.
    • Ocean Blue Curtains 2 pieces.

    Optional Accessories

    Kit Poles Light - kit composed of two vertical rafters for a greater stability of the Privacy Room Light (see "Related Products" ). Fit to the rear of the side panels.

    Privacy Room Light side panels feature the new 'S' strap and Buckle system that allows you to quickly fit the new Tie Down Kit S Caravanstore.

    Use Fiamma Kit Privacy CS Light F35 to fit Privacy Room CS Light to F35 Pro awning.
