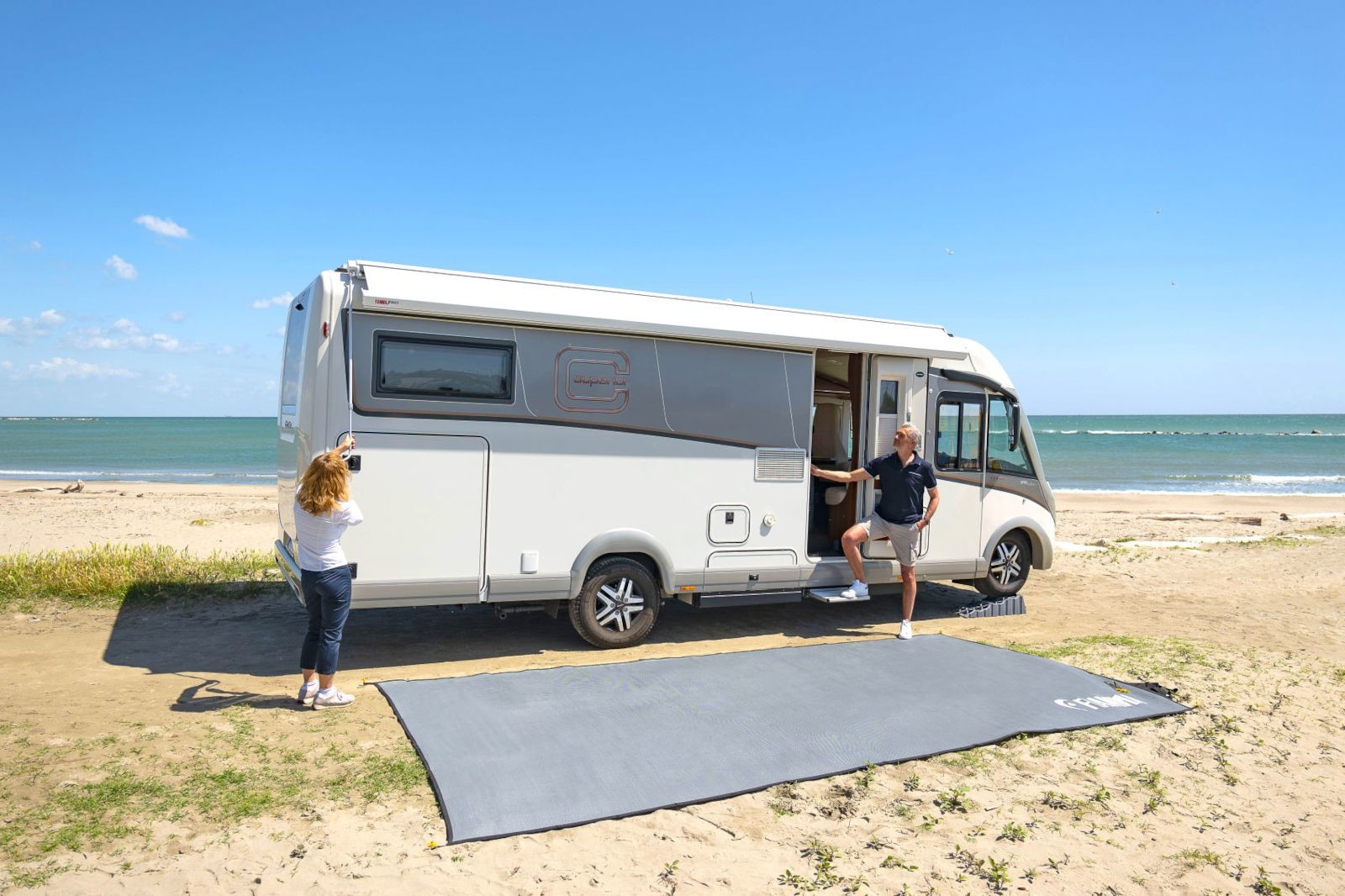

New roof mounted wind-out awning canopy for larger motorhomes available in lengths from 450 to 600 and with new, longer extension of 275cm to give you the maximum extra shaded space on your motorhome.

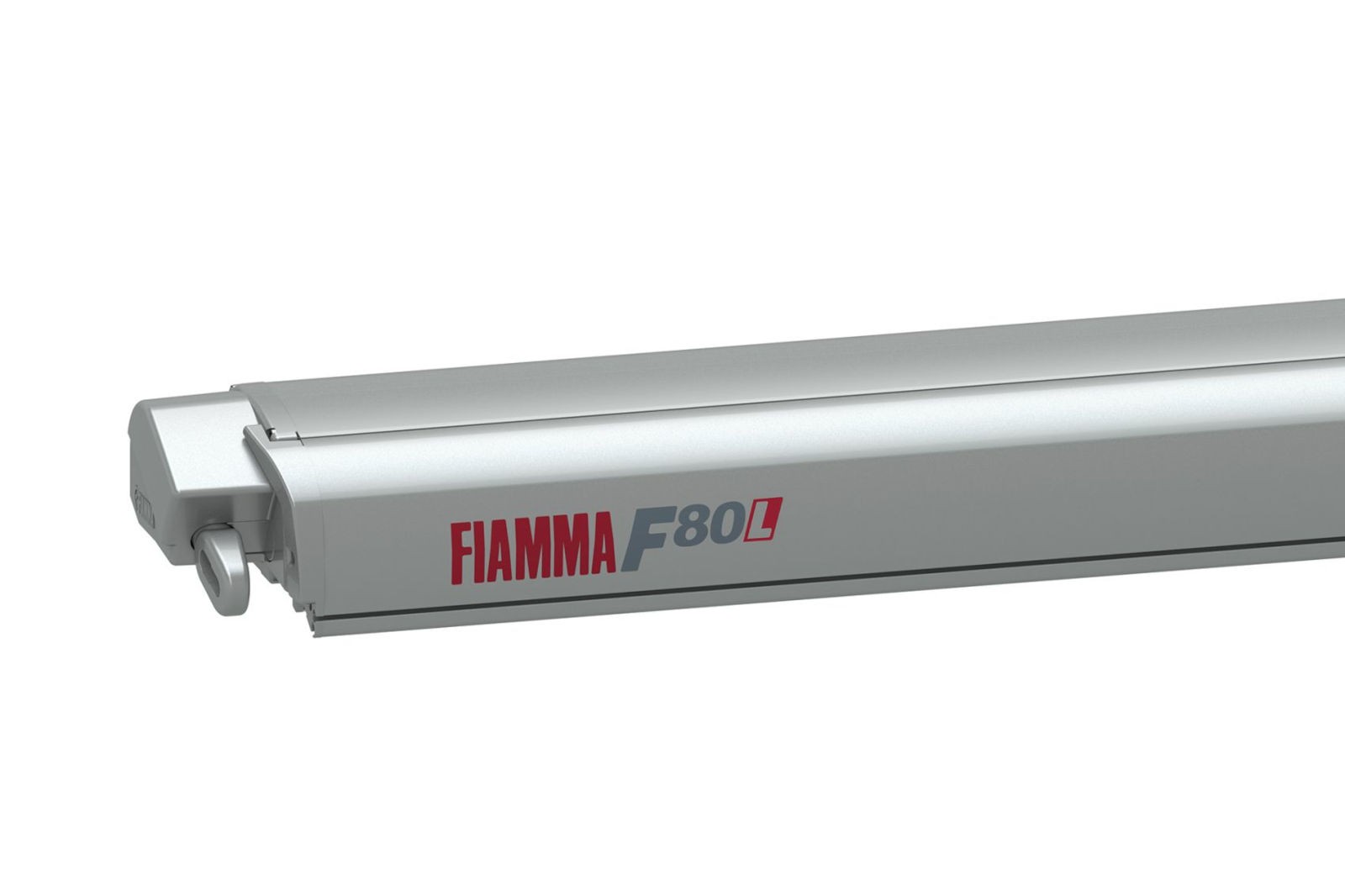

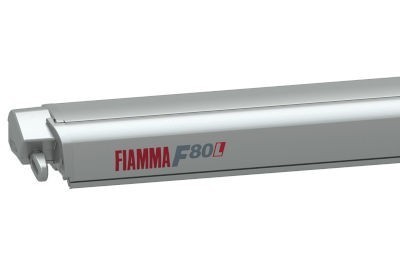

The F80L has a low profile, unobtrusive design which sits neatly on the roof of the vehicle and maintains the look of your motorhome. Despite its sleek dimensions the F80L has a stronger case and structure to support the longer awning lengths and extra extension it provides.
Features
- Visible loop: For maximum ease of use
- Brackets: Find brackets and adapters for every type of vehicle
- Strong structure: To guarantee solidity with 275cm extension
- Rain Guard: Hermetic seal supplied as standard
- Side Caps and Cover: Plastic side caps, painted aluminium cover
- Dual Shock-Absorber: Absorbs shocks in case of heavy stress
- Roller support: Facilitates the rolling up of the fabric
- Double LED preparation: Front and case box, LED light visible even when the awning is closed
- Secure Lock: Adjusts the height of the lead bar
- Triple guide: To install a front panel or Privacy and other accessories
- Arms: Enlarged section for greater strength and extension to 275cm
Specification
Model | Case Length A | Fabric Length B | Awning Extension C | Shade Area | Weight |
F80 L 450 | 454 cm | 438 cm | 275 cm | 12 m2 | 43.8 kg |
F80 L 500 | 497 cm | 480 cm | 275 cm | 13.2 m2 | 46.5 kg |
F80 L 550 | 547 cm | 530 cm | 275 cm | 14.6 m2 | 50.0 kg |
F80 L 600 | 597 cm | 580 cm | 275 cm | 16 m2 | 54.5 kg |
Standard Equipment
- 1 x Fiamma F80L wind-out awning
- 1 x Fiamma Crank Handle Telescopic
- 1 x Pair Crank Handle Storage Clips
- 4 x Crank Handle bump wraps - prevents metal handle from marking the motorhome
- 4 x AWning Pegs
- 1 x Pair Awning Leg wall Brackets
- Tensions Rafters
- 1 x Roof Tension Rafter with 450 and 500 length awning
- 2 x Roof Tension Rafter with 550 and 600 length awning
Optional Equipment
- Vehicle specific fitting kit required
- Fiamma Tie Down or Tie Down S
- Fiamma Pegs and Plates kits
- LED lighting kits
- Range of awning panels and enclosures
Downloads
