Fiamma F40Van 270 - Campervan Awning

Fiamma F40Van 270 - Campervan Awning

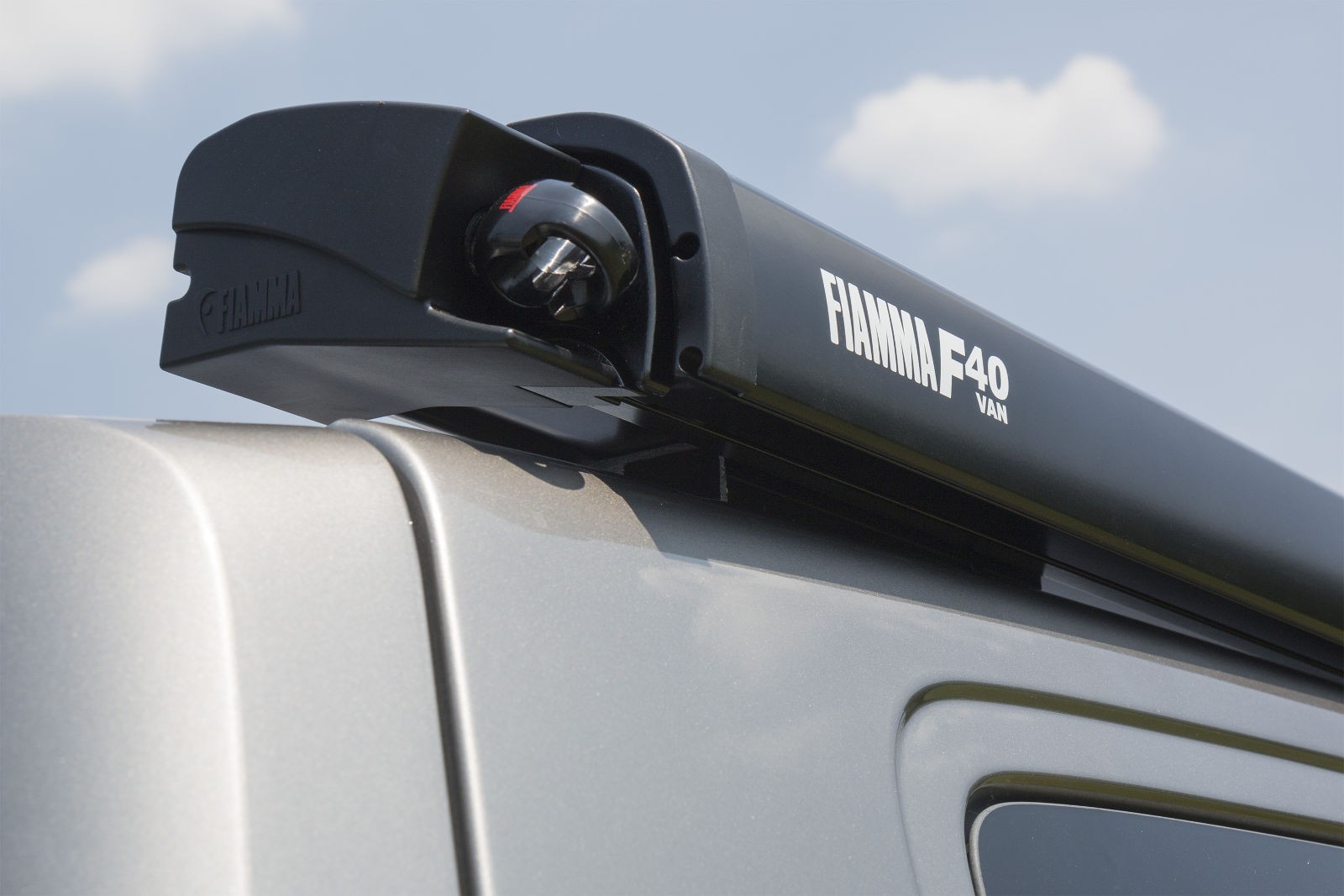

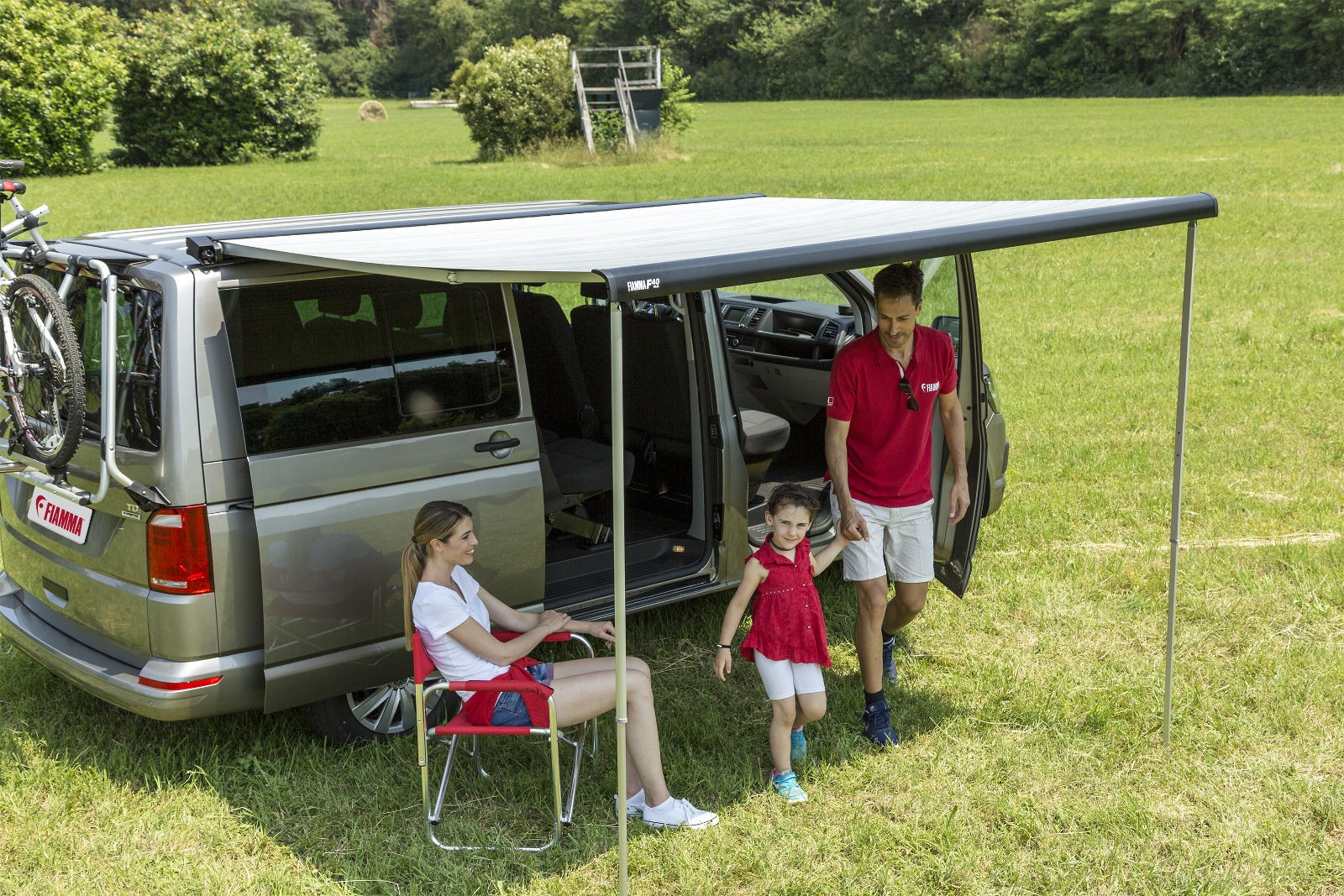

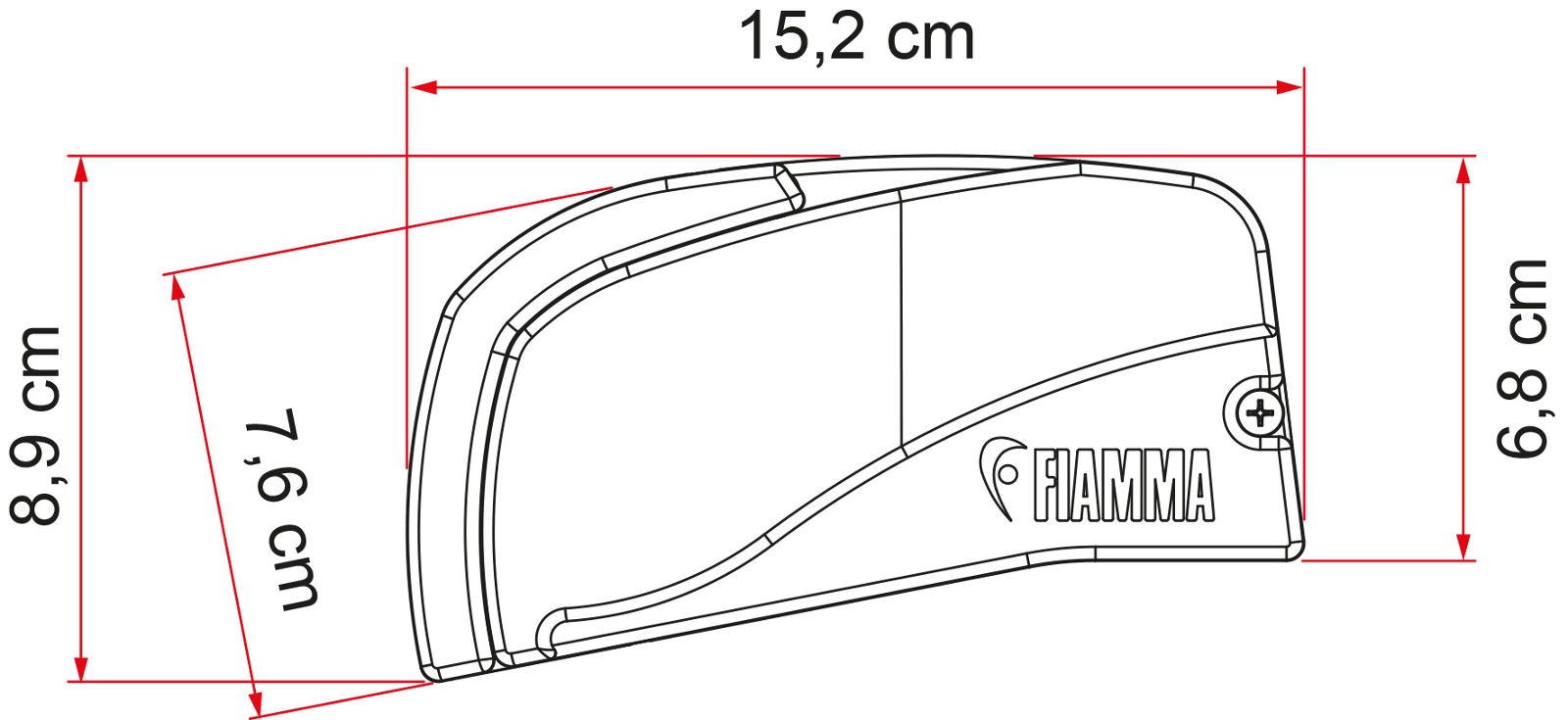

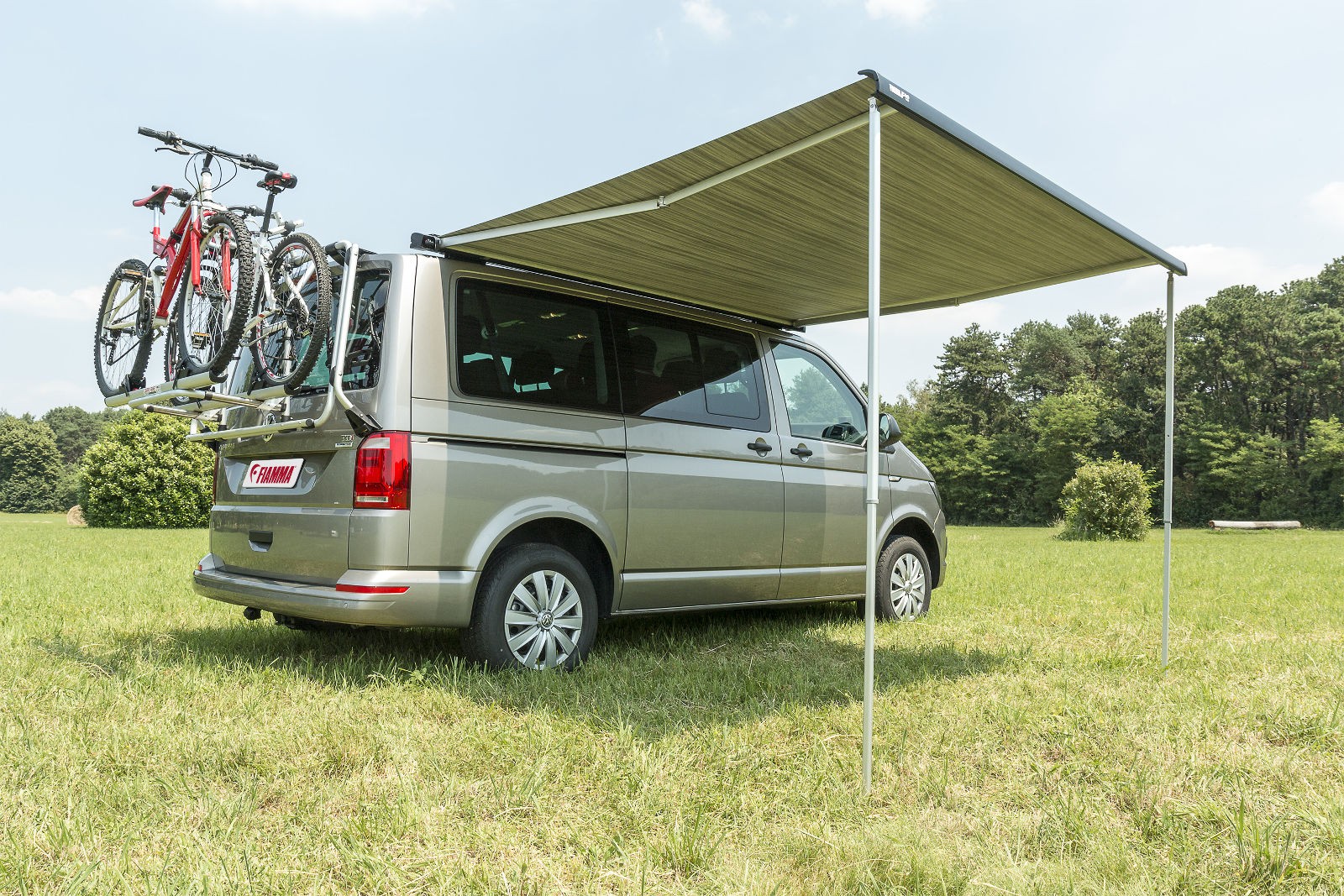

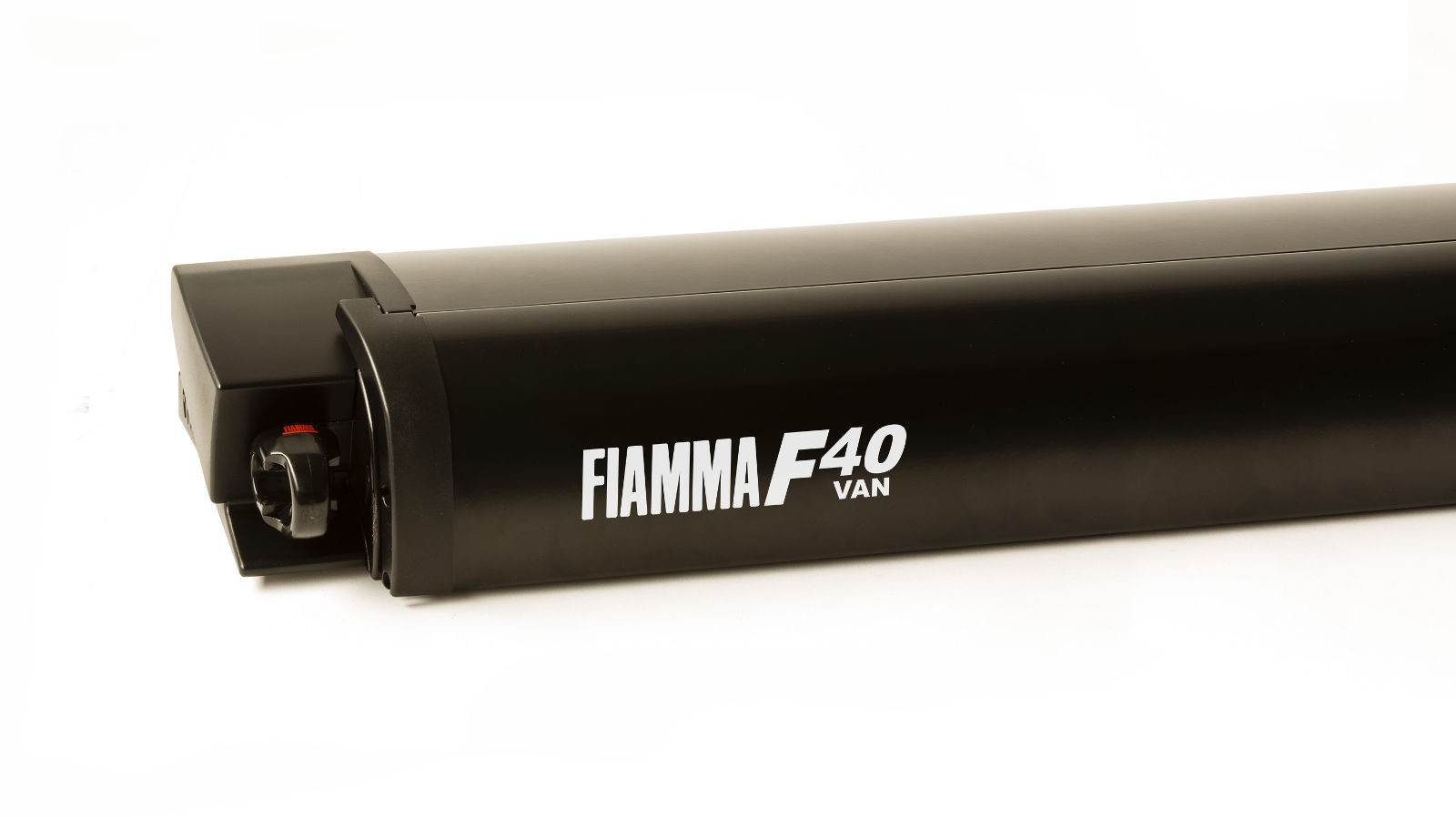

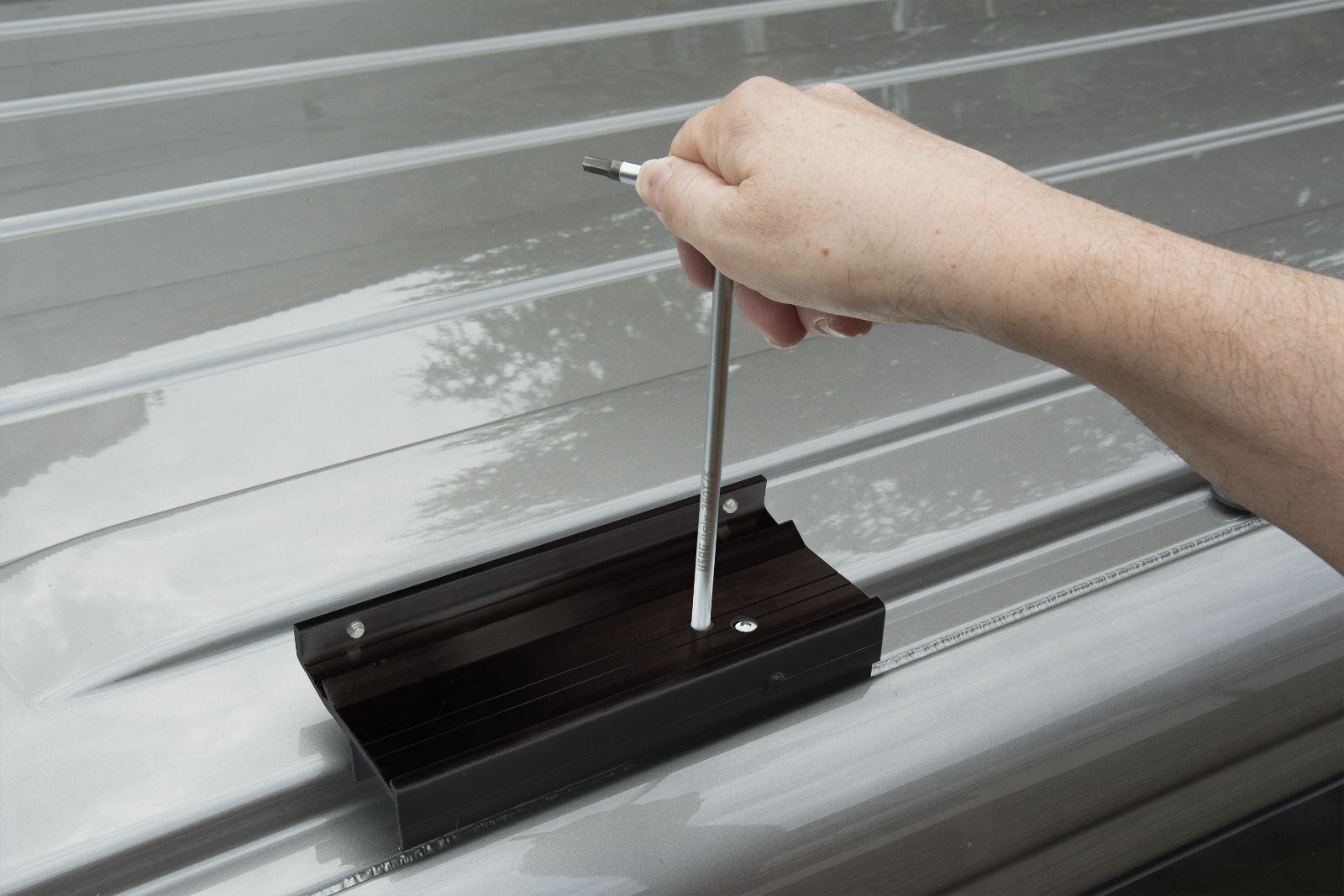

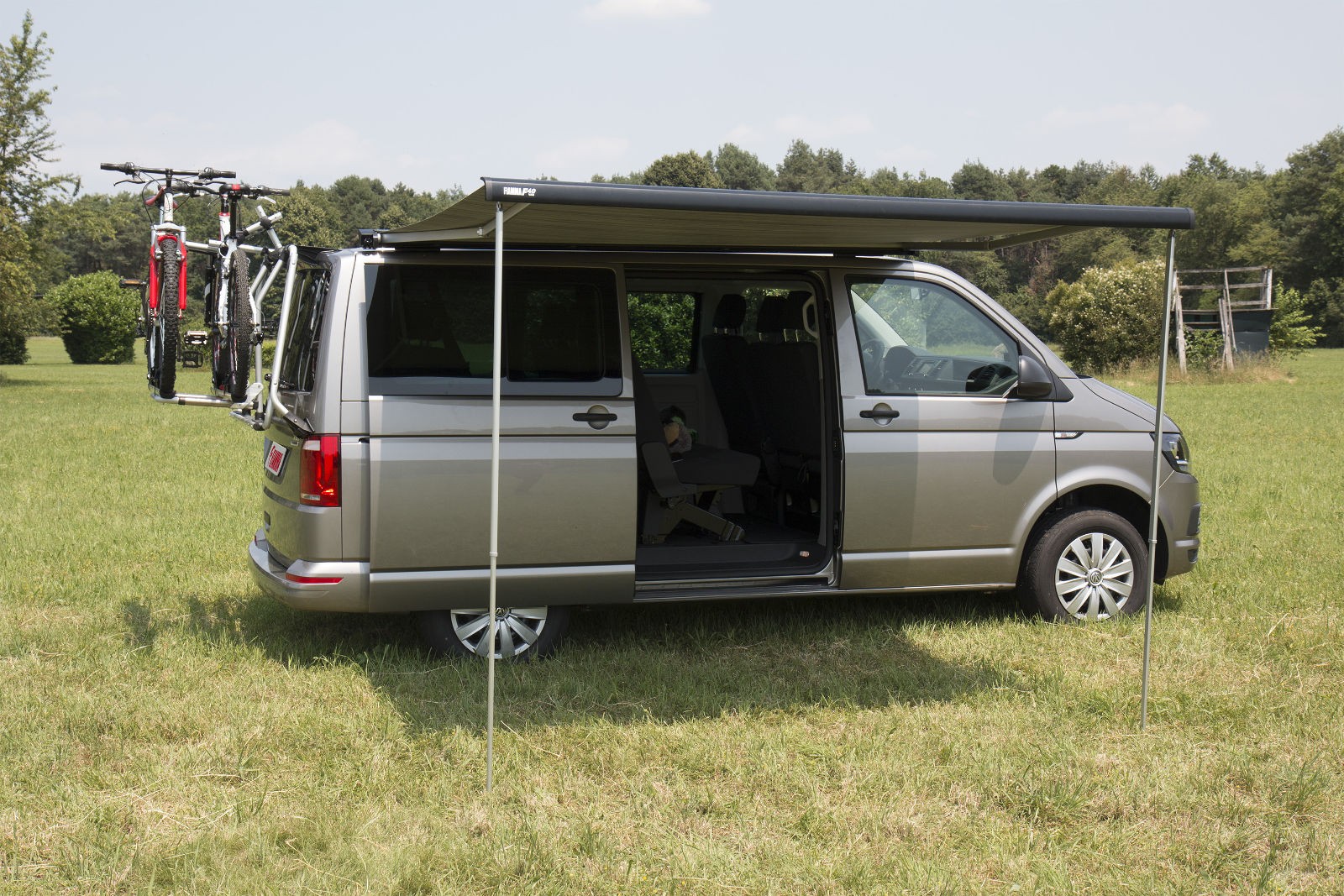

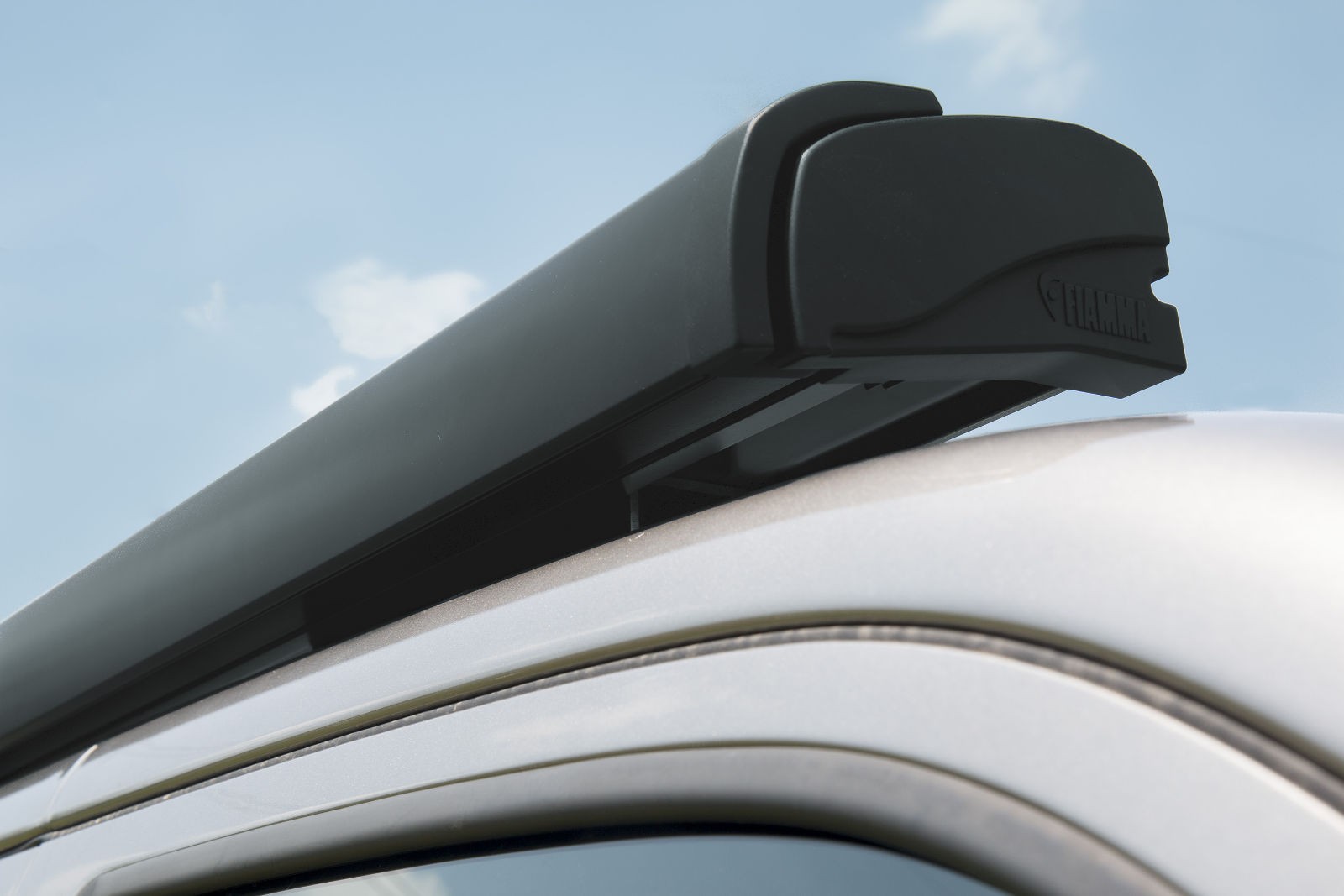

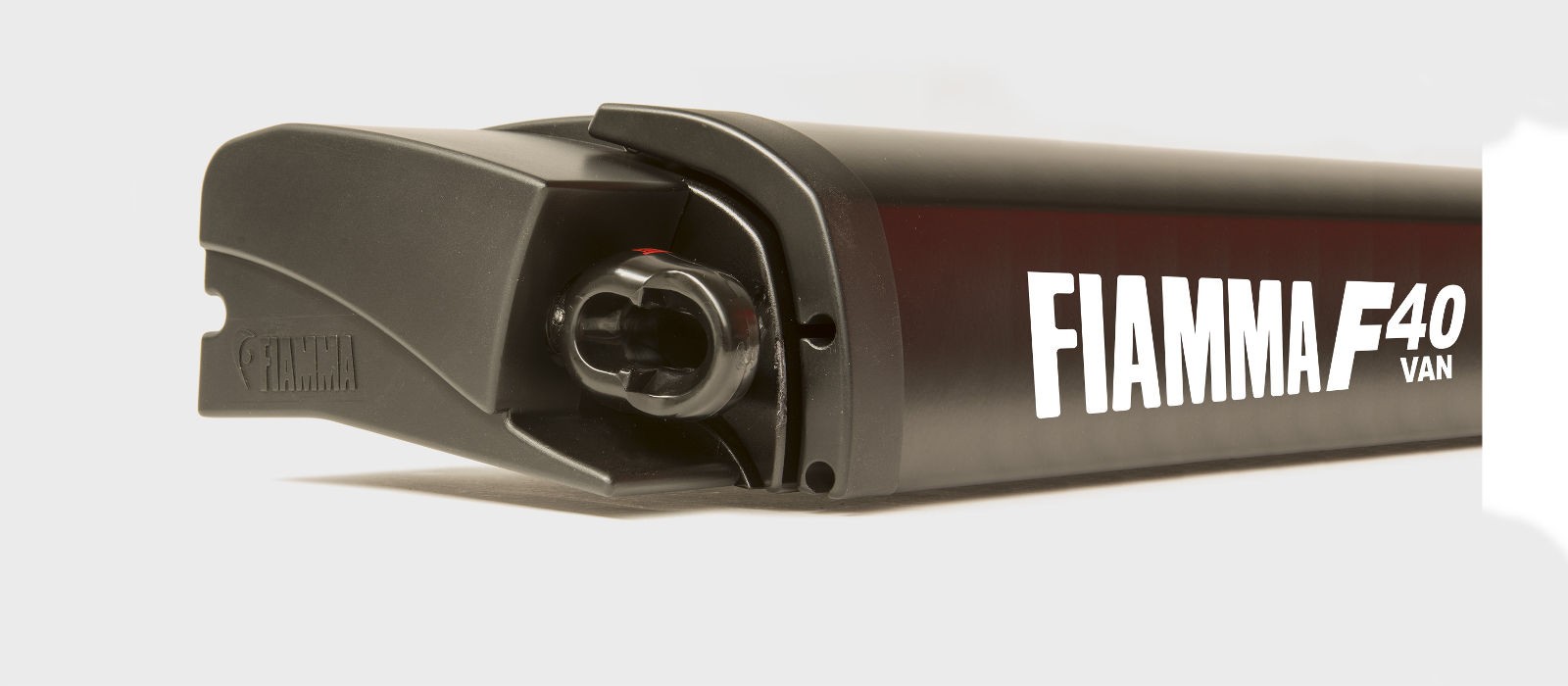

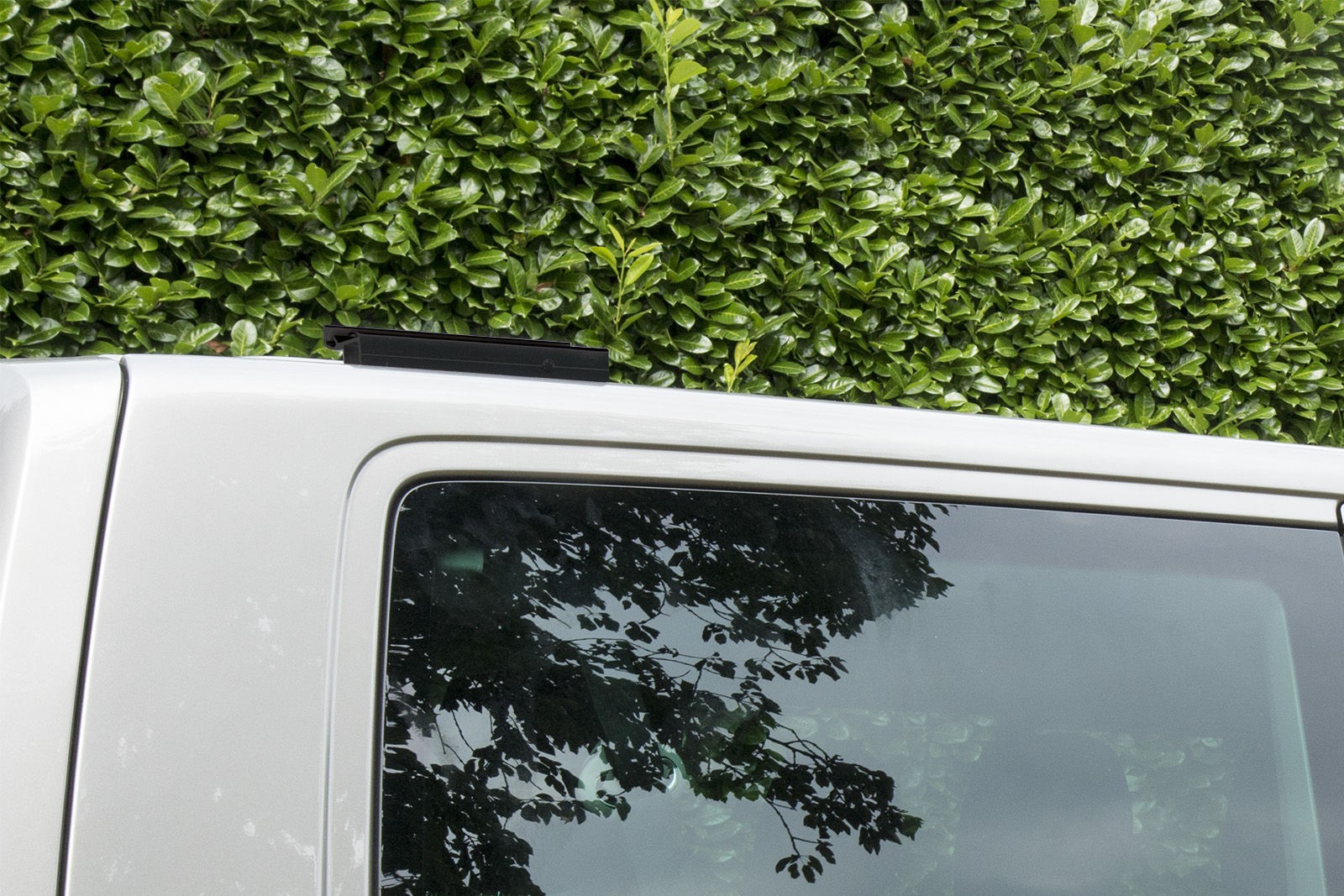

Fiamma F40 Van Automotive styling Rapid shade and shelter Reverse corner arms allow you to make the most of internal height Unobtrusive lowered roof mounting brackets Low profile aerodynamic design Quick installation with simple tools (Fitting kit sold separately) Royal Grey canopy colour swatch Deep Black awning case F40 Van awning case dimensions F40 Van awning specification. Refer to table in description for dimensions
SKU: 07503H01R
£664.81 Inc. VAT
Quantity
Usually Dispatched in1 working day

Description:

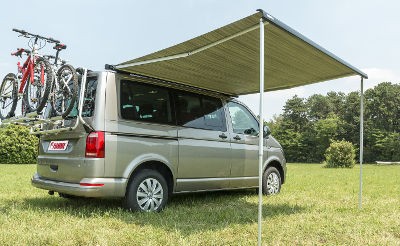

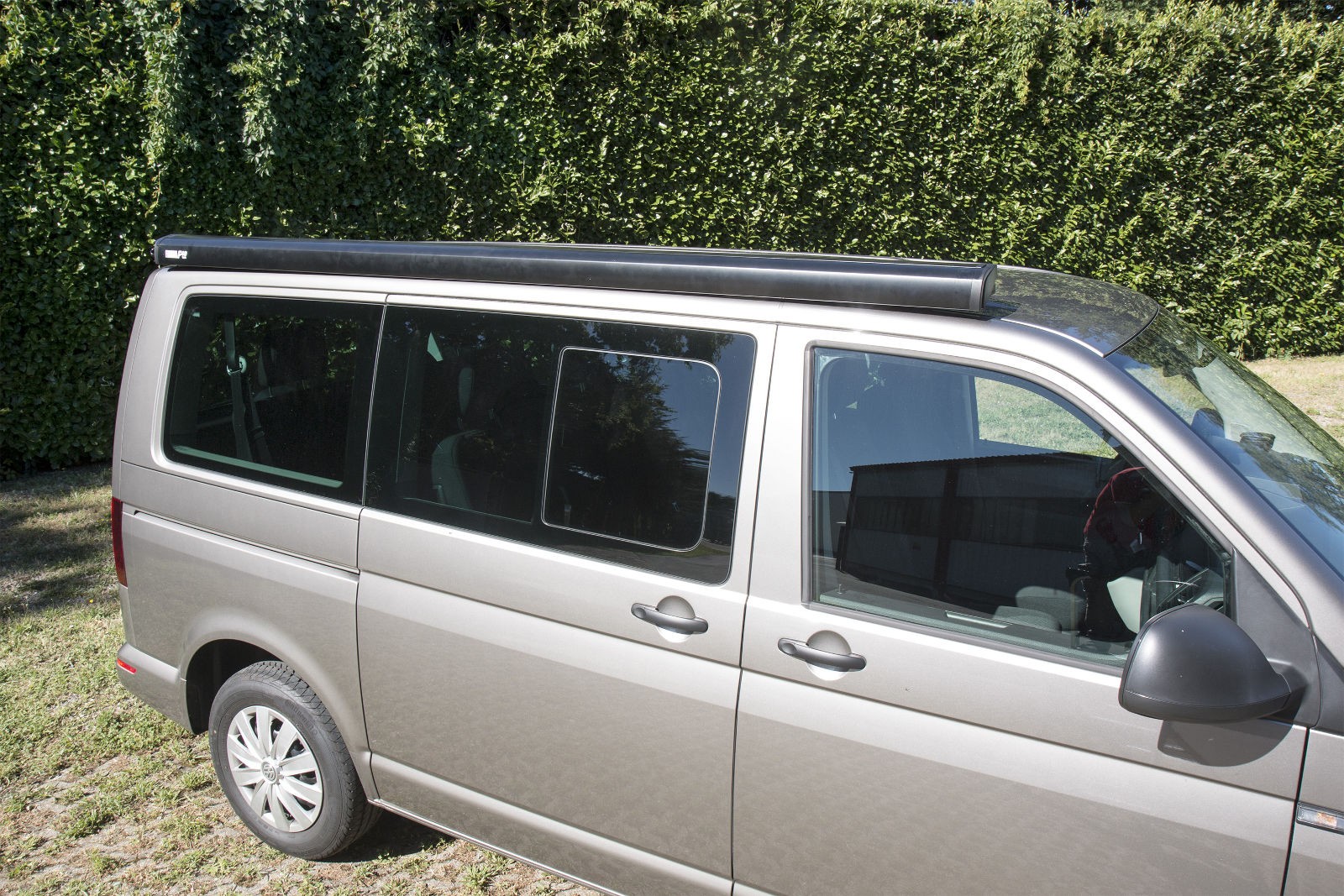

New design roof mounted awning developed specifically for smaller campervans. Unlike other wind-out awnings the Fiamma F40 is easily de-mountable with no permanent fittings (except PSA vans) so it is easy to install and can be removed when not in use.

Ideal for multi-purpose vans where the awning is only needed some of the time.

Compatibility

The F40 can be fitted to either side of the vehicle with the appropriate fitting kit (depending on fitting it availability, sold separately), or order both fitting kits to have the option of switching the awning to the other side to suit your requirements. It is designed specifically for compact vans, see table below.

VehicleVehicle YearRoof HeightVehicle Length
Renault Trafic lll2014 onwardsH1 (1971mm)L1 (4999mm) L2 (4959mm)
Toyota Pro Ace ll2016 onwardsH1 (1899/1940mm)L (5399mm)
Peugeot Expert lll2016 onwardsH1 (1881/1940mm)L (4959mm)
Opel/Vauxhall Vivaro B2014-2018H1 (1971mm)L1 (4998mm) L2 (5398)
Nissan NV 3502012 onwardsH1 (1990mm)L2 (5230mm)
Citroen Jumpy2016 onwardsH1 (1895mm)L (4959mm)
Fiat Talento2014 onwardsH1 (1971mm)L1 (4999mm) L2 (5399mm)
Ford Transit Custom2012 onwardsH1 (2020mm)L1 (4972mm) L2 (5993mm)
Mercedes V Class Vito2014 onwardsH1 (1890/1910mm)L2 (5140mm)
VW T52003-2014H1 (1990mm)L1 (4892mm) L2 (5292mm)
VW T62014 onwardsH1 (1990mm) L1 (4904) L2 (5304mm)

If the VW T5/T6 is equipped with Volkswagen C rail, it is necessary to remove the rail and locate the brackets on the set points.

Features

Fiamma F40 awning has low profile design and compact dimensions.

  • Roof installation with lowered brackets
  • Quick to install and uninstall
  • Super compact
  • Fabric tension is always perfect thanks to overhand rolling

Specification

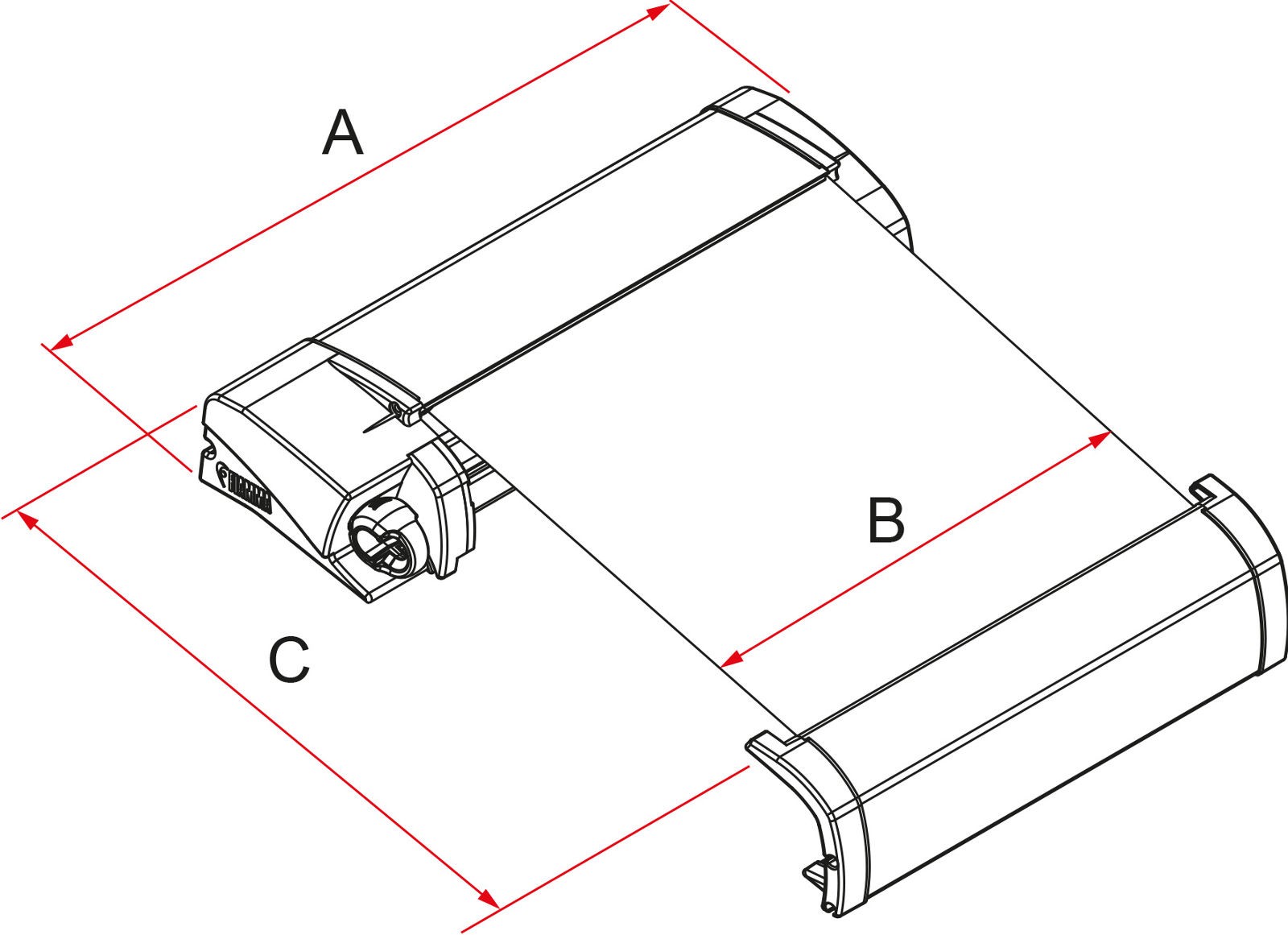

Awning ModelAwning Length ACanopy Length BAwning Extension CShade SurfaceWeight
F40van 270270 cm257 cm225 cm5.8 m219 kg

Equipment

F40van Standard Equipment

  • F40Van 270 awning
  • 4 x steel pegs
  • Winding handle

F40van Optional Equipment

Optional fitting kits available to fit to right or left side of the vehicle

Fiamma Room Van enclosure available made specifically for the F40van awning.

Downloads:

Click to download Fiamma F40van Fitting Instructions
