Fiamma Carry-Bike Pro C

Fiamma Carry-Bike Pro C
Fiamma Carry Bike Pro C Compact bike rack for motorhomes Carry Bike Pro C fits below rear window Offset rails makes it easier to fit bike without clashing Fits low so internal fittings are hidden in garage or cupboard Carry Bike Pro C dimensions when open and folded Compact motorhome bike carrier fits 2 bikes as standard Carry-Bike Pro C can be upgraded to hold 4 bikes Compact dimension make it ideal for mounting below window Carry-Bike Pro C dimensions Upgrade kit includes rail and blocker Can be upgraded to carry upto 4 bikes
SKU: 02094-10A
R.R.P.: £271.20
save 21%
£214.99 Inc. VAT

    Cancel OK

    3rd Bike Upgrade?

    Select BOTH items to add 3rd bike

    4th Bike Upgrade?

    Select BOTH items to add 4th Bike
    Usually Dispatched in1 working day

    Compact, rear mounted bike rack for coach-built motorhomes with limited installation space on the back wall. The Carry Bike Pro C carries 2 bikes as standard but can be made to hold 3 or 4 bikes with optional upgrade kits.

    The bolt-through-wall installation makes the Fiamma Carry Bike Pro range suitable for motorhomes without pre-installed bike rack mounting brackets, and the bike rack comes with all required fixings and mountings. The compact size of the Pro C model mean it is ideal for installation below the motorhome rear window or where you want the internal bolt plates to be hidden inside the garage compartment or a low cupboard.

    Fiamma Carry Bike Pro is highly recommended by experts in the industry as the strongest bike carrier on the market.


    Video shows larger Carry Bike Pro model but the operation is the same for Carry Bike Pro C.


    Fiamma Carry-Bikes use the highest quality anodized aluminium rounded tubes and are manufactured using only long-life stainless steel screws.

    Fiamma Bull Shock Absorber system is fitted as standard to Carry Bike Pro for the best and most reliable shock and vibration absorption during travel. It prevents the vibration of the bike carrying tray passing to the vehicle and reduces stress on the motorhome back wall.

    Rack Holder secures the bike carrying tray in the upright position when you are not carrying bikes.

    Quick Lock is delivered as standard with Quick Safe straps to quickly and safely lock the wheels of the bike on the carrier rail. The Quick Lock strap is easy to release and doesn't involve fiddly straps of ties.

    Easy Position system allows you to off-set the bike rails on the Carry Bike to make it easier to fit the bikes on the carrier without pedals and handle bars clashing.

    ZOOM 4 bikes means it easy to upgrade you bike rack to carry 3 or 4 bikes by purchasing additional upgrade kit either when purchasing your bike rack, or at a later date.

    Bike Block Pro arms grip the bike frame securely. They are easy to fit, anti-scratch and secure.

    Compatibility & Versions

    The Fiamma Carry Bike Pro C is for coach-built motorhomes which do not have pre-installed bike rack mounting points. However, for motorhome with existing fixing points with the same spacing you can purchase Carry-Bike Pro C and use your existing fixings instead of the ones provided in the kit.

    Carry Bike Pro bolts through the rear wall of the motorhome. Pro C model is for motorhomes where the mounting brackets have 60cm horizontal spacing, and vertical spacing between 40cm and 50cm. See diagram.

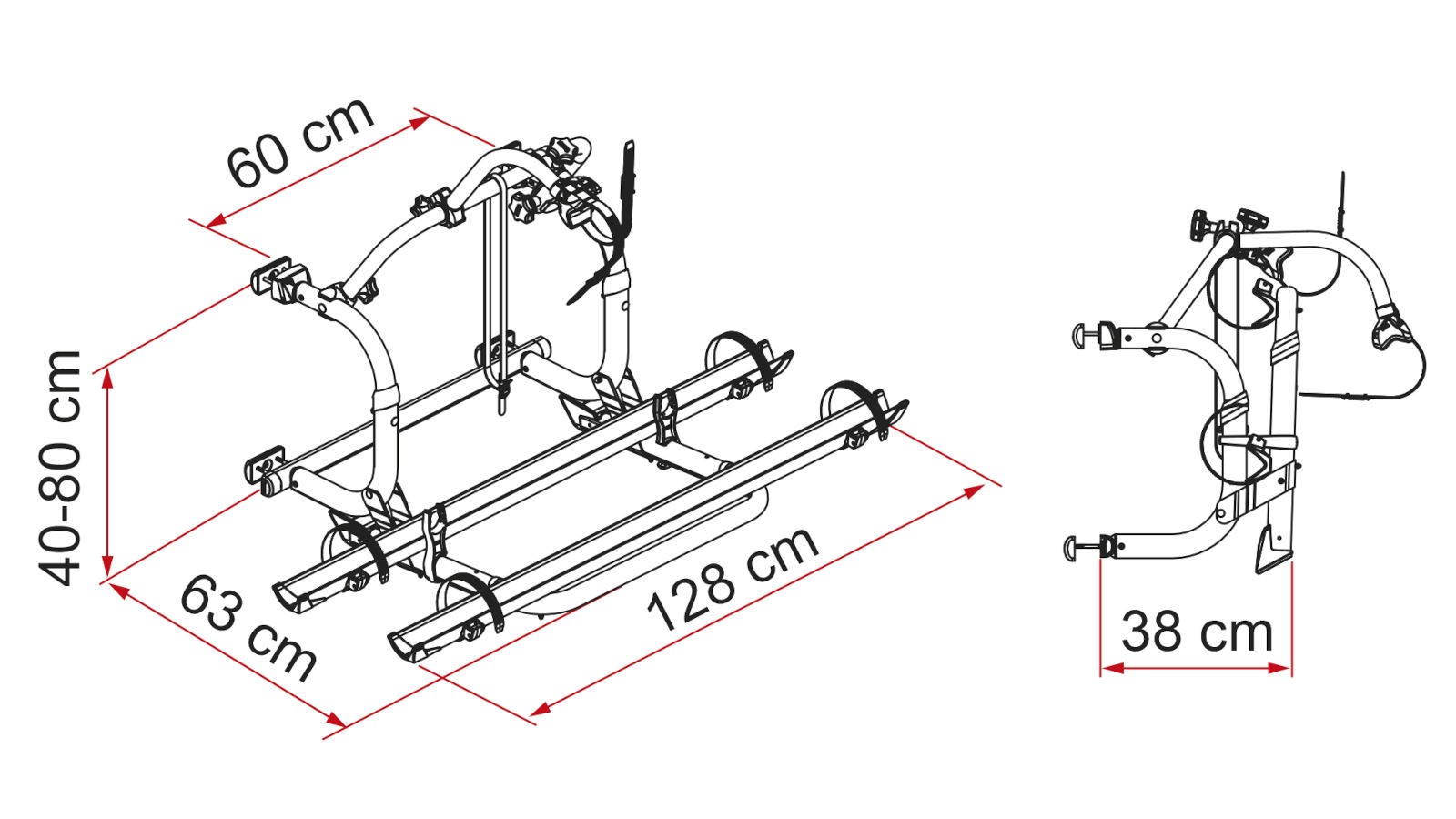

    Fiamma Carry Bike Pro C dimensions

    Alternative Versions


    Model Max Load Bikes Standard Max. Bikes Carry-Bike
    Carry Bike Pro C 60 kg 2 Bikes 4 Bikes 7.9 kg
    • 2 x Rail Quick 128 bike supports
    • 1 x Bike Block Pro 1 Bike frame holder
    • 1 x Bike Block Pro 3 Bike frame holder
    • 2 x Rack Holders
    • 1 x Security Strip
    • Installation kit

    Optional Equipment

    If you purchase the Carry Bike Pro C for 3 or 4 bikes you will also be supplied with the following additional equipment.

    3rd Bike Upgrade kit - 1 x Rail Quick 128 and 1 x Bike Block Pro 2

    4th Bike Upgrade kit - As above plus 1 x Rail Quick 128 and Bike Block Pro 4


    Click to download Fiamma Carry Bike Pro C Fitting Instructions
    For Vehicle Type Motorhome
    Fitting Position Rear Wall Fitting
    Bikes Standard 2
    Bikes Max 4
    E-Bike Compatible Option
    Fitting Notes Bolt through wall installation. Check access inside wall for fittings.
    Min. Vertical Fitting Distance (cm) 40
    Max. Vertical Fitting Distance (cm) 50
    Bike Rack Fits Within...(cm) 40
    Bike Rack Fits Over ...(cm) 50
    Weight Capacity (kg) 60
    Weight 7.90 kgs
    Manufacturers Part Number 02094-10A
    Nova Code 12118
    Grove Code QQ106354BL
