Fiamma Carry Bike Pro Autotrail

Fiamma Carry Bike Pro Autotrail
SKU: 02093A98A
R.R.P.: £316.44
save 12%
£277.22 Inc. VAT
Usually Dispatched in1 working day

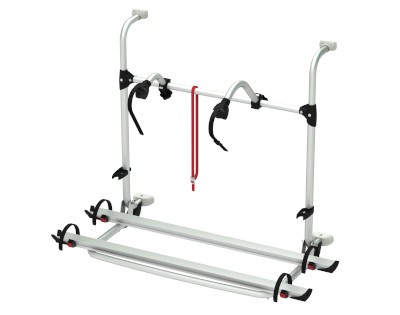

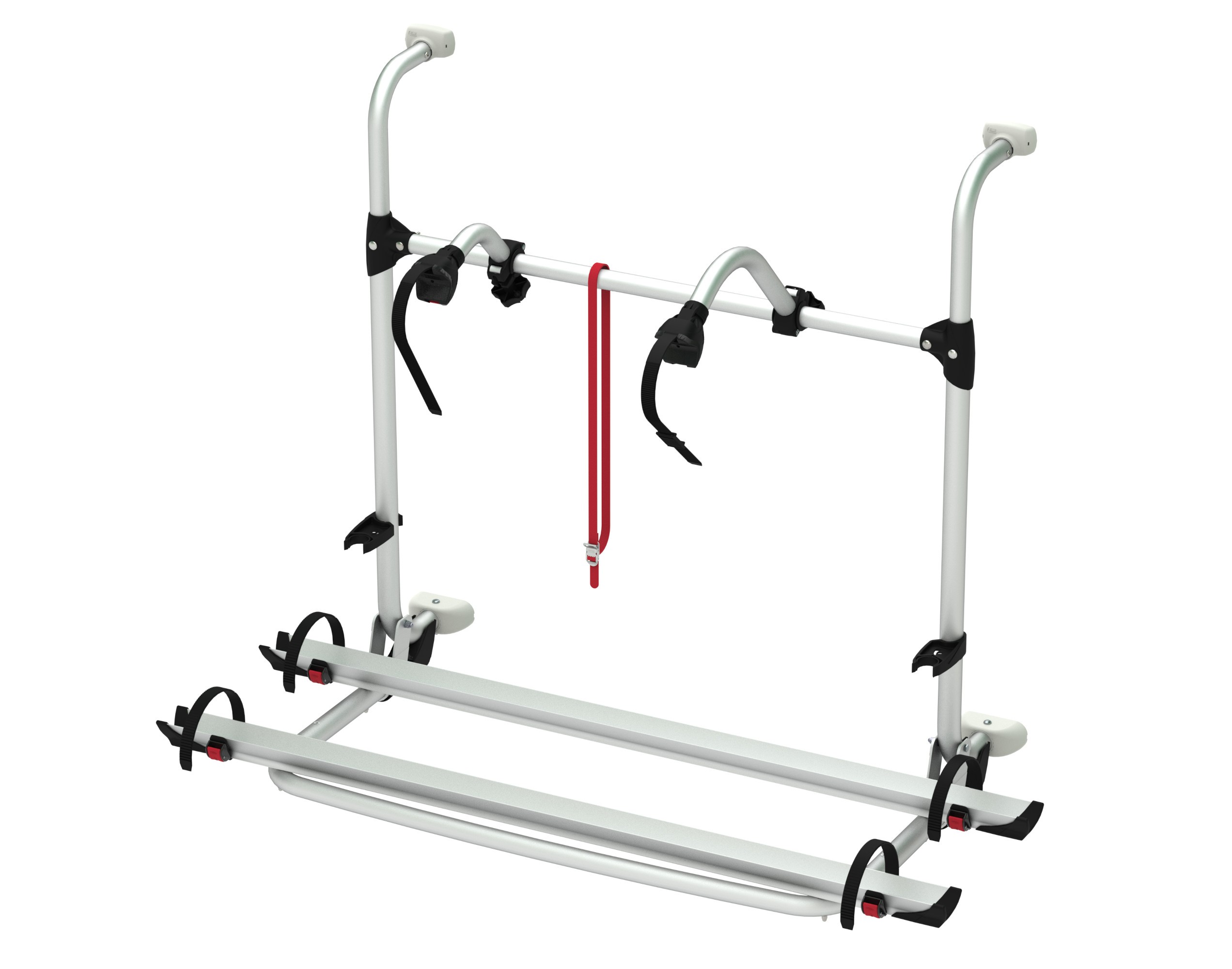

The Fiamma Carry-Bike Pro Autotrail designed specifically for Autotrail motorhomes from 2011 to 2016 with spare wheel protrusion on the rear wall. Fiamma Carry-Bike Pro Autotrail has an enlarged structure and is extremely strong thanks to its anodised aluminium frame. Suitable to carry 2-bikes. Maximum loading weight capacity 40kg.

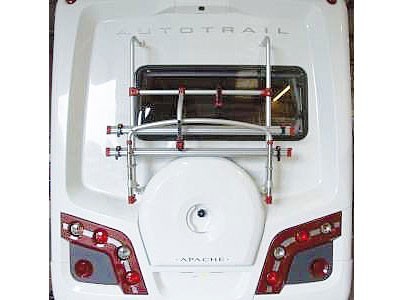

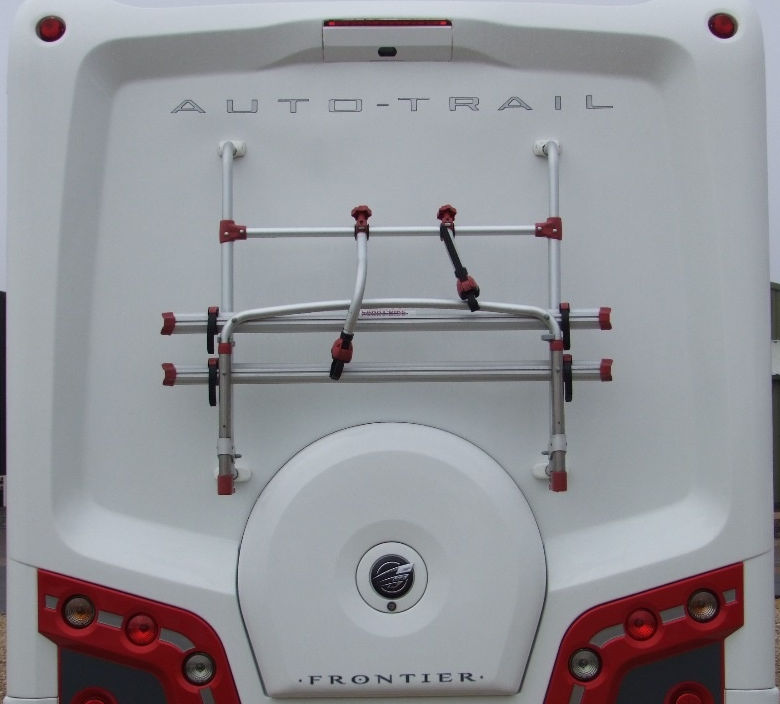

  • Suitable for Autotrail from 2011 to 2016.

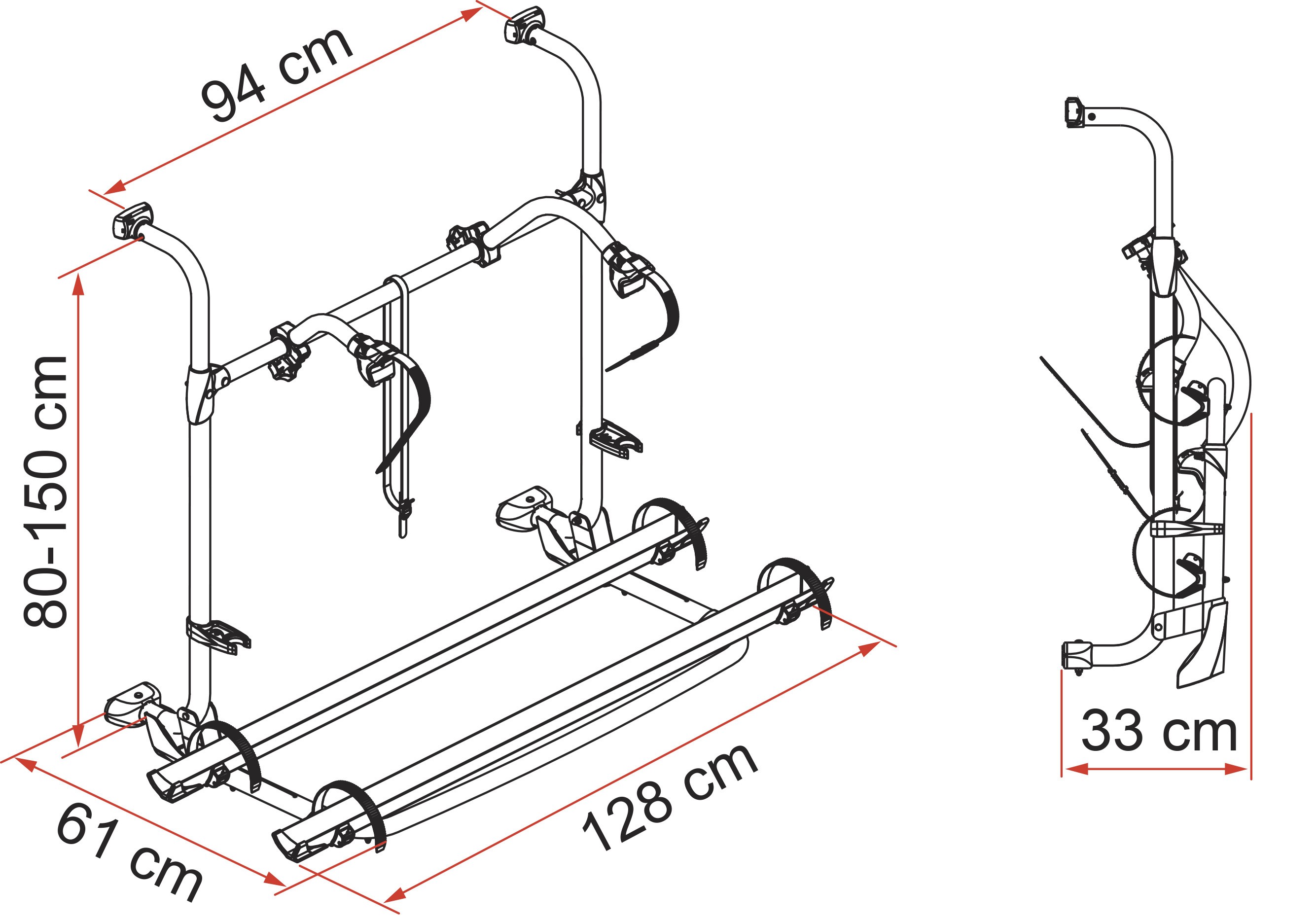

  • Dimension: see images.
  • Max. Load: 40 Kg.
  • Weight: 12 Kg.
  • Support for 2-bikes.
  • Frame construction: Anodised aluminium.


  • Telescopic rail support to fit up to 2 bikes
  • Bull shock absorber for absorbing shocks and vibrations
  • Specific brackets for easy and safe installation
  • Sturdy rails with reinforced base
  • Quick and safe locking of the wheel to the rail

Supplied standard with the following

  • Bike block pro 2 black
  • Bike block pro 3 black
  • Security strip
  • Rail quick pro X 2


Click to download Fiamma Carry Bike CL Fitting Instructions
For Vehicle Type Motorhome
Fitting Position Rear Wall Fitting
Bikes Standard 2
Bikes Max 2
E-Bike Compatible Option
Fitting Notes
Min. Vertical Fitting Distance (cm) 80
Max. Vertical Fitting Distance (cm) 150
Bike Rack Fits Within...(cm) 80
Bike Rack Fits Over ...(cm) 150
Weight Capacity (kg) 40
Weight 12.00 kgs
Global Trade Item Number 8004815397722
Manufacturers Part Number 02093A98A
