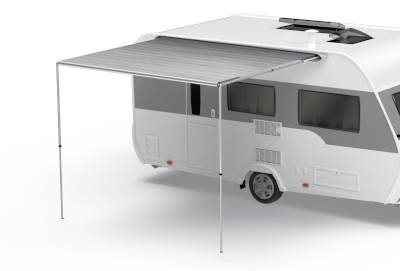

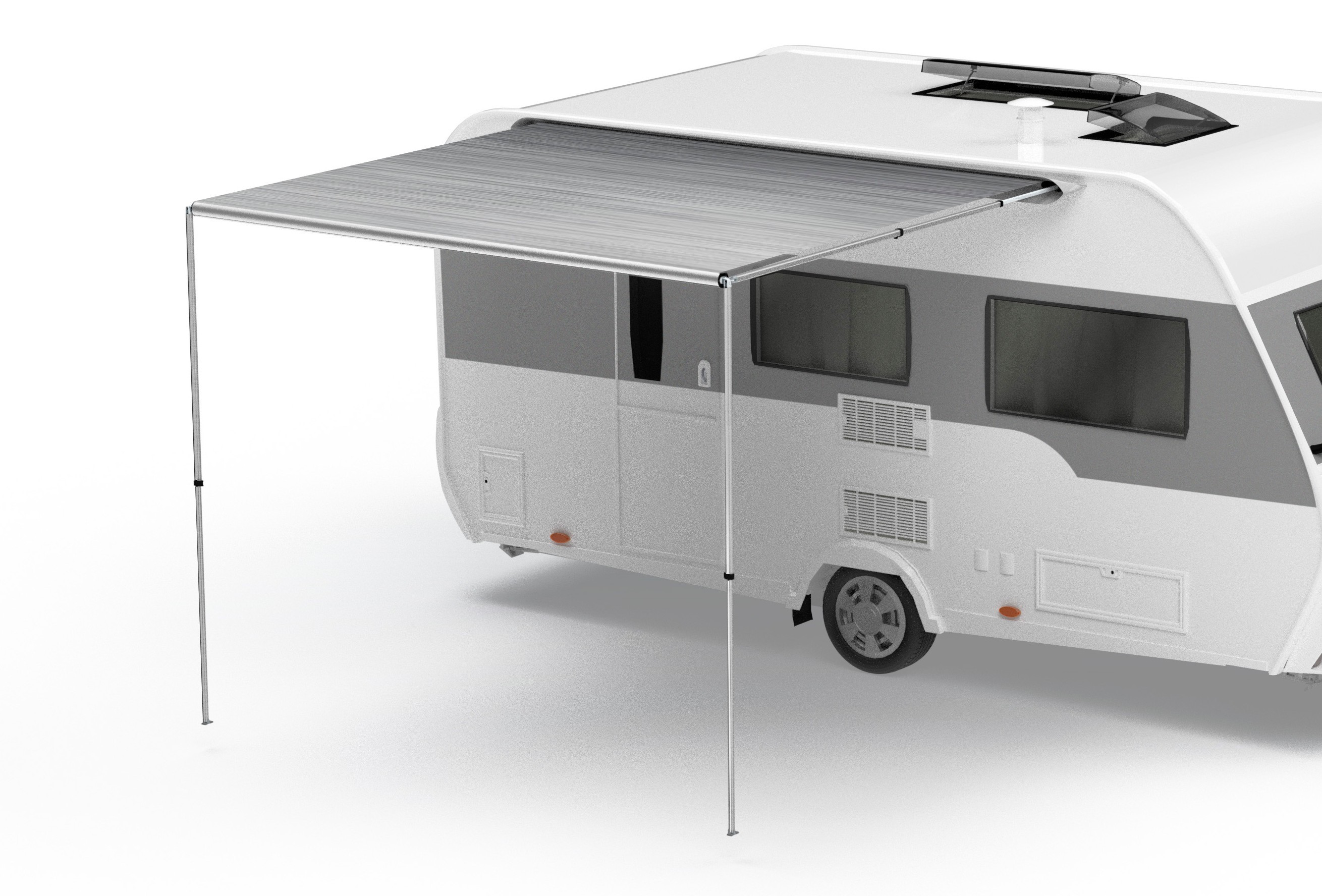

An evolution of the Caravanstore awning characterised by robust mechanics and modern, elegant aesthetics to blend in better with the caravan.

The Fiamma Caravanstore's clever design means it packs away in to a soft bag which remains in place in the caravan awning channel when it is not in use and even while travelling. Not only does this mean it does not require storage space inside the caravan, but this awning design represents the fastest way to set up a shelter for your caravan.

The awning legs and rafters pack away within the awning roller tube and just need to be pulled out and extended when ready to use. This means the Caravanstore awning can be rolled out in only 45 seconds, and you can have a large Sun Shade or rain shelter completely set up within 2 to 3 minutes.

Features

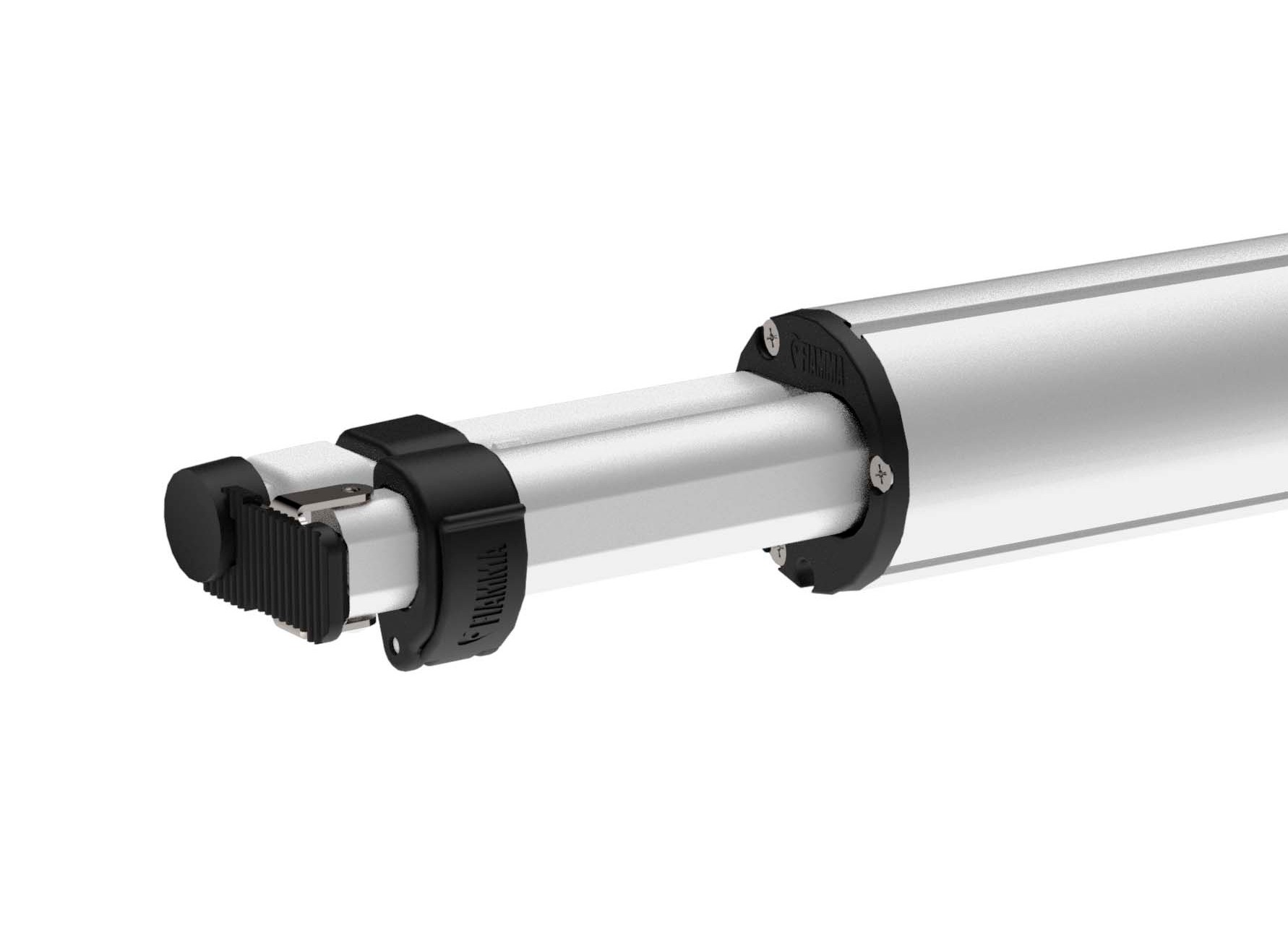

• Manual opening with telescopic legs integrated into the roller

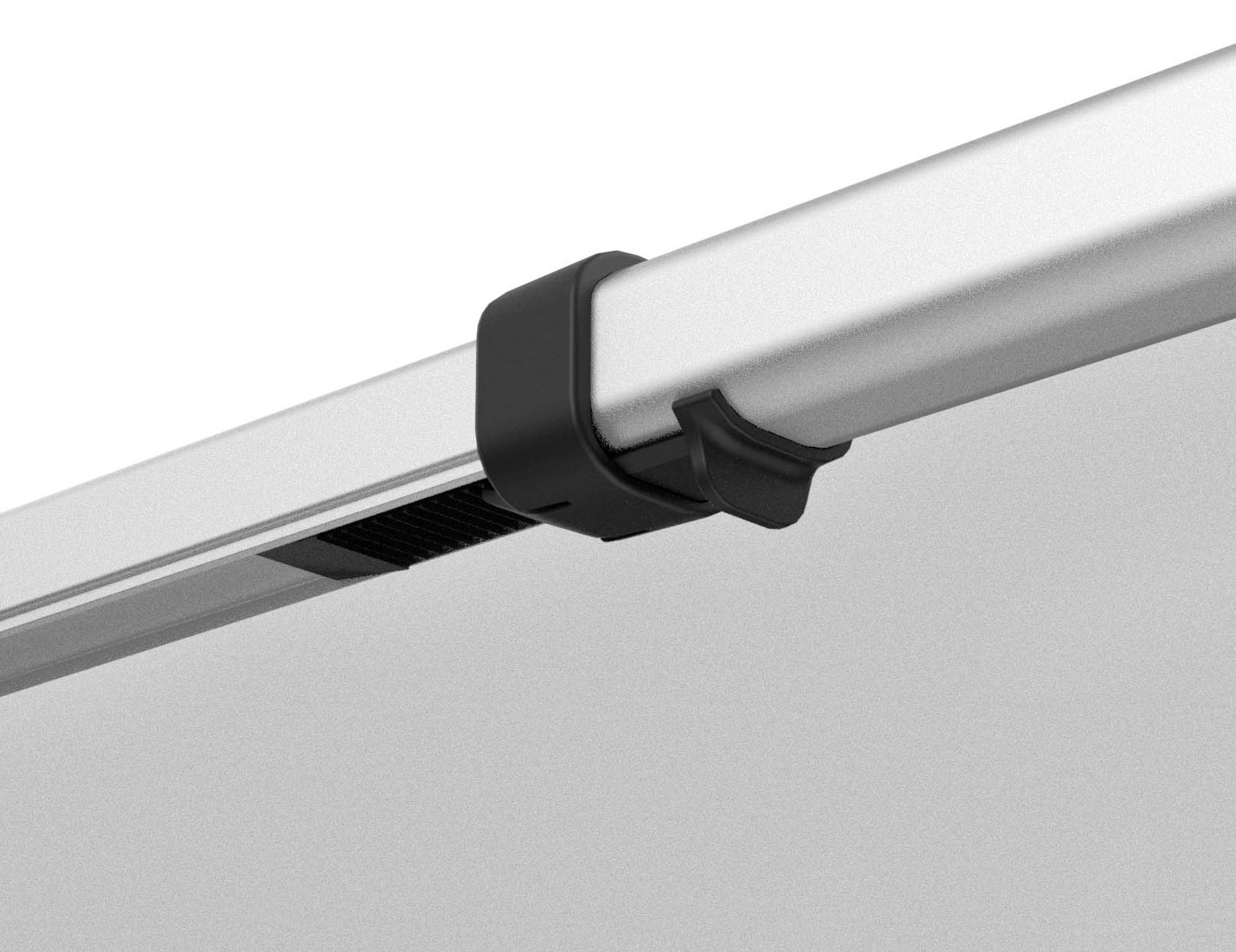

• Tension rafters with square cross-section to guarantee stability and robustness as well as effective and practical progressive tensioning system

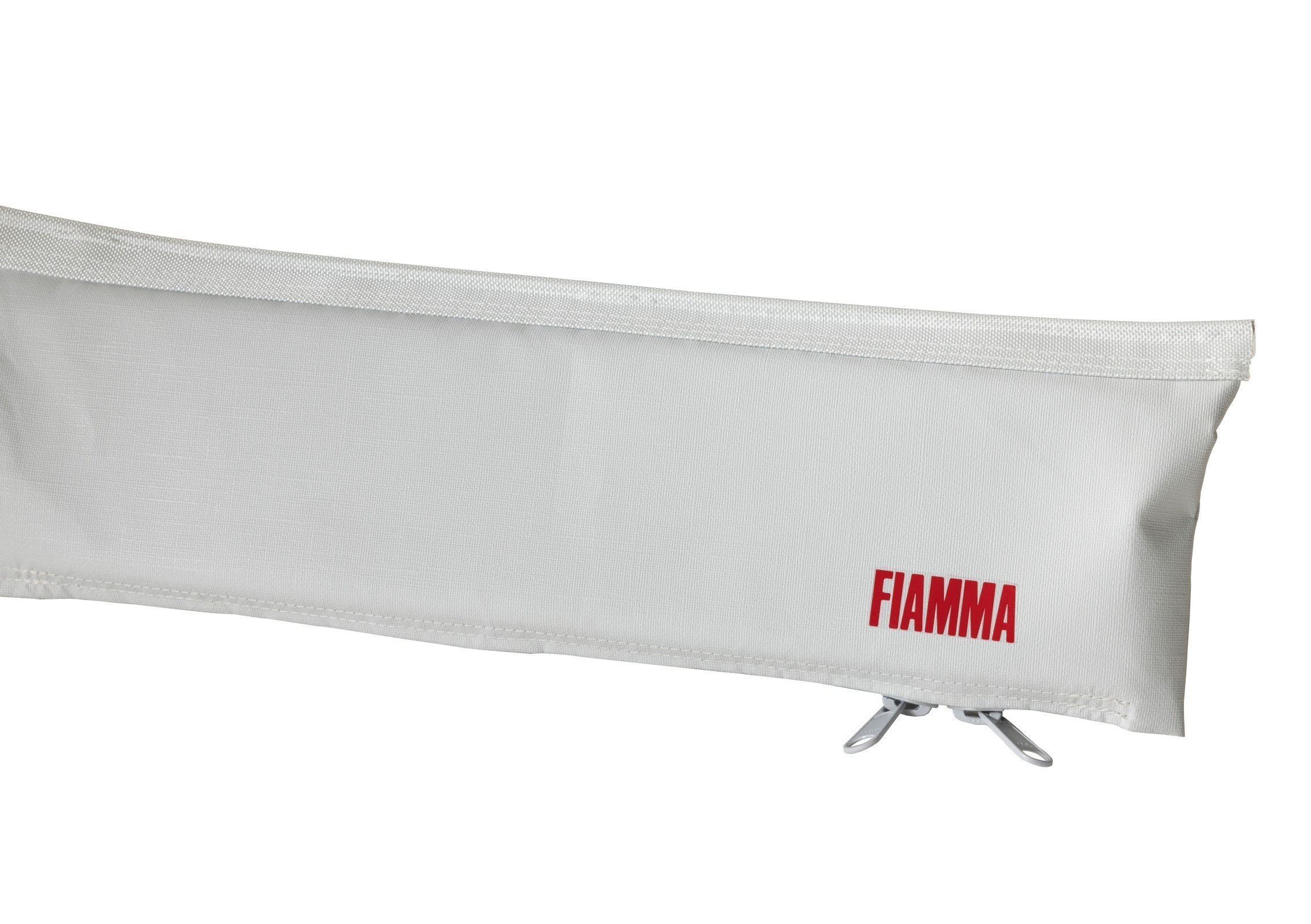

• PVC bag and tone-on-tone sheathing
• Enlarged Zip with larger Zip head for easier grip
• 6mm diameter roller tube

Compatibility & Selection

Fiamma Caravanstore fits to the standard awning rail fitted to the vast majority of touring caravans, but can also be fitted to other vehicles with a straight, horizontal awning channel including campervans and minivans.

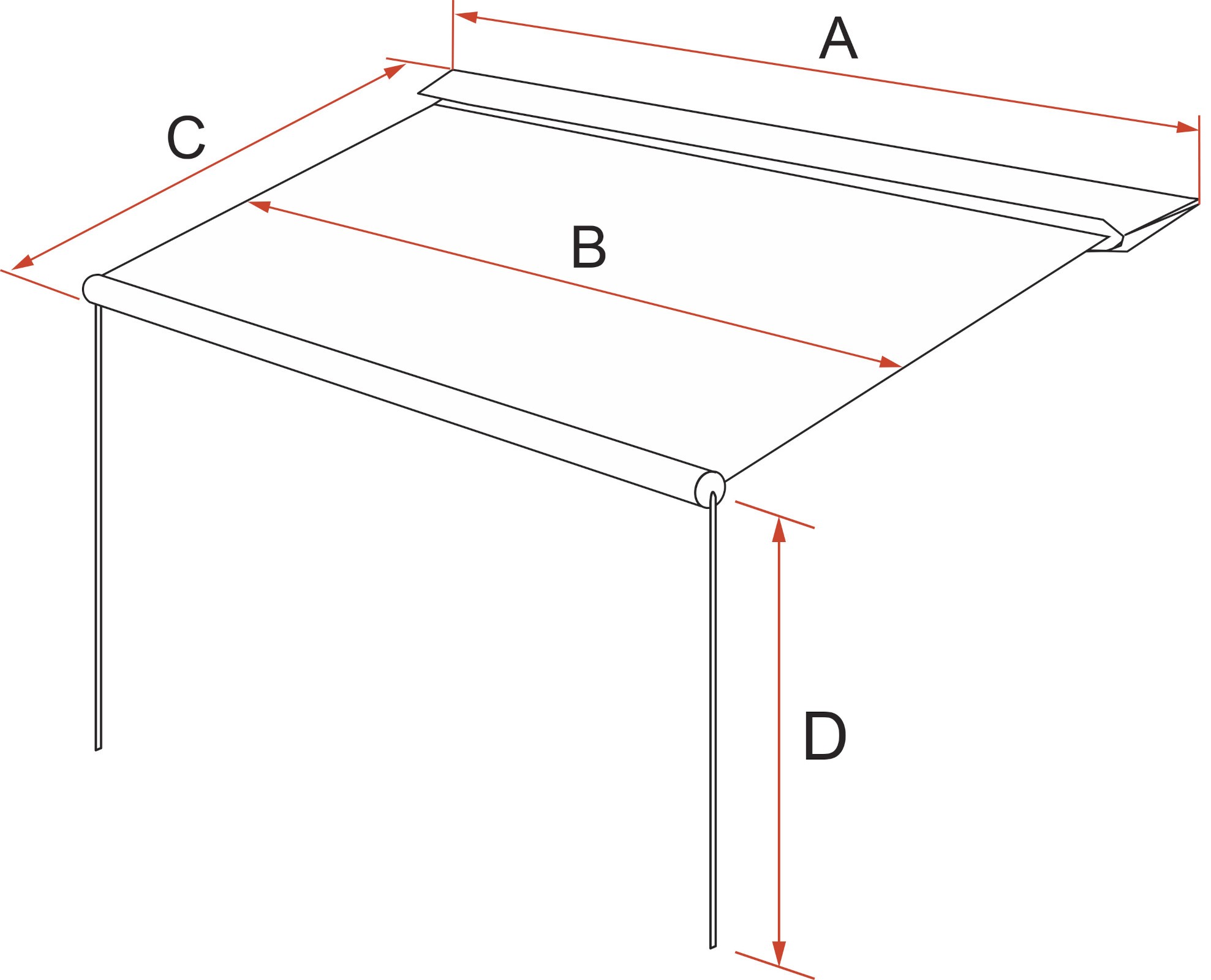

When selecting your Caravanstore size, measure the length of STRAIGHT, horizontal awning channel on your caravan. This represents the maximum Awning Bag Length you can choose. Compare this to the Awning Bag Length A in the table below to identify the correct model size. Be aware, the awning bag length may be longer than it nominal size (e.g. The Caravanstore Evo 260 has a bag length of 264cm)

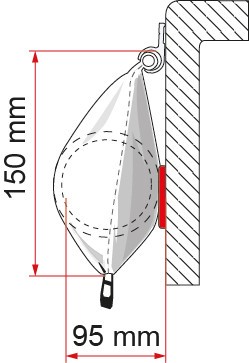

To ensure compatibility of the Caravanstore, when installing on a caravan make sure to check for obstructions such as over door lights and marker lights which may impair fitting. The Caravanstore requires 15cm clear wall space below the awning rail for its full length.

If you are considering installing the Caravanstore on a van please check if the awning bag will obstruct opening and closing of doors once fitted.

Specification
