Home > Caravan & Motorhome > Water & Waste > Water Pumps > Fiamma Aqua F Pump - 13L/m

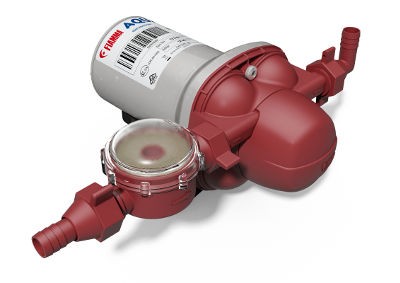

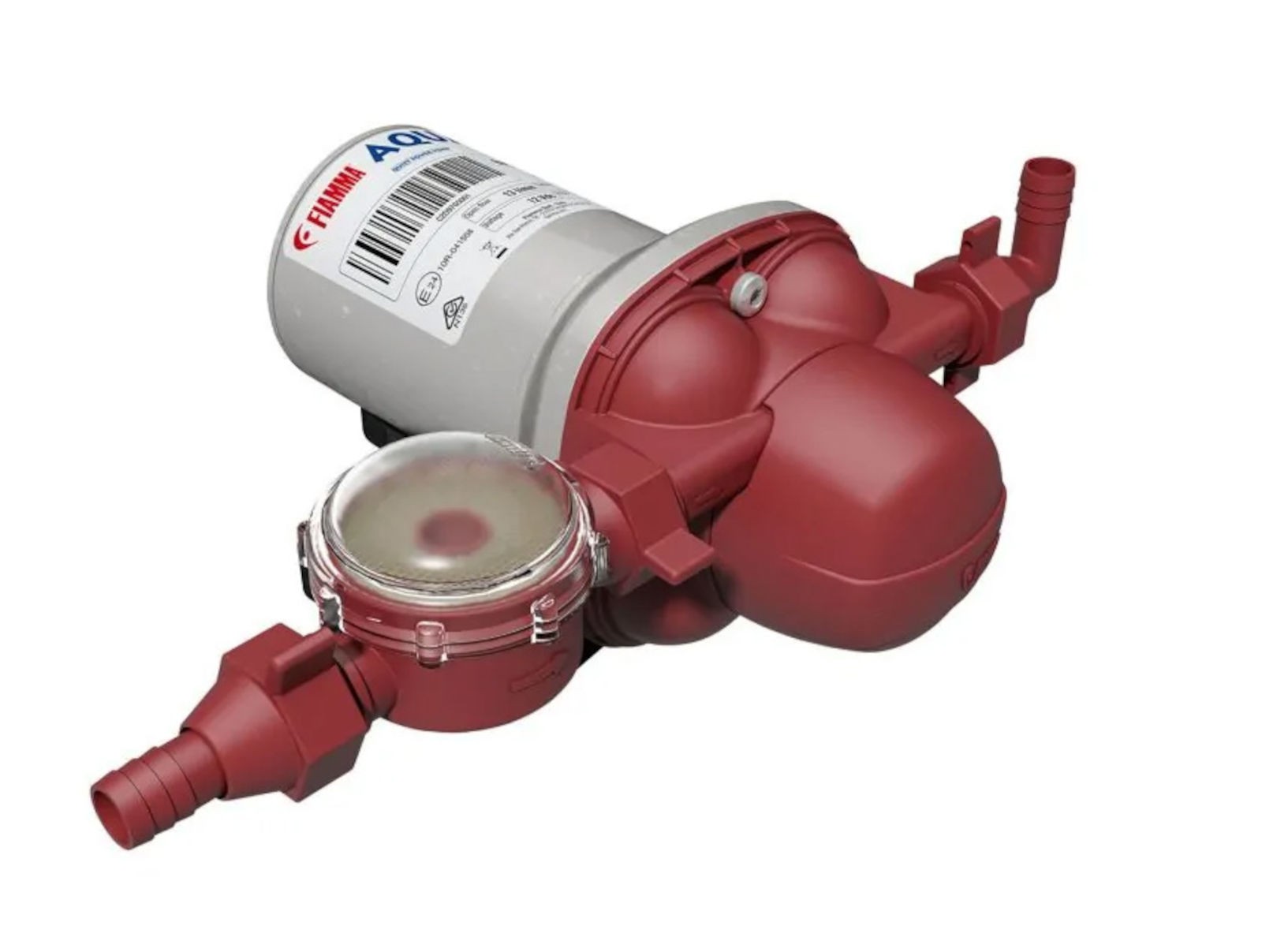

Fiamma Aqua F Pump - 13L/m

Fiamma Aqua F Pump - 13L/m

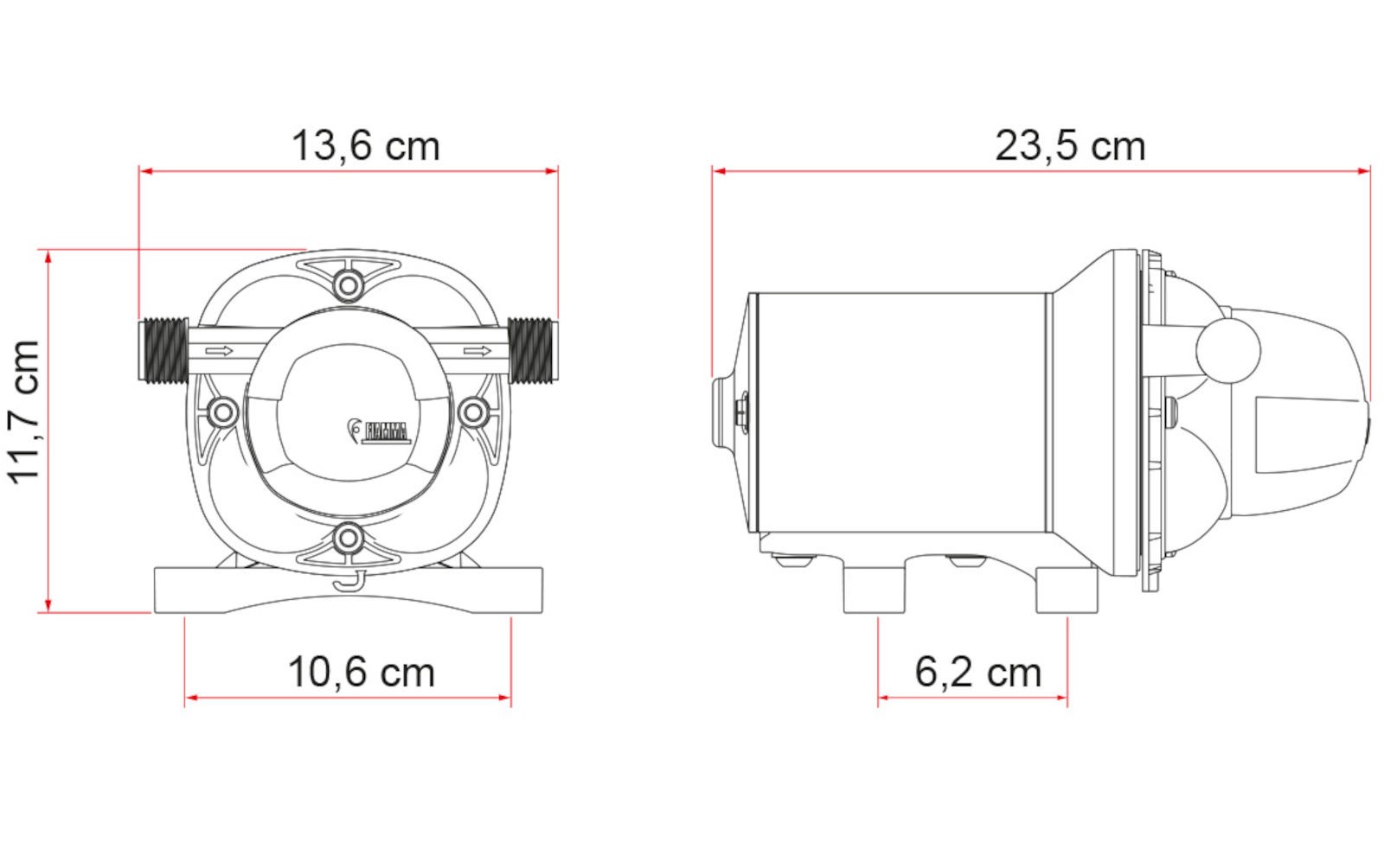

Fiamma Aqua 8 13 Litres Aqua 8 13L dimension
SKU: 07073-01-
R.R.P.: £142.80
save 7%
£132.50 Inc. VAT
Usually Dispatched in1 working day

Self-priming diaphragm pump with 4 chambers for fresh water system on caravans and motorhomes. The Fiamma Aqua F pump is designed for constant and high flow rate. Equipped with innovative inner membrane made from a single piece to ensure watertight seal, with anti-vibration base, brass pressure switch with fixed calibration and the supplied with an external filter for easy maintenance. Enhanced motor with high efficiency, to ensure high capacity with low power consumption.

  • More balanced pressure

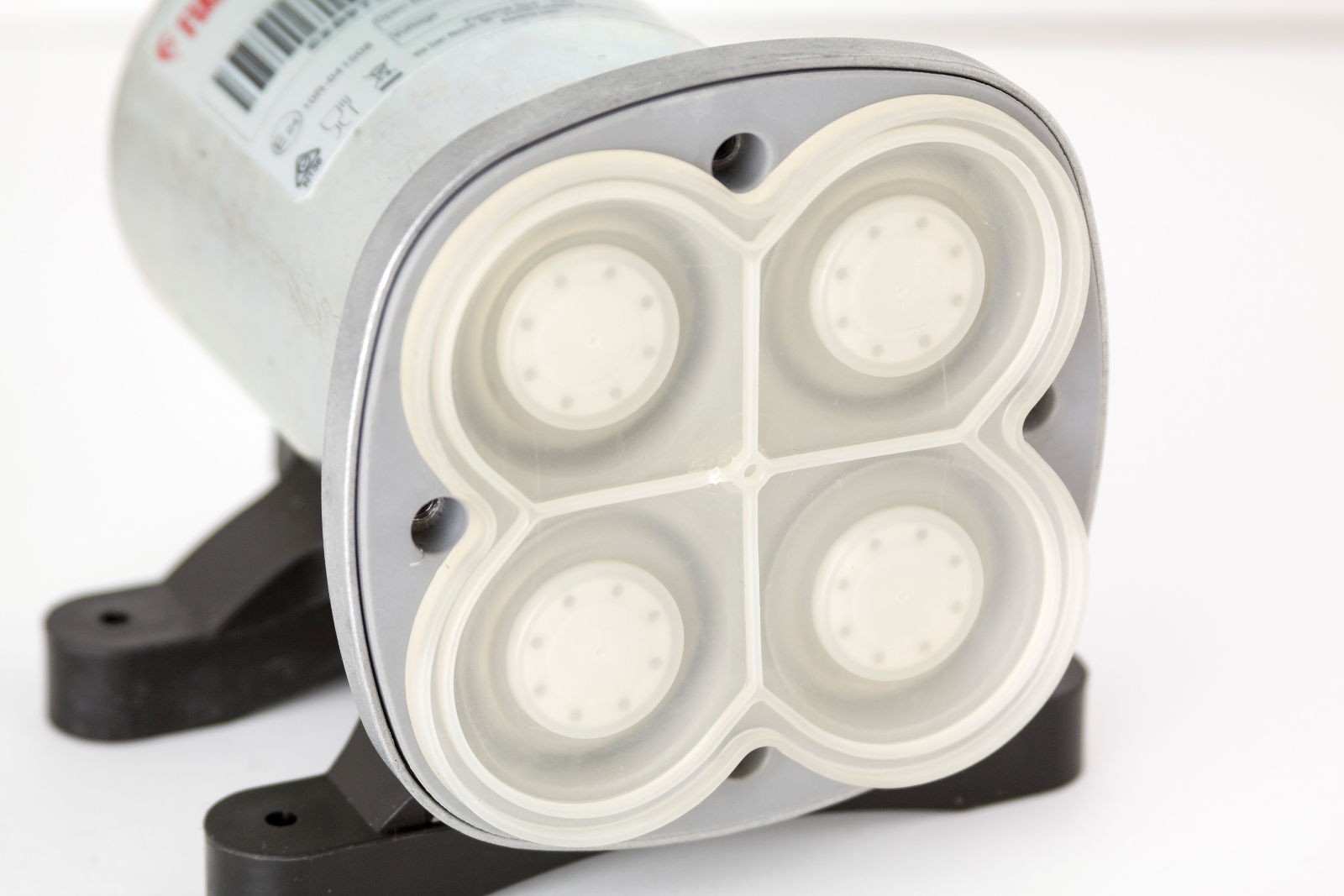

  • Rubber membrane in a single piece
  • Compact mechanical transmission
  • Anti vibration base 12V


Aqua F pump can be installed in any position and can run dry without damage. Connects to the water system with 1/2 inch (13mm) inner diameter hoses with the supplied fittings, or to semi-rigid-pipe system via optional push fit connector with 1/2 inch female BSP thread.


This version of the Aqua F pump has a 13l/m flow rate and is recommended for standard circuits, where a higher flow rate is required.


Power supply: 12 Volt DC
Power absorption: 2.5A / 30W
Max Flow Rate:13 L/m @ 0 bar
Noise level:50 db
Pressure switch interval:1.5 Bar / 21.7 psi


Click to download Fiamma Aqua F Fitting Instructions
