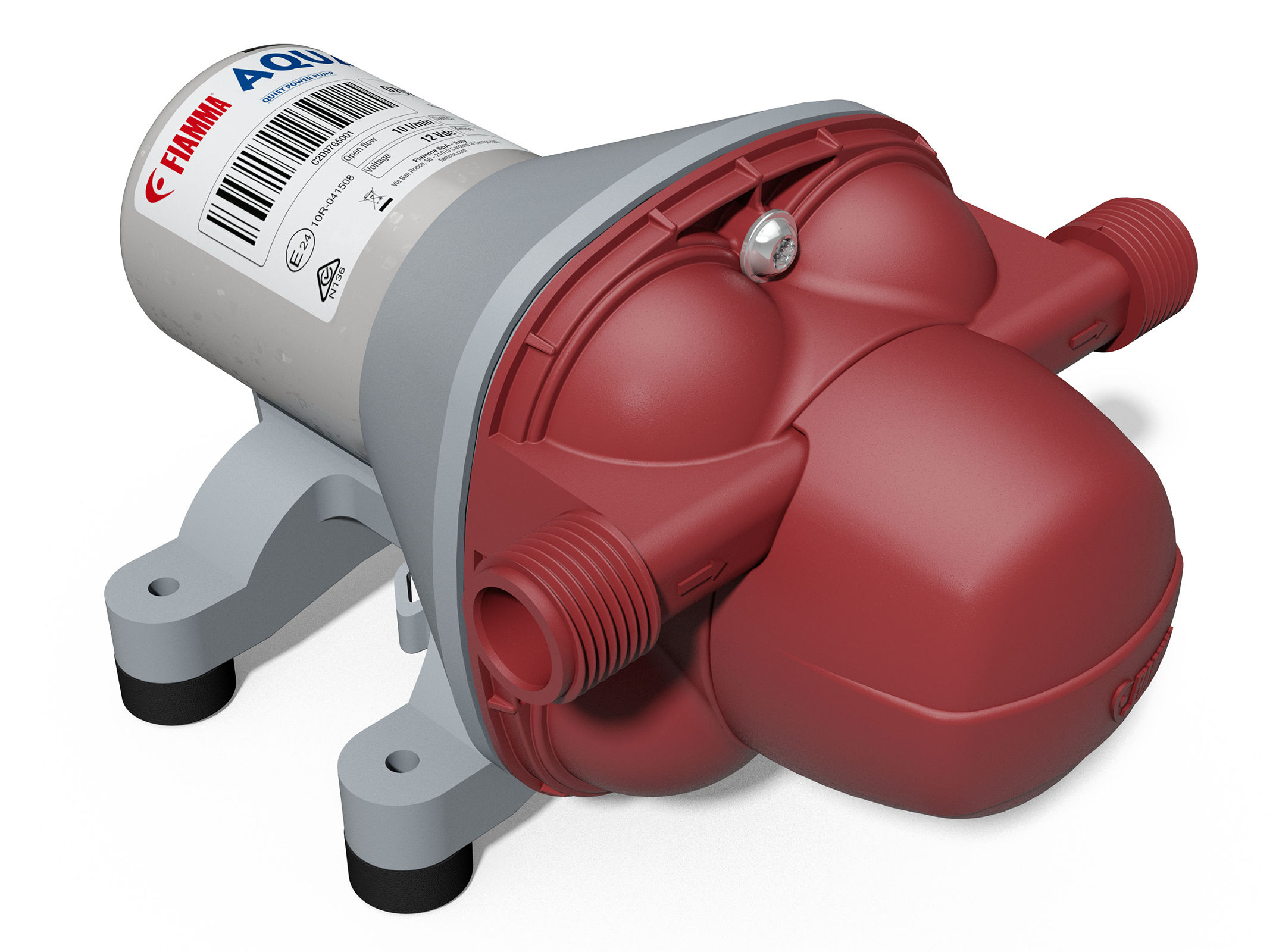

Fiamma Aqua F Pump - 10L/m

Fiamma Aqua F Pump - 10L/m
SKU: 07073A01-
R.R.P.: £114.84
save 10%
£103.20 Inc. VAT
Usually Dispatched in1 working day


Self-priming diaphragm pump with 4 chambers for fresh water system on caravans and motorhomes. The Fiamma Aqua F pump is designed for constant and high flow rate.

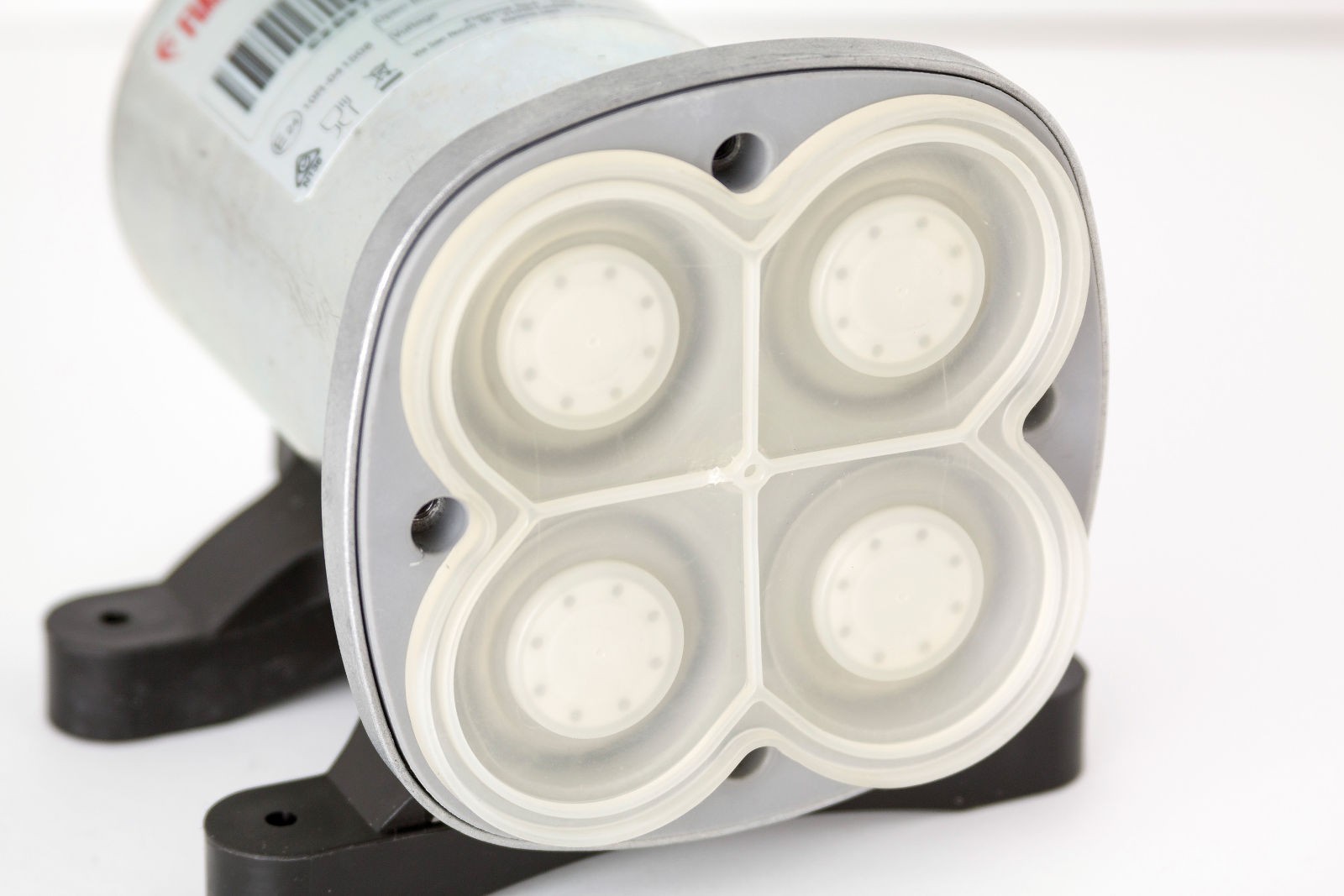

Equipped with innovative inner membrane made from a single piece to ensure watertight seal, with anti-vibration base, brass pressure switch with fixed calibration and the option of an external filter for easy maintenance. Enhanced motor with high efficiency, to ensure high capacity with low power consumption.


Aqua F pump can be installed in any position and can run dry without damage. Connects to the water system via Ø 13mm pipes or instant fittings with 1/2” female thread and Ø 13mm hose joint (not standard delivered).


This version of the Aqua F pump has a 10l/m flow rate and is recommended for standard circuits, where a high flow rate is not required> It's low power consumption makes it a more economic version, with filter and fittings available as an option.


Power supply: 12 Volt DC
Power absorption: 1.7A / 21W
Max Flow Rate:10 L/m @ 0 bar
Noise level:52 db
Pressure switch interval:1.5 Bar / 21.7 psi


Click to download Fiamma Aqua F Fitting Instructions
Pump Type Bulkhead Pump
Max. Flow Rate (L/min) 10
Weight 1.50 kgs
Global Trade Item Number 8004815341206
Manufacturers Part Number 07073A01-
