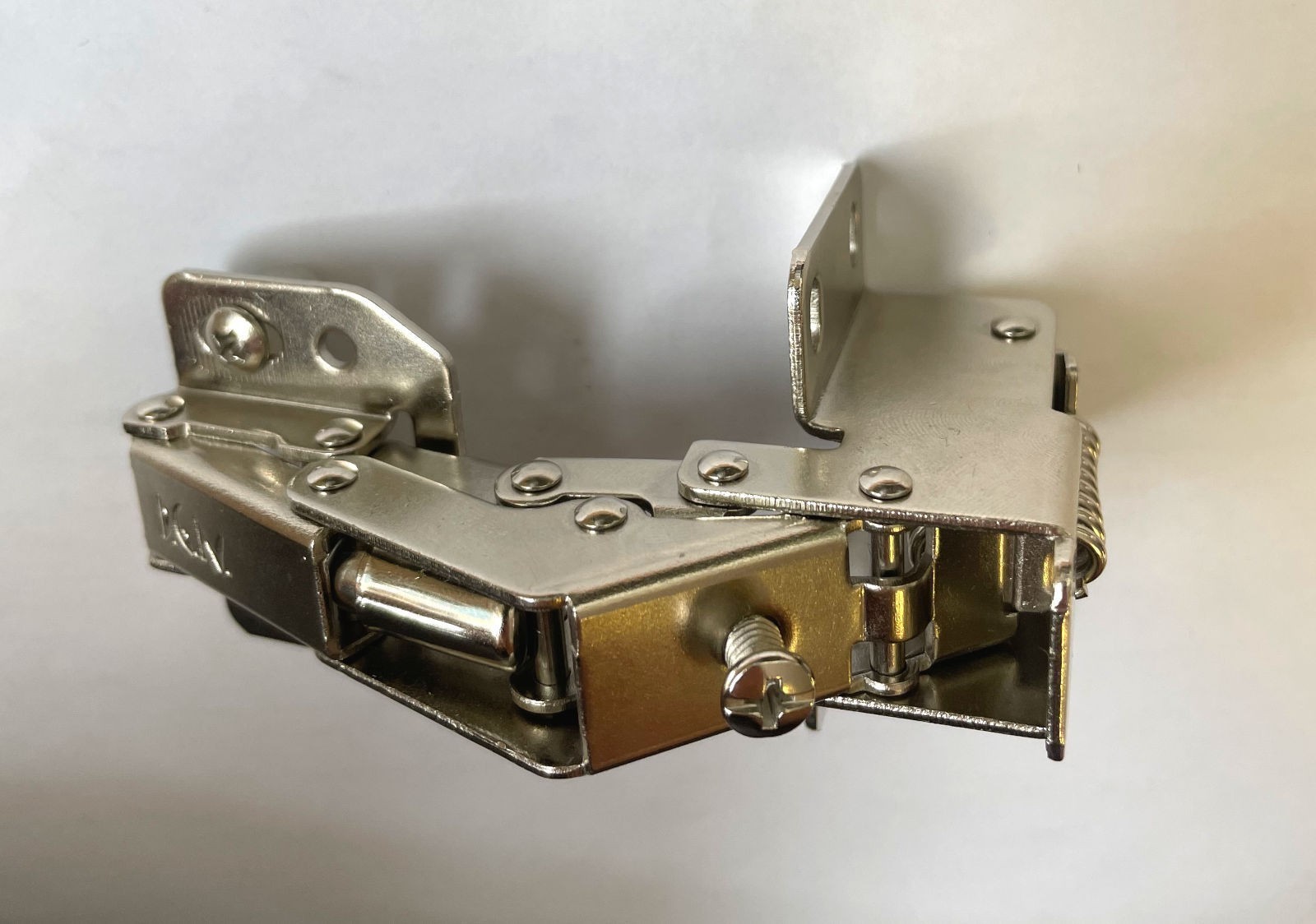

DGN Hinge Soft Close Vertical Style B

Soft close hinge for vertical opening overhead lockers in caravans and motorhomes. Lifts locker door away from the cupboard for clearance when opening, supports overhead door while open and provides soft closure function.

Maximum door opening angle can be adjusted between 75 to 95 degrees.

Secures to inside of cabinet with 4 screws. 20mm vertical centres and 39mm horizontal centres. Cabinet fixing plate dimensions 52mm wide x 32mm tall.

Secures to locker door with 2 screws. Supplied with 2 x 8mm plastic inserts for cupboard door holes. Locker door fixing plate dimensions 45mm wide x 34mm tall.

Very soft movement and features 3 springs making it very strong.
