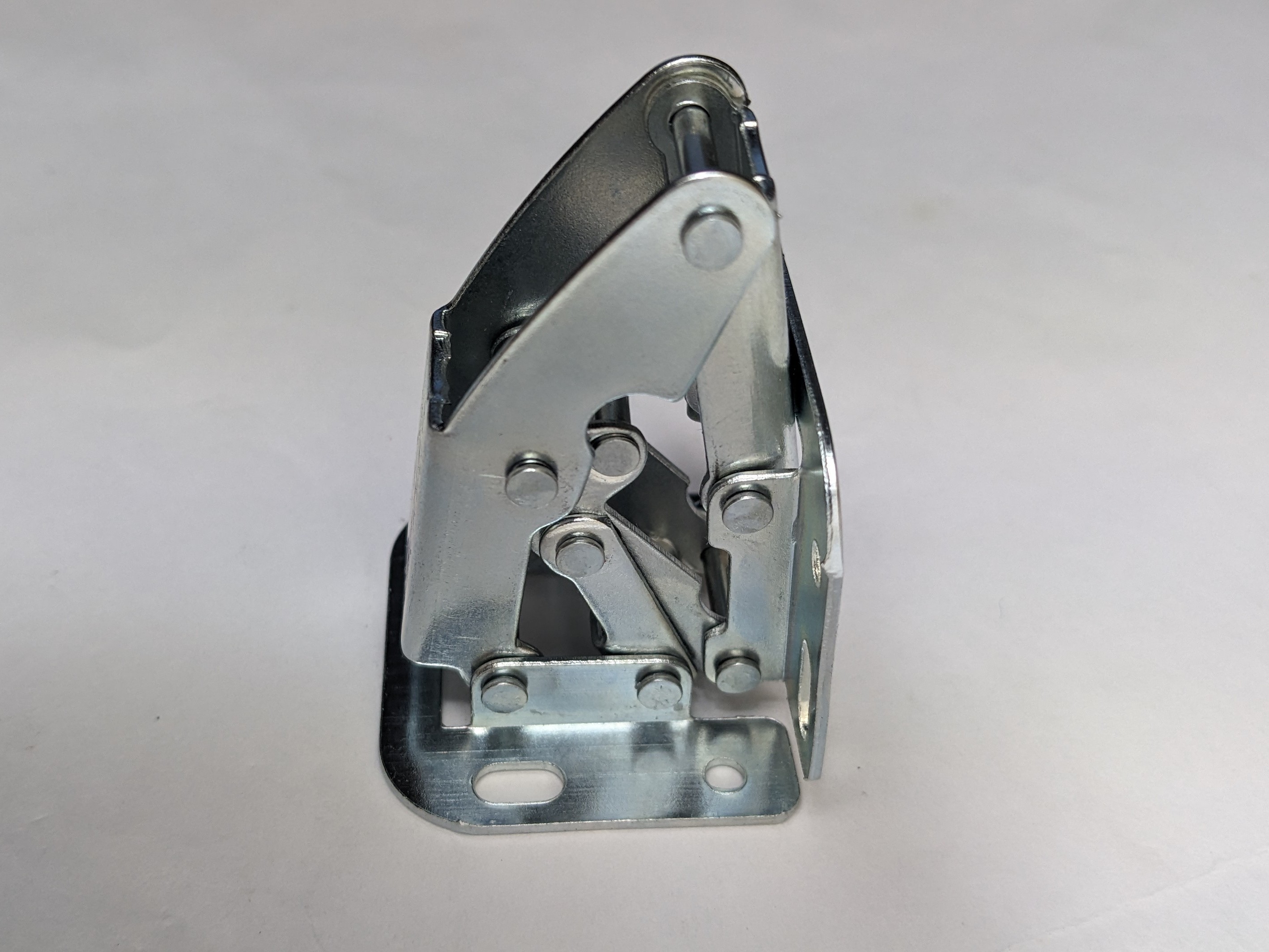

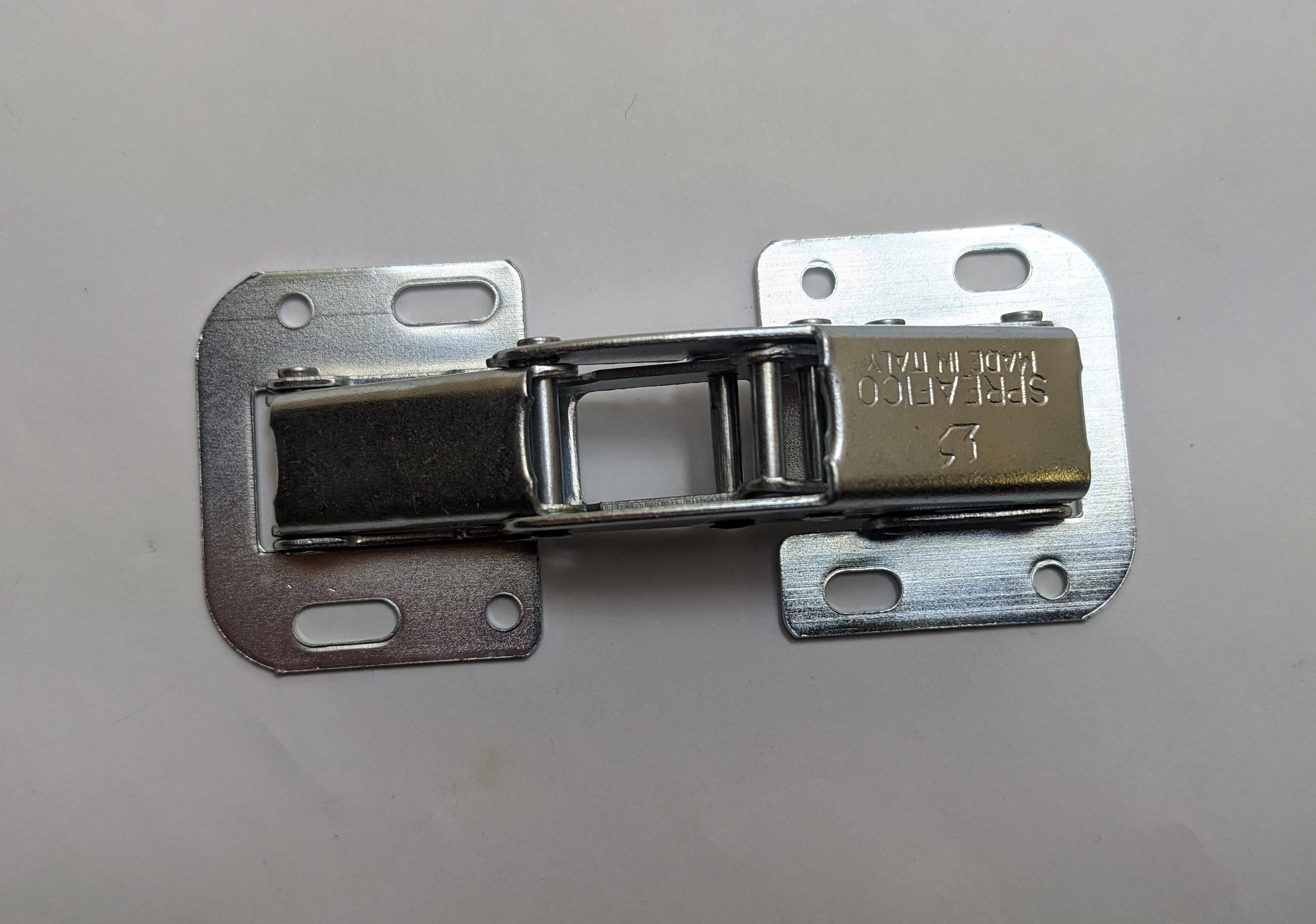

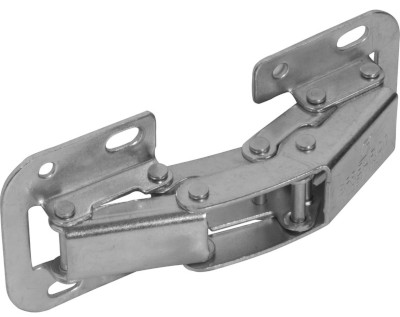

Concealed Unsprung Cupboard Door Hinge 90 Degree

Unsprung surface mounted cupboard door hinge for caravan or motorhome cupboard doors.

Mounts inside of the cupboard by screwing to the side of the cupboard wall and the inside of the cupboard door. Opens upto 90 degrees and cranks outward so the edge of the door clears the outside wall of the cupboard as the hinge opens.

Mounting plates 42mm tall x 35mm wide.

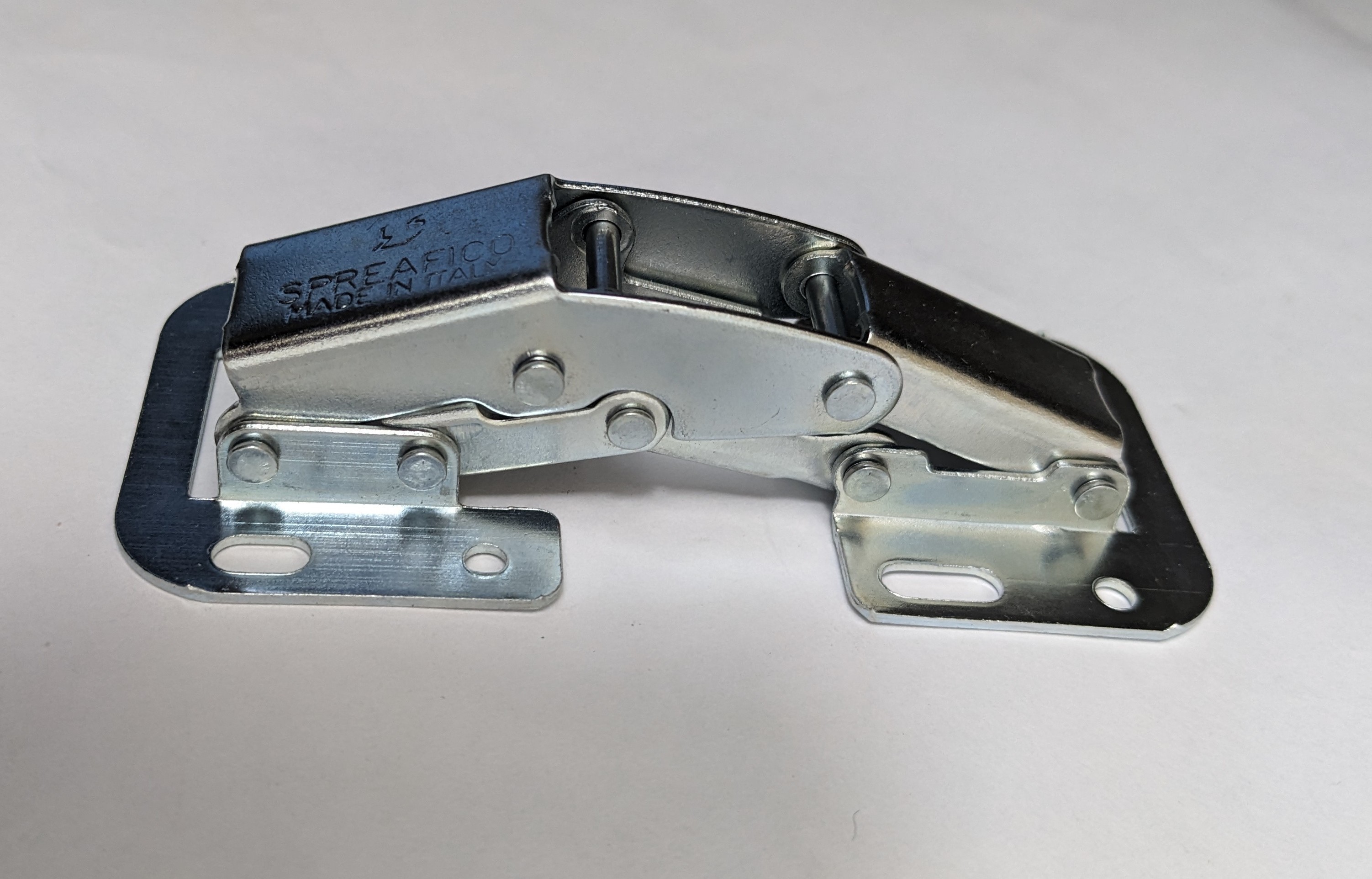

Total hinge length when open 97mm.

Surface mounted hinge screws straight to door and cupboard wall surface so there is no need to cut a recess / rebate in the door or cupboard like other furniture hinges.

Can be used for overlay or inset doors. Suitable for door and cupboard panels thicknesses from 16mm to 22mm.
