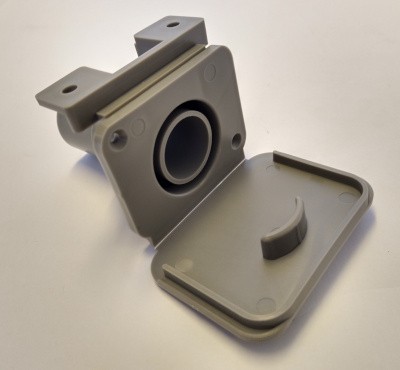

Waste Outlet socket and housing for caravan and motorhome for grey waste water system. Mounted by screwing or fixing to the underside of caravan floor.

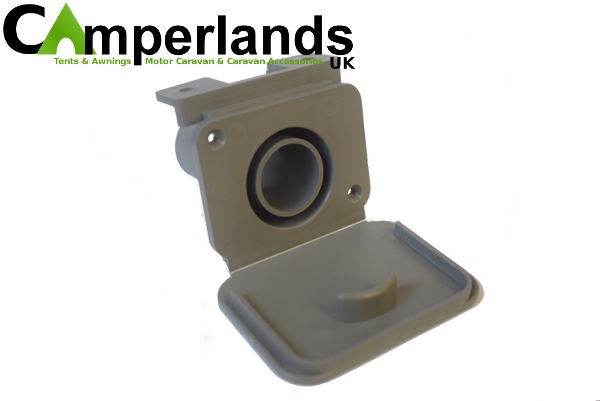

Flap cover to prevent water ingress when not in use.

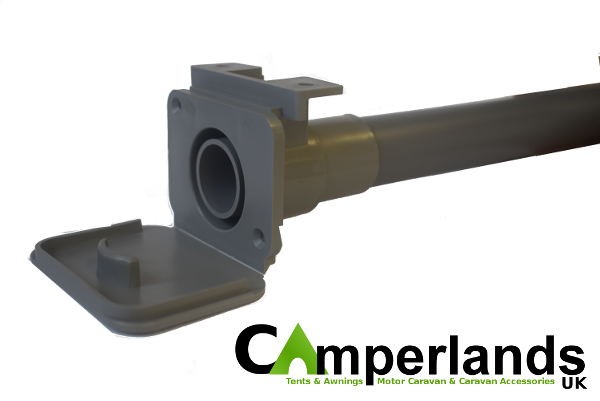

Inside connection: Push fit to rigid pipe with 28mm outer diameter
Outside Connection: Push fit to flexible conduit with inner diameter 28.5mm

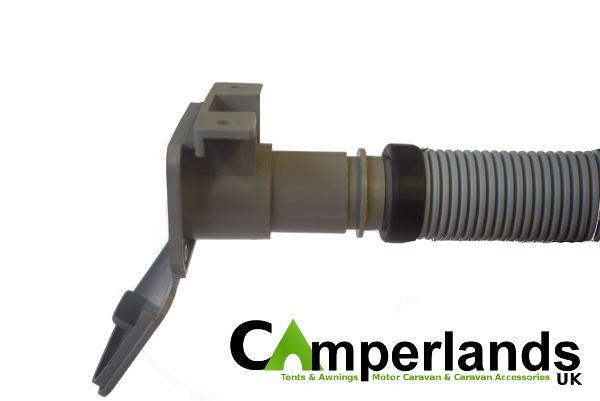

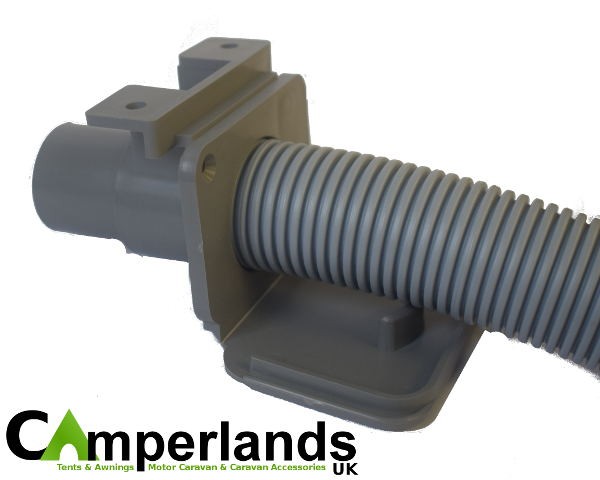

Additional part are required if you wish to connect reverse of housing to 28.5mm flexible hose instead of 28mm rigid pipe. Purchase 28mm Pipe to 28.55mm Hose Adapter and 28.5mm Sealing Sleeve and connect as shown in images.
Water System |
Waste Water System |
|
Pipe Style |
28.5mm Inner Diameter Convolute 28mm Rigid Waste Pipe |
|
Fitting Style |
Waste Outlet |
|
Weight | 0.06 kgs | |
Manufacturers Part Number | 81330 |
