Propex Malaga E Heating System

Propex Malaga E Heating System

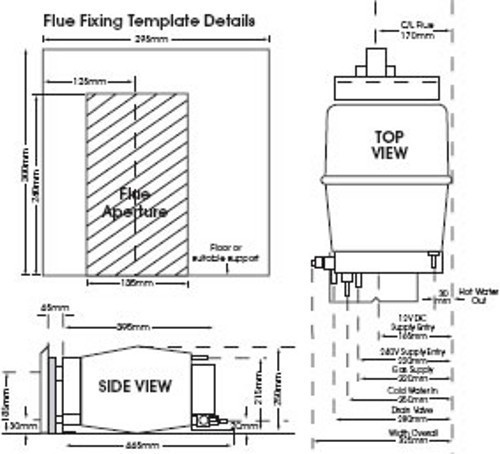

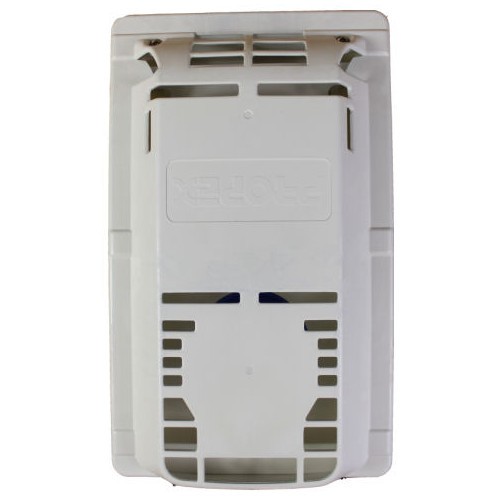

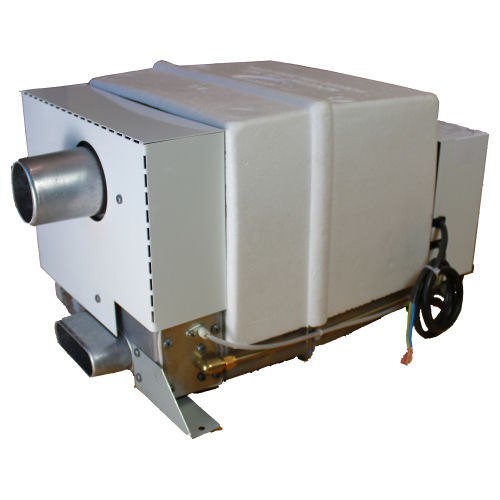

Malaga mk5 heater Malaga water heater flue Flue fixing template
SKU: SKU25563
£485.99 Inc. VAT
Quantity
Usually Dispatched in3-5 working days

This product is a special order and may not always be in stock instore, but dispatched direct from the manufacturer

This high capacity water storage heater is available in two versions, the standard Malaga, with an efficient gas burner, and the Malaga E, which has the additional benefit of a 750 watt electric heating element. Both heaters can provide a quick and efficient supply of hot water for showering and washing in touring and motor caravans. The heater may also be installed in boats used exclusively on inland waterways i.e. Class 1 & 2 and subject to finding a satisfactory mounting position. Being a room sealed appliance it conforms to the requirements of the Boat Safety Scheme.

  • Large 13 litre capacity – for longer washing and showering facilities
  • Efficient gas burner – for faster warm up
  • 750W element on Malaga E – use on its own or with the gas burner for even faster hot water
  • Small flue terminal – neat appearance outside the caravan
  • Safe – combustion products are completely sealed from the caravan interior
  • Easy to fit and service – all controls accessible at the rear of the unit
  • Electronic control – turns on the heater at the flick of a switch and supervises burner operation
  • Automatic resettable overheat cut out
  • Compact dimension – more room to route pipework and ducting where necessary

Micro-processor Controller Electronics.


The Malaga 5 water heater is equipped with the latest Propex electronics for accurate digital control of the heater operation and safety functions. The switch panel features 2 on/off switches for independently selecting either “gas only” or “230v only” or both. The Green L.E.D. on the switch panel lets you know when the gas burner is operating and also, by flashing a certain amount of times, the Red LED indicates various fault conditions


Installation Requirements


The heater should be floor mounted or suitably supported, normally in the bed box. The flue is designed to pass through a vertical section of the caravan wall, structural sections of which should not be damaged. The flue terminal position should not be closer than 300mm below an opening window or 600mm from a vertical corner. Clearances required for installation and servicing: as seen from inside the caravan.

Technical Data

Dimensions
Overall H 250mm W 325mm D 445mm
Weight Empty     9.3kg
Tank Capacity     13 litres
Water Temperature Thermostat Setting 70 °C
Overheat Thermostat Setting 90 °C
Water Supply
The heater will operate satisfactorily on either a system where the pump is controlled by the tap microswitches or the one controlled by a pressure switch. It must not be connect to mains water supply. Water connections can be provided to suit a range of standard fittings. Reinforced or semi rigid pipe must be used.
Pressure Relief Valve Settings   3 bar
Maximum Working Pressure   2 bar
Maximum Working Supply Pressure   1.9 bar
Gas Supply
Heat Input   1.15kw 84g/h
Pressure Settings:   Propane 37mbar
    Butane 28mbar
    Mixtures 30mbar
Injector     Bray 960/40
Electrical Supply     12v DC
Gas Connection     8mm O.D.
Malaga E Only
Mains Electricity Supply 220/240vAC 50Hz Fused 5A



Weight 2.50 kgs
