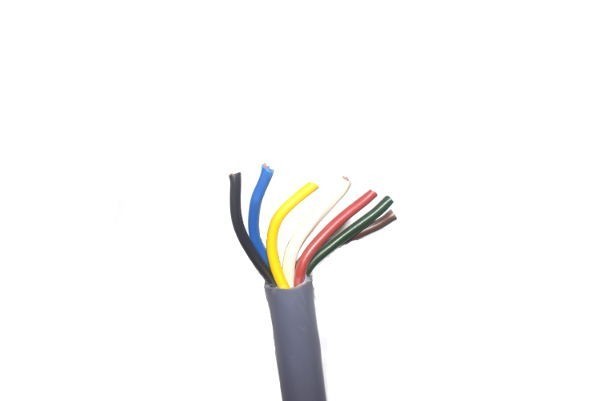

7 Core Grey Electrical Towing Cable
Usually Dispatched in1 working day
7 core electrical towing cable in grey sheathing for use in 7 pin "S" connectors for older models of caravans/trailers, which are responsible for powering reverse lights, fridges and charging your leisure battery whilst towing.
Please see the below table for the most up to date 12S wiring connections:
| Conductor Colour | Use |
|---|---|
| Yellow | Reverse |
| Blue | Spare (Battery Charge on old system) |
| White | Earth Return for contact 4 |
| Green | Power Supply Steady |
| Brown | No allocation |
| Red | Power Supply Switched (Fridge) |
| Black | Earth return for contact 6 |
Sold per metre, please select required length using the quantity box above.
| No of Cores | 7 Core | |
| Conductor Area | 6 x 1mm & 1 x 2.5mm | |
| Sheathed? | Yes | |
| Sheath Colour | Grey | |
| Conductor Colours |
Red White Black Brown Blue Yellow Green |
|
| Current capacity (A) - Fixing Method A | N/A | |
| Current capacity (A) - Fixing Method B | N/A | |
| Current capacity (A) - Fixing Method C | N/A | |
| Voltage Drop (mV/A/m) | ||
| Weight | 0.50 kgs | |
| Manufacturers Part Number | WE800S | |
