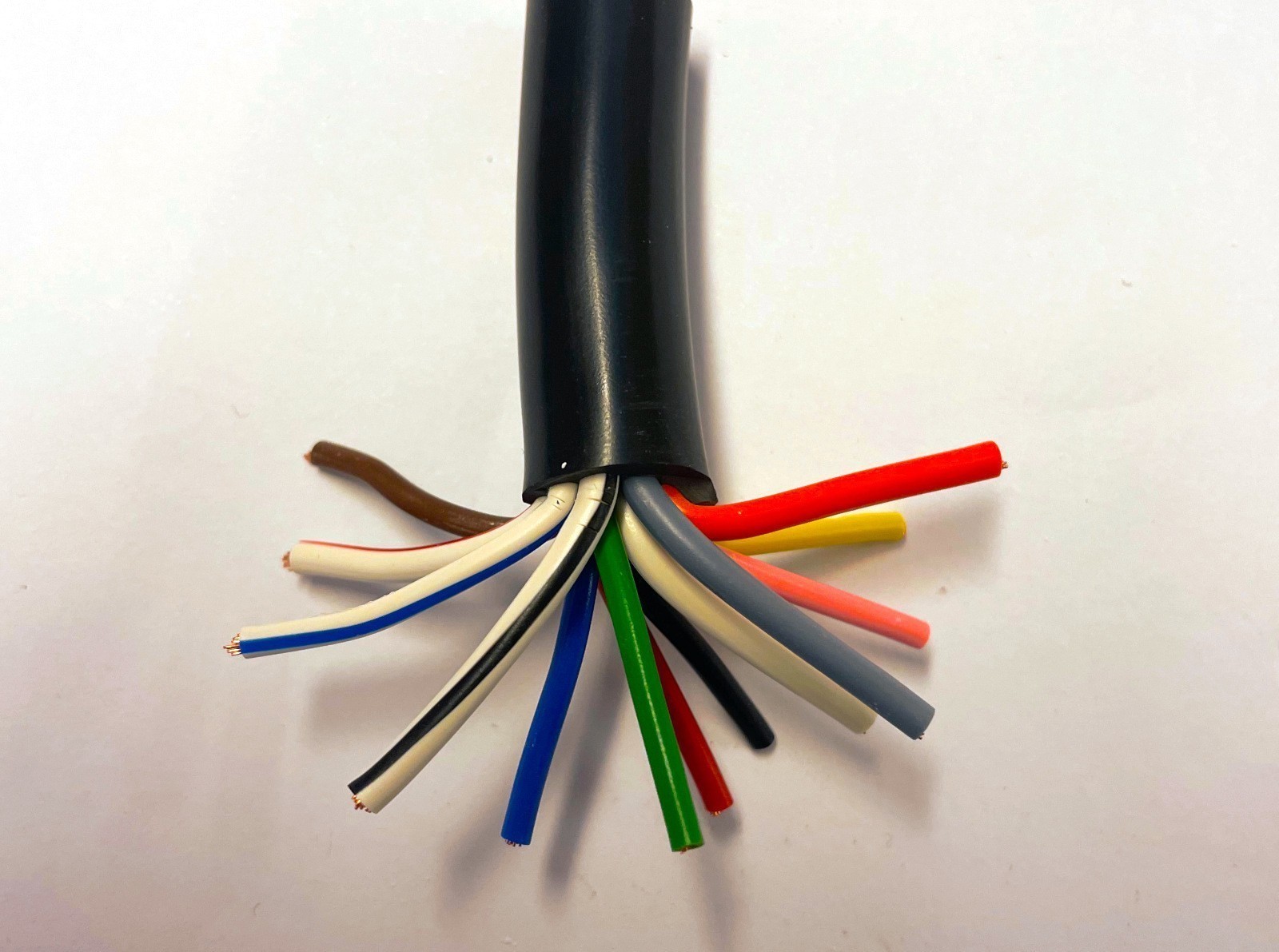

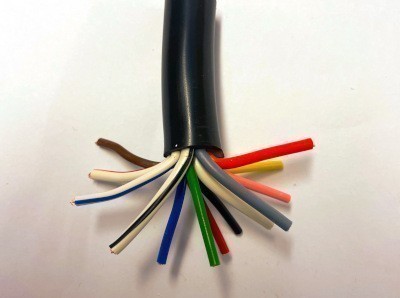

13 Core Trailer/Towing Cable suitable for use in 13-pin caravan and trailer connections. This is responsible for powering the external lighting on your caravan or trailer such as the indicators, brake lights and side lights and essential appliances such as fridges whilst you tow it.
For the most up to date 13 core wiring connections, see the table below:
Conductor Colour | Use |
---|---|
Yellow | LH indicator |
Blue | Rear Fog |
White | Earth Return |
Green | RH indicator |
Brown | Right Tail & Number Plate |
Red | Stop |
Black | Left Tail & Number Plate |
Pink | Reverse Lights |
Orange | Power Supply Steady |
Grey | Power Supply Switched |
White/Black | Earth Return for contact 10 |
White/Blue | Spare |
White/Red | Earth return for contact 9 |
Sold per metre, please enter required amount in quantity box.
No of Cores | 12 Core | |
Conductor Area | 7 x 1.5mm & 5 x 2.5mm | |
Sheathed? | Yes | |
Sheath Colour | Black | |
Conductor Colours |
Red White Grey Pink Orange White/Blue White/Red Black Brown Blue Yellow Green Black / White |
|
Current capacity (A) - Fixing Method A Cables in conduit in a thermally insulated wall | N/A | |
Current capacity (A) - Fixing Method B Cables in conduit mounted on a wooden or masonry wall | N/A | |
Current capacity (A) - Fixing Method C Cable on a wooden or masonry wall | N/A | |
Voltage Drop (mV/A/m) | ||
Weight | 0.50 kgs | |
Manufacturers Part Number | SE1300/50 |
