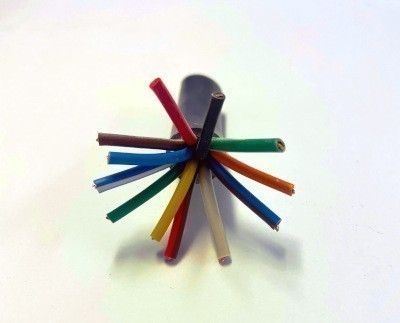

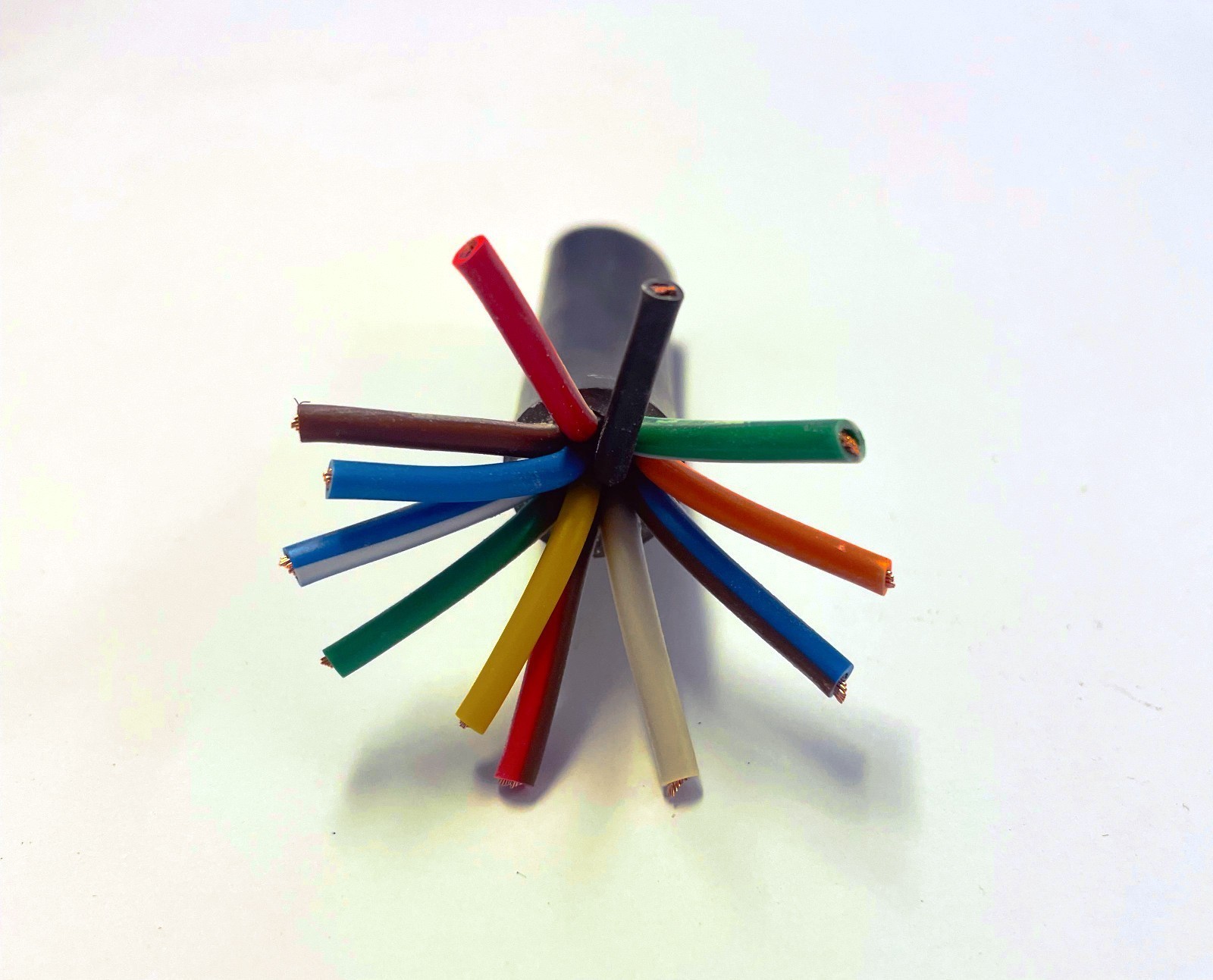

12 Core Trailer/Towing Cable
Usually Dispatched in1 working day
12 Core Trailer/Towing Cable suitable for use in 13-pin caravan and trailer connections. This is responsible for powering the external lighting on your caravan or trailer such as the indicators, brake lights and side lights and essential appliances such as fridges whilst you tow it.
See the table below for the wiring connections for this cable:
| Conductor Colour | Use |
|---|---|
| Yellow | LH indicator |
| Blue | Rear Fog |
| White | Earth Return |
| Green | RH indicator |
| Brown | Right Tail & Number Plate |
| Red | Stop |
| Black | Left Tail & Number Plate |
| Orange | Reverse Lights |
| White/Green | Power Supply Steady |
| White/Blue | Power Supply Switched |
| Brown/Blue | Earth Return for contact 10 |
| Brown/Red | Earth return for contact 9 |
Sold per metre, please enter required amount in quantity box
| No of Cores | 12 Core | |
| Conductor Area | 7 x 1.5mm & 5 x 2.5mm | |
| Sheathed? | Yes | |
| Sheath Colour | Black | |
| Conductor Colours |
Red White Orange White/Blue Brown/Red Brown/Blue White/Green Black Brown Blue Yellow Green |
|
| Current capacity (A) - Fixing Method A | N/A | |
| Current capacity (A) - Fixing Method B | N/A | |
| Current capacity (A) - Fixing Method C | N/A | |
| Voltage Drop (mV/A/m) | ||
| Weight | 0.50 kgs | |
| Global Trade Item Number | 5757854878 | |
| Manufacturers Part Number | WE220 | |
