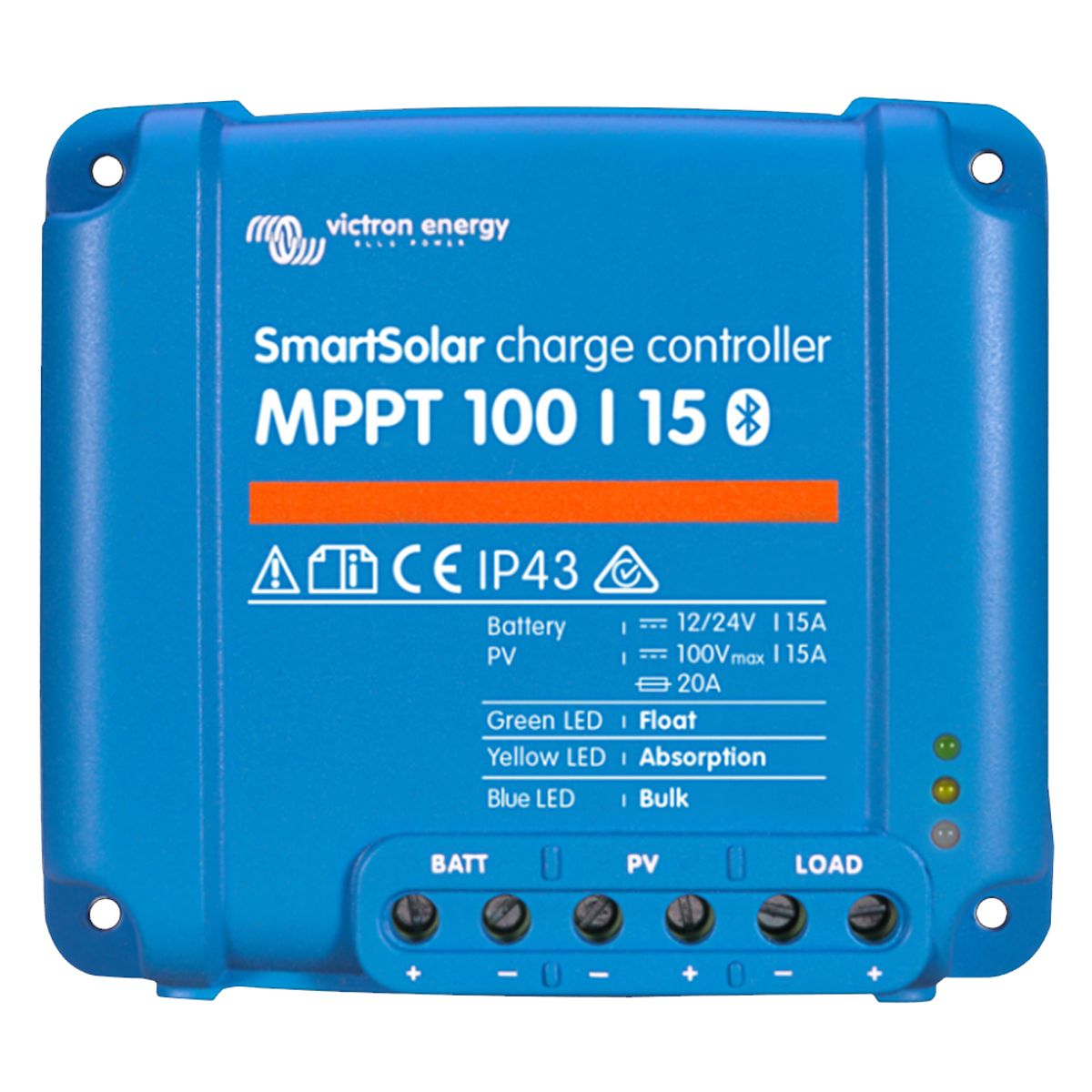

Victron 100/15 Smart Solar MPPT Charge Controller 15A

Victron 15A solar charger used to collect energy from your solar panel and stores it in your batteries. The technology ensures that every drop of power available is used out of your panels and harvested for storage.

It features fast technology to maximise the energy-harvest to achieve full charge in the shortest time possible. The charge controller will handle a maximum of 100V and 15A of solar panel output.

Specifications

• Nominal PV Power: 220W at 12V, 440W at 24V
• Voltage: Max PV input 150V DC, 12/24V self sensing output
• Efficiency: 98%
• Weight: 0.6kg
• Dimensions: (H) 100mm, (W)113mm, (D)50mm
• Operating temperature: -30°C to +60°C



---

Downloads

Click To Download product instructions
