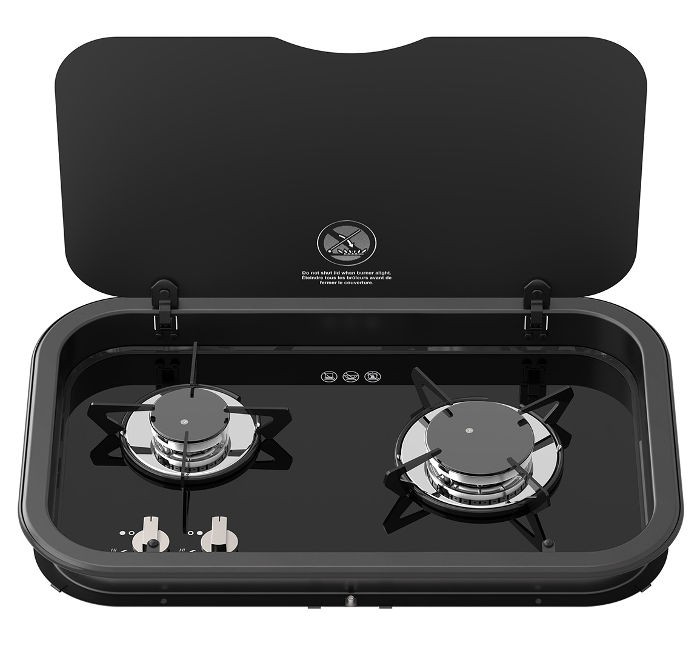

Thetford Topline 165 Hob - Hinged Long Side DENTED

Thetford Topline 165 Hob - Hinged Long Side DENTED

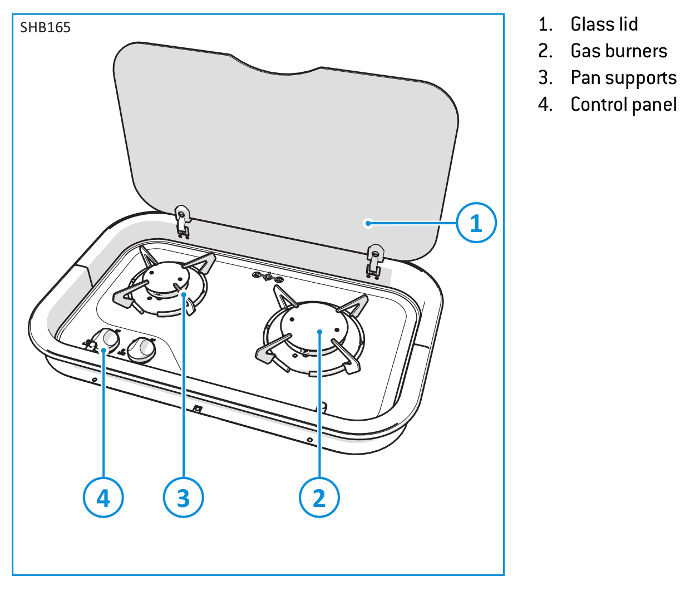

Thetford Topline 165 Stove with rear hinged lid Topline 165 Counter Cut-out dimensions Thetford Topline 165 can be fitted on shallow counter close to rear wall Thetford Topline 165 component layout Thetford Topline 165 with space for large pans on high power burner
SKU: 3180233368
£180.00 Inc. VAT
In Store OnlyLookup Store Location

A 2 ring gas hob with 1 x 1.5KW semi-rapid burner and 1 x 2.5KW high power gas ring. The Topline 165 stove has burners side by side and is only 361mm deep for installation on a shallow counter top.

This stove was returned because it was damaged in transit. There is a dent on one corner where the unit fits to the counter top. This is a brand new, unused item complete with counter seal, user manual and cutting template. The tape on the images is part of the normal packaging for this product. Available for collection from store only. Please call 0161 902 3026 to order.

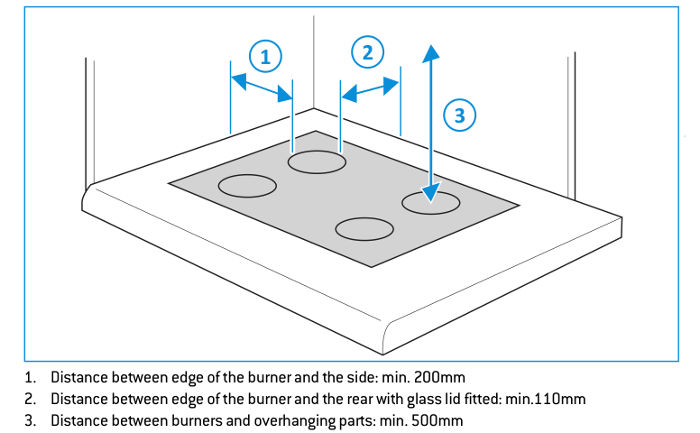

The glass lid also acts as a heat shield layer. So on this rear hinged version you only need to allow 110mm clearance between the back of the stove and the wall or bulkhead behind it.

Alternative version Thetford Topline 165 with Side Hinged Lid is available for fitment closer to side units.

The minimal dimensions make the Topline 165 ideal for use is small caravans and campervans while still catering for larger size pans.

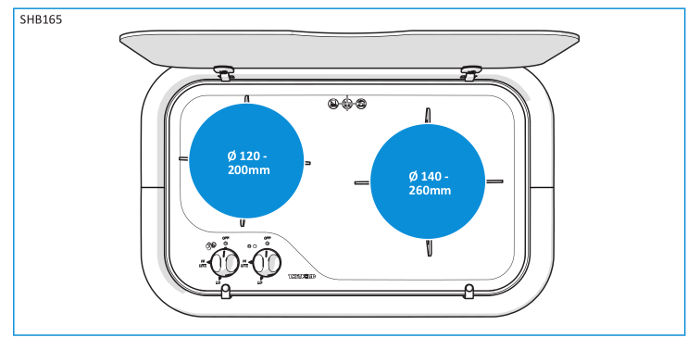

Thetford Topline 165 Pan Sizes

Left Gas Ring - Suitable for pans Ø120mm to Ø200mm
Right Gas Ring - Suitable for pansØ140mm to Ø260mm


Power SourceLPG (Propane 37mbar or Butane 28-30mbar)
Ignition12 Volt
Cooking Power1 x Gas Ring - 1.5 KW
1 x Gas Ring - 2.5KW


  • High quality materials and components
  • Contemporary home like design
  • Domestic size knobs and handles
  • Superior cooking performance
  • Easy to clean
  • Optimal use of space
  • Excellent finishing
  • 3 year warranty


Download - Thetford 165 Installation Manual

Download - Thetford 165 User Manual

Dimensions (W)576mm x (D)361mm x (H)106mm

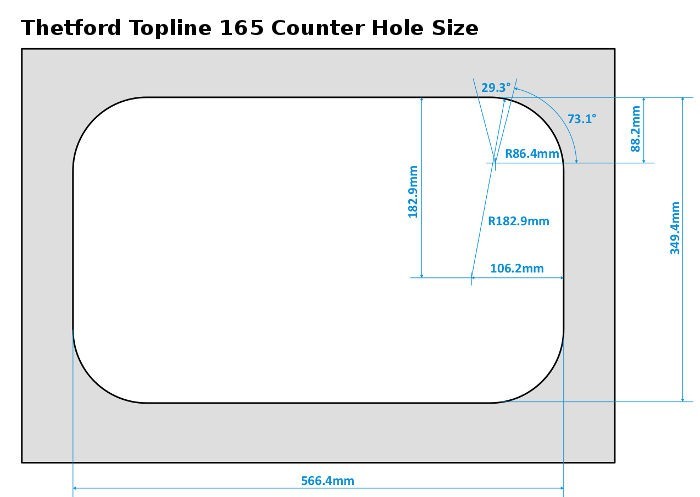

Counter Cut-Out Size (W)566mm x (D)349mm
Stove top material Black Glass with coated steel frame
Power Source LPG (Propane 37mbar or Butane 28-30mbar)
Power / Fuel Consumption MAX. 288g / hour
Rings / Burners 2 x LPG Gas Rings
Cooking Power 1 x Gas Ring - 1.5 KW1 x Gas Ring - 2.5 KW
Net Weight 8 Kg
Weight 2.50 kgs
Global Trade Item Number 5060252080972
Manufacturers Part Number SHB16548-SP
