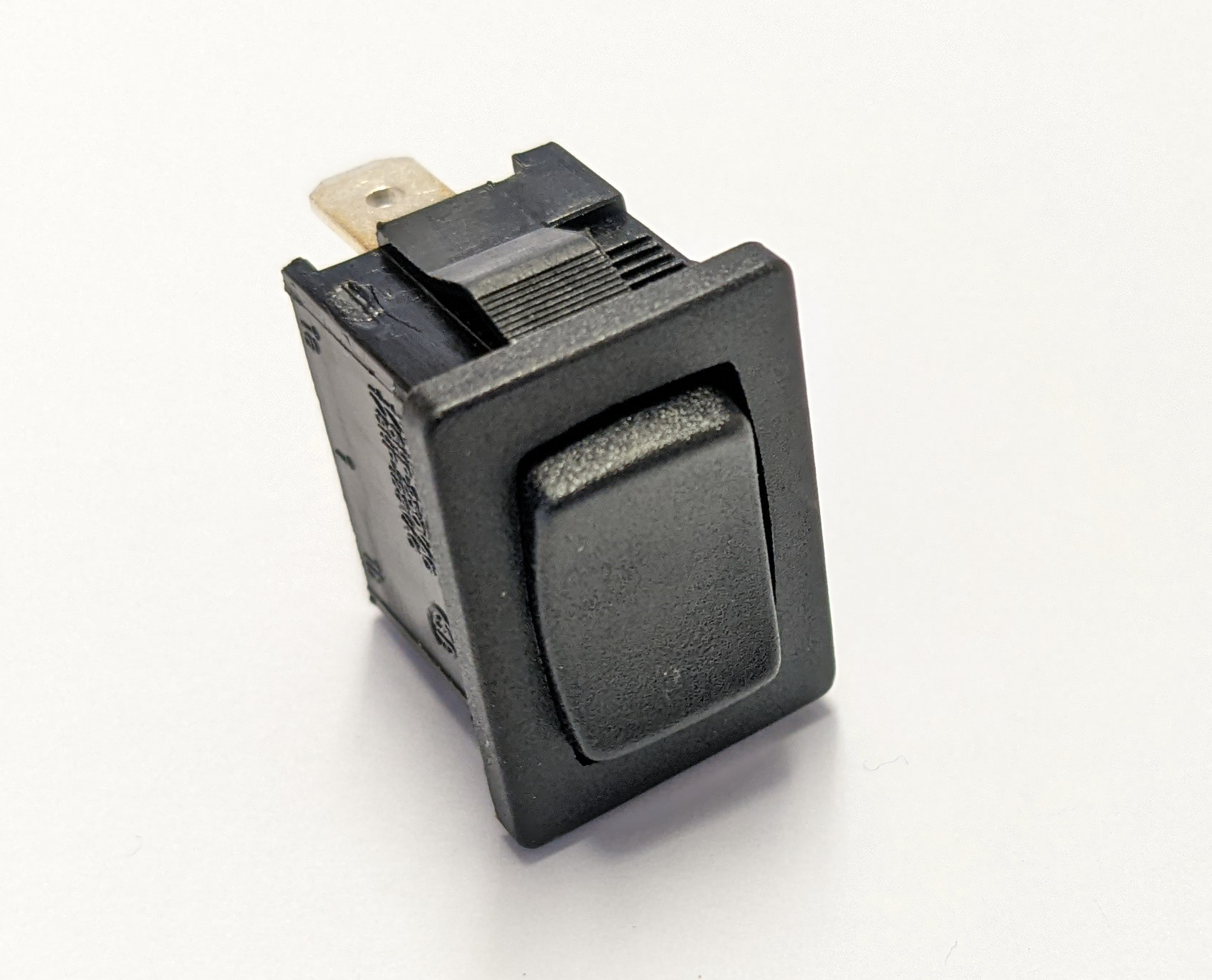

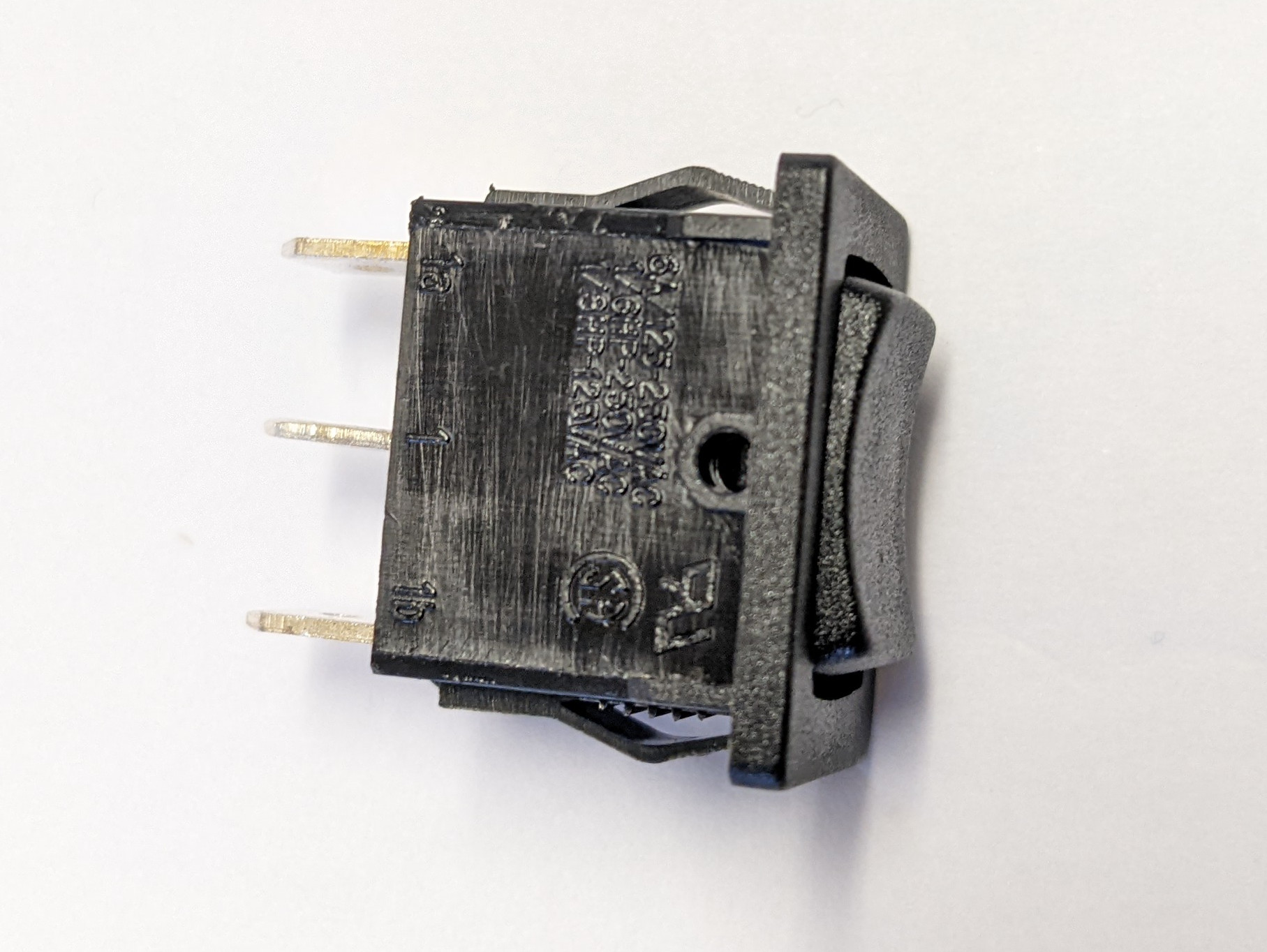

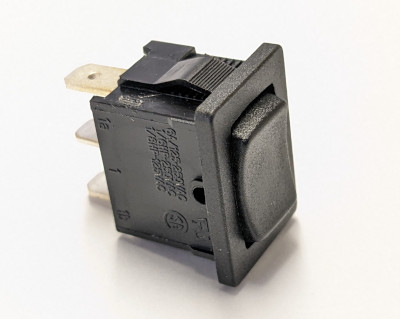

Small rectangular recess fitting 3 position rocker switch with centre position off. Suitable for mains 230V and 12V systems in caravans and motorhomes.
Switch centre position is off. Position 1 or 2 switch power to different output terminals so it can be used to switch power to different appliances or wired via a relay to give low and high power to one appliance.
Rectangular switch measures 21 x 15mm fits to 18.5mm x 13mm cut out hole and snap fits to materials upto 3mm thick.

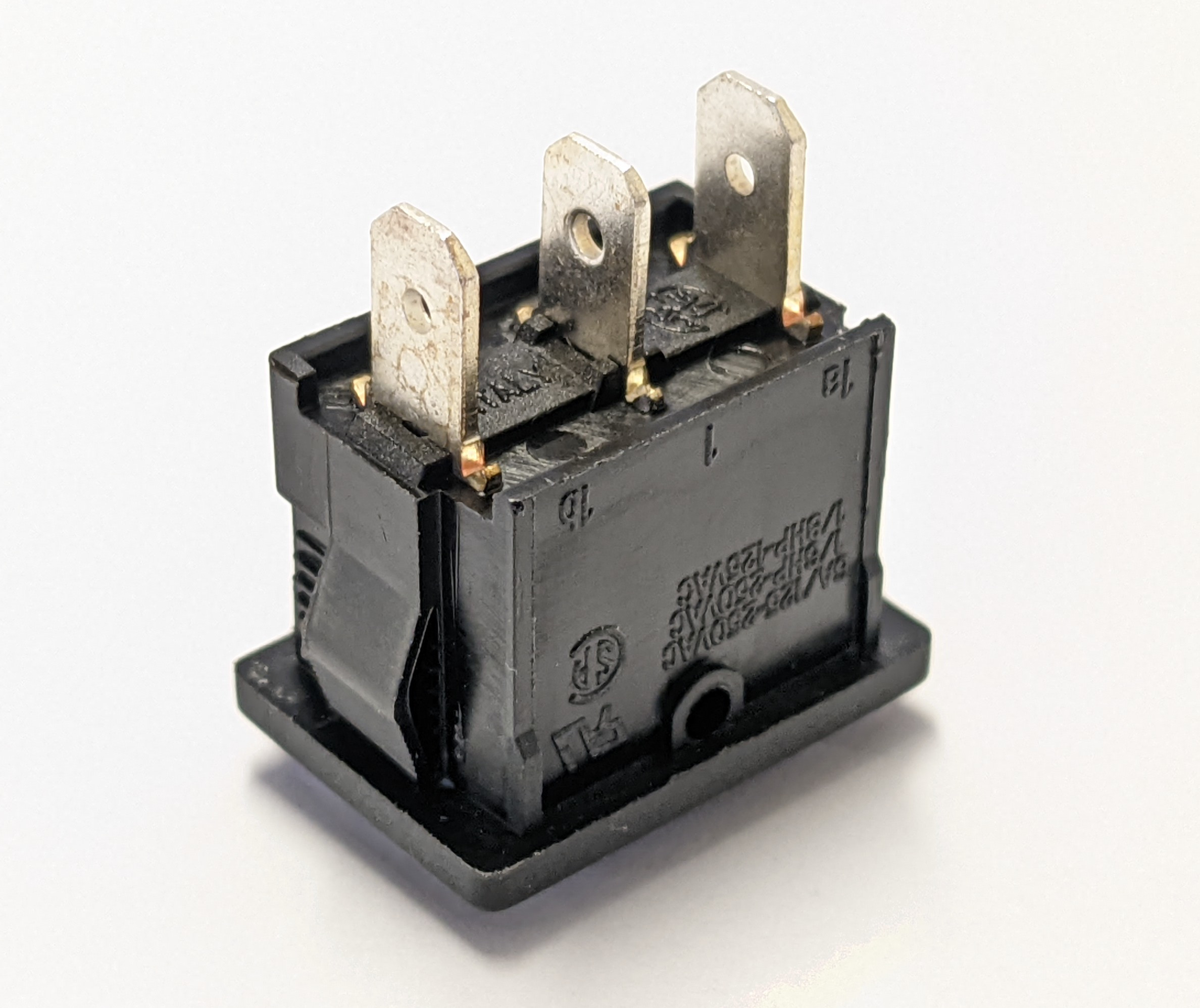

3 x 4.8mm male spade terminals on the back of switch to connect to power source and load(s).
