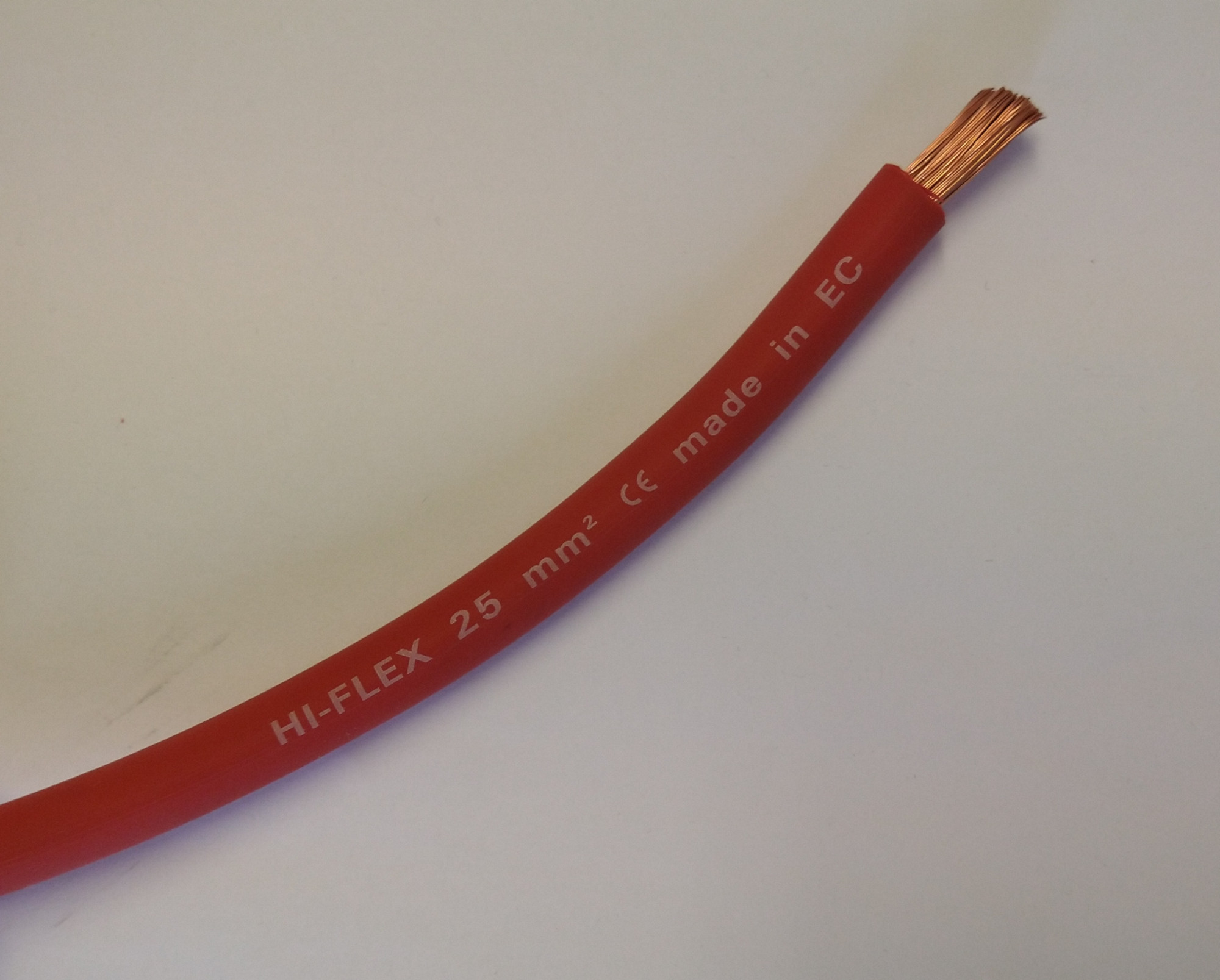

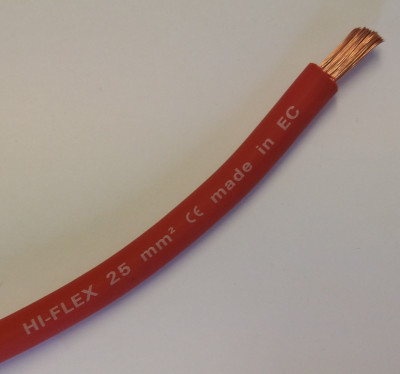

Single core PVC sheath cable with 25mm2 conductor area made up of 322 x 0.3mm strands. PVC outer sheath is resitant to abrasion, moisture, petrol / deisel, oil and diluted acids.
Common uses for this type of cable include:
Please note; the amount of current the cable can handle will vary depending on the placement of the cable within your vehicle, see our specification table for more information.
Sold per metre up to 10 metres. Please select required length using the dropdown menu above.
Cable ratings are based on a single cable and 30°C ambient temperature. If cables are grouped together or ambient temperature is higher, current capacity of the cable will be reduced.
For more information, please click here for our full Circuit Protection & Cable Selection guide
No of Cores | Single Core | |
Conductor Area | 25mm | |
Sheathed? | No | |
Sheath Colour | N/A | |
Conductor Colours |
Red |
|
Current capacity (A) - Fixing Method A Cables in conduit in a thermally insulated wall | 80 | |
Current capacity (A) - Fixing Method B Cables in conduit mounted on a wooden or masonry wall | 101 | |
Current capacity (A) - Fixing Method C Cable on a wooden or masonry wall | 114 | |
Voltage Drop (mV/A/m) | 1.75 | |
Weight | 0.25 kgs | |
Global Trade Item Number | 5500009065123 |
