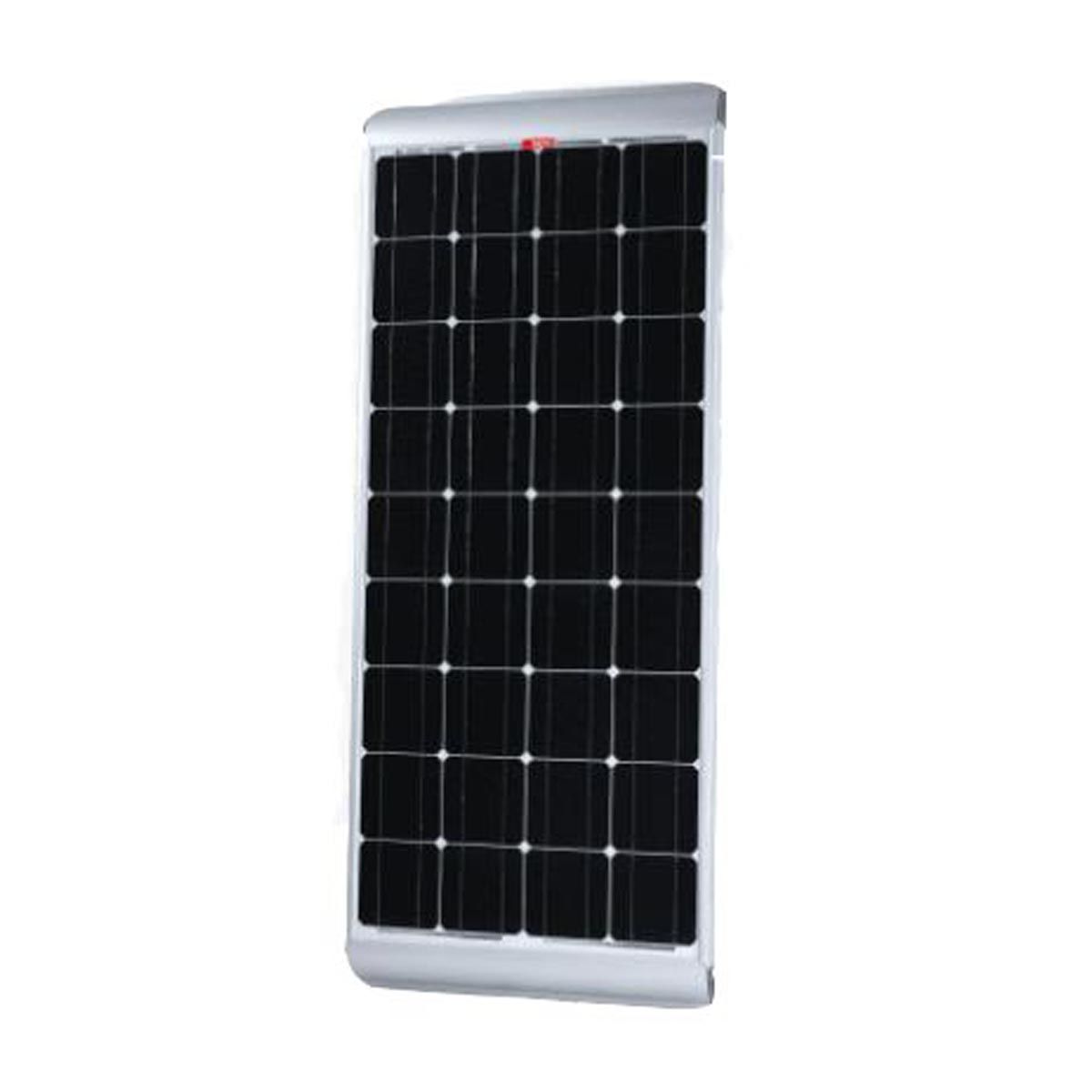

NDS PSM 100WP 12V Solenergy Solar Panel Kit

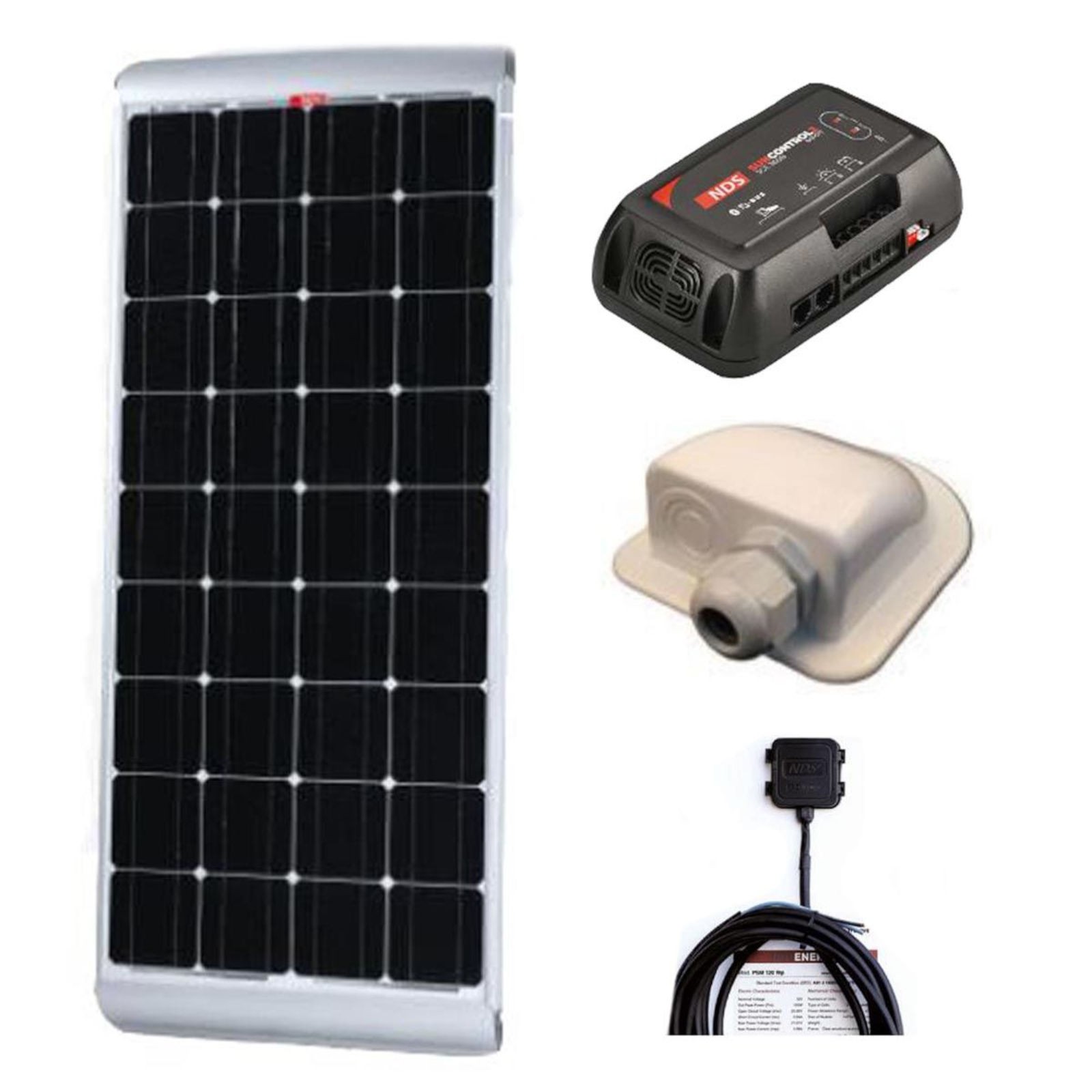

This NDS PSM 100WP 360 Solenergy 12V Solar Panel comes complete with gland, this protects wires or any drill holes in the roof from rainy weather conditions and a cable kit 6m long perfect for your caravan or motorhome. The panels are quick and easy to install, the use of some sort of adhesive is required as it is installed by bonding the panel on the roof. Will guarantee great performance once installed.

Its built in bracket ensures there is enough space from the surface of your caravan or motorhome giving enough ventilation of the cells to avoid any loss of performance. If the panel has poor ventilation this can cause a build-up of moisture that could lead to mould and mildew. Equally, in winter, freezing temperatures outside, paired with hot air inside can lead to water and infrastructure damage too. The NDS solar panels guarantee great ventilation once installed.

The panel is made up of 36 cells and these are designed to achieve maximum transmittance and transparency, which increases efficiency to 18.05%

Features special bypass diodes which allow the panel to continue working in the event of partial shading

Specifications

• Dimensions: (H)1320mm (W)530mm (D)60mm
• Weight: 9.5kg
• Cable length: 6m
• Voltage: Nominal voltage: 12V, open circuit voltage: 23.7V, max power voltage: 19.57V
• Amps: Short circuit current: 5.5A, max power current: 5.11A
• Material: High purity silicon coated with a tedlar foil and textured tempered glass all enclosed in two sheets of EVA (Ethylene Vinyl Acetate
