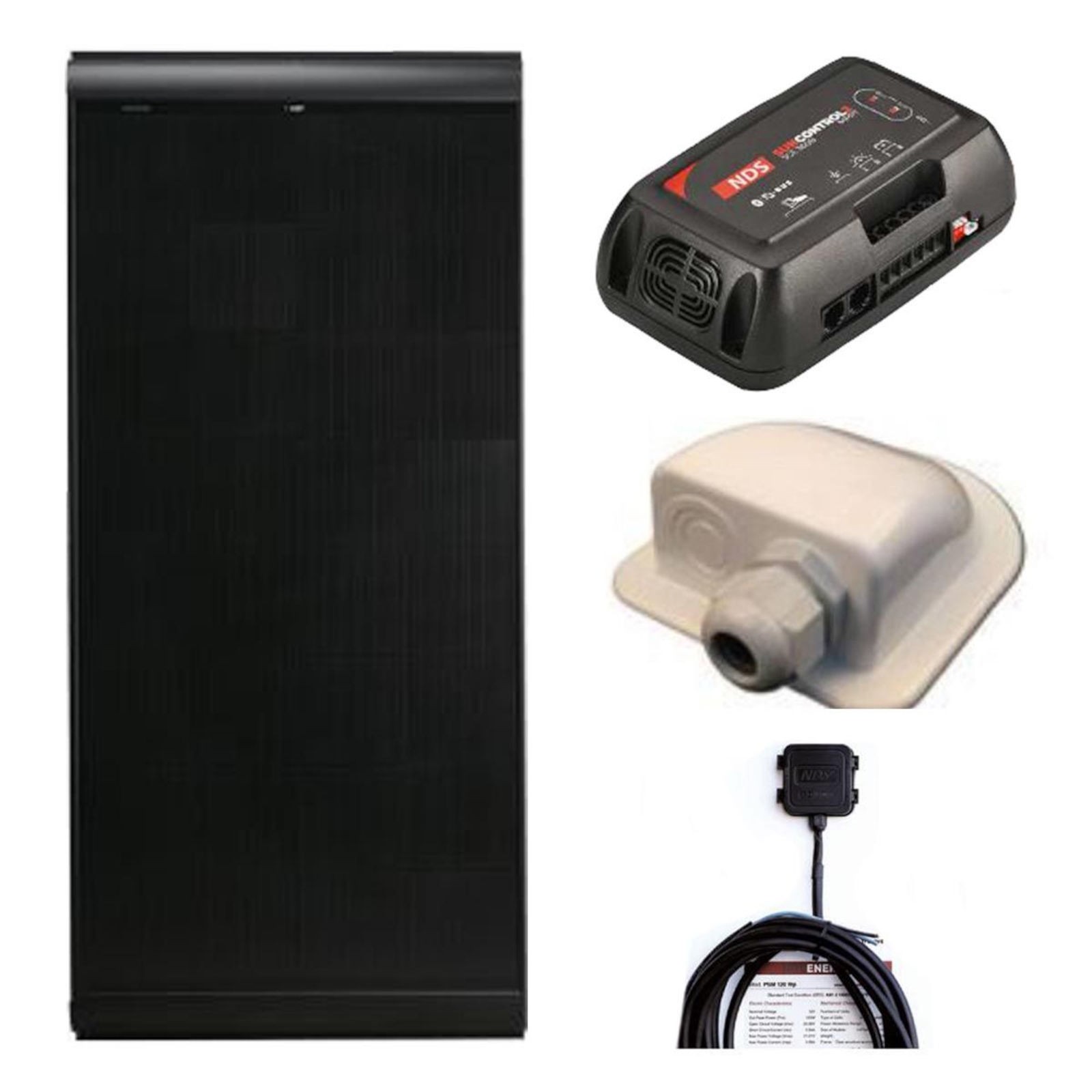

NDS BS 165WP Blacksolar Solar Panel Kit

165W 12 Volt solar panel kit ideal for use on your motorhome or campervan.

The Blacksolar monocrystalline panel uses the latest generation of high efficiency providing you with 19.5% efficiency.

Comes complete with mounting brackets to be bonded onto your motorhome roof making installation quick and easy. The brackets allow enough distance from the motorhome roof to allow plenty of ventilation of the cells to avoid any loss of performance. If the cells do not get enough ventilation this can cause a build-up of moisture that could lead to mould and mildew. Equally, in winter, freezing temperatures outside, paired with hot air inside can lead to water and infrastructure damage too, these top of the range panels prevent this from happening.

Each panel includes 6m bipolar connection cable suitable for all weather conditions, and comes complete with gland to protects wires or any drill holes in the roof from rainy weather conditions and a cable kit 6m long perfect for your campervan or motorhome.

The panel is made up of 32 cells and these are designed to achieve maximum transmittance and transparency

Specifications

Voltage

• Nominal voltage: 12V
• Open circuit voltage: 21.6V
• Maximum power voltage: 17.84V

Amps

• Short circuit current: 9.78A
• Maximum power current: 9.25A

Dimensions

• Height: 1495mm
• Width: 680mm
• Depth: 60mm
• Weight: 14kg
