Caravan Mains Electric Inlet - Flush Fit Rectangular White

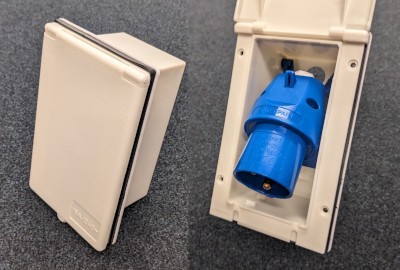

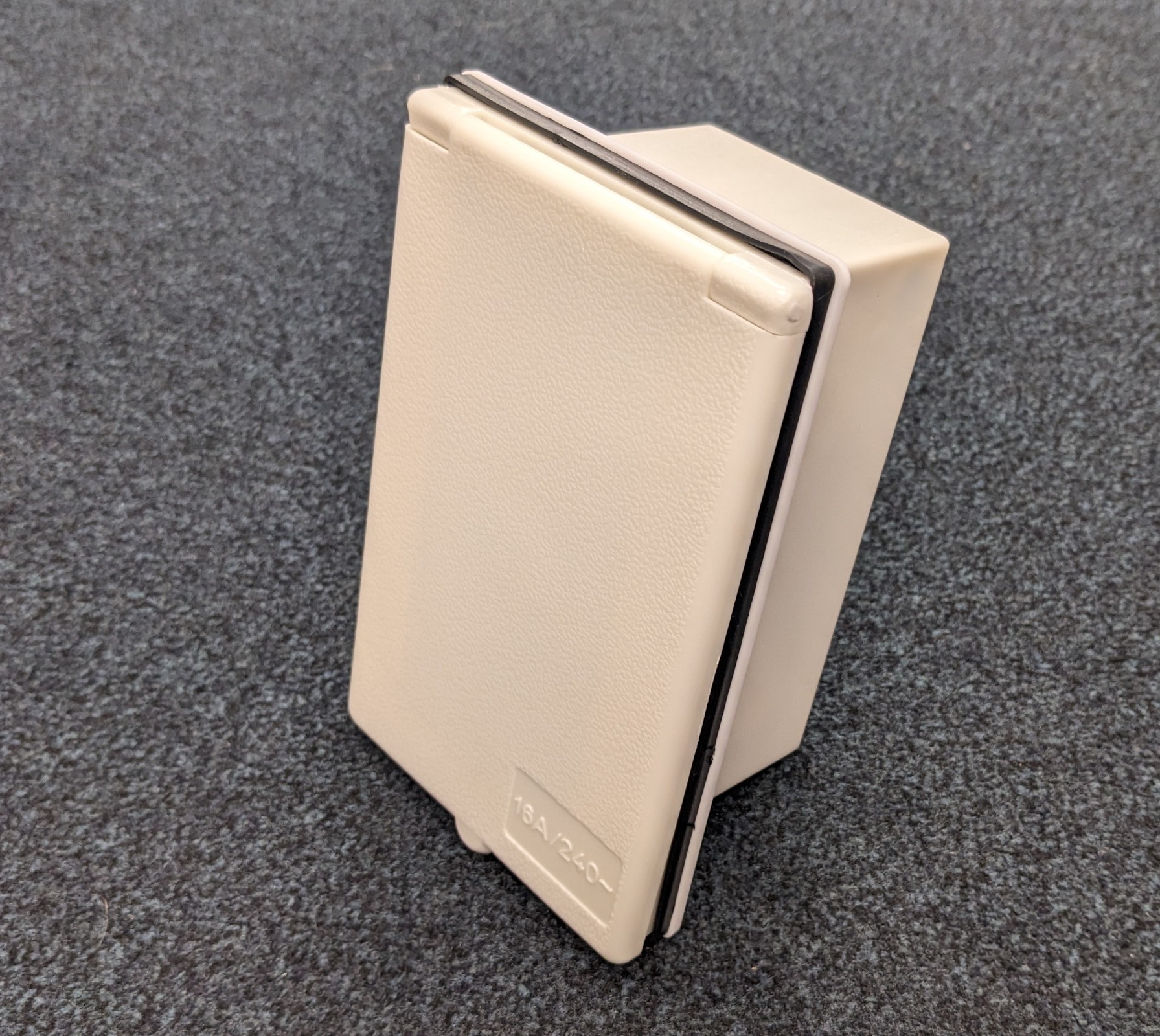

Mains electrics inlet box for caravans and campervans. Flush fitting rectangular unit is installed on the exterior of the caravan and provides an attachment point to connect your campsite mains cable.

Dimensions

• Aperture / Cut out size: (W)70mm x (H)135mm
• Outer Dimensions: (W)100mm x (H)160mm
• Screw hole horizontal distance: 87mm
• Screw hole vertical distance: 103mm

Rectangular mains inlets have standard size housing / cut out dimensions. The cover flap may be different size but the housing dimensions are standard.

If replacing an existing unit, measure the housing on your inlet and not the cover to check this unit is a suitable replacement.
